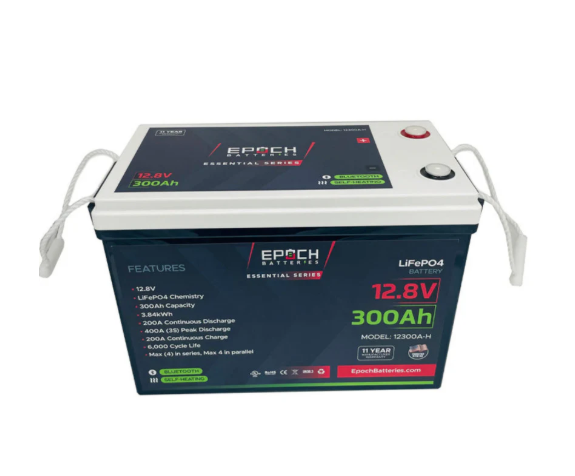

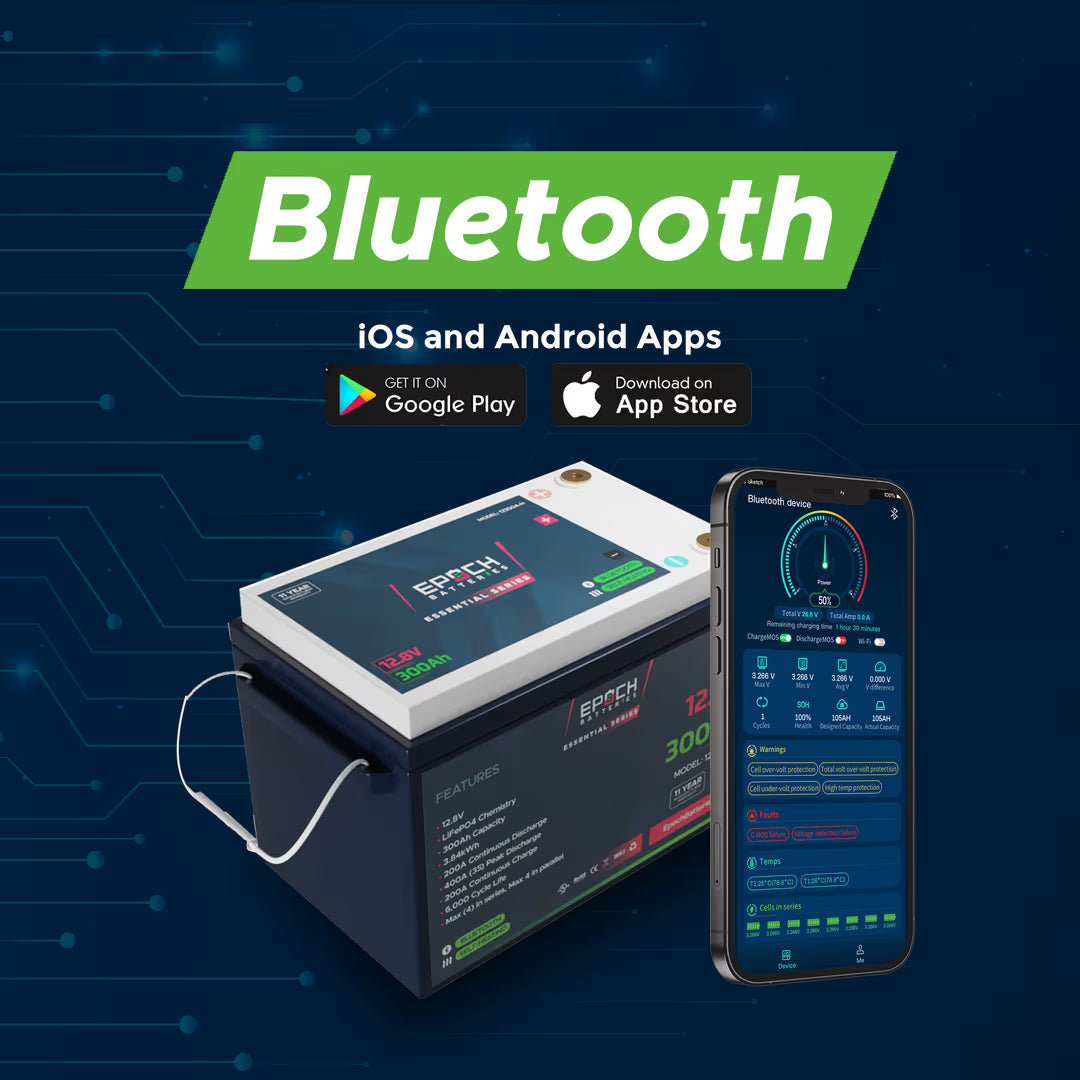

Epoch Batteries - 12300A-H -12V 300Ah - Bluetooth & Heated LiFePO4 Batt

Cell Configuration: 4S1P

Chemistry: LiFePO4

Current

Ah Capacity: 300Ah

Max Continuous Discharge Amps: 200A

Max Charge Current Amps: 200A

Max Discharge Peak Current Amps: 400A (3 Seconds)

Series | Parallel: Max (4) in Series, Max (4) in Parallel - 4S4P

Voltage

Voltage: 12.8V

Max Charge Voltage: 14.6V

Operating Voltage Range: 10.0 - 14.6V

Temperature

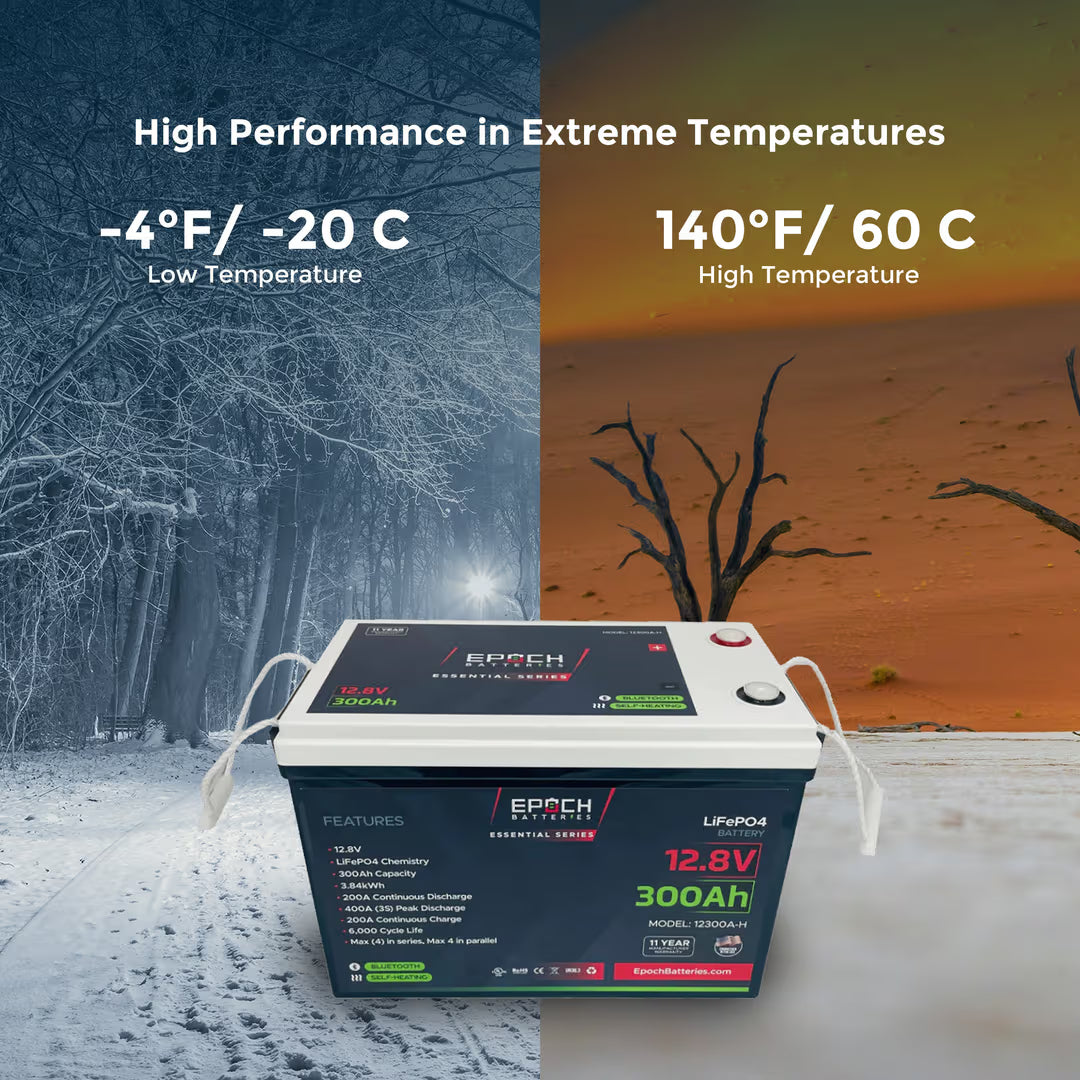

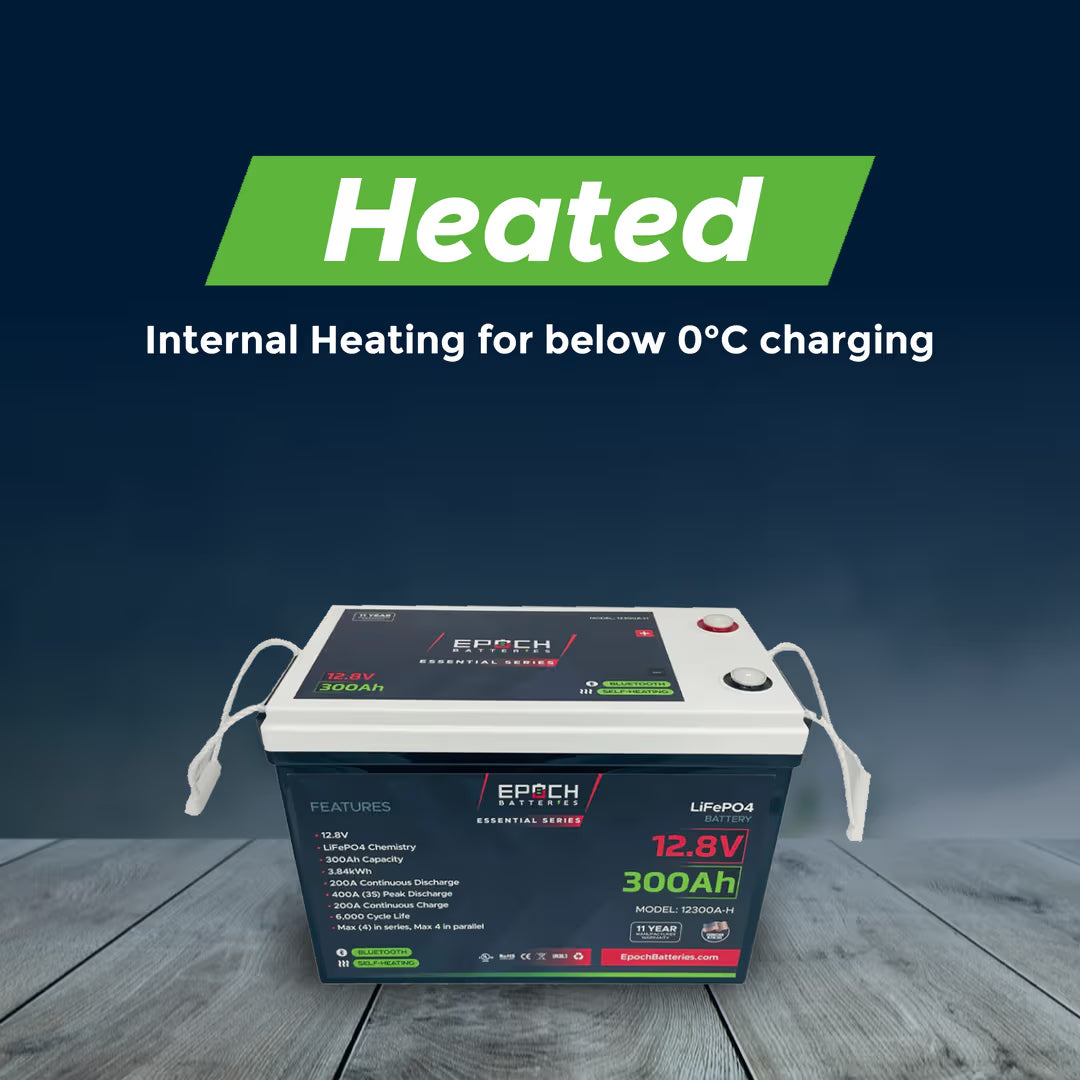

Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)

Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)

Storage Temp: 0°C (32°F) / 35°C (95°F)

Weights & Dimensions

Weight: 58 (LBS)

Dimensions

Length: 13.75" @ Base, 15.5" @ Handles (inches)

Width: 7.75 (inches)

Height: 10.5 (inches)

Recommended Charging Settings

• To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
• Bulk/Absorption: 14.2V – 14.6V
• Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
• Float: 13.4V – 13.8V
• Equalization: 14.4V/ Disabled
• Temperature Compensation: 0/Disabled
• Charge Rate: 50% of the battery or battery bank capacity
• Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
• Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
• Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
• NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.

• Compatible Charger

  12V 15A Battery Charger - Epoch Batteries-CHG-12V15A
