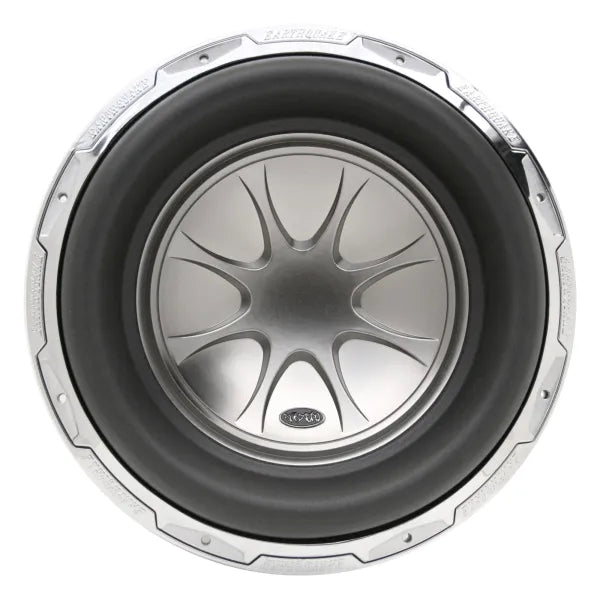

Earthquake Sound - HoLeeS-15 Subwoofer

Description

The Earthquake HoLeeS-15 is a gigantic subwoofer driver with spectacular properties. Have you reached the audio evolutionary stage where only the best and most extreme can get your attention? – Then you’re ready for HoleeS. The HoLeeS-15 is an ultra-high-impact shockwave generator that easily hammers any LFE material in detail with no compression at explosive sound levels. HoleeS is the ultimate combination of dynamic surplus and detailed reproduction.

HoLeeS is a tour de force of how advanced design and technology can come together to create superior sound quality. All design aspects have been perfected to the smallest detail, resulting in revolutionary woofer performance. HoleeS is capable of an incredible 4″ excursion. With an excursion of this magnitude, HoleeS produces levels of bass unattainable by conventional woofers. The extreme excursion ability, coupled with the unique suspension, makes HoleeS extremely transient proficient. Even a light touch on the cone easily moves it several centimeters. This ease of movement, combined with the ultra-powerful magnet system, results in a spectacularly fast and precise response. HoleeS is free of the mechanical and electrical constraints inherent to typical woofers.

NOTE: The HoLeeS is a made-to-order product. Please allow 1 to 2 business days for assembly.
Product Features

    Super wide edge poly-ether surround
    Triangular lattice helps eliminate wobbles and offset caused by non-linear movement
    Spider ring design increases linear position of spider
    Patented PSP (Parallel Series Parallel) terminal for easy speaker wiring and impedance selection
    Aluminum bobbin built voice coil
    Military-grade flat surface wire
    30 day limited manufacturer’s warranty

Specifications

    Size: 15″
    Max Power: 15,000 Watts
    RMS Power: 7,000 Watts
    Impedance: Dual (2 x 1-Ohm) voice coils
    Sensitivity: 87.4 dB
    Recommended Enclosure Type: Ported / Vented
    (4) Quad Nomex/Romex spiders
    8 gauge speaker terminals

Parameters

    Revc: 2.000 ohm
    Levc: 6.363 mH
    Fo: 23.581 Hz
    Sd: 89.000 msqM
    BL: 21.285 TM
    Qms: 4.846
    Qes: 0.380
    Qts: 0.352
    No: 0.295%
    SPLo: 86.7dB
    Vas: 3.117 CuFt
    Cms: 78.468 uM/N
    Mms: 580.5293g
    Mmd: 565.262 g
    Xmax: 4″ Peak to Peak

Dimensions

    Net Weight: 120 lbs
    Mounting depth: 14.5″ (396mm)
    Cutout diameter: 14.56″ (396mm)
