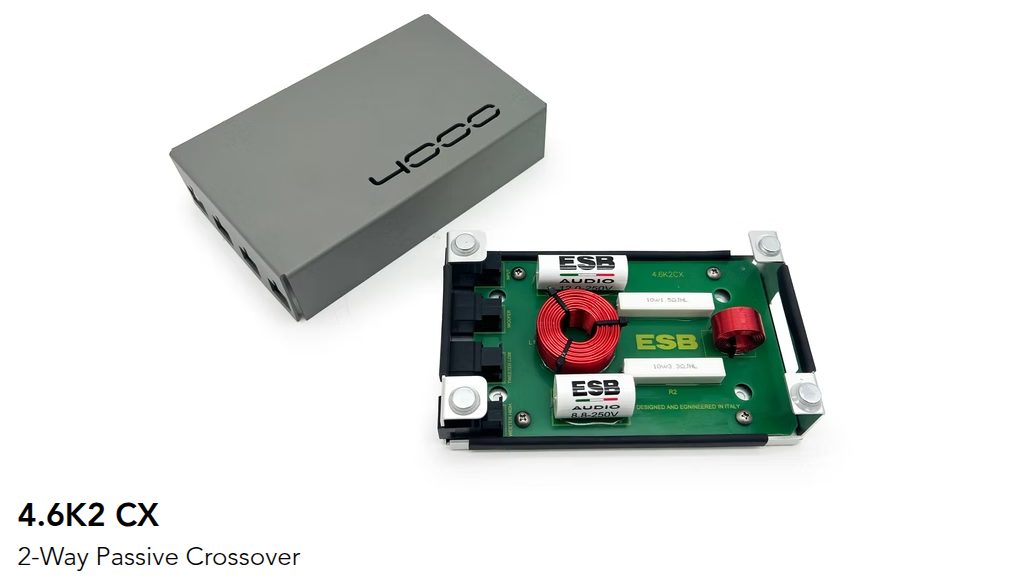

ESB Audio | 4.6K2 CX | 2-Way Passive Crossover

ESB Audio | 4.6K2 CX | 2-Way Passive Crossover

$349.99 USD
$349.99 USD
Sale Sold out

Main Features

The 4.6K2 CX is used in 2-way speaker systems with 4.165 as woofer, and 4.28 as tweeter. A double tweeter otput terminal (T-High and T-Low) offers two output levels options.
- Oversized and Non-Inductive Resistors
- Mylar Dielectric Capacitors
- 2 Step Tweeter Level Adjustment

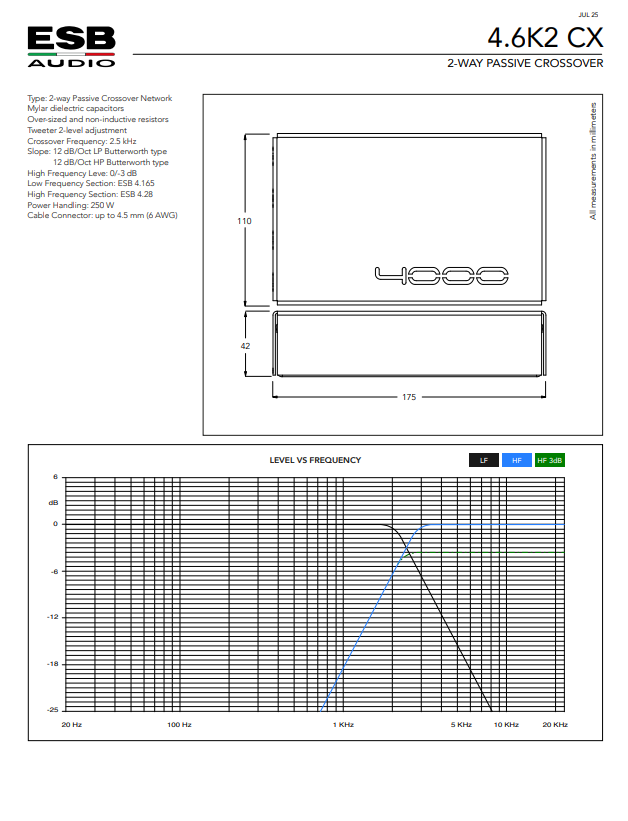

Technical Specifications

  • Crossover Frequency: 2.5 KHz
    - Slope: 12 dB/Oct LP/HP Butterworth
    - High Frequency Level: 0/-3 dB
    - Low Frequency section: 4.165
    - High Frequency section: 4.28
    - Power Handling: 250 Watt
