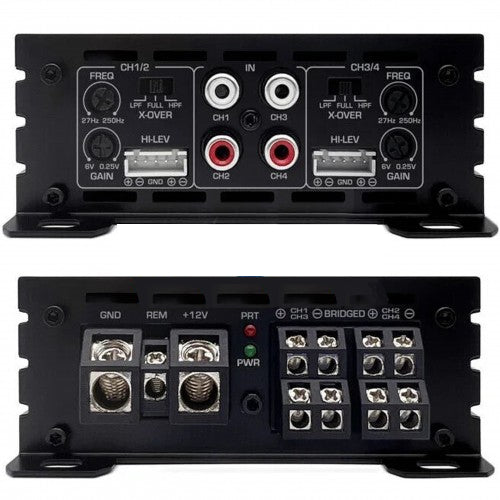

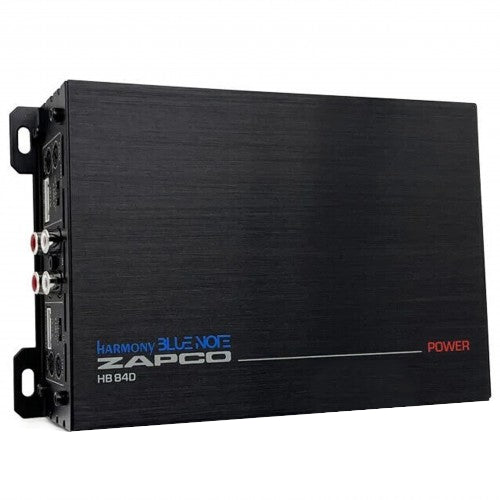

Zapco | HB-84D | 4-Channel | 480W RMS | Harmony Amplifier

Features and Functions

- 4-Channel, Full Range, Class D
- RCA and Speaker Level inputs
- Variable input gain control
- Variable electronic crossover

Technical Specification

- Power @ 4Ω: 4 x 75 watts RMS
- THD @ Rated Power < 0.5%THD
- Power @ 2Ω: 4 x 120 watts RMS
- Power Bridged @ 4Ω: 2 x 240 W RMS
- Signal to Noise Ratio > 95dB
- THD + Noise < 0.1%
- Frequency Response 15Hz to 30KHz ±1dB
- Input Sensitivity .25v to 6v (Low)
- Dimensions: 6.29" (L) x 4.52" (W) x 1.77" (H)
