Stetsom - High Line DSPLAYER 400.4 - Amp with DSP, Bluetooth, FM Radio,App Control
DSPLAYER was designed to enhance your audio experience, providing amplification and superior sound quality through its multimedia features and multiple audio input connections.
The amplifier includes advanced digital processing capabilities with built-in multimedia features.

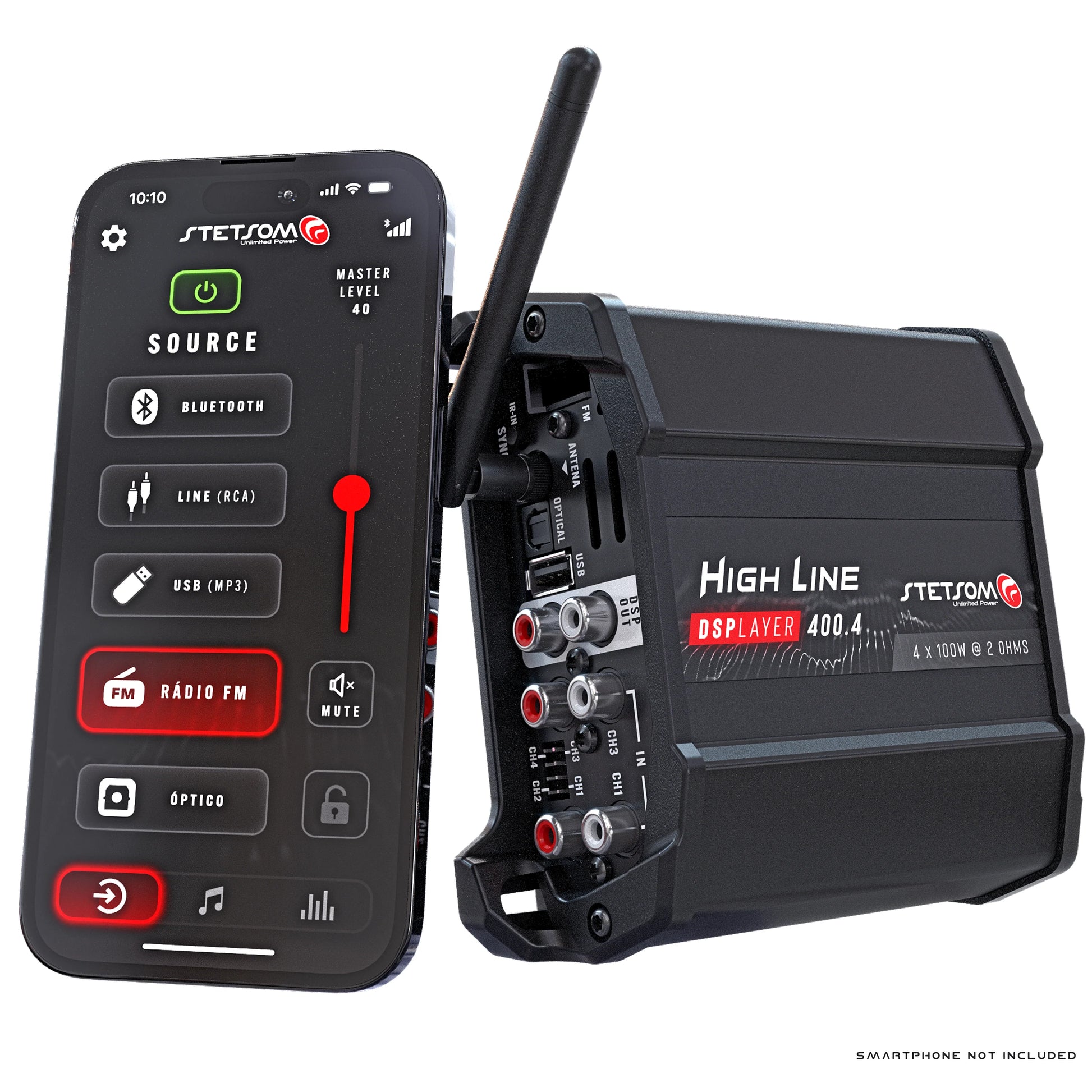

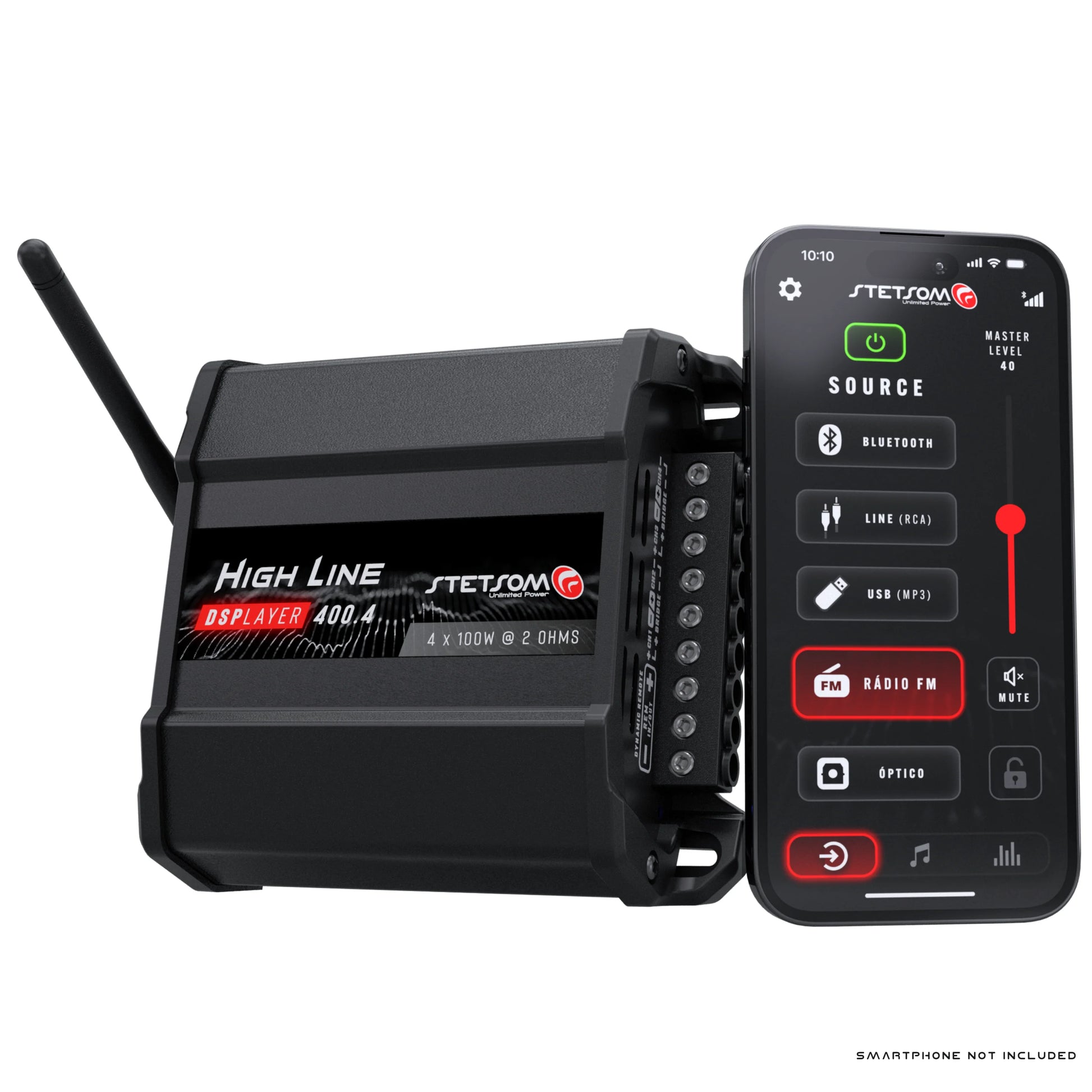

Its dedicated app offers full control over functions and professional audio adjustments. Key features include:

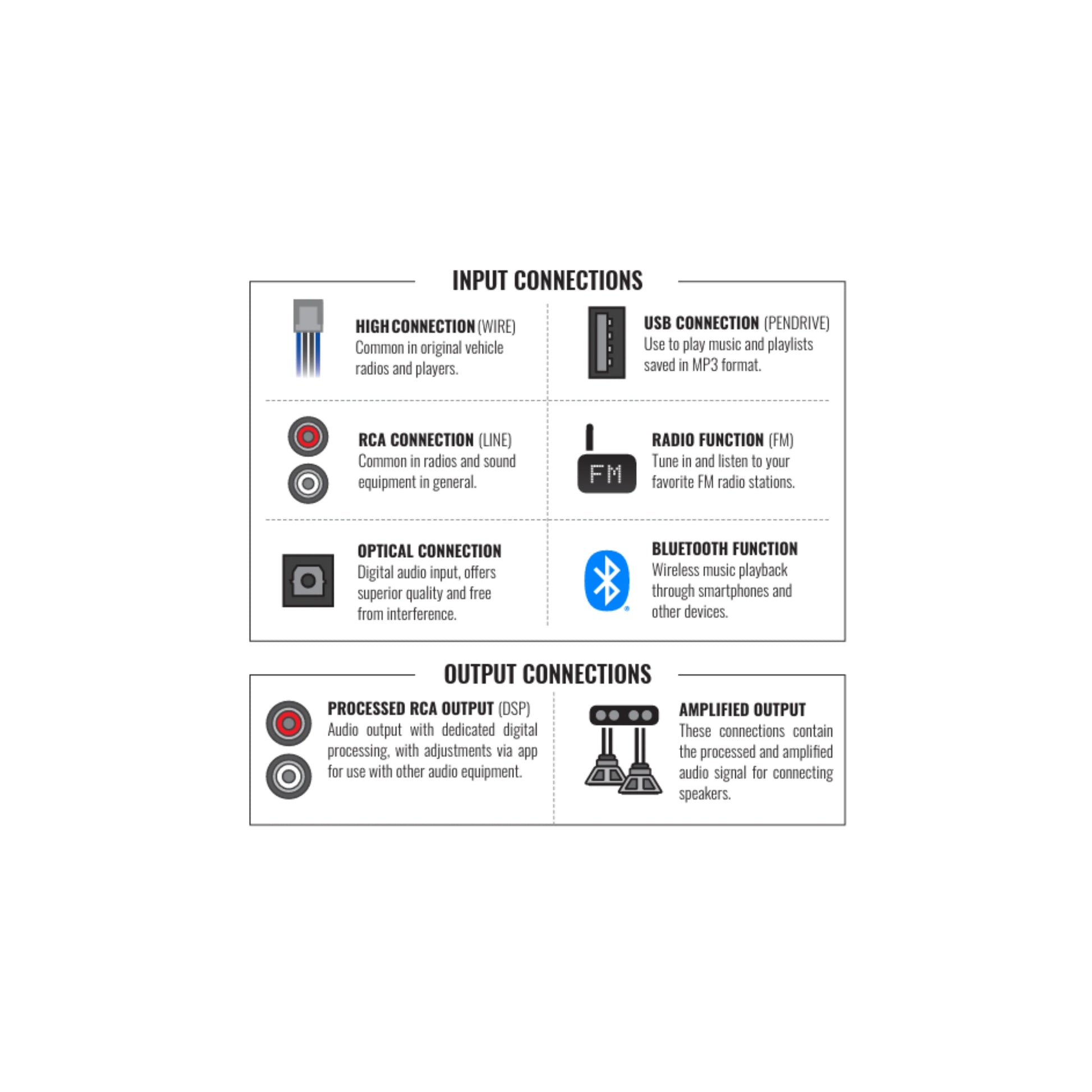

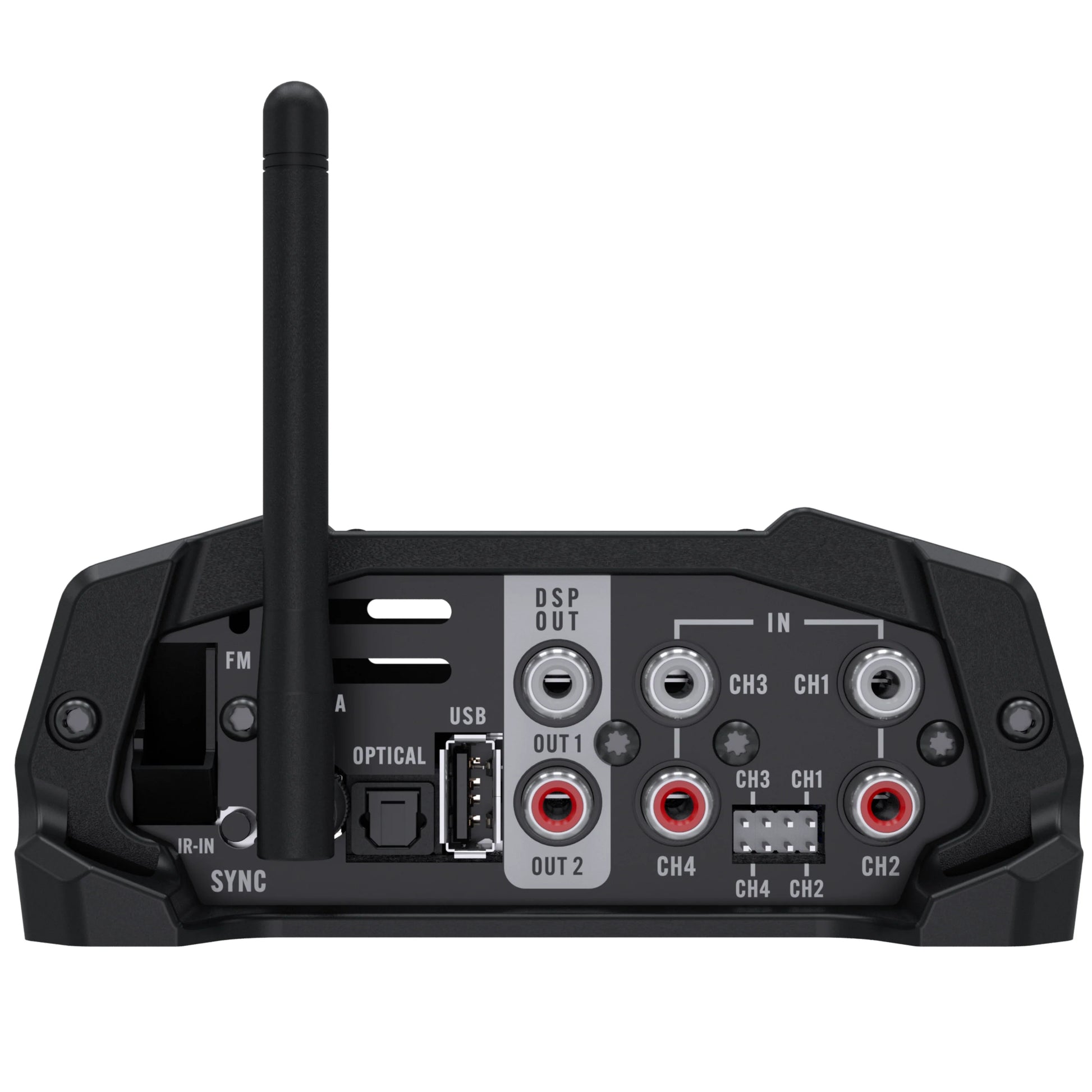

• Traditional RCA and WIRE audio inputs
• High-fidelity Optical audio input
• USB connection for MP3 music playback
• Bluetooth connection for wireless music streaming
• Dedicated input for long-distance control*
• DSP OUT audio output with processed audio signal, ideal for connection with other devices
• FM radio with favorites mode
• EQ, LEVEL, PHASE, DELAY, and CROSSOVER adjustments with channel configuration options for CAR AUDIO and SPEAKER/BOB
*Compatible with STETSOM ALCANCE CONTROL, sold separately.

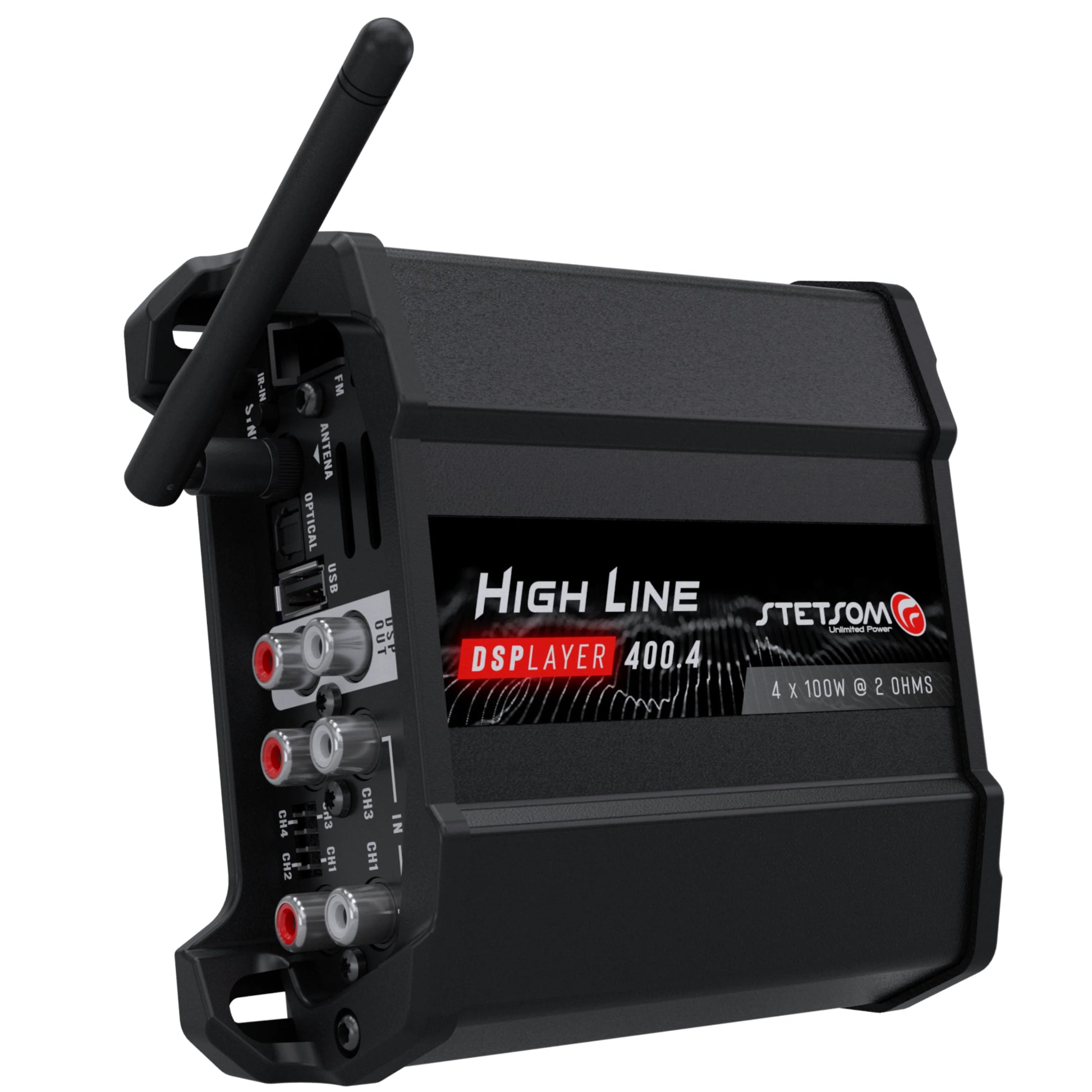

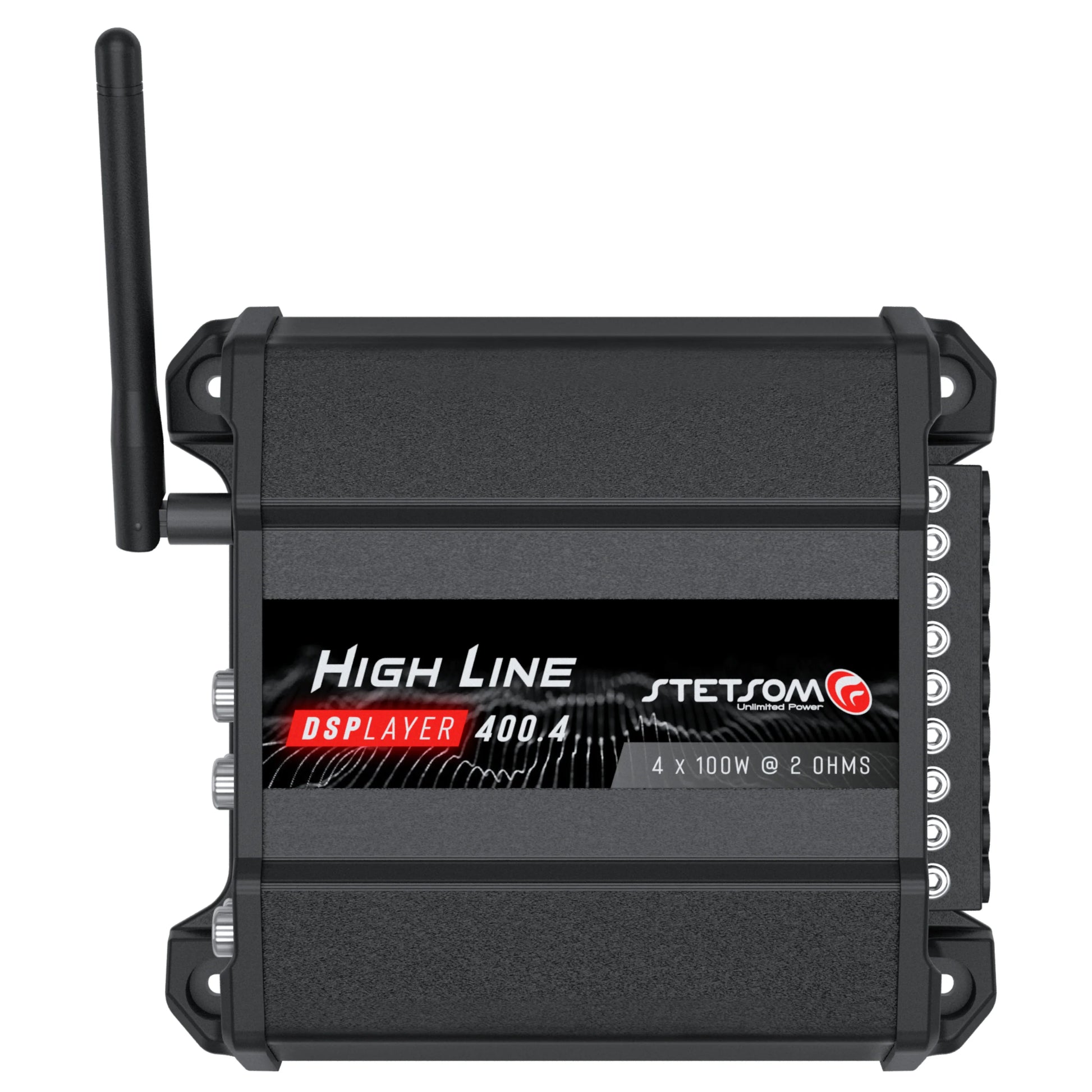

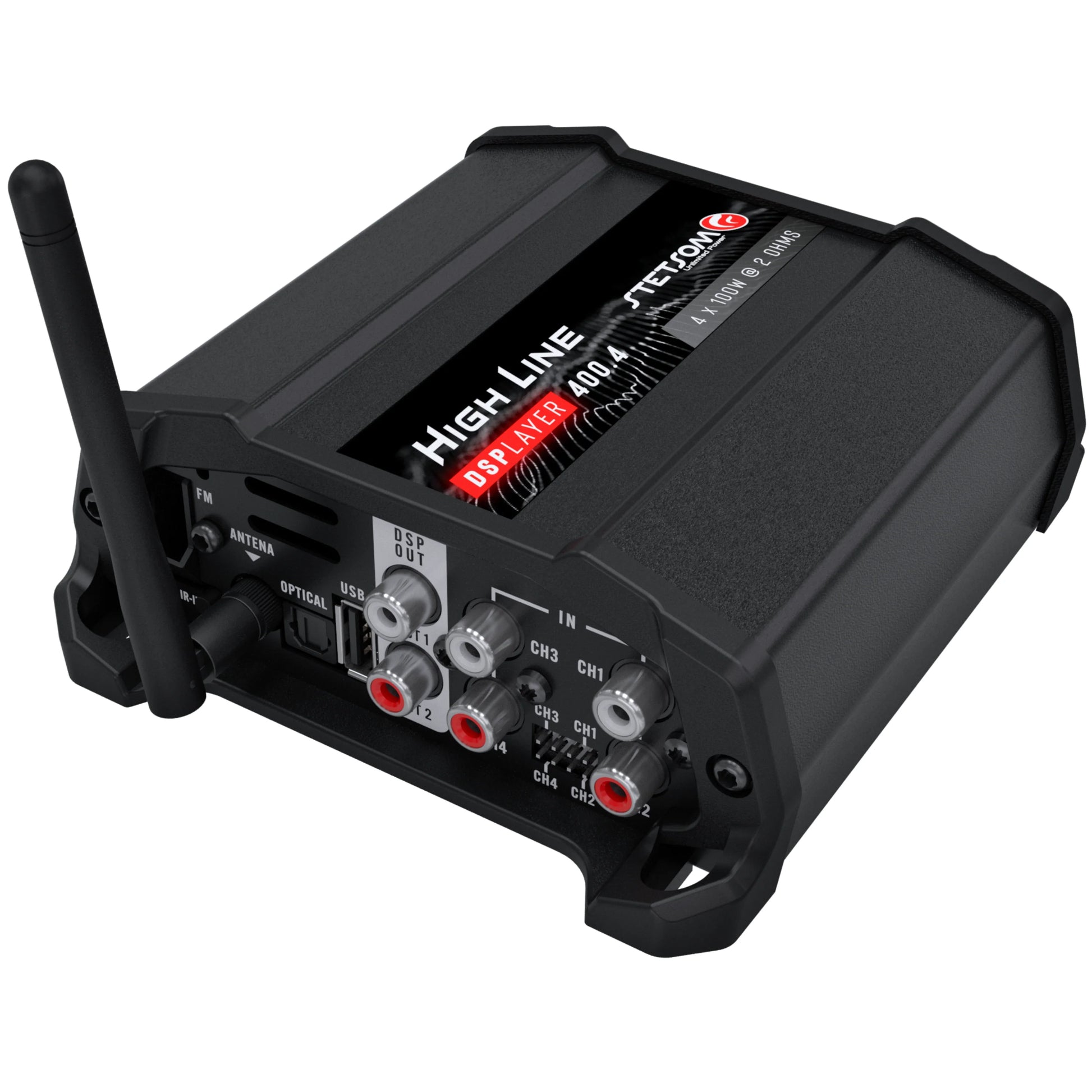

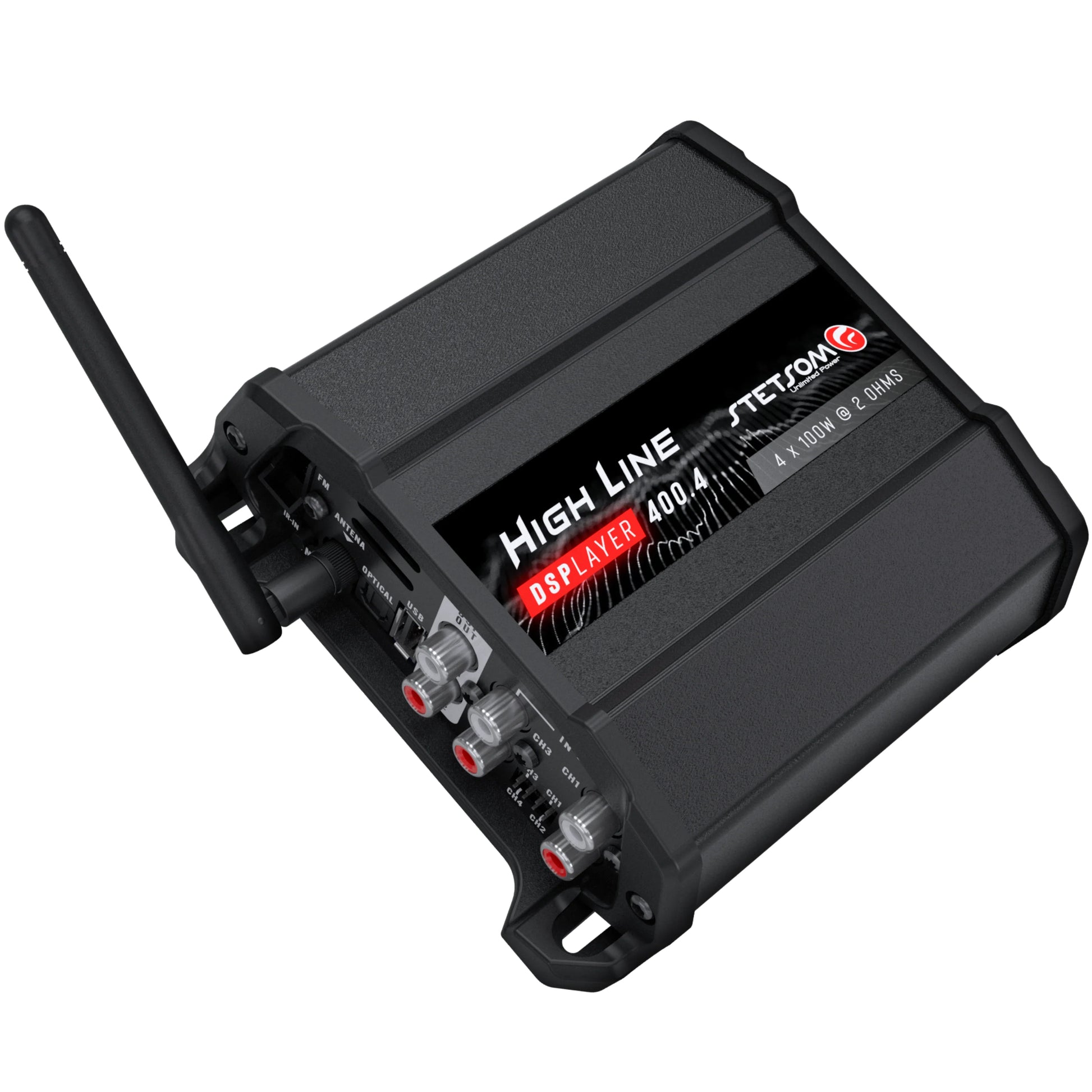

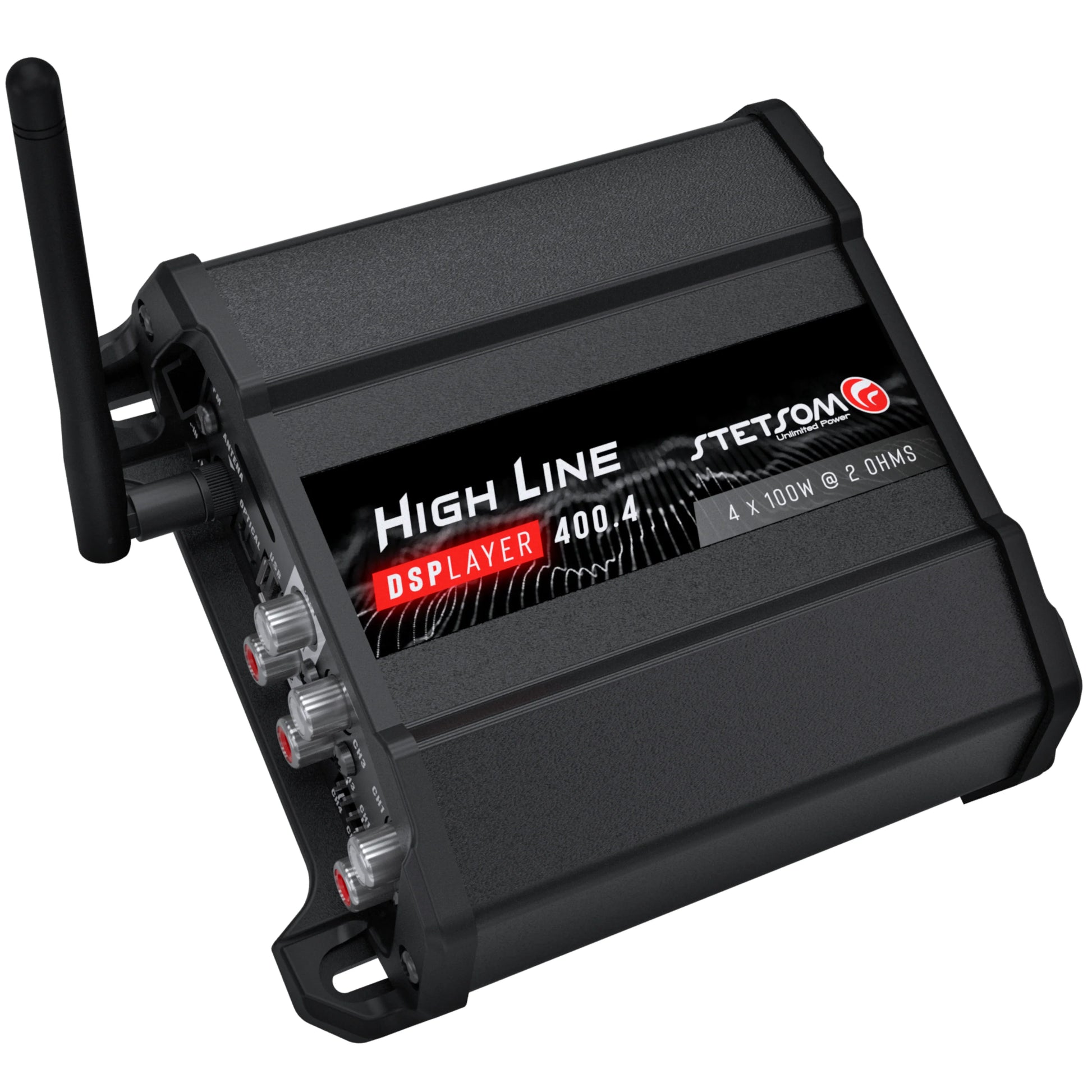

Introducing the HL400.4, the latest audio amplifier in the HIGH LINE family!

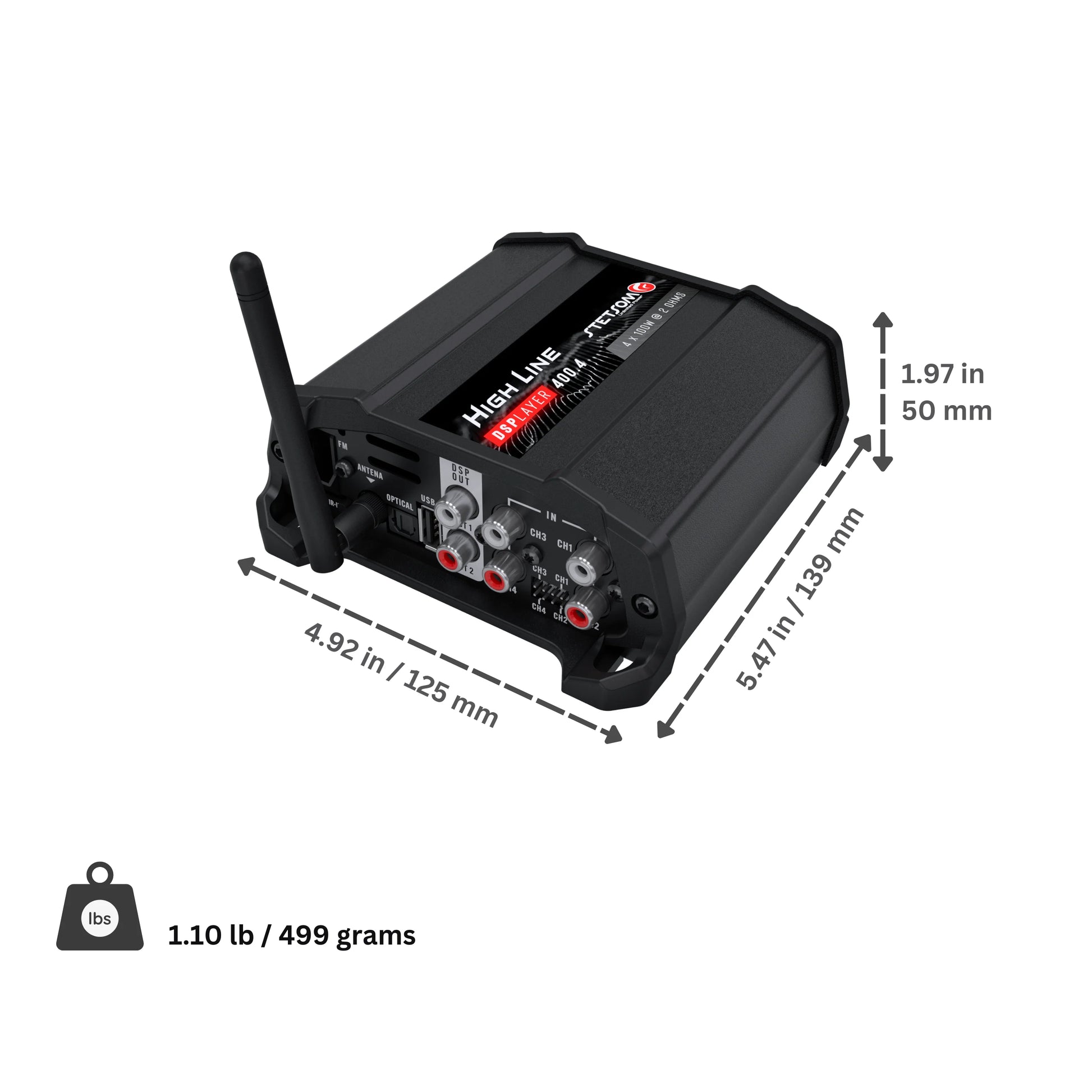

The HL400.4 is designed to deliver exceptional performance with superior audio quality even with its compact size. With 4 channels of amplified outputs and frequency response from 5Hz to 24Khz, it offers flexibility for use in STEREO or BRIDGE.
Ideal for complete audio systems, such as coaxial speakers, triaxial speakers, subwoofers, woofers, drivers or tweeters, it offers the versatility to use a single amplifier.
HD Audio Processing: Enjoy precise, high-fidelity audio reproduction, with well-defined mids and clear highs.
CROSSOVER Controls: The amplifier features CROSSOVER switches, allowing precise frequency adjustments to meet specific system needs.
CH1 & CH2 CHANNELS (MODES):
FLAT: No frequency cuts L.P.F: 90Hz frequency (fixed)
H.P.F: 90Hz frequency (fixed)
CH3 & CH4 CHANNELS (MODES):
FLAT: No frequency cuts
L.P.F: Frequency from 30Hz to 75Hz (variable) + 14dB Bass Boost (Output with low frequency adjustment, ideal for use with SUBWOOFER)
H.P.F: 90Hz frequency (fixed)

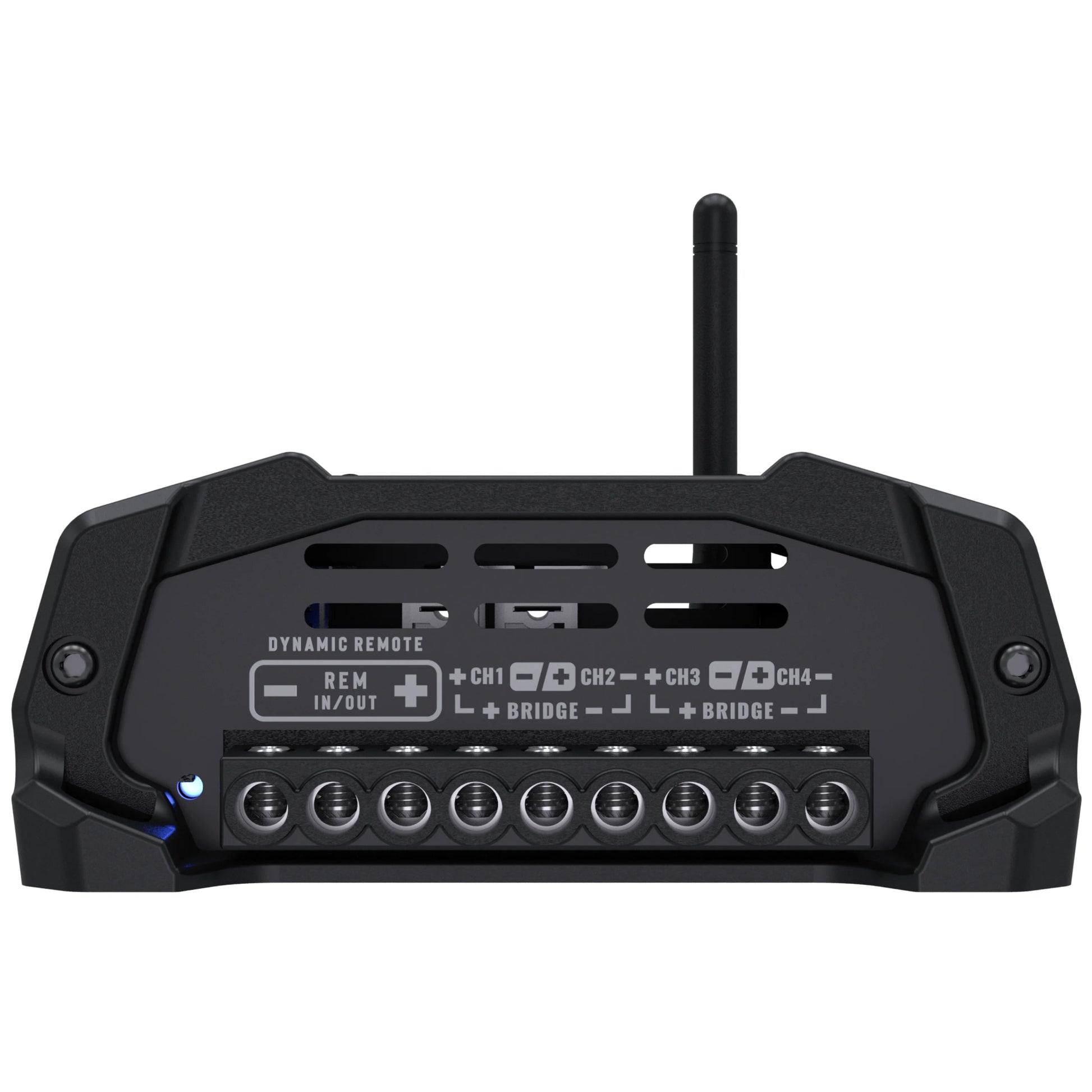

BRIDGE mode for STRONG BASS: By joining two channels, the amplifier operates in BRIDGE mode, doubling the power available to power SUBWOOFERS or other demanding components.
Robust and insulated connectors: The connectors were designed to offer a safe and reliable connection, with an insulating ABS finish to protect the installation.
Developed for those seeking high performance and sound fidelity in automotive amplifiers.
The HL400.4, is a 400W RMS product with 4 CHANNELS and great installation versatility.
It offers independent front and rear channels such as LEVEL to adjust the input signal level and Crossover, allowing you to choose between LOW-PASS, HIGH-PASS or FLAT (FULL-RANGE) operation
