SP Audio

SP Audio - SP-15X (ROCKET LINE SUBWOOFER) 15" 7000w Rms- 24000 WATT (UNIT PRICE)

SP Audio - SP-15X (ROCKET LINE SUBWOOFER) 15" 7000w Rms- 24000 WATT (UNIT PRICE)

Regular price $4,125.00 USD
Regular price $4,125.00 USD Sale price $4,125.00 USD
Sale Sold out
Quantity

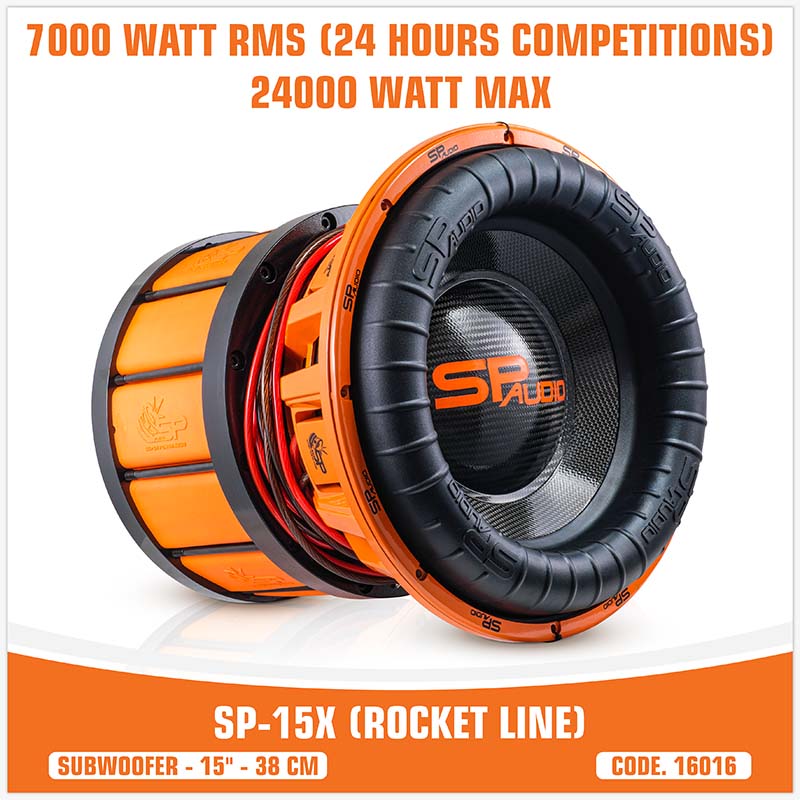

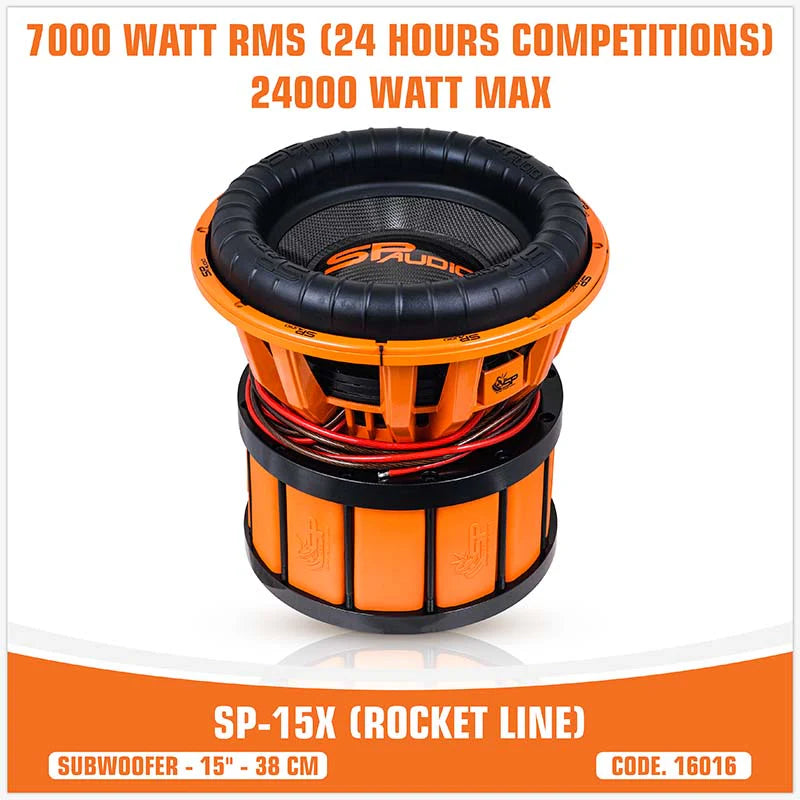

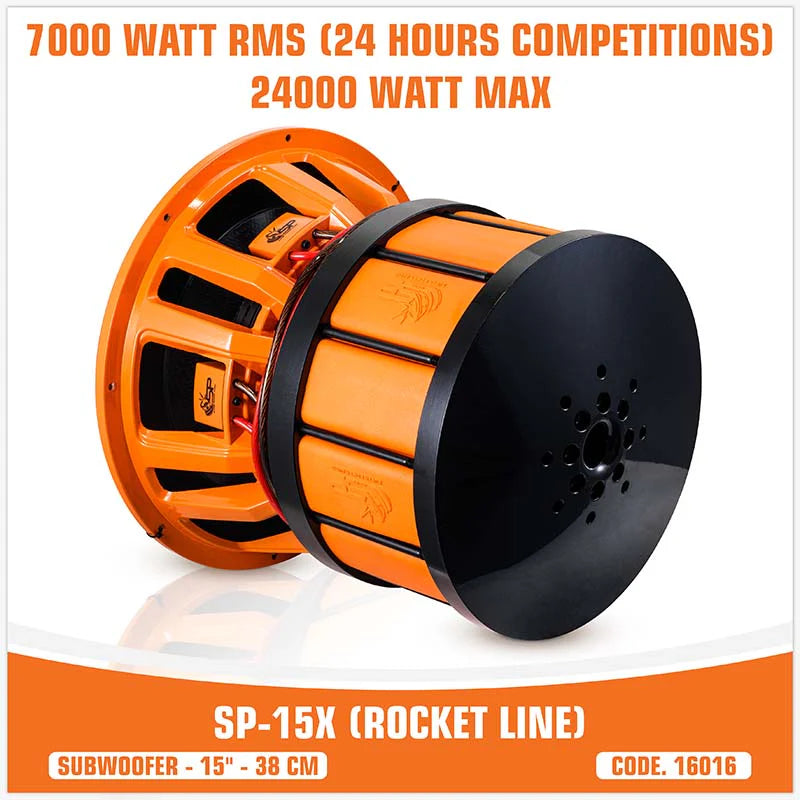

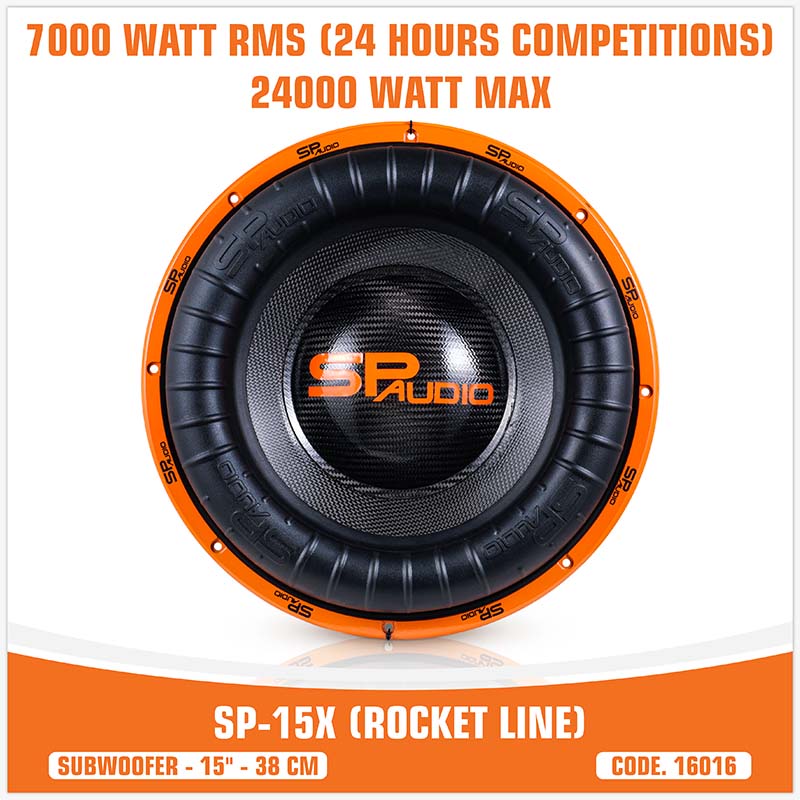

SP-15X ROCKET LINE Subwoofer featuring 38cm (15 in.) cone is eager to thrill the enthusiasts with their power.

The suspension system reinforced with progressive double-layer spiders keeps the performance constant over time, especially in the heavy use typical of Bass Wars events.

Heat dissipation is essential for this type of use and has been maximized thanks to an accurate design. The use of a robust 100 mm (4 in.) (1+1+1+1 Ω) voice coil developed in 4-layer configuration on a support with venting holes allows the 15X ROCKET to manage the impressive 24000 W peak power!The basket has been designed for optimal thermal dissipation and high mechanical resistance.

The non-pressed paper cone with the addition of cotton fiber is the ideal compromise between stiffness and lightness, essential for a high sensitivity value. Suspension and lead wires are oversized to withstand the very high excursions generated by the massive ferrite engine.

Push connectors accept cables with cross-section up to 12 AWG, for a practical and safe connection, suitable for the high currents involved.



  • Technical Specs
Size Mm (in.)  380 (15")
Power Handling - Continuous RMS  7000 WATT RMS (24h competitions)
Power Handling - Peak   24000 WATTS MAX
Rated Impedance Ohms  4 ohms
Minimum Impedance Ohms  1+1+1+1 ohm
Voice Coil Ø 4 inch
Sensitivity 86 dB SPL 1W/1M
Frequency Range 25-300Hz
Winding Material 280 °CAluminum Wire
Weight of one subwooferkg (lb.)  80kg (176.37lb.)
Magnet 203.6×5 Oz Y35 Ferrite Magnet
Suspension Large "R" Form
Cone Compress paper + FiberGlass







  • Electro-acoustic Specs





Qts 0.27
Vas 21.8 L
Fo 33 Hz
King 4 Ohms
Mms 876 g
Xmax 25 mm
CMS 0.03 mm/N
Qms 2.70
This 0.30
SPL 86.0dB
For example 7000W
BL 48.8 TM
Sd 754.77 cm2





  • Vent BOX
Volume 140 L
Tuning Freq 28Hz
Vent Diameter  Ø 100×100mm
Shape Rectangle
End Correction Two flanged ends
Twenty length 44cm

View full details
