SP Audio

SP Audio - SP 15CXXX SUBWOOFER 15"/38CM BIG SORROUND 3500W RMS

SP Audio - SP 15CXXX SUBWOOFER 15"/38CM BIG SORROUND 3500W RMS

$787.50 USD
$787.50 USD $787.50 USD
Sale Sold out

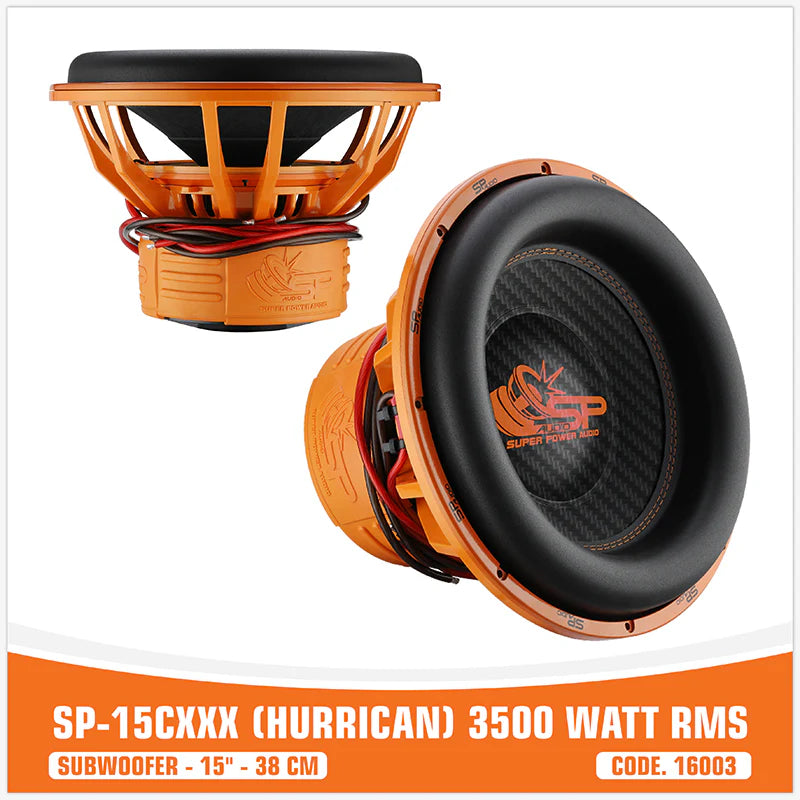

SP-15CXXX Subwoofer featuring 38cm (15 in.) cone is eager to thrill the enthusiasts with their power.



  • Technical Specs

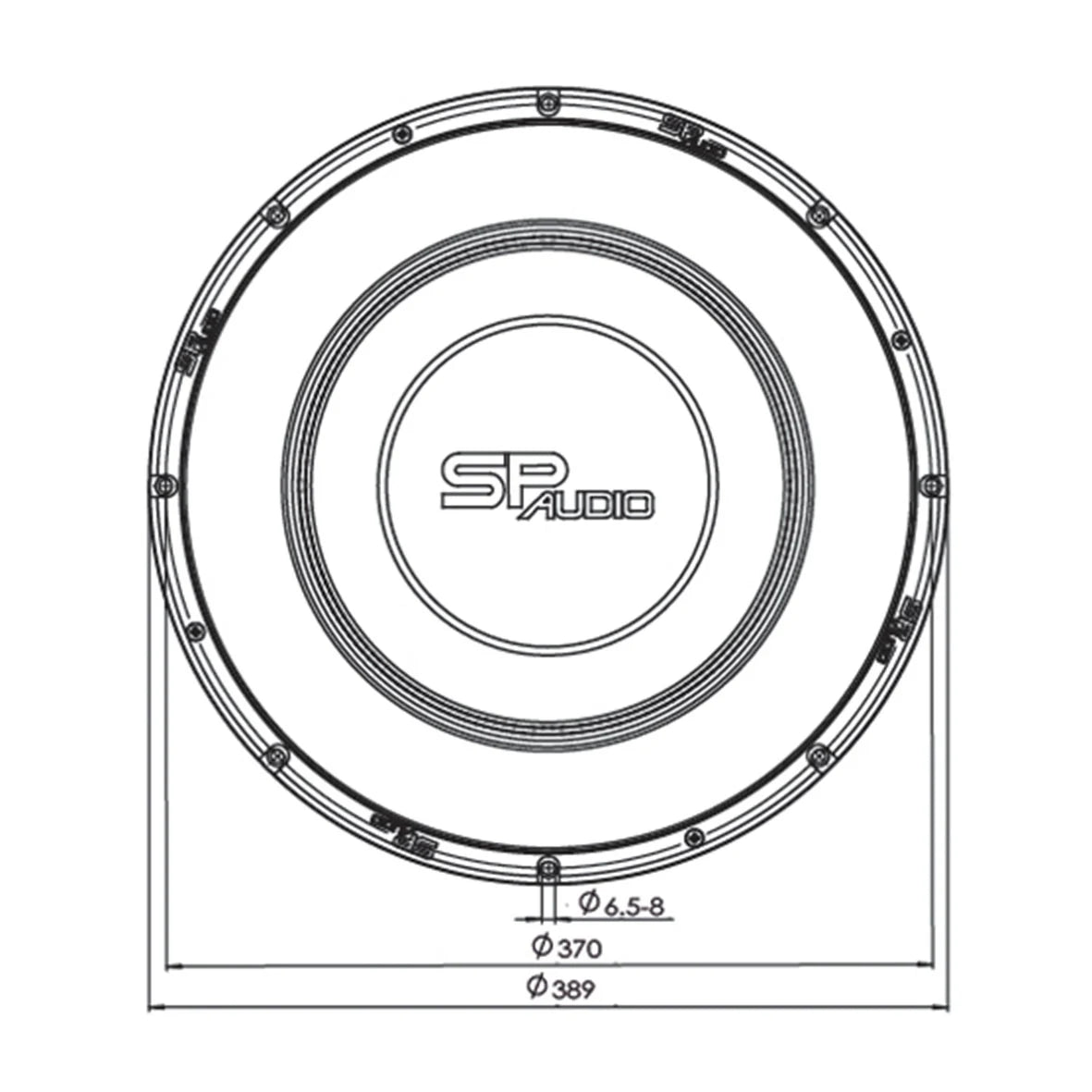

Size mm (in.)  380 (15")
Power Handling - Continuous W RMS  3500 WATTS RMS
Power Handling - Peak W   7000 WATTS MAX
Rated Impedance ohms  4 ohms
Minimum Impedance ohms  2+2 ohms
Voice Coil Ø 76.2mm/3”
Sensitivity 88.9 dB SPL 1W/1M
Frequency Range 20-200Hz
Winding Material 220  °C Aluminum Wire
Weight of one subwoofer kg (lb.)  ----
Magnet 86×3 Oz Y30 Ferrite Magnet
Suspension Large "R" Form
Cone Compress Paper + FiberGlass + Black Painting







  • Electro-acoustic Specs





Qts 0.429
Vas I  78,059 L
Fs 29Hz
King 2+2 Ohms
Mms 304.877 g
Xmax 40 mm
CMS 96.49 mm/N
Qms 4,999
QES 0.469
SPL 88.9 dB
For example 3500W

BL

 20.14 TM

Dd

Sd

32.00 cm

804.2 cm2





  • Vent BOX
Volome 125 L
Tuning Freq 30 Hz
Vent Diameter  ø102 mm
Shape Circle
End Correction Two flanged ends
Vent length 14.5cm
Cross area: 81.7 cm²
