SP Audio

SP Audio - SP 15CW ENTRY LEVEL SUBWOOFER 15"/38CM 400W RMS

SP Audio - SP 15CW ENTRY LEVEL SUBWOOFER 15"/38CM 400W RMS

Regular price $212.00 USD
Regular price $212.00 USD Sale price $212.00 USD
Sale Sold out
Quantity

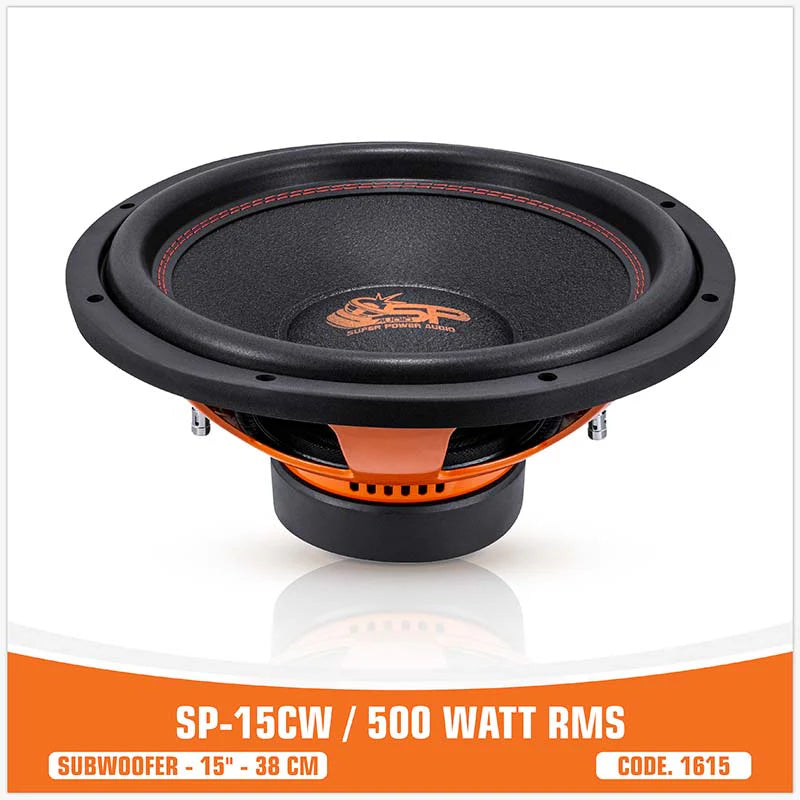

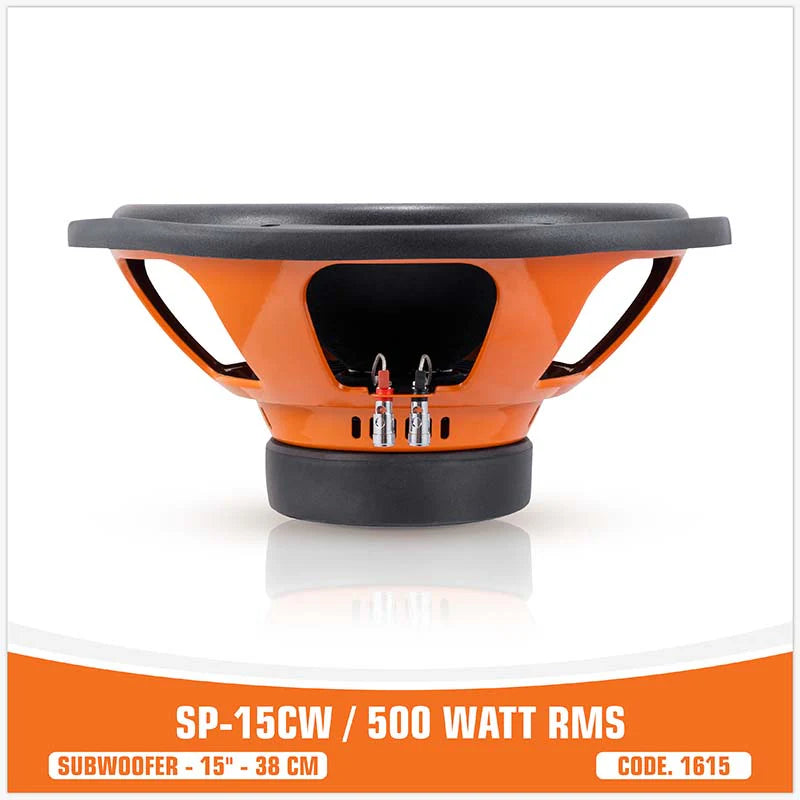

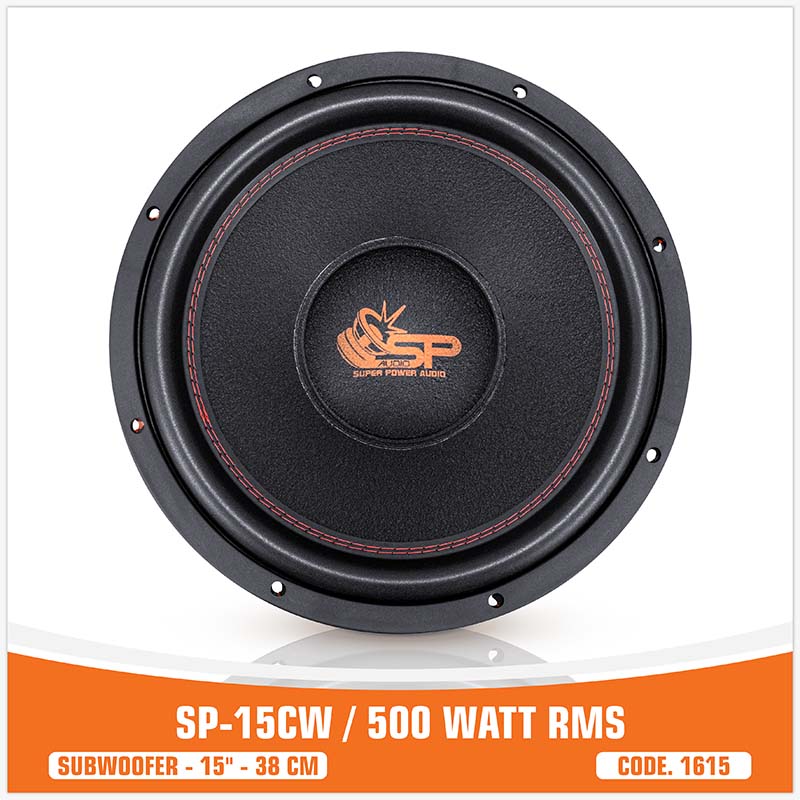

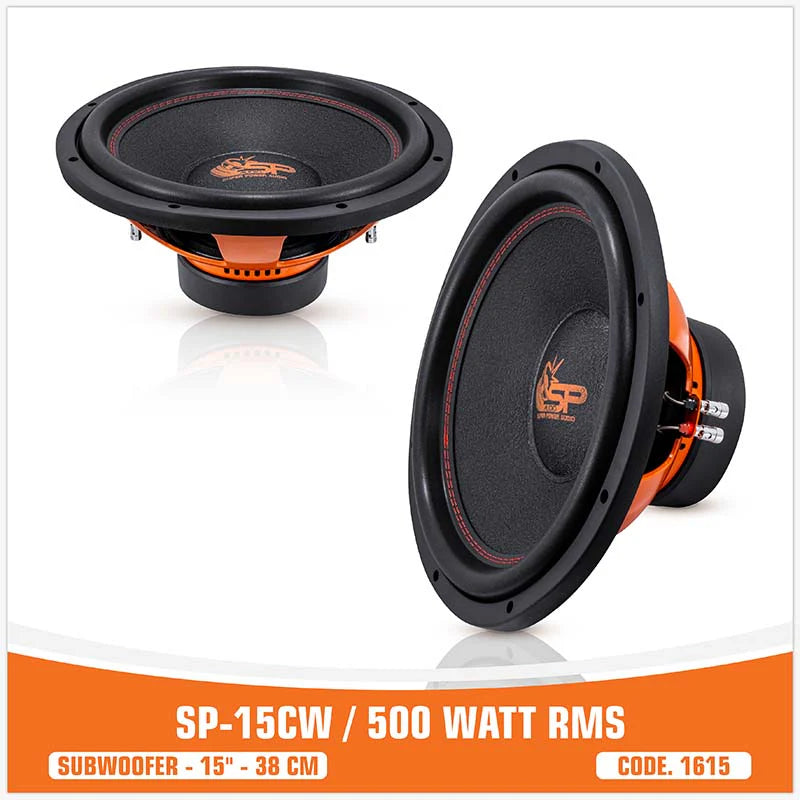

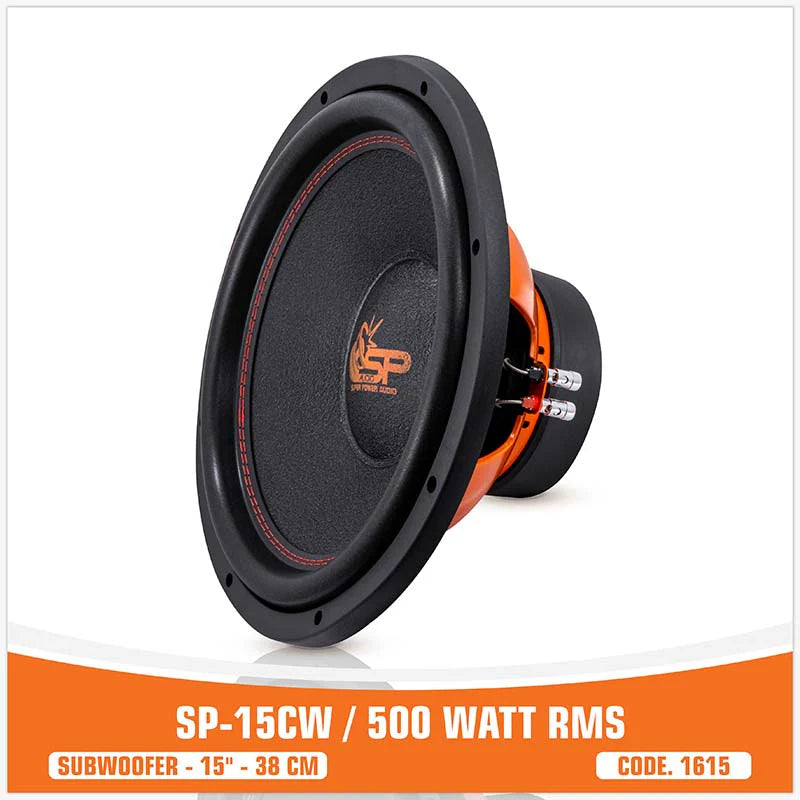

SP-15CW Subwoofer featuring 38cm (15 in.) cone is eager to thrill the enthusiasts with their power.



  • Technical Specs

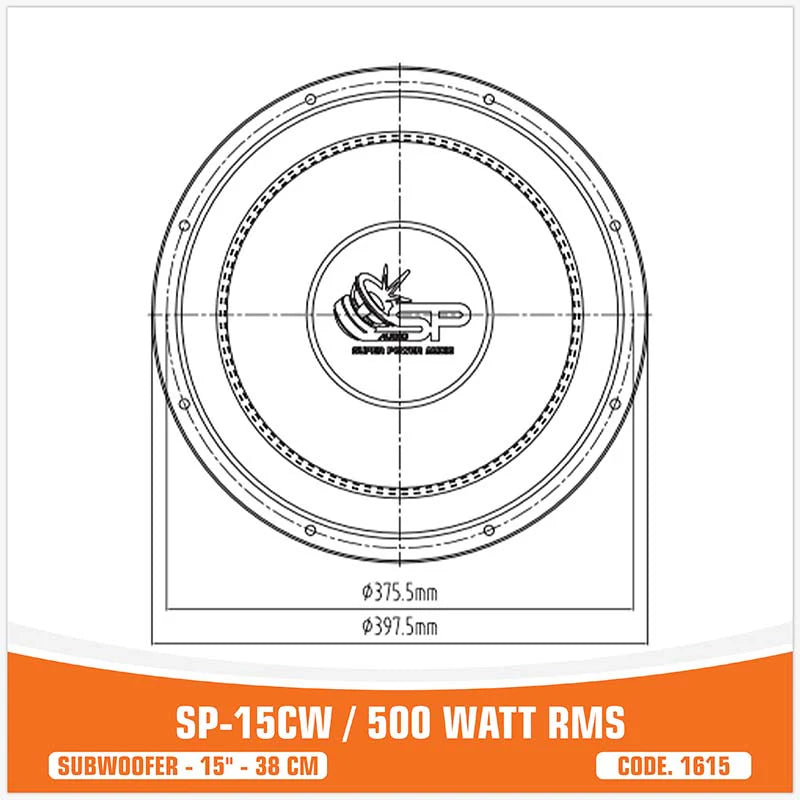

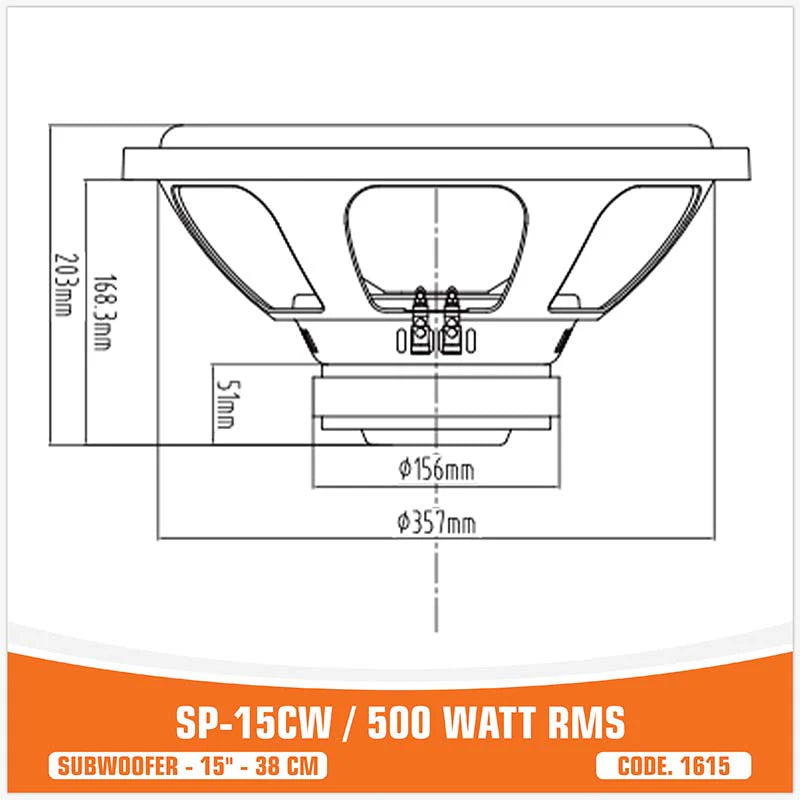

Size mm (in.)  380 (15")
Power Handling - Continuous W RMS  500 WATTS RMS
Power Handling - Peak W   1000 WATTS MAX
Rated Impedance ohms  4 ohms
Minimum Impedance ohms  2+2 ohms
Voice Coil Ø 61.1mm/2.5"
Sensitivity 86 dB SPL 1W/1M
Frequency Range 30~1KHZ
Winding Material 200  °C Aluminum Wire
Weight of one subwoofer kg (lb.)  ----
Magnet 62 Oz Y30 Ferrite Magnet
Suspension Large "R" Form
Cone Black Non Press Paper

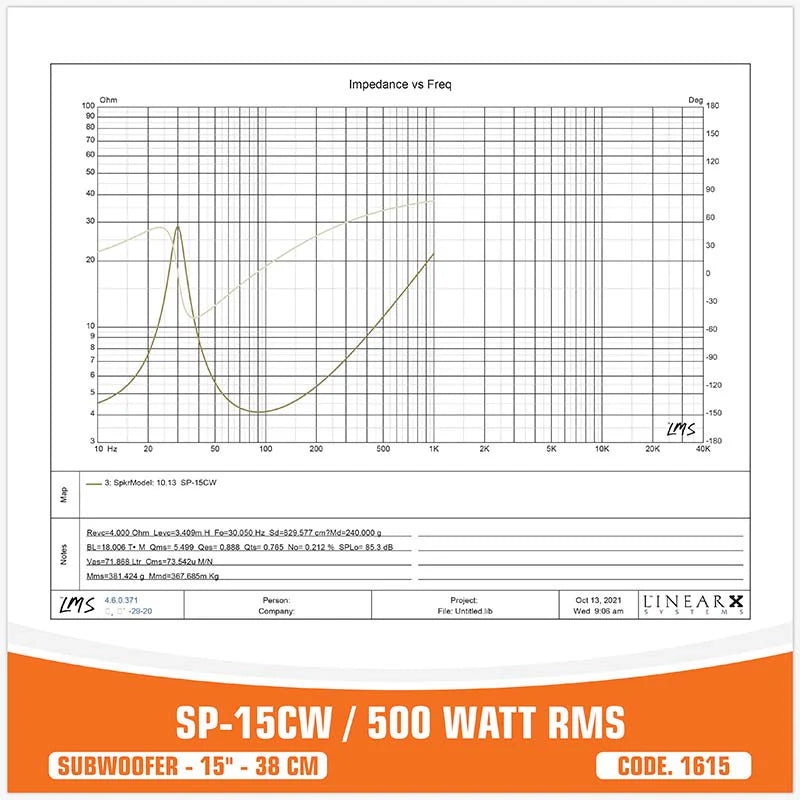

  • Electro-acoustic Specs





Qts 0.936
Vas I  96.12 L
Fs 30.1 Hz
King 2+2 Ohms
Mms 283.9 g
Xmax 10 mm
CMS 0.099mm /N
Qms 7.24
QES 1.075
SPL 85.77 dB
For example 500W

BL

2.32pm TM

Dd

Sd

-- cm

829.58cm2





  • Vent BOX
Volome 105 L
Tuning Freq 30.1 Hz
Vent Diameter  ø-- mm
Shape Circle
End Correction one flanged ends
Vent length -- cm
Cross area: -- cm²
