SP Audio

SP Audio - SP 15CC SUBWOOFER 15"/38CM 1000W RMS

SP Audio - SP 15CC SUBWOOFER 15"/38CM 1000W RMS

$395.00 USD
$395.00 USD $395.00 USD
Sale Sold out

SP-15CC Subwoofer featuring 38cm (15 in.) cone is eager to thrill the enthusiasts with their power.

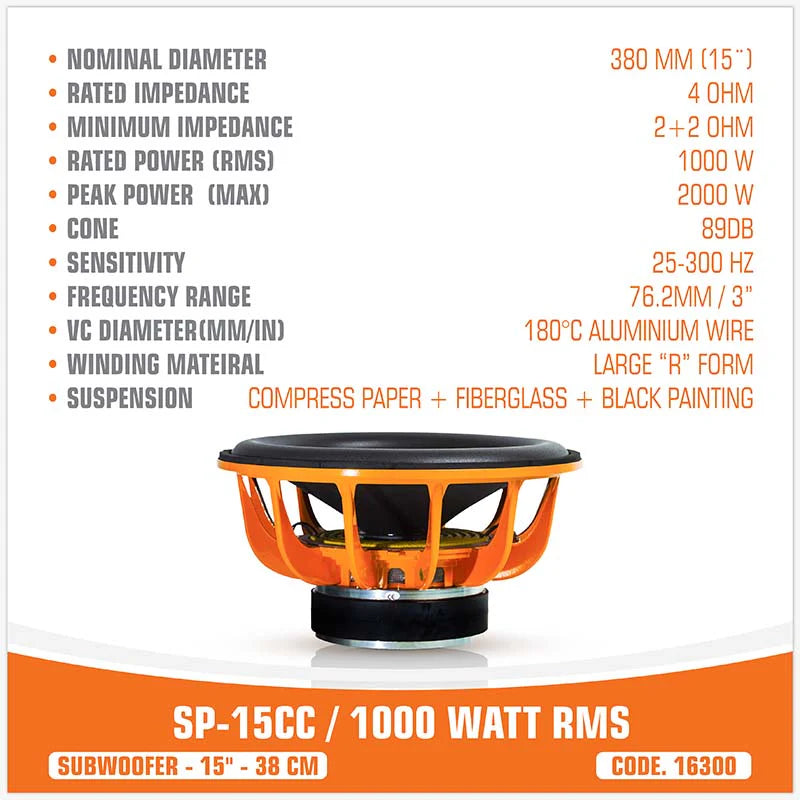

  • Technical Specs
Size mm (in.)  380 (15")
Power Handling - Continuous W RMS  1000 WATTS RMS
Power Handling - Peak W   2000 WATTS MAX
Rated Impedance ohms  4 ohms
Minimum Impedance ohms  2+2 ohms
Voice Coil Ø 76.2mm/3”
Sensitivity 89 dB SPL 1W/1M
Frequency Range 20-200Hz
Winding Material 180  °C Aluminum Wire
Weight of one subwoofer kg (lb.)  ----
Magnet 134 Oz Y30 Ferrite Magnet
Suspension Large "R" Form
Cone Compress Paper + FiberGlass + Black Painting

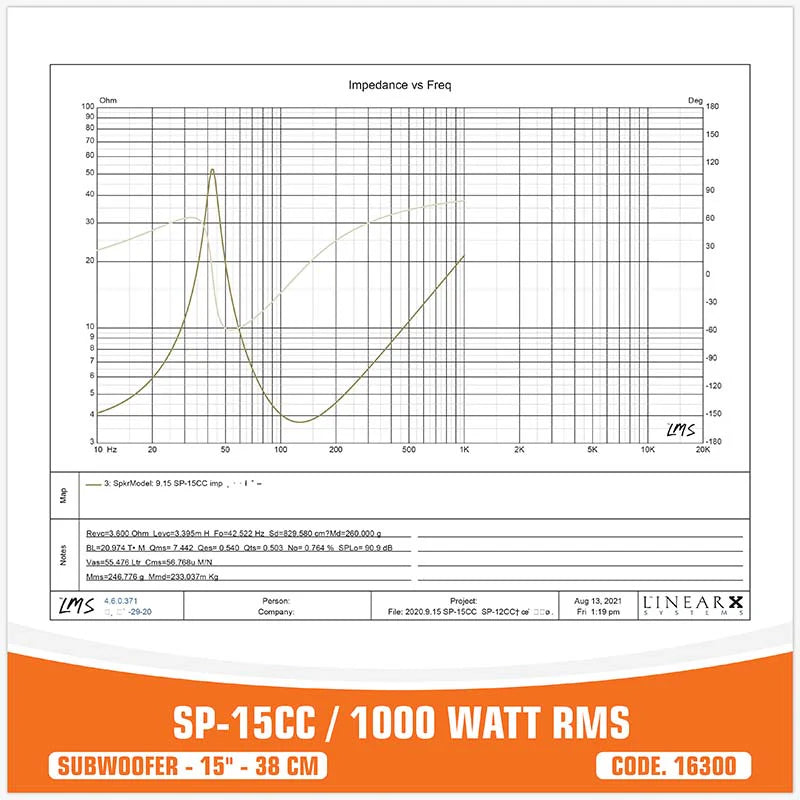

  • Electro-acoustic Specs





Qts 0.633
Vas I  69.93 L
Fs 37.00 Hz
King 2+2 Ohms
Mms 247,781g
Xmax 5.0mm
CMS 76.13um/N
Qms 13,763
QES 0.663
SPL 89 dB
For example 1000W

BL

 18.55 TM

Dd

Sd

32.00 cm

804.2 cm2





  • Vent BOX
Volome 80 L
Tuning Freq 35 Hz
Vent Diameter  ø102 mm
Shape Circle
End Correction Two flanged ends
Vent length 17.5cm
Cross area: 81.7 cm²
