SP Audio - SP 15C SUBWOOFER 15"/38CM 500W RMS
SP Audio - SP 15C SUBWOOFER 15"/38CM 500W RMS
Regular price
$312.00 USD
Regular price
$312.00 USD
Sale price
$312.00 USD
Quantity
Couldn't load pickup availability

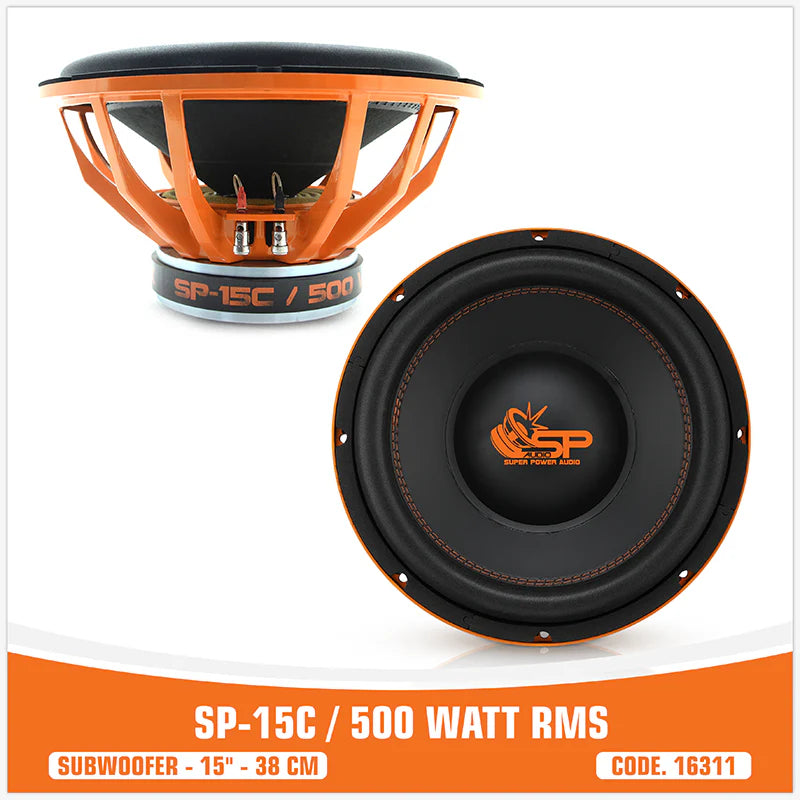

SP-15C Subwoofer featuring 38cm (15 in.) cone is eager to thrill the enthusiasts with their power.
- Technical Specs

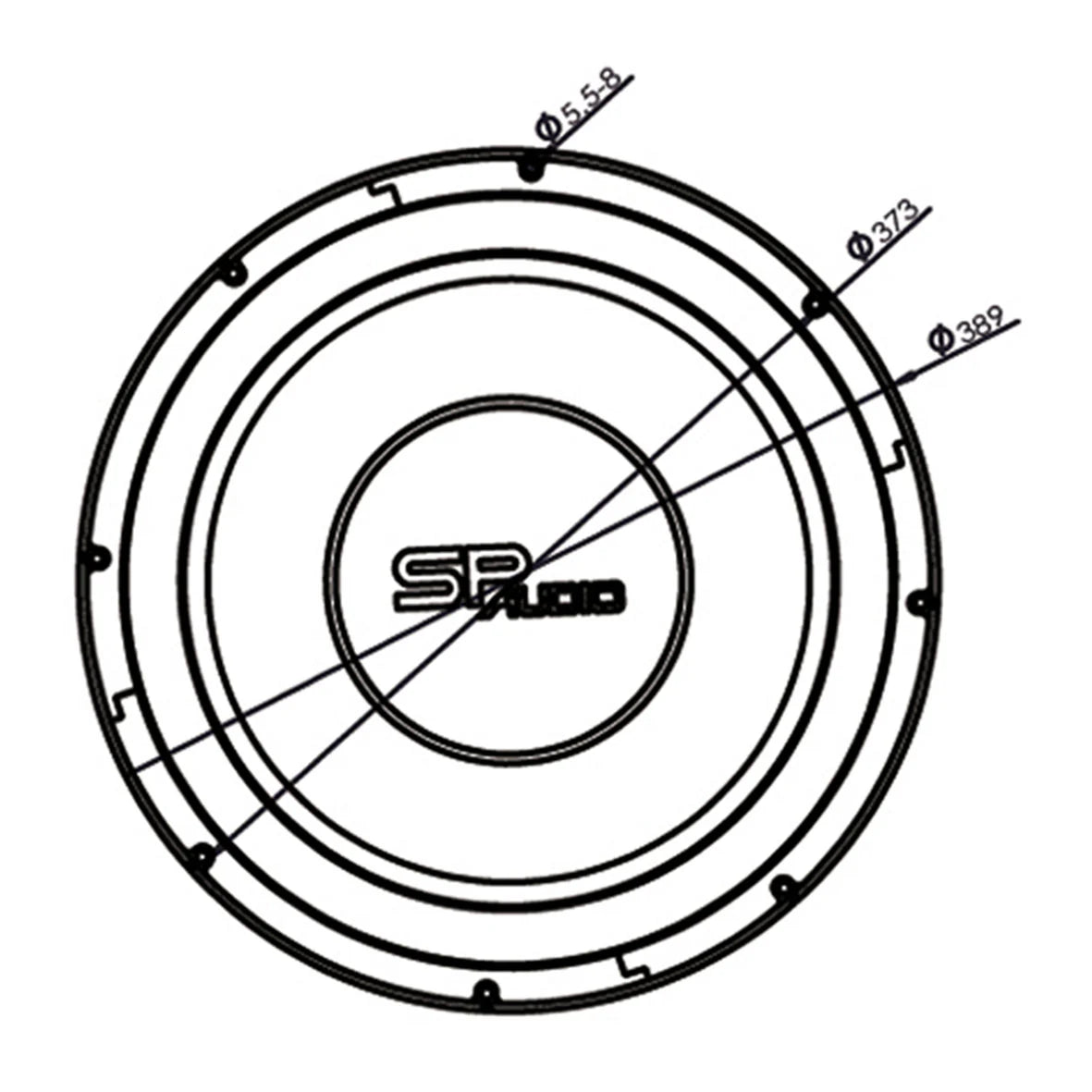

| Size mm (in.) | 380 (15") |
| Power Handling - Continuous W RMS | 500 WATTS RMS |
| Power Handling - Peak W | 1000 WATTS MAX |
| Rated Impedance ohms | 4 ohms |
| Minimum Impedance ohms | 2+2 ohms |
| Voice Coil Ø | 65.5mm/2.5" |
| Sensitivity | 89 dB SPL 1W/1M |
| Frequency Range | 25-300Hz |
| Winding Material | 180 °C Aluminum Wire |
| Weight of one subwoofer kg (lb.) | ---- |
| Magnet | 85 Oz Y30 Ferrite Magnet |
| Suspension | Large "R" Form |
| Cone | Compress Paper + FiberGlass + Black Painting |

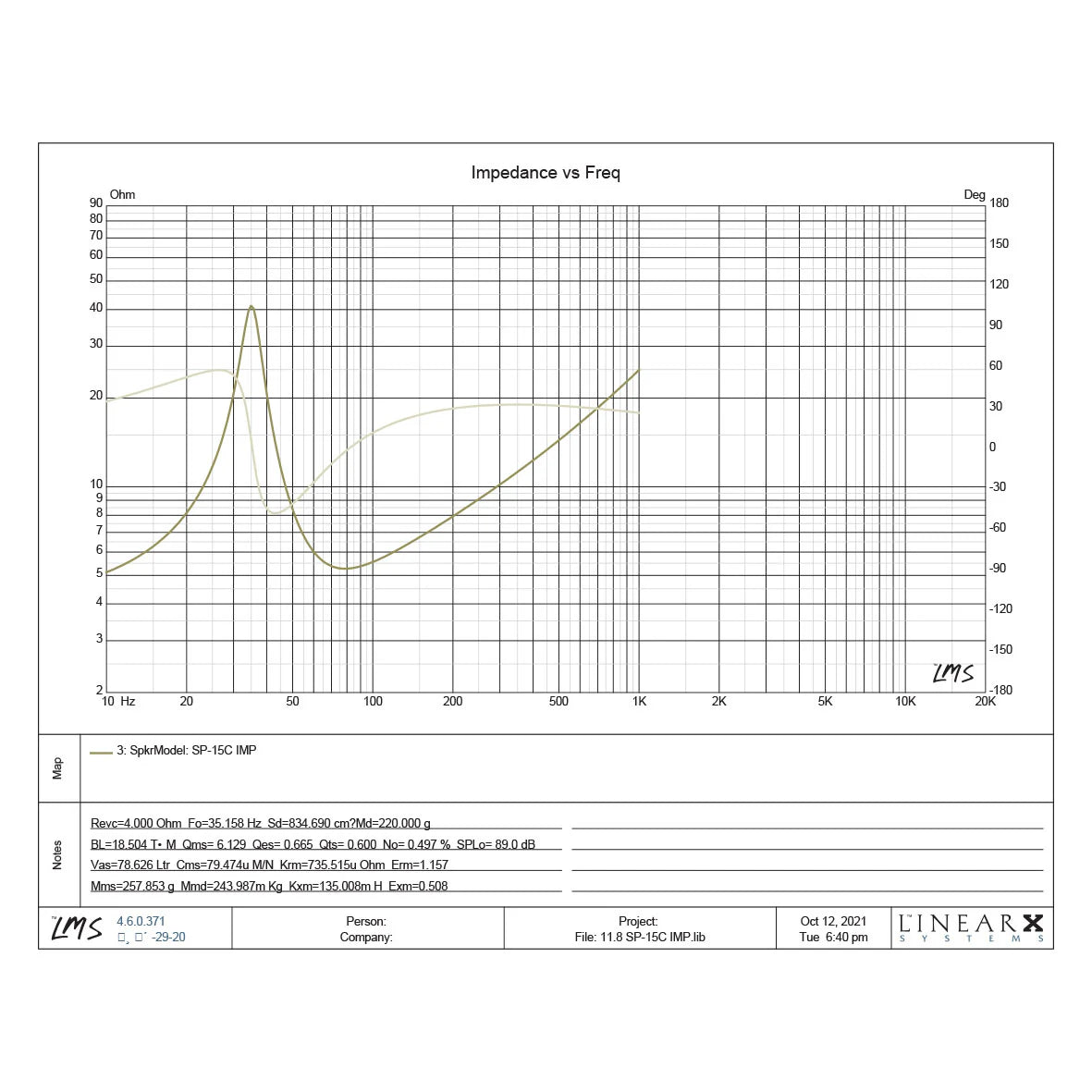

- Electro-acoustic Specs
| Qts | 0.498 |
| Vas I | 117.79 L |
| Fs | 28.54 Hz |
| King | 2+2 Ohms |
| Mms | 242.198 g |
| Xmax | 12mm |
| CMS | 128.37 um/N |
| Qms | 5,025 |
| QES | 0.553 |
| SPL | 89 dB |
| For example | 500W |
| BL | 17.73 TM |
| Dd Sd | 32.00 cm 804.2 cm2 |
- Vent BOX
| Volome | 100 L |
| Tuning Freq | 30 Hz |
| Vent Diameter | ø102 mm |
| Shape | Circle |
| End Correction | Two flanged ends |
| Vent length | 17.23 cm |
| Cross area: | 81.7 cm² |
