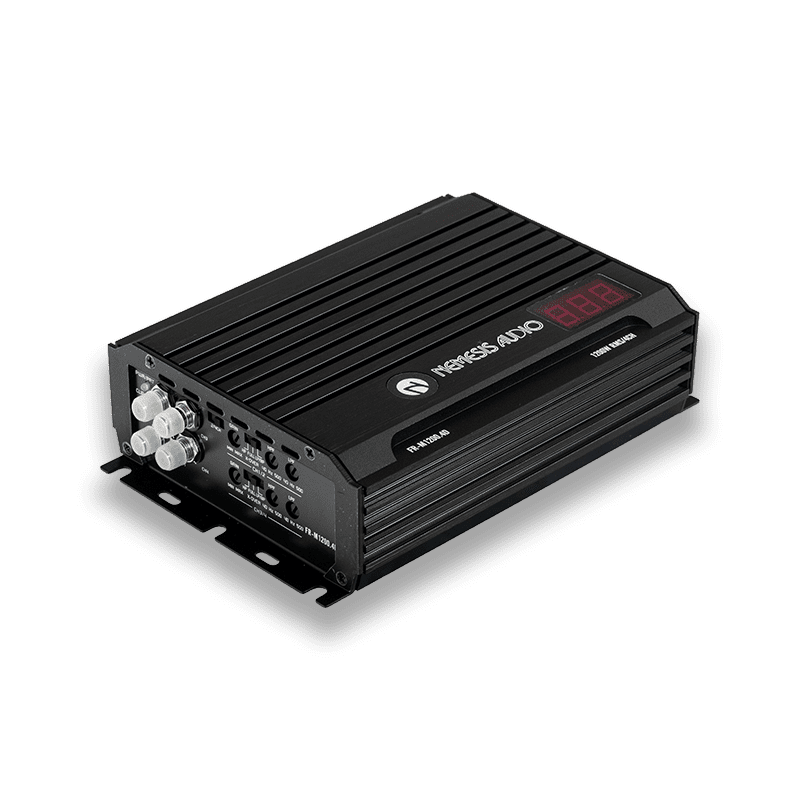

The Nemesis Audio FR-M1200.4D is a highly efficient 4-channel amplifier from the FR Series, built to deliver superior sound quality in a space-saving design. Whether you are powering high-output door speakers or bridging channels for a versatile setup, this Class D amplifier provides clean, dynamic power without the bulk of traditional amps.
Key Performance Features:
- Optimized Power Density: Delivers 300W RMS per channel at 2-Ohm, providing significant volume and clarity for premium audio systems.
- Compact Footprint: Measuring just 8.23″ x 5.51″ x 2.17″, it is the ideal solution for installs where mounting space is limited.
- Versatile Configuration: Fully bridgeable at 4-Ohm to deliver 600W x 2, allowing it to adapt to various speaker or subwoofer needs.
- Precision Engineering: Features a signal-to-noise ratio of >90dB and a THD of < 0.2% for high-fidelity audio reproduction across the entire frequency spectrum.
Technical Specifications:
- RMS Power @ 2-Ohm: 300W x 4
- RMS Power @ 4-Ohm: 180W x 4
- Bridged Power @ 4-Ohm: 600W x 2
- Dimensions: 8.23″ x 5.51″ x 2.17″
- Frequency Range: 10Hz – 30kHz
- Low Pass Filter: 40Hz – 500Hz
- Input Sensitivity: 0.36V – 7.5V
