Massive Audio - EX5 - 120 Watts RMS x 4 @ 4 Ohm + 800 Watts @ 1 Ohm 5-CH Amp

EX5 - 120 Watts RMS x 4 @ 4 Ohm + 800 Watts @ 1 Ohm 5-CH Amplifier

All “EDGE” Series Amplifiers use famous Nano Block Military speck circuit board and “N” drive MOSFET power supplies to insure performance but they now have several new cutting edge features like RCA inputs that can take RCA or Speaker levels at up to 10 Volts in! This built in money saving OEM line converter is found in every “EDGE” model, and each E4 model uses a DC off set music sensing system to activate the ATO (Auto Turn On).

Other new precision audio features found in all mono models include, an adjustable 1 band parametric EQ with up to 12 Db bass boost, a switchable 12V Out terminal, a preparatory docking input for optional custom matching Massive Audio 4 farad “Rail CAP” capacitor and on all 2, 4 & 5 channel amp crossovers adjustments a X10 switch which means that “EDGE” can be programmed as a high pass or a low pass at 3K Hz adjustable Up or Down or even Band Passed enabling the use with raw drivers for more output control.

Product Details:

• Edge Series Class AB / D 1 ohm Stable 5-Channel Amplifier
• RMS Power Rating:
  • 4 ohm: 120 watts x 4 channel + 200 watts x 1 channel
  • 2 ohm: 240 watts x 4 channel + 200 watts x 1 channel
  • Bridged: 480 watts x 2 channel @ 4 ohm + 200 watts x 1 channel @ 2 ohm
• Total power output: 1360 watts
• LED Power/Protect Light
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
• Signal sensing remote turn-on
• Thermal, overload, and speaker short protection
• Next Gen Advanced 5 Way Protection
• Built-In OEM Line Converter
• High Power in Extremely Small Heat Sink
• Mil Spec Double Sided PCB with SMD Parts
• Built-in Noise Reduction Circuitry
• Full Mosfet with High Grade Switching Devices
• Hybrid 4 Channel Class AB and 1 Channel Class D
• 12v Remote Output for External Devices
• Input sensitivity: 0.4 - 10 volts
• Frequency Response: 20 - 25000 Hz
• Total Harmonic Distortion (THD): 0.05%
• Signal to Noise Ratio: >89 dB
• Variable high-pass filter: 10 - 300 Hz
• Variable low-pass filter: 10 - 300 Hz
• Subsonic filter: 10 - 60 Hz
• Variable Bass Boost: 0 - 12 dB
• Fuse Rating: 100A
• 1/0 AWG gauge amplifier wiring kit is recommended for installation

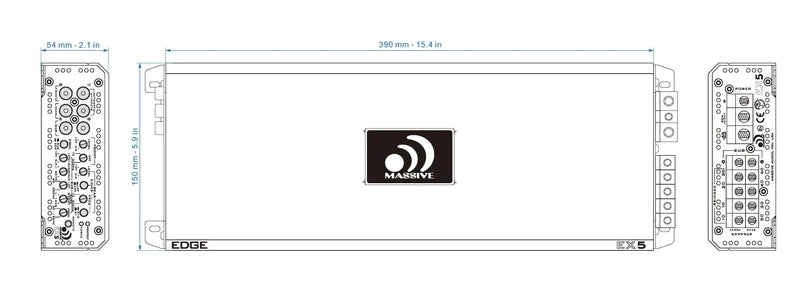

• Dimensions: 15" L x 5.9" W x 2.1" H
• Authorized Internet Dealer
