Massive Audio - EX4R - 800 Watts RMS x 4 @ 4 Ohm 4 Channel Mega Amp

EX4R - 800 Watts RMS x 4 @ 4 Ohm 4 Channel Mega Amp

The EX4R includes many cutting edge features including a Differential Input Switch to eliminate noise, Clip Indicator for adjusting critical levels and RCA inputs capable of processing RCA or Speaker level signals up to 10 Volts! This built in OEM line converter eliminates the need for an additional component, reduces cost and is found in every “EDGE” Amplifier. The EX4R uses a DC off set music sensing system to activate the Auto Turn On Circuit.

Product Details:

• Nano Edge Series Class D 2 ohm Stable 4-Channel Amplifier
• RMS Power Rating:
  • 4 ohm: 800 watts x 4 channel
  • 2 ohm: 1200 watts x 4 channel
  • Bridged: 2400 watts x 2 channel @ 4 ohm
• Total power output: 4800 watts
• LED Power/Protect Light
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
• Thermal, overload, and speaker short protection
• Signal sensing remote turn-on
• Next Generation Advanced 5 Way Protection Circuitry
• Full MOSFET with High Grade Switching Devices
• High Output Power Supply and Dual Output Voltage
• Built-In OEM Line Converter
• Built-in Noise Reduction Circuitry
• Ground Loop Isolator
• Mil Spec PCB with SMD parts
• Input sensitivity:
  • Low level: 0.4 - 10 volts
  • High level: 0.4 - 10 volts
• Frequency Response: 25 - 30000 Hz
• Total Harmonic Distortion (THD): <0.1%
• Signal to Noise Ratio: 90 dB
• Variable high-pass filter: 20 - 300 Hz / 200 - 3000 Hz
• Variable low-pass filter: 20 - 250 Hz / 200 - 2500 Hz
• Fuse Rating: 200A
• 1/0 AWG gauge amplifier wiring kit is recommended for installation

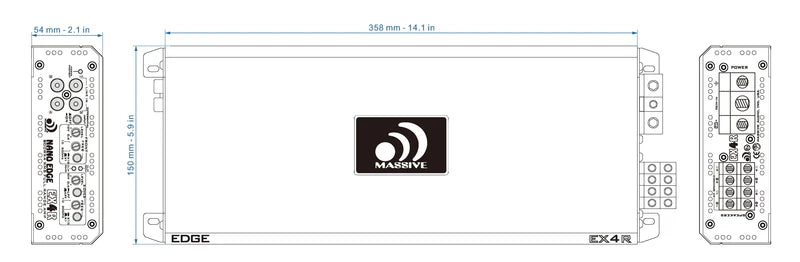

• Dimensions: 14.09" L x 5.9" W x 2.1" H
