JBL

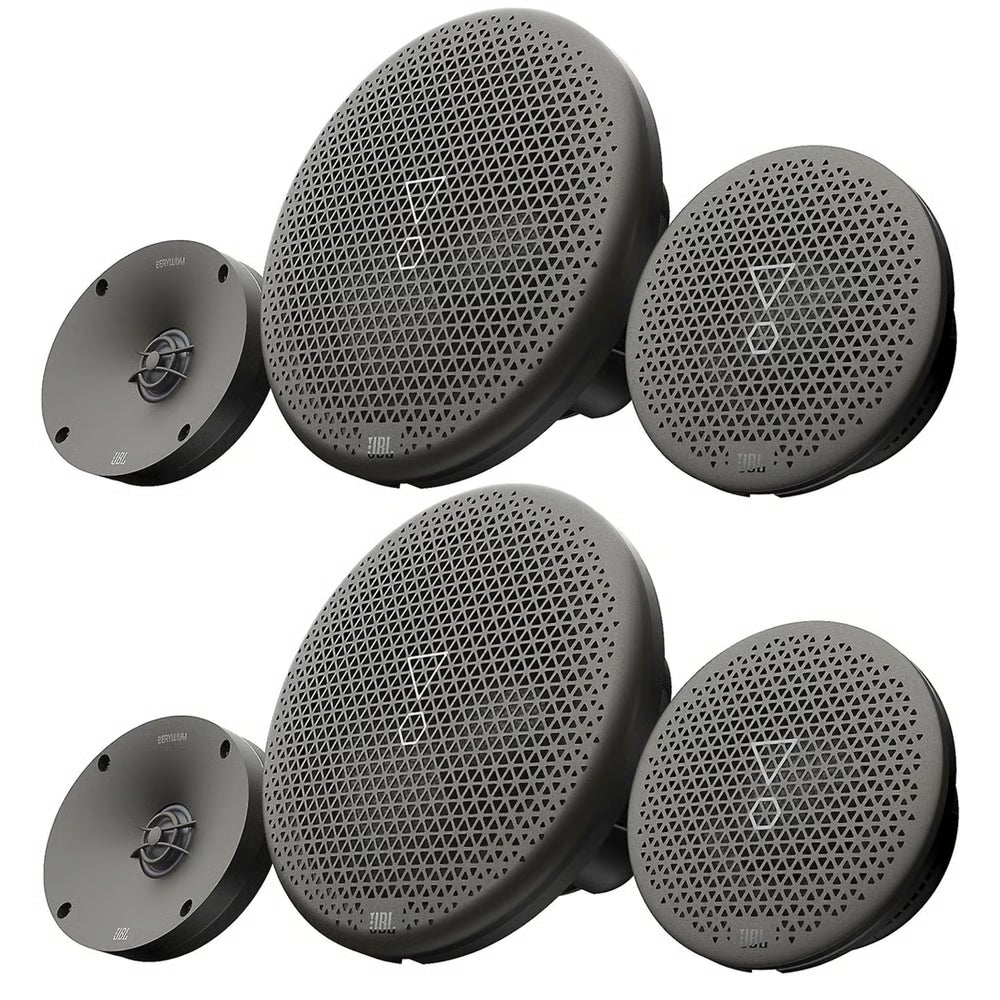

JBL - Arena X 36Be - 400W Peak (200W RMS) 6.5" Arena X Series 3-way Component 4-ohm Speakers (Copy)

JBL - Arena X 36Be - 400W Peak (200W RMS) 6.5" Arena X Series 3-way Component 4-ohm Speakers (Copy)

$4,999.95 USD
$4,999.95 USD
Sale Sold out

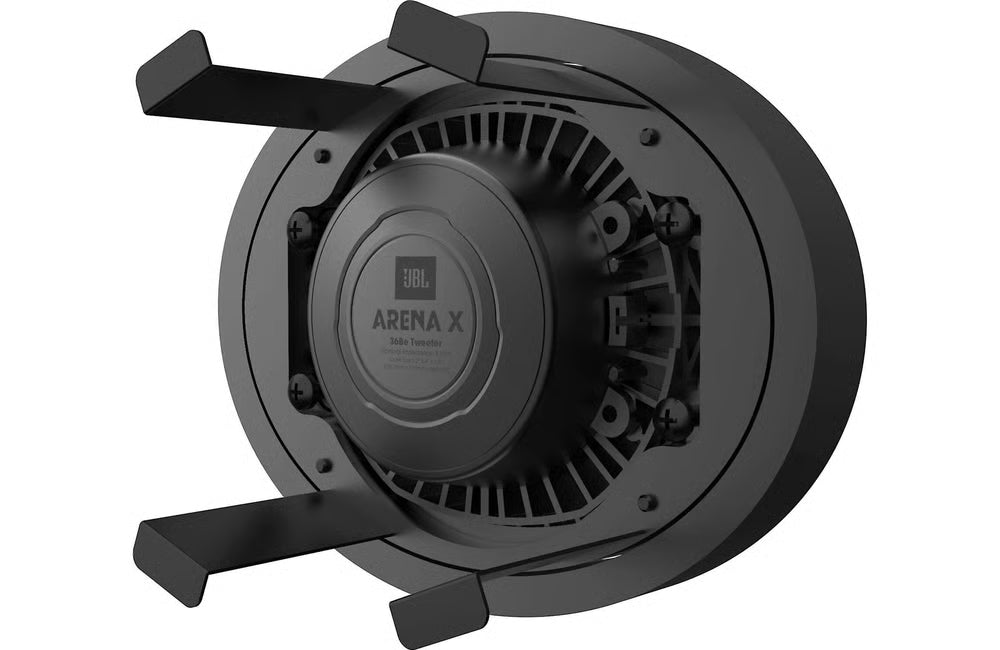

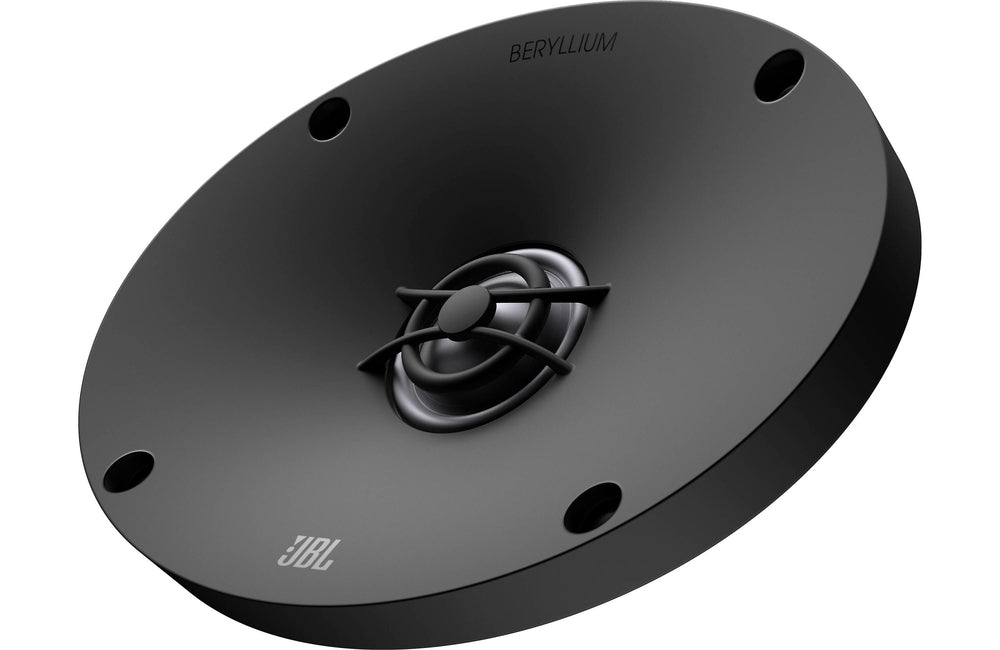

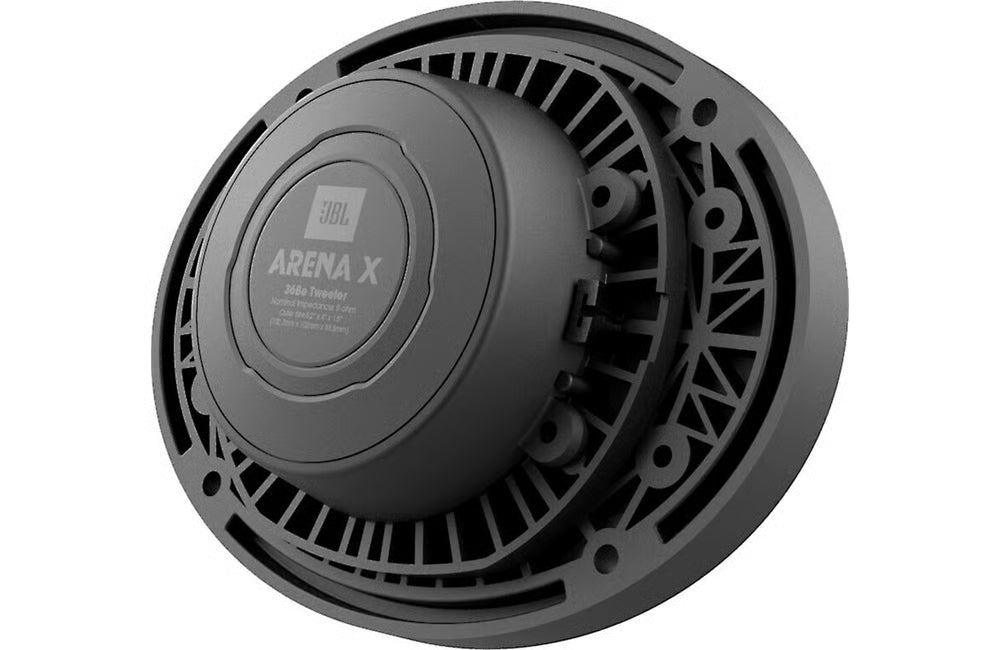

The JBL Arena X is the flagship automotive loudspeaker from our Arena Series. It includes a 25mm (1-inch) beryllium tweeter driven by a powerful neodymium motor structure for the ultimate in lightweight performance.

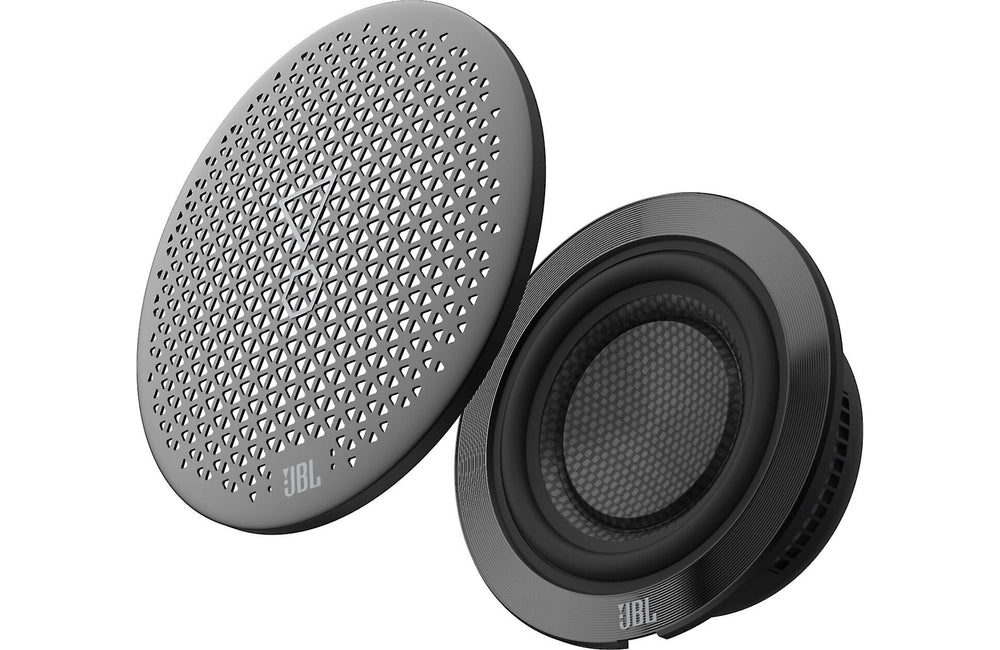

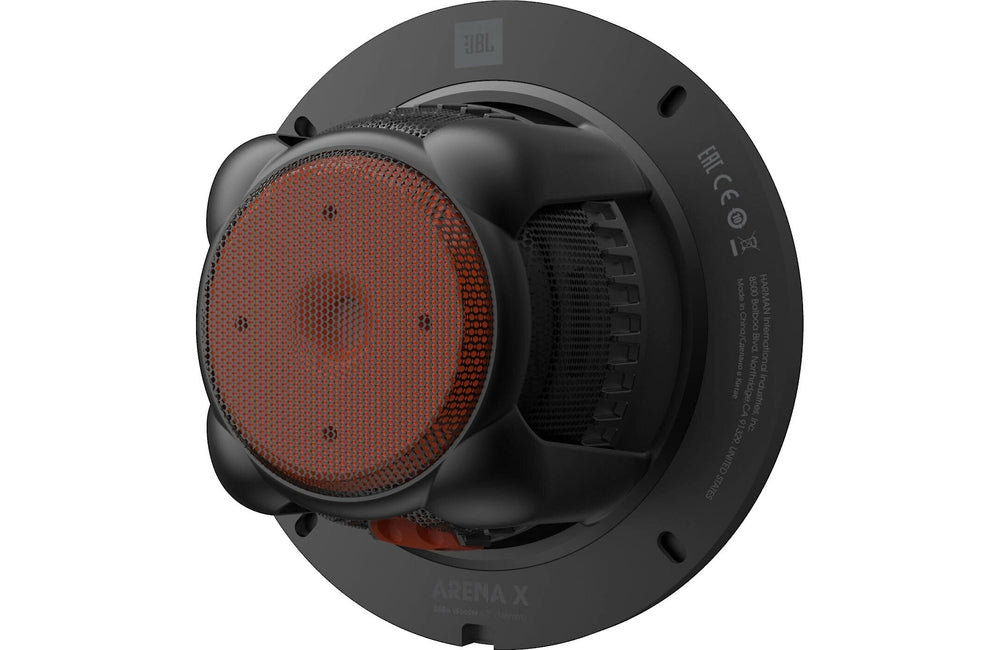

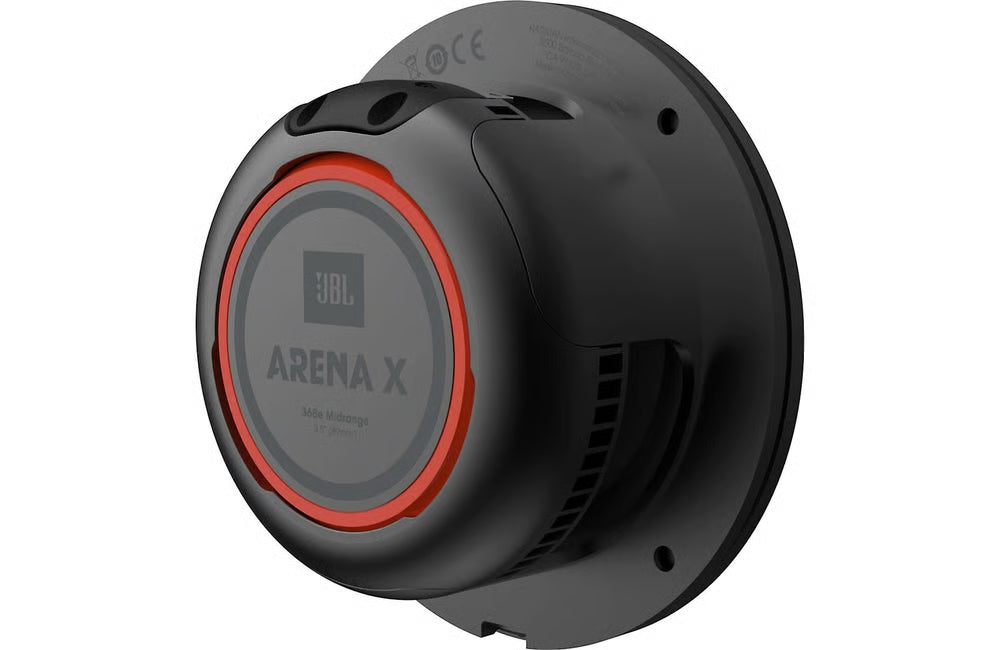

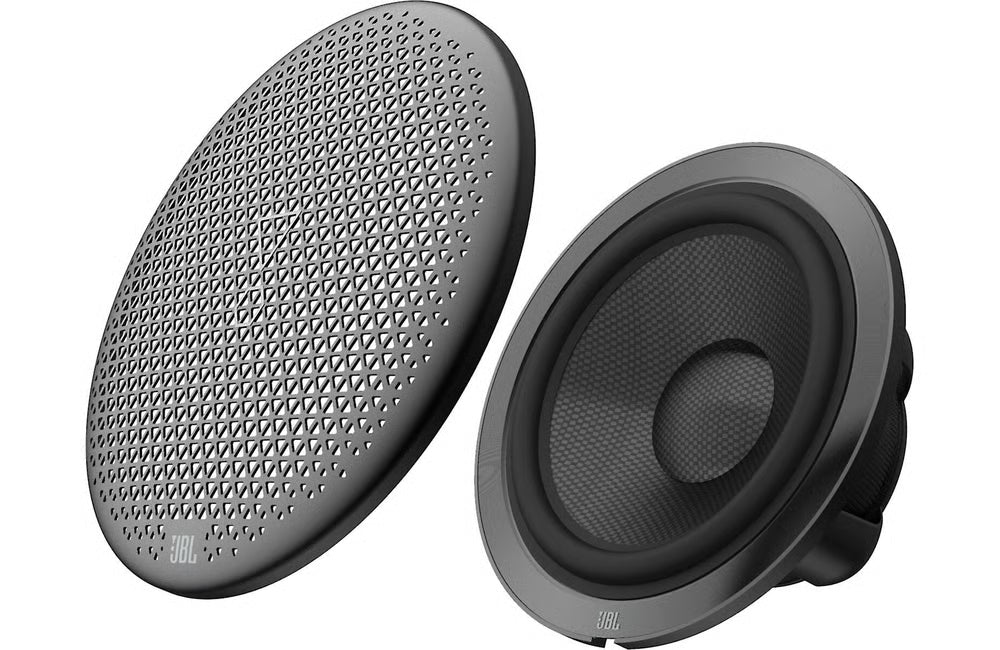

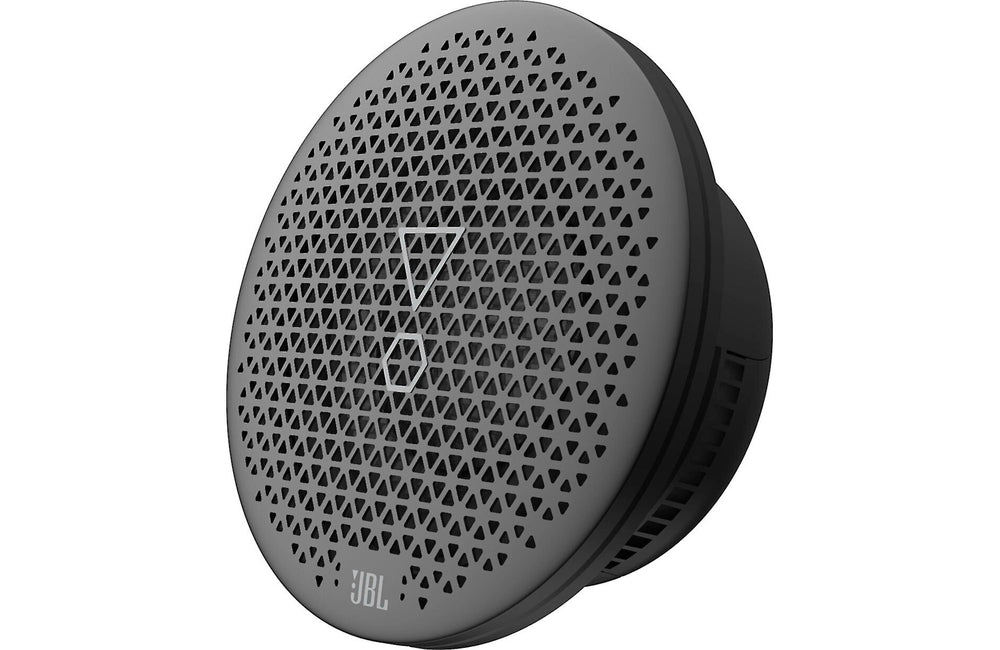

The 3.5-inch (90mm) midrange and 6.5-inch (165mm) aluminum basket woofers utilize woven carbon fiber cones for improved performance. The stiff lightweight cones combine with optimized motor magnetics to deliver memorable mid and low-frequency performance and specially formulated acoustic adhesive chosen to provide superior strength and sound quality.


Product Details:

  • 6-1/2" JBL Arena X Sries 3-way Component Speakers Car Speakers
  • Power Handling:
    • Peak: 400 watts per set / 200 watts each side
    • RMS: 200 watts per set / 100 watts each side
  • Carbon Fiber cone material
  • Hi-Roll Rubber speaker surround
  • 1" Beryllium Edge Driven Dome tweeters
  • Neodymium magnet motor structure
  • Ceramic-coated, cast-aluminum acoustic lens waveguide
  • Nomex spider midrange and woofers
  • Seamless transducer integration design with high-quality DSP
  • Die-cast aluminum basket
  • Bi-amp capable precision outboard crossover network
  • Strong magnetic field absorption technology
  • Top-mount Depth: 2-13/16"
  • Cutout Dimensions: 5-5/16"
  • Impedance: 4 ohm
  • Frequency Response: 20 - 40000 Hz
  • Sensitivity: 90 dB
Series
Arena Series
Priced Per
Pair
Number of Speakers
2 Speakers + 2 Tweeters
Speaker Size
6-1/2"
Design
3-way Component Speakers
Tweeter Design
Edge Driven Dome
Tweeter Size
1"
Tweeter Composition
Beryllium
Woofer Composition
Carbon Fiber
Woofer Surround
Hi-Roll Rubber
Peak Power Handling
200 watts
RMS Power Handling
100 watts
Total PEAK Per Pair/Set
400 watts
Total RMS Per Pair/Set
200 watts
Sensitivity
90 dB
Frequency Response
20 - 40000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Magnet Type
Neodymium
Top-Mount Depth (Mounting Depth)
2-13/16"
Cutout Dimensions
5-5/16"
General specifications
Hi-Res Certified
No
Color
Black
Speaker Grilles
Yes
Includes Damping Kit
without Damping Kit
Compatible vehicle types
Car/Truck/SUV/Van
What is in the box?
Paperwork
User manual
Quick start guide
Brand sticker/decal
WITB: Speakers
Foam Gasket
Mounting Brackets/Hardware
Speakers (2)
Grilles (2, attached)
Grilles (2, detached)
Tweeters (2)
Tweeter flush mounts (2)
Tweeter surface mounts (2)
Mounting screws (4)
Other Accessory #1
1 pair of woofer decoration ring
Other Accessory #2
1 pair of midrange decoration ring
Other Accessory #3
1 pair of tweeter plastic ring 1 fixture under tweeter
Other Accessory #4
1 pair of tweeter plastic ring 2 fixture around tweeter
