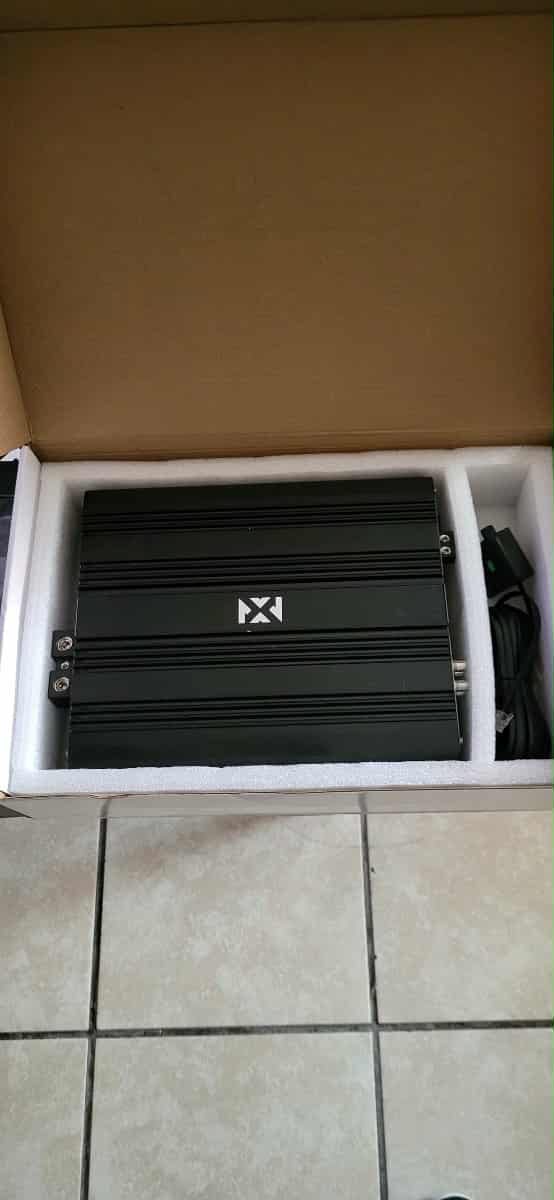

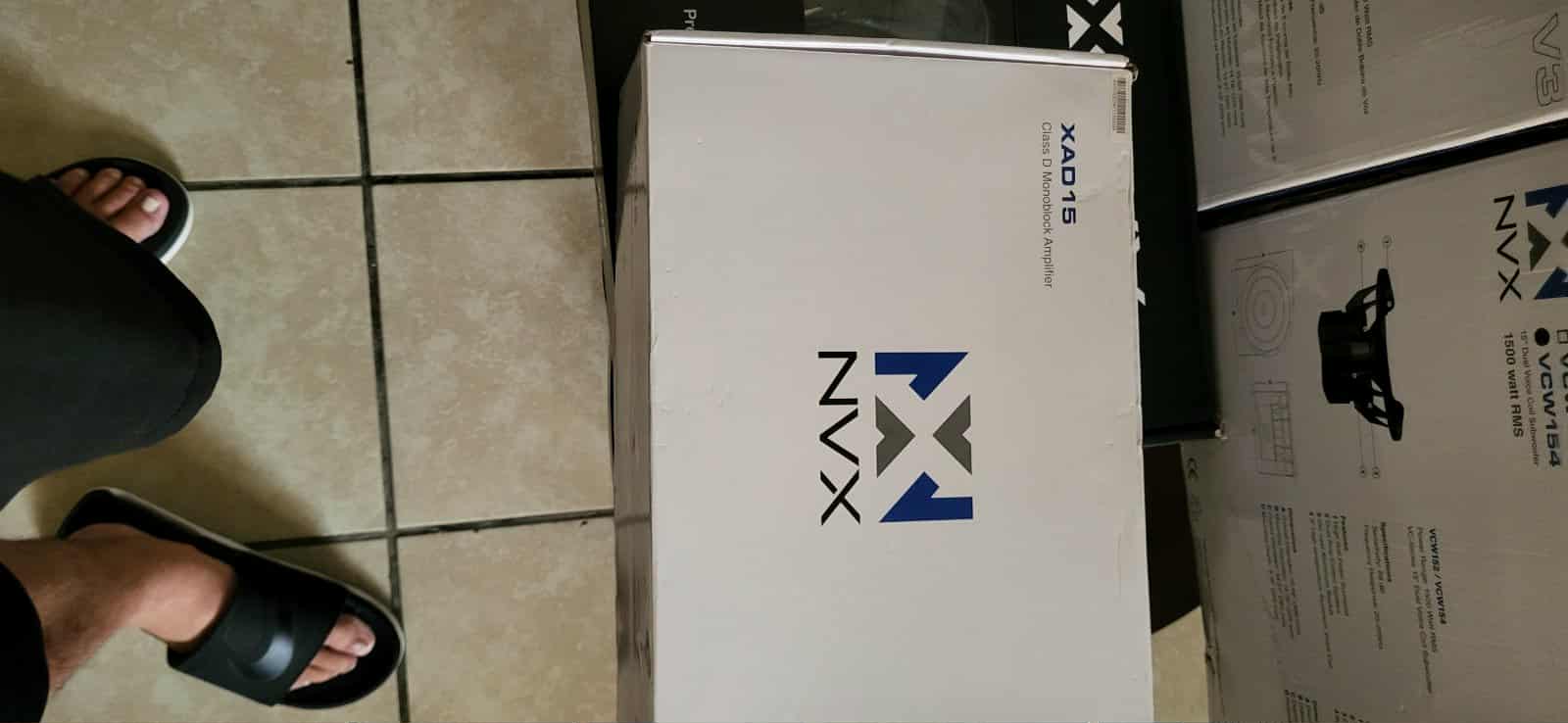

• Product Details:

  • Class D 1 ohms Stable Monoblock Amplifier
  • RMS Power Rating:
  • 4 ohms: 1850 watts x 1 channel
  • 2 ohms: 3300 watts x 1 channel
  • 1 ohm: 5000 watts x 1 channel
  • Total power output: 5000 watts watts
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Input sensitivity: 200mV
  • Frequency Response: 10 - 300 Hz
  • Total Harmonic Distortion (THD): 0.05%
  • Signal to Noise Ratio: 100 dB
  • Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
  • Variable subsonic filter: 15 - 40 Hz, 24 dB/octave
  • Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
  • 1/0 AWG gauge power and ground wiring is recommended for installation.
  • Dimensions: 10.5"W x 8.75"L x 2.5"H
  • 1-year Warranty from the Original Purchase Date
• Class D 1 ohms Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohms: 1850 watts x 1 channel
• 2 ohms: 3300 watts x 1 channel
• 1 ohm: 5000 watts x 1 channel
• Total power output: 5000 watts watts
• CEA-2006 Compliant Amplifier
• Pulse Width Modulated MOSFET power supply
• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• Soft start turn-on
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Input sensitivity: 200mV
• Frequency Response: 10 - 300 Hz
• Total Harmonic Distortion (THD): 0.05%
• Signal to Noise Ratio: 100 dB
• Variable low-pass filter: 50 - 250 Hz, 24 dB/octave
• Variable subsonic filter: 15 - 40 Hz, 24 dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
• 1/0 AWG gauge power and ground wiring is recommended for installation.
• Dimensions: 10.5"W x 8.75"L x 2.5"H
• 1-year Warranty from the Original Purchase Date
• Key Features
  • Amplifier Key Features - Bass Boost, Fan Cooled
• Amplifier Key Features - Bass Boost, Fan Cooled
• Power Specifications - Subwoofer Channel
  • RMS Power @ 4 ohms - 1850 watts x 1 channel
  • RMS Power @ 2 ohms - 3300 watts x 1 channel
  • RMS Power @ 1 ohm - 5000 watts x 1 channel
• RMS Power @ 4 ohms - 1850 watts x 1 channel
• RMS Power @ 2 ohms - 3300 watts x 1 channel
• RMS Power @ 1 ohm - 5000 watts x 1 channel
• Power Specifications - Subwoofer Channel
  • Peak Power @ 4 ohm - 3700 watts x 1 channel
  • Peak Power @ 2 ohms - 6600 watts x 1 channel
  • Peak Power @ 1 ohm - 10000 watts x 1 channel
• Peak Power @ 4 ohm - 3700 watts x 1 channel
• Peak Power @ 2 ohms - 6600 watts x 1 channel
• Peak Power @ 1 ohm - 10000 watts x 1 channel
• Amplifier Specifications
  • Series - X Series
  • Amplifier Class - D
  • Number of Channels - 1 - Mono
  • Total Peak Power Output - 10000 watts
  • Total RMS Power Output - 5000 watts
  • Maximum Input Gauge Size - 1/0 AWG
  • Minimum Impedance Unbridged - 1 ohms
  • THD at Rated RMS Power - 0.05%
  • Built-in Crossover - Low-Pass (LP), Subsonic
  • Low-Pass Crossover Frequency - 50 - 250 Hz
  • Subsonic Filter - 15 - 40 Hz
  • Signal-to-Noise Ratio - 100 dB
  • Bass Boost - 0 - 12 dB
  • Remote bass/level controller - Yes
  • Amp Bluetooth Connectivity - No
• Series - X Series
• Amplifier Class - D
• Number of Channels - 1 - Mono
• Total Peak Power Output - 10000 watts
• Total RMS Power Output - 5000 watts
• Maximum Input Gauge Size - 1/0 AWG
• Minimum Impedance Unbridged - 1 ohms
• THD at Rated RMS Power - 0.05%
• Built-in Crossover - Low-Pass (LP), Subsonic
• Low-Pass Crossover Frequency - 50 - 250 Hz
• Subsonic Filter - 15 - 40 Hz
• Signal-to-Noise Ratio - 100 dB
• Bass Boost - 0 - 12 dB
• Remote bass/level controller - Yes
• Amp Bluetooth Connectivity - No

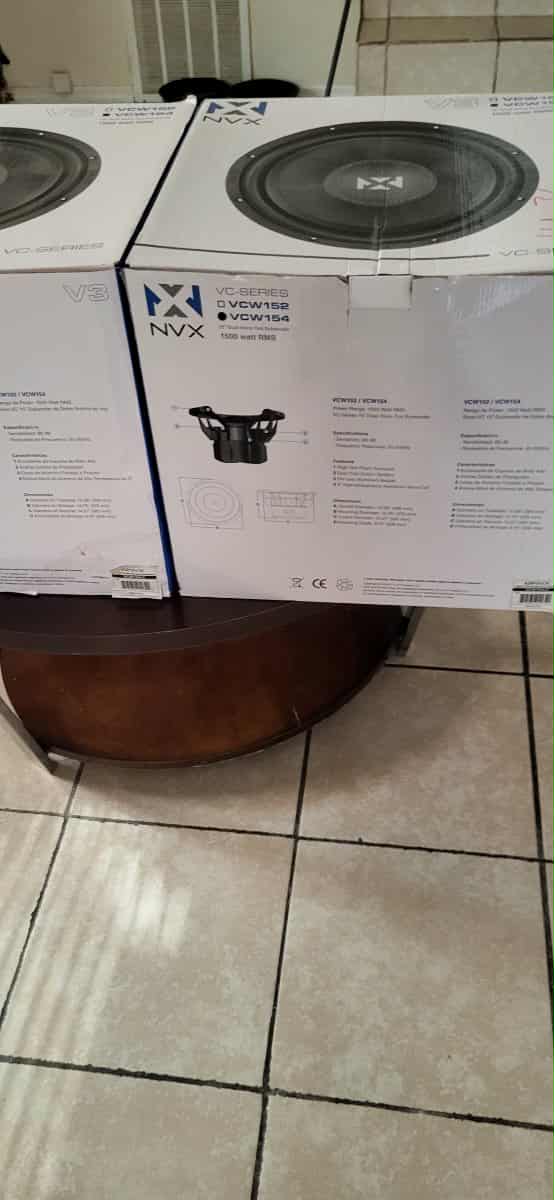

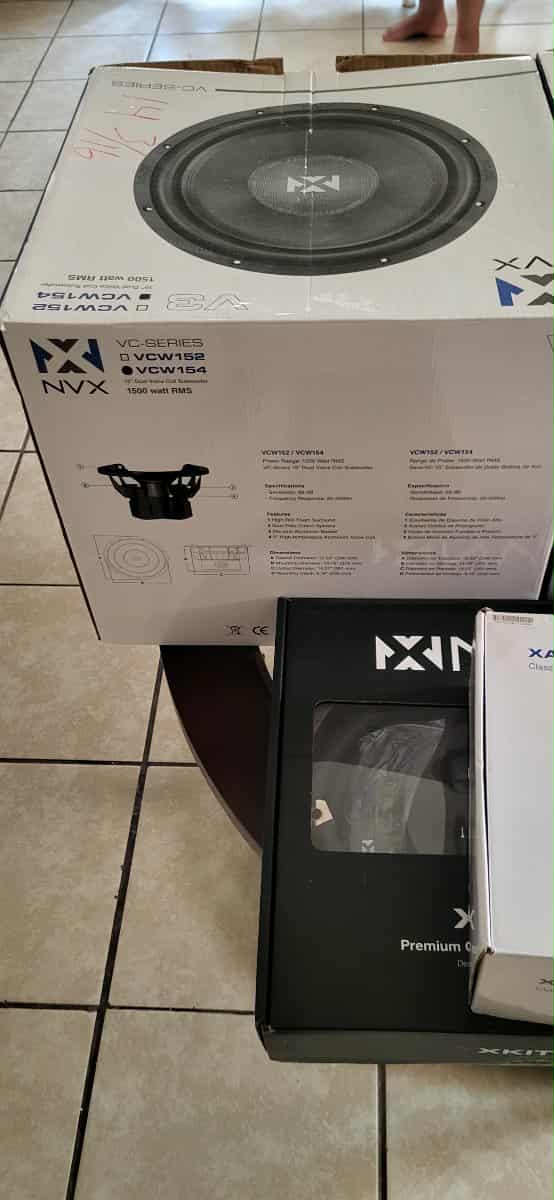

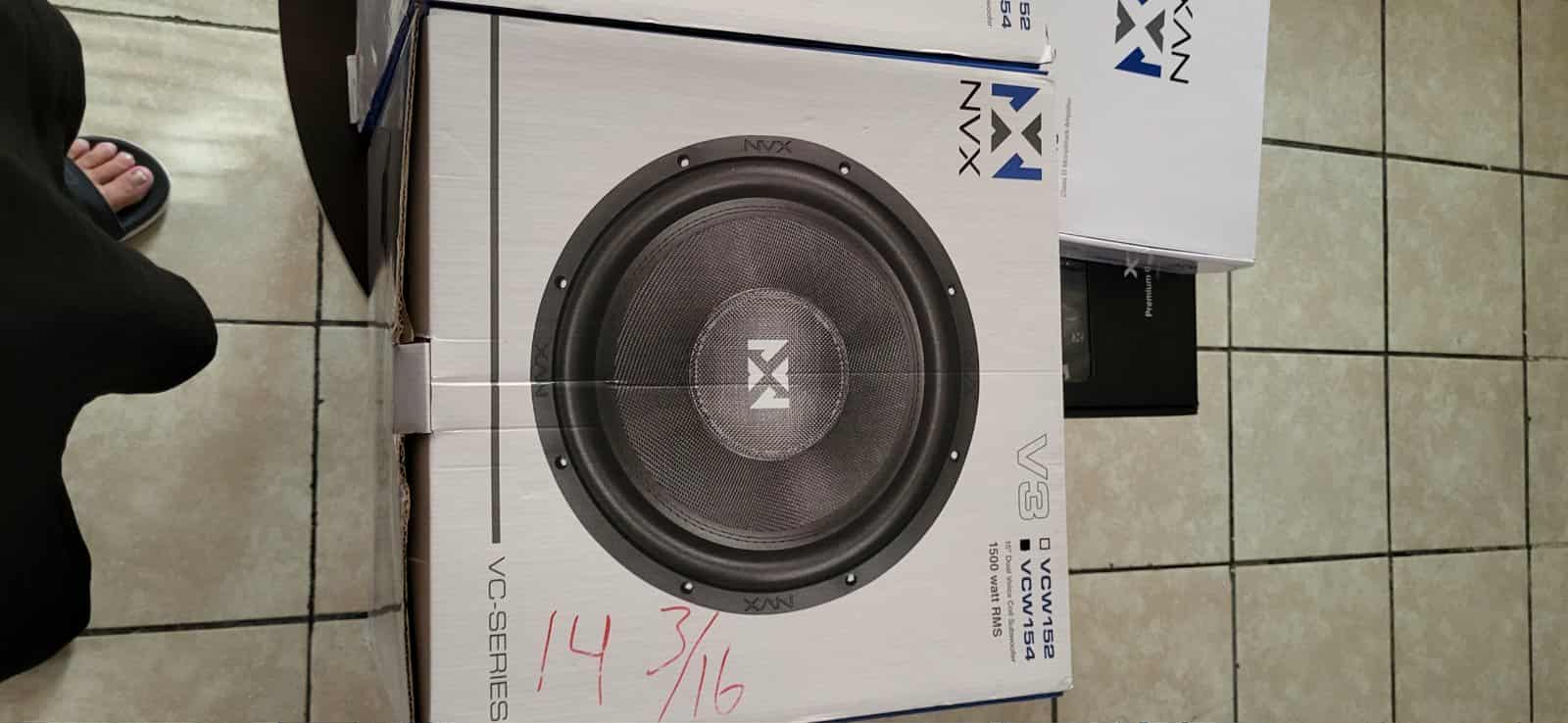

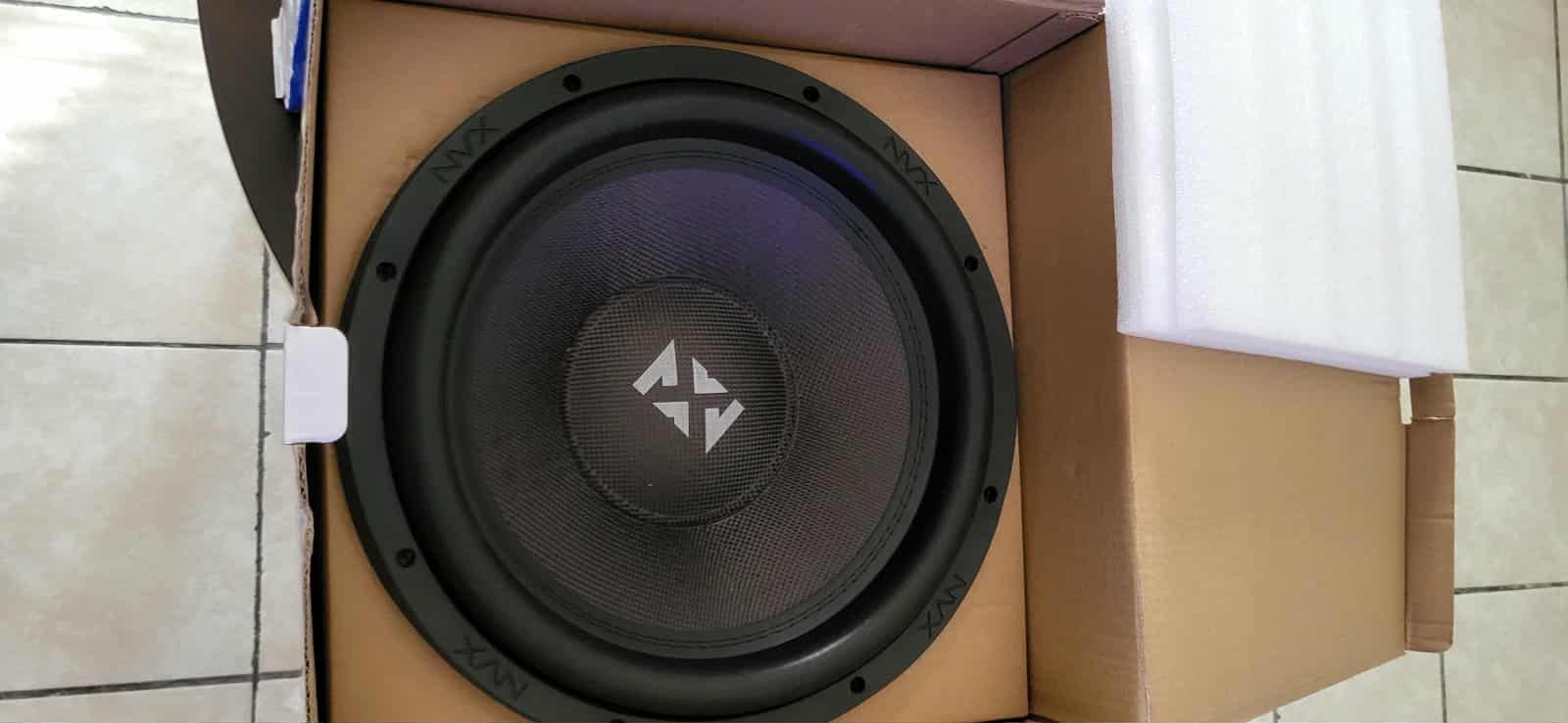

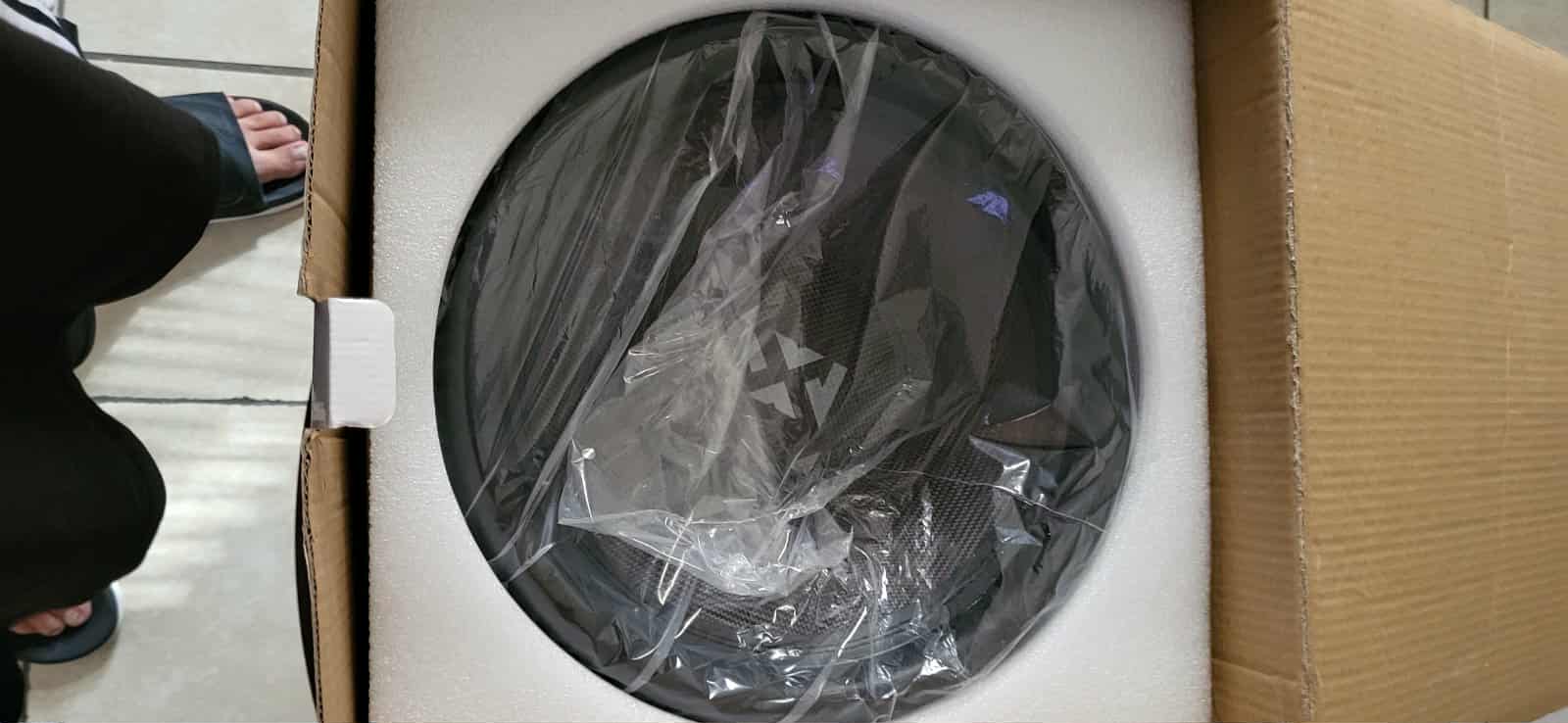

NVX VCW154 Version 3 (VCW154v3)

3000 Watt Peak (1500W RMS) 15" VC-Series v3 Dual 4-Ohm Car Subwoofer

Product Features:

• 15" Dual 4-Ohm VC-Series v3 Car Subwoofer
• Power Handling:
• Peak Power: 3000 watts
• RMS Power: 1500 watts
• Impedance: Dual 4 ohm
• Xmax: 23mm (One-way)
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll foam surround with black nylon stitching
• Die Cast aluminum vented basket
• Dual Progressive Roll Bolt-on Spiders with Integrated Flat Braided Tinsel Leads
• 3” 4-Layer High Temperature Black Aluminum Voice coil
• Optimized high-velocity pole vent
• One piece T-Yoke with vented magnet gap
• 202 oz. Triple stacked High Energy Y35 grade ferrite magnet with protective rubber boot
• Frequency response: 20-200 Hz
• Resonance Frequency (Fs): 31 Hz
• Optimal sealed box volume: 2.00 cubic feet
• Optimal ported box volume: 3 cubic feet
• Top-mount depth: 8.19"
• Cutout diameter: 14.21"
• Sensitivity: 88dB

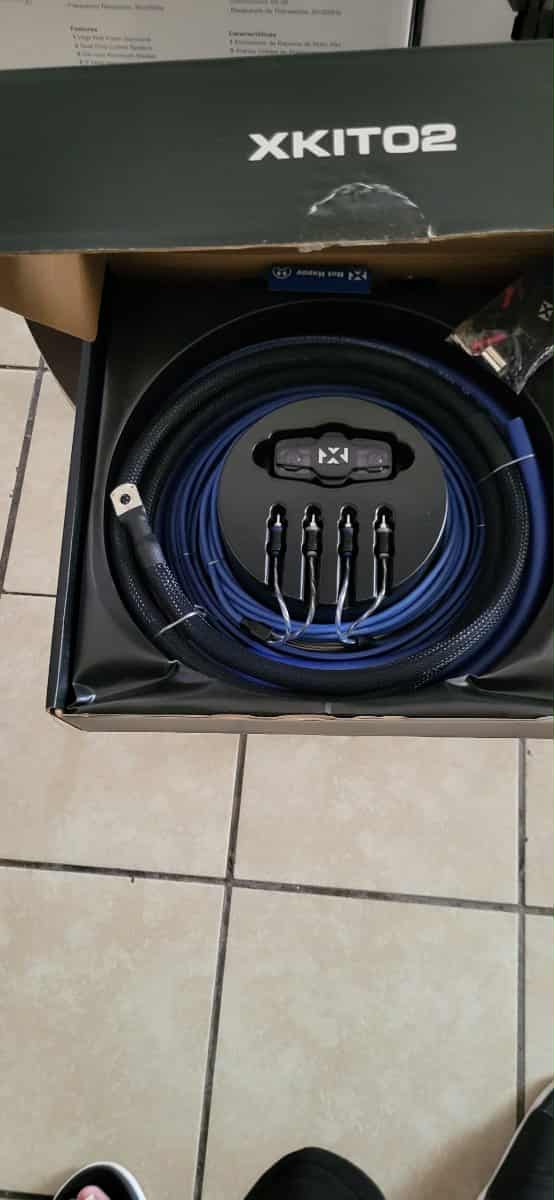

NVX XKIT02

Full Spec 1/0 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 4000 Watts

Product Details:

• 1/0 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
• Designed for car audio systems up to 3000 watts RMS
• Made from 100% Oxygen-Free Copper (OFC)
• Tinned conductors for corrosion resistance
• Pre-installed black nylon mesh covering protects the power wire from damage
• Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• CEA-2015 and BC5W2 compliant
• V-Series RCA Interconnect Cable
• Shielded noise-rejecting coaxial construction provides protection against interference
• Split-tip silver-plated ends offer high-quality performance
• Molded ends equipped with colored channel identifiers for easy recognition
• Twisted-pair construction featuring two conductors per channel
• Includes an assortment of wire termination hardware and cable ties
•


Kit includes:

1. 17 ft. Frosted Blue 1/0 gauge power wire with seamless crimp ring terminal
2. 3 ft. Frosted Black 1/0 gauge ground wire with seamless crimp ring terminal
3. 17 ft. Clear 18 gauge remote lead wire
4. 20 ft. Frosted Black/Blue 12 gauge speaker wire
5. One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 300 amp Mini-ANL fuse
7. One Black rubber firewall grommet
8. Two 1/0 Gauge Nickel Plated ring terminals
9. Four 12 Gauge Spade terminal
10. Two 18 Gauge Red butt connectors
11. Two Heat Shrink tubes with the NVX logo
12. Ten 6" Black zip ties

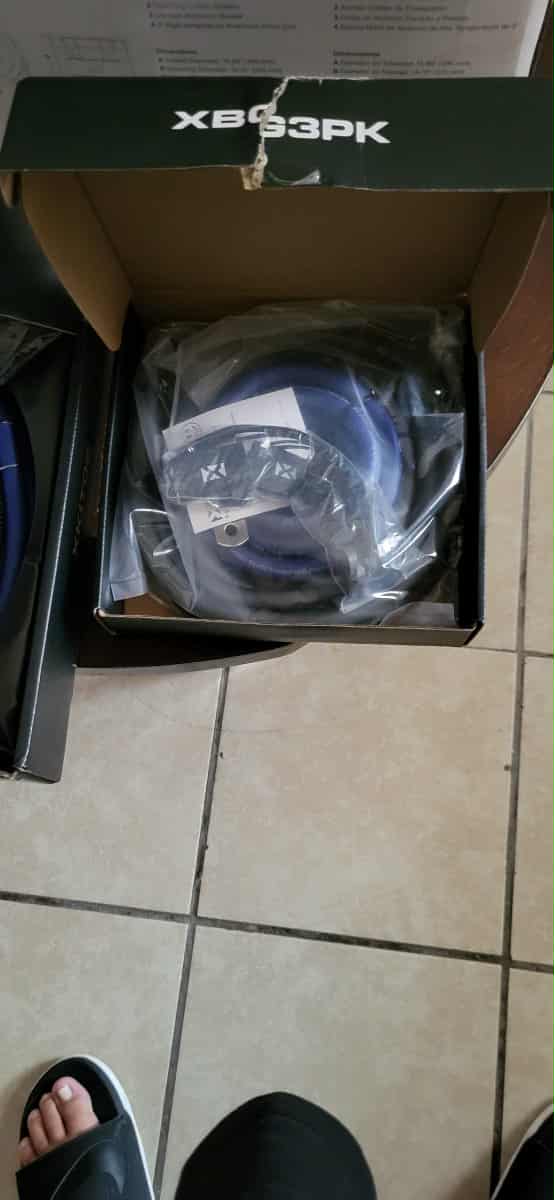

NVX XBG3PK Big 3 Kit with True 0 Gauge 100% Oxygen-Free Copper

1/0 AWG Big 3 Upgrade Kit with 100% OFC Wire for Audio Sytems up to 350 Amps

Product Details:

• 1/0 Gauge X-Series Big 3 Upgrade Kit
• Made from 100% Oxygen-Free Copper (OFC)
• Tinned conductors for corrosion resistance
• Pre-terminated seamless power and ground ring terminals provide reliable performance
• Full spec power and speaker wire meet or exceed American Wire Gauge standards
• CEA-2015 and BC5W2 compliant
• Includes an assortment of wire termination hardware and cable ties
•


Kit includes:

1. One 6 ft. Frosted Blue 1/0 gauge power wire with seamless crimp ring terminal
2. Two 4 ft. Frosted Black 1/0 gauge power wire with seamless crimp ring terminal
3. Ten Black Nylon Cable Clamps
4. Ten 1/2" #8 Wafer Head Tek Screws
5. Ten 8" Black zip ties
6. Three 1/0 Gauge Nickel Plated ring terminals
7. Three Heat Shrink tubes with the NVX logo

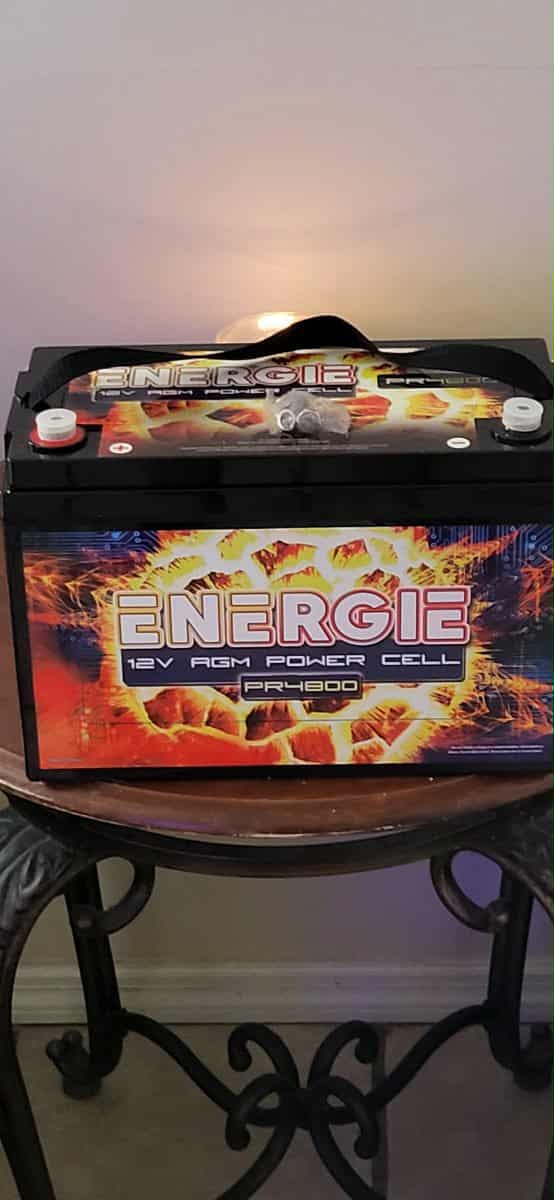

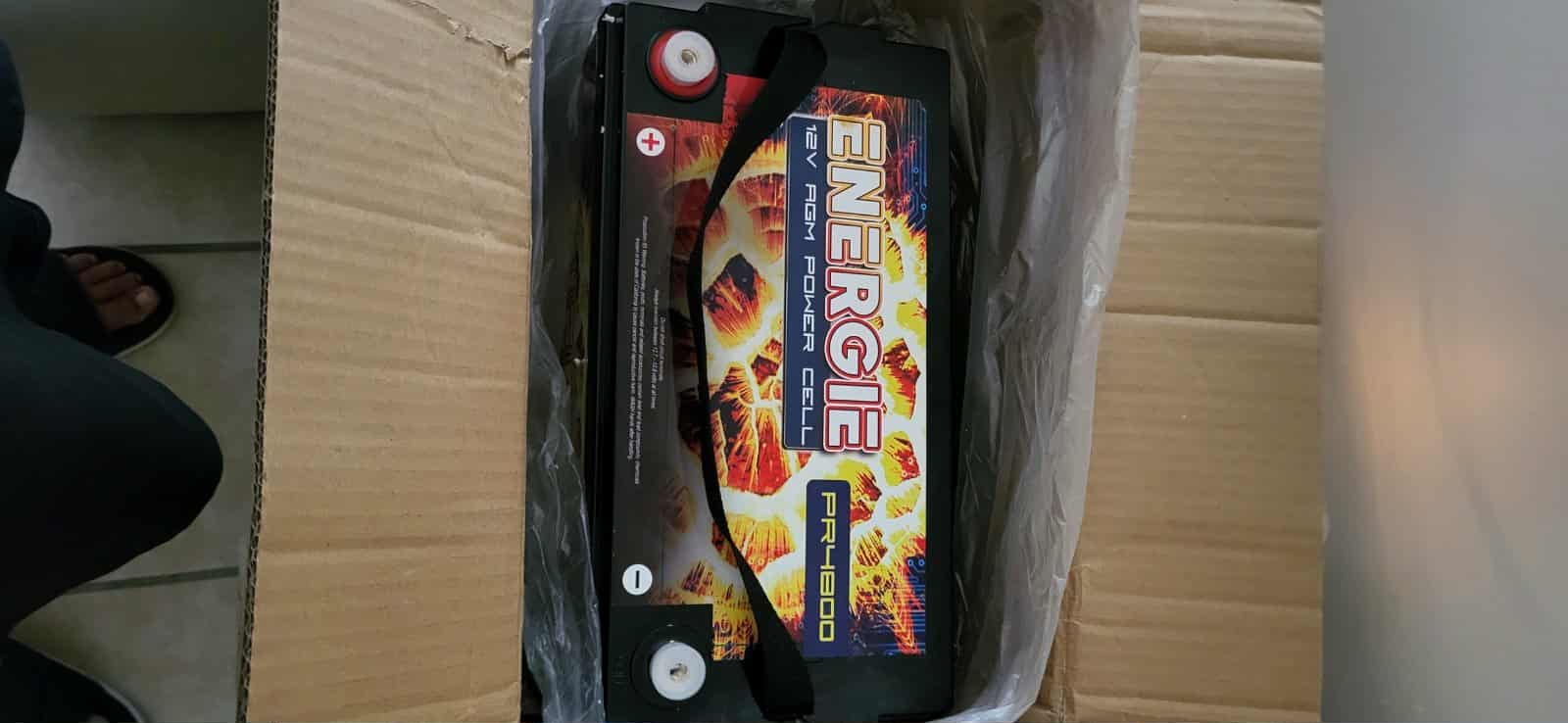

Energie PR4800

4800 Watt 12V Power Cell Battery
