ESB Audio | MB Coax 100 | 6000 Series | Coaxial Speakers for Mercedes-Benz

Main Features

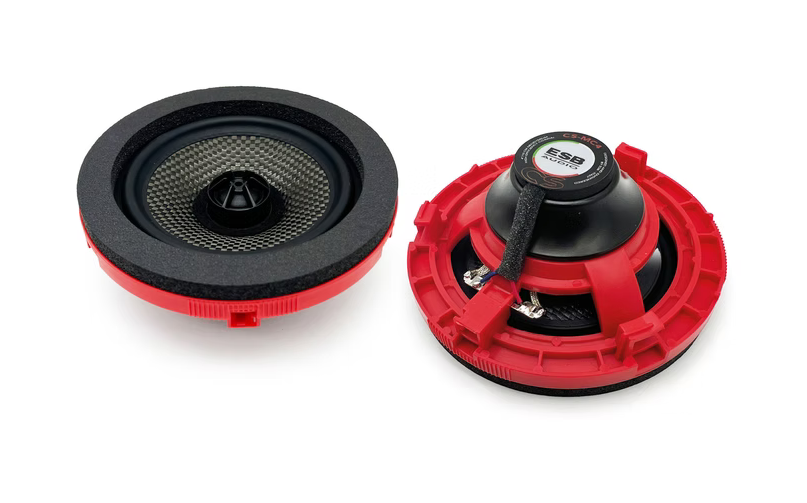

The MB COAX 100 incorporates the mid and tweeter of the 2-way system into a single coaxial speaker.
The tweeter uses the ESB CS-MT06 0.6"/16 mm component tweeter, the woofer uses the ESB CS-MW4 4"/10 cm component woofer, with special adaptor to fit many Mercedes vehicles.
Crossover: ESB CS-MT06CX dedicated crossover.
Compatibility: C Class 2021+ > Sedan W206, T-Model S206, Convertible A206, Coupe C206

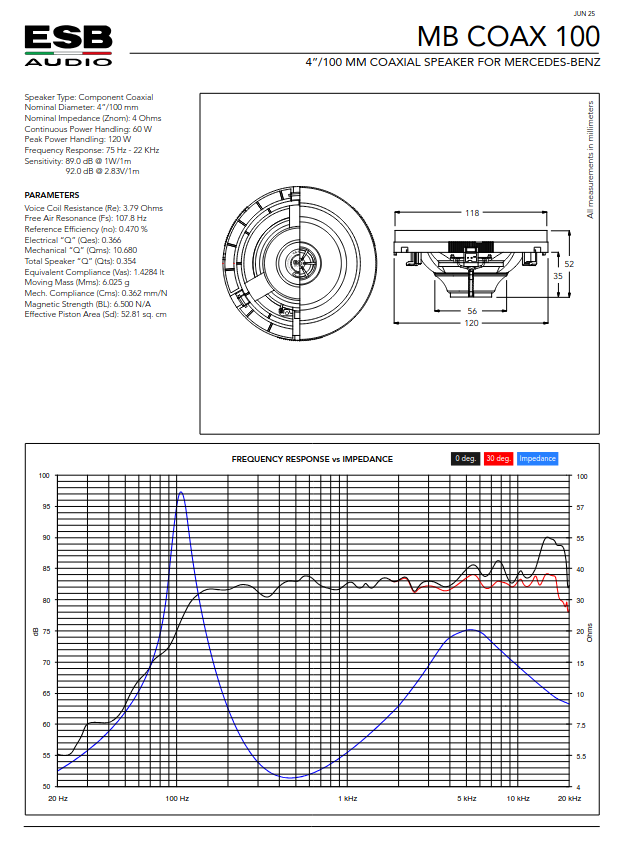

Technical Specifications

- Nominal Impedance: 4 Ohm
- Nominal Power Handling: 60 Watt
- Transient Power: 120 Watt
- Frequency Response: 75 Hz ~ 22 KHz
- Sensitivity: 92 dB 2.83v/1m
