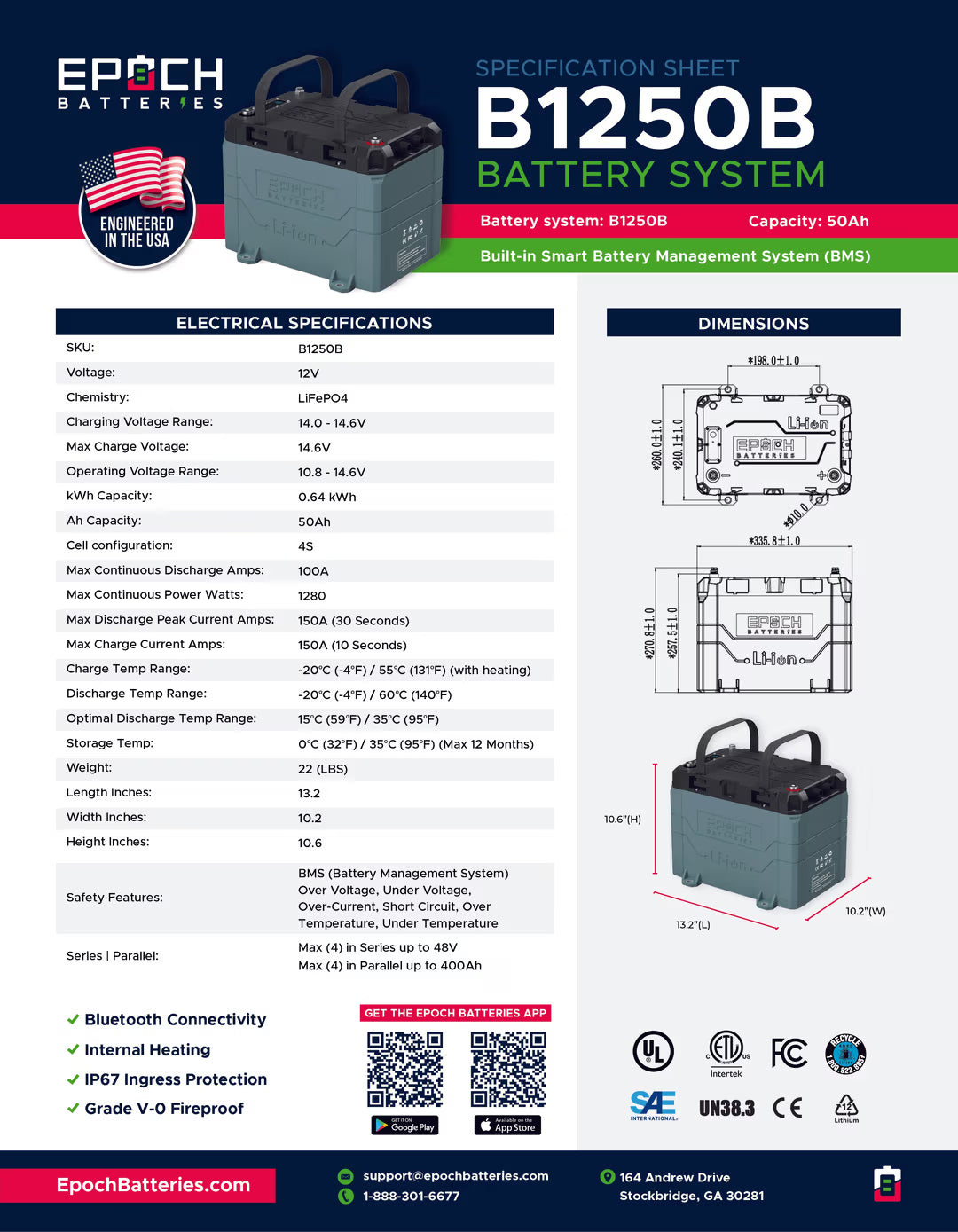

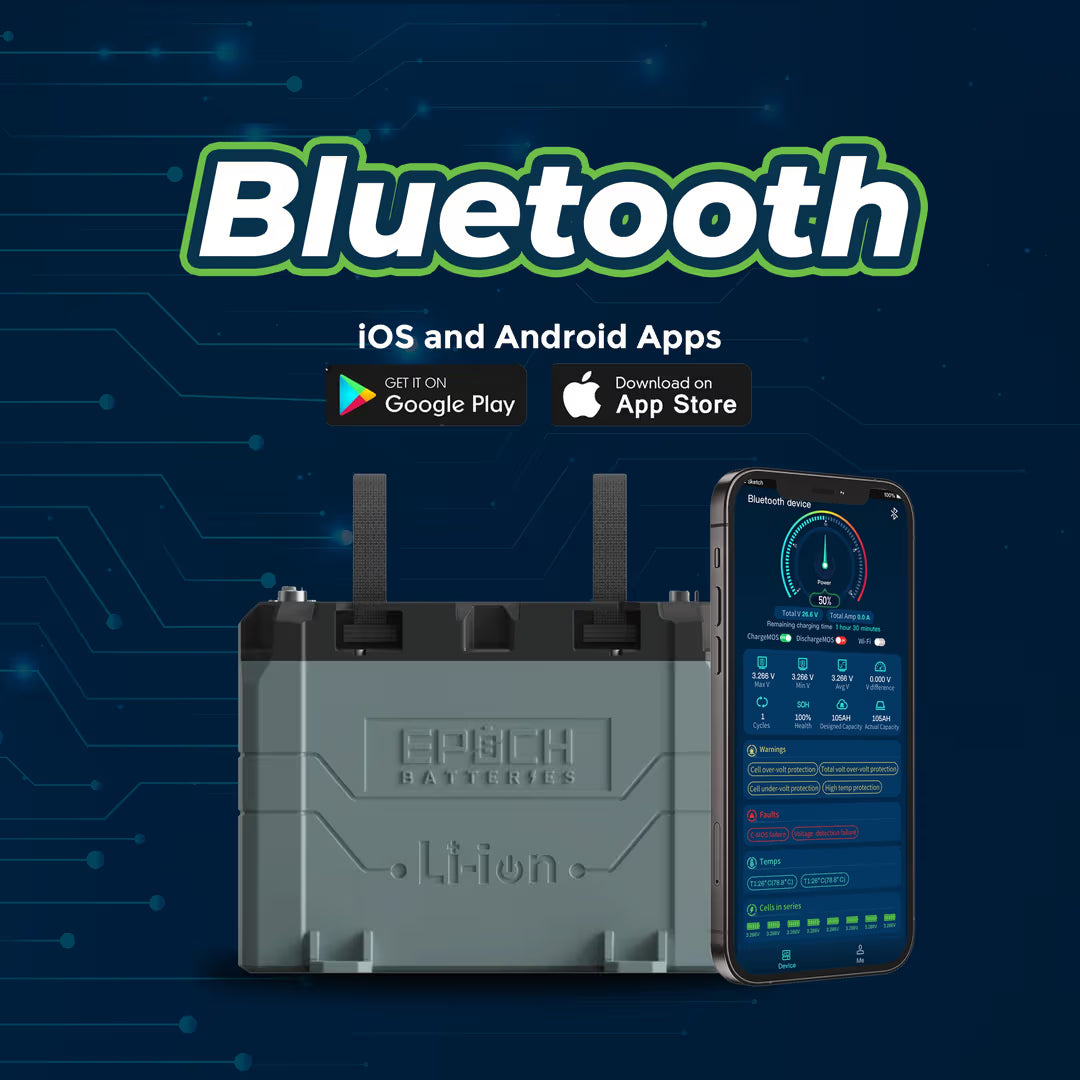

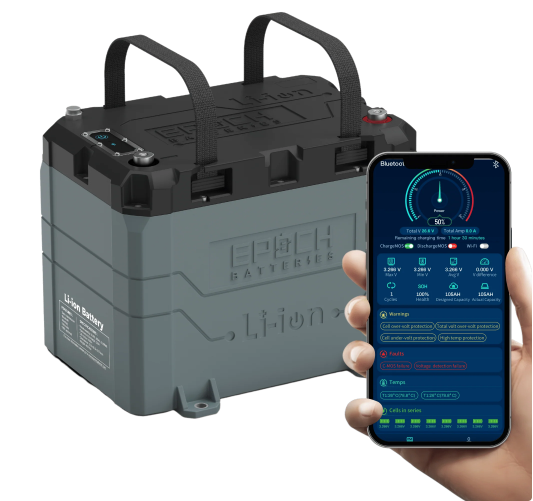

Epoch Batteries - B1250B -12V 50Ah LiFePO4 Lithium Battery - Bluetooth, Heating,

Cell Configuration: 4S

Chemistry: LiFePO4

Current

Ah Capacity: 50Ah

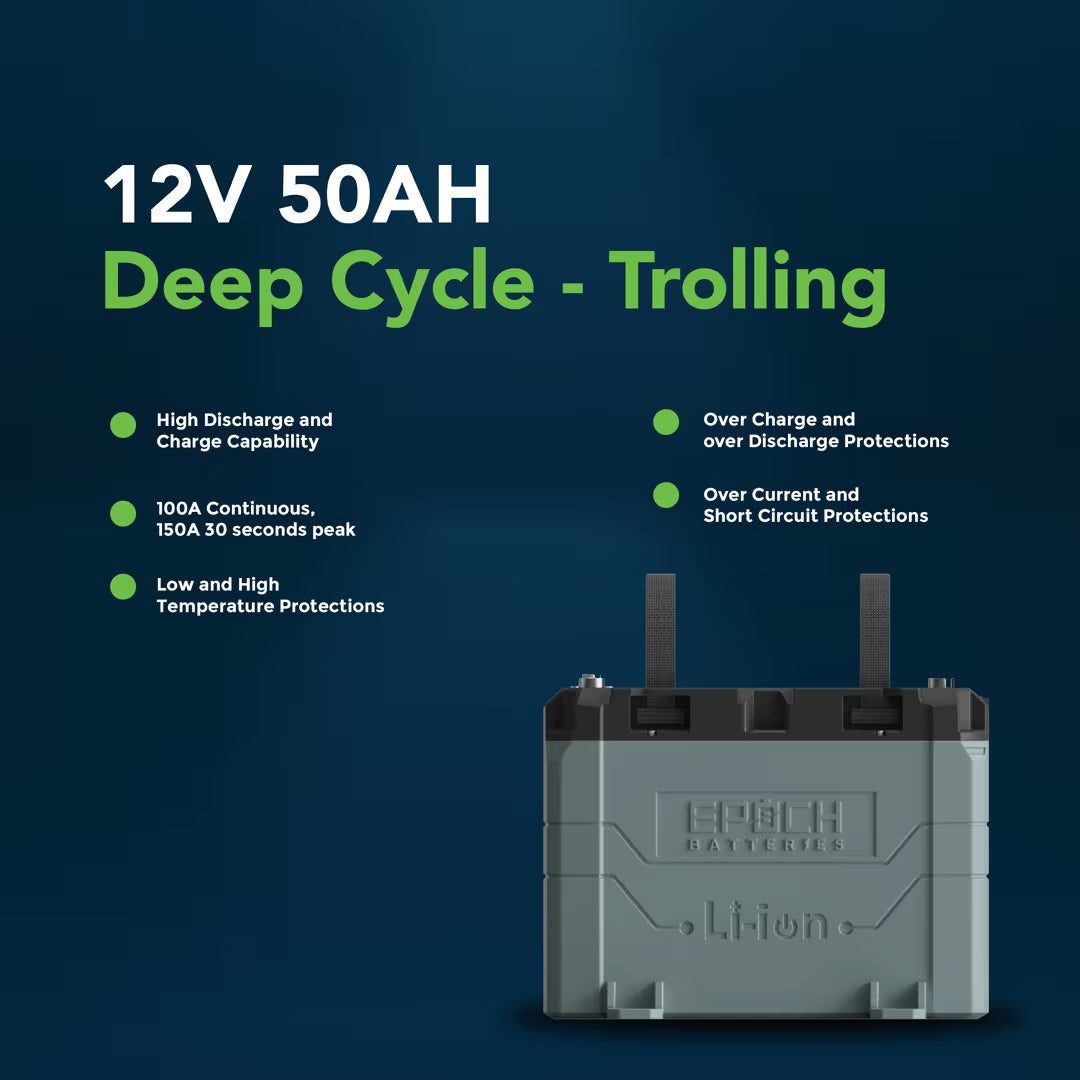

Max Continuous Discharge Amps: 100A

Max Charge Current Amps: 150A (10 Seconds)

Max Discharge Peak Current Amps: 150A (30 Seconds)

Series | Parallel: Max (4) in Series up to 48V, Max (4) in Parallel - 4S4P

Voltage

Voltage: 12V

Max Charge Voltage: 14.6V

Operating Voltage Range: 10.8 - 14.6V

Temperature

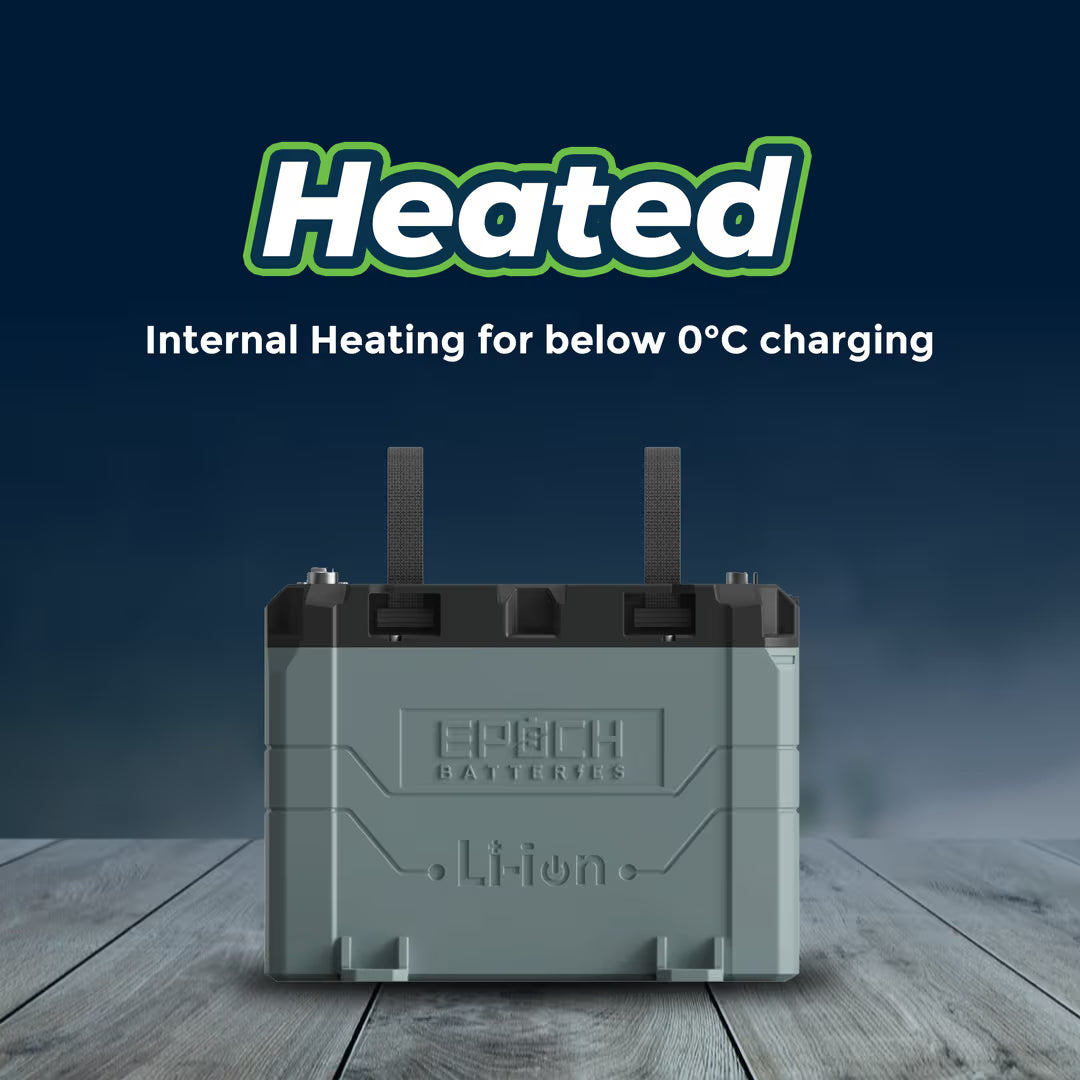

Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)

Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)

Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)

Weights & Dimensions

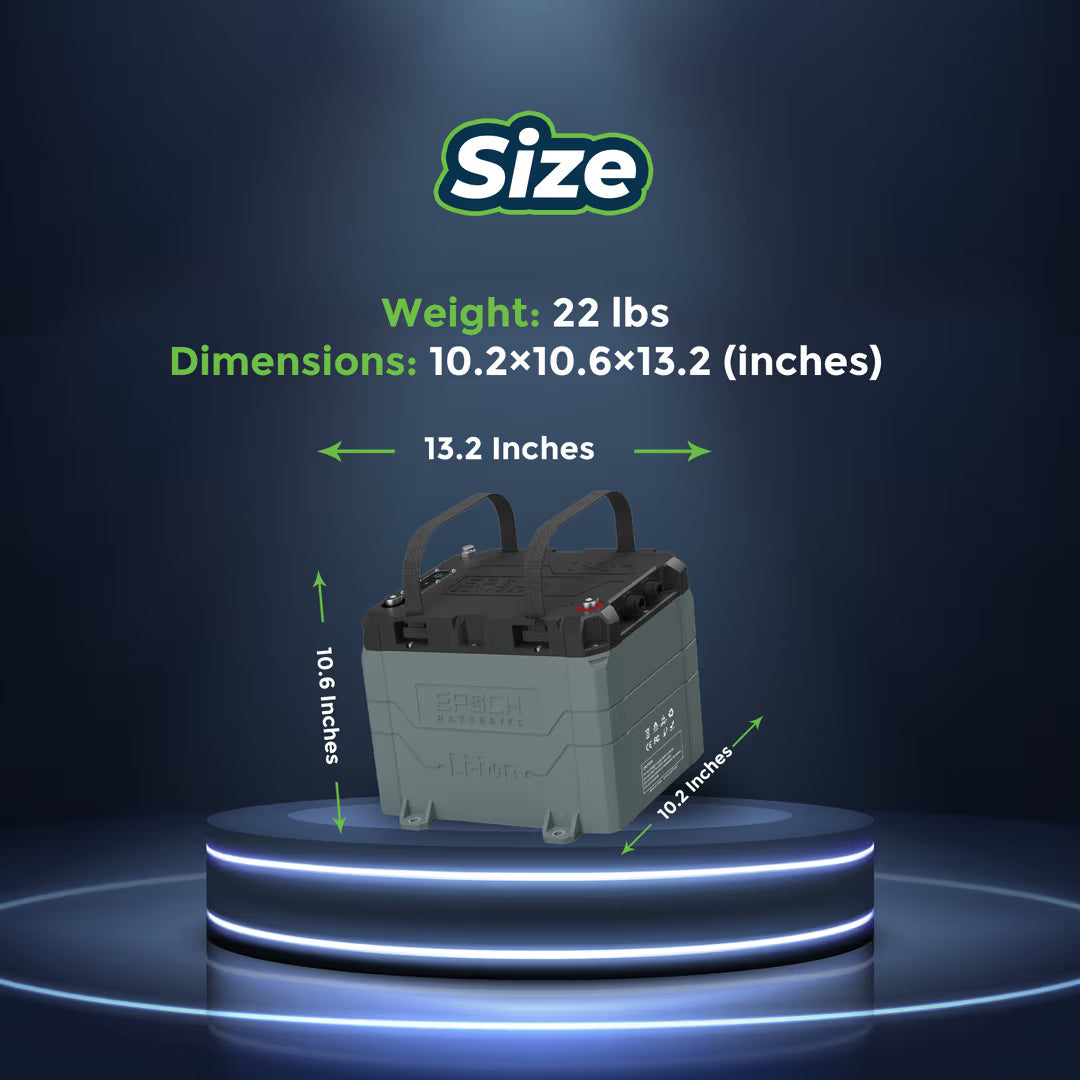

Weight: 22 (LBS)

Dimensions

Length: 13 (inches)

Width: 10.25 (inches)

Height: 11 (inches)

Recommended Charging Settings

• To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
• Bulk/Absorption: 14.2V – 14.6V
• Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
• Float: 13.4V – 13.8V
• Equalization: 14.4V/ Disabled
• Temperature Compensation: 0/Disabled
• Charge Rate: 50% of the battery or battery bank capacity
• Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
• Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
• Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
• NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.

• Compatible Charger

  12V 15A Battery Charger - Epoch Batteries-CHG-12V15A
