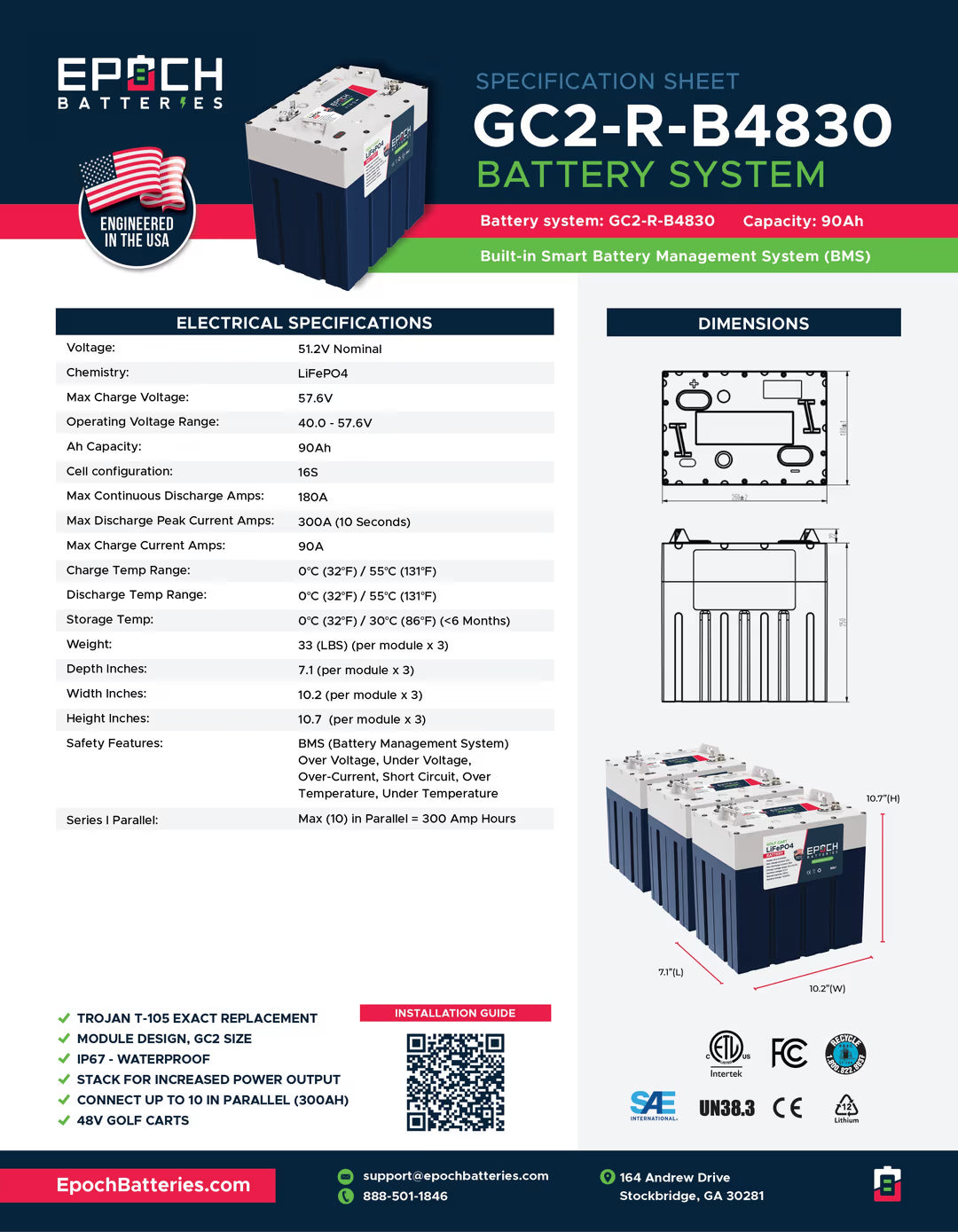

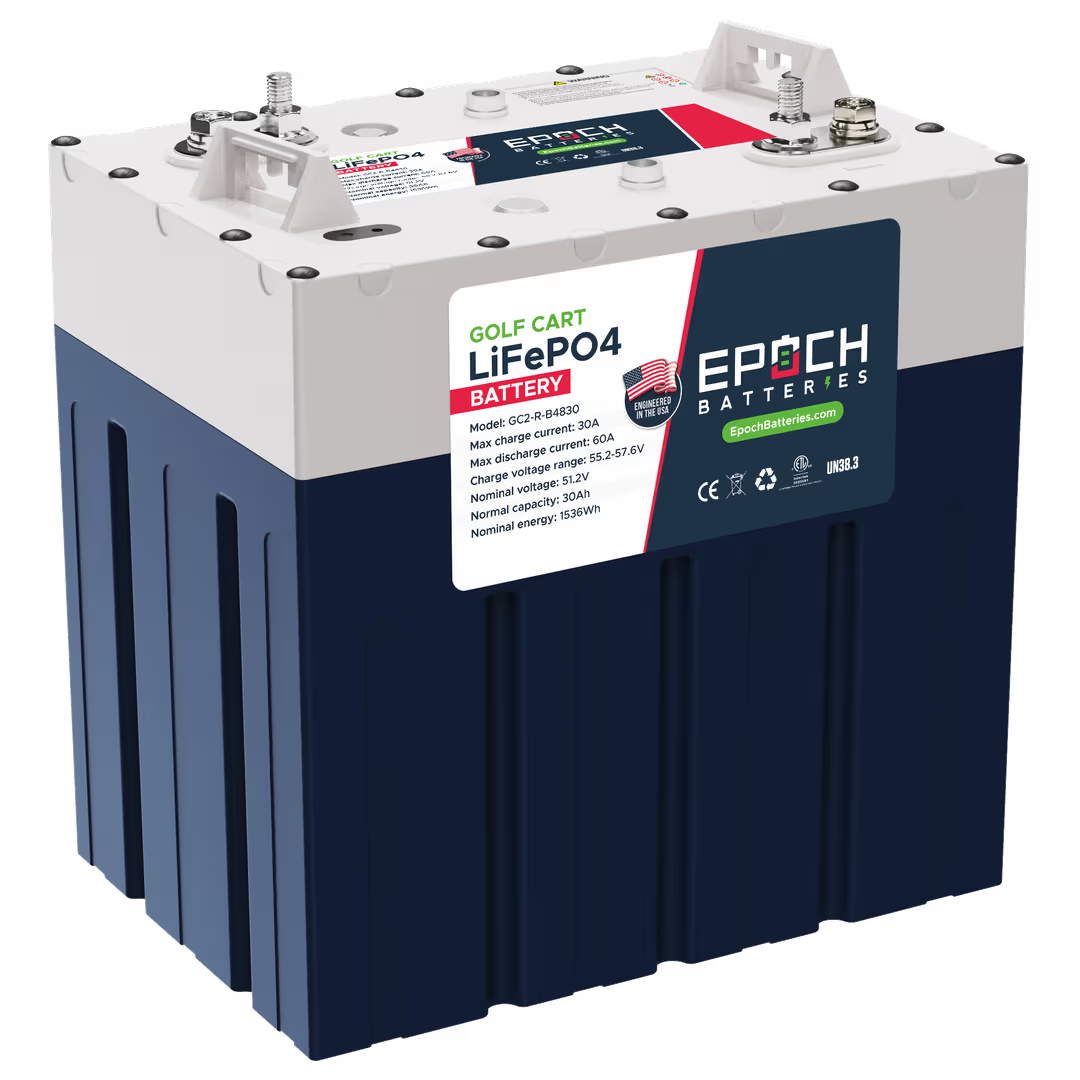

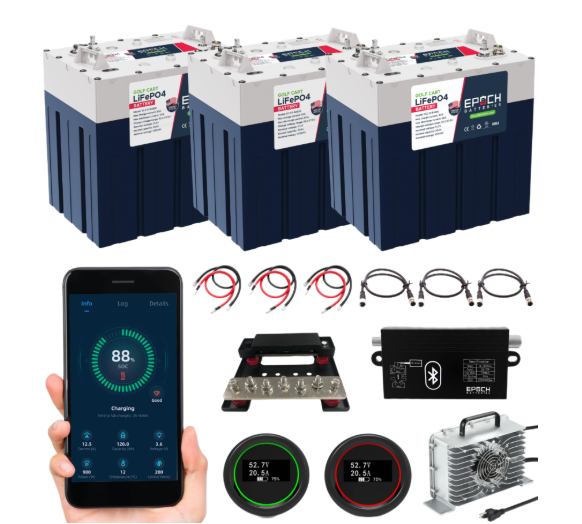

Epoch Batteries -48V 90Ah GC2 - Golf Cart LiFePO4 Lithium Battery - Complete Kit

Cell Configuration: 16S

Chemistry: LiFePO4

Current

Ah Capacity: 90Ah

Max Continuous Discharge Amps: 180A

Max Charge Current Amps: 30A

Max Discharge Peak Current Amps: 300A (10 Seconds) - 600A (3 Seconds)

Series | Parallel: Max (10) in Parallel = 300 Amp Hours

Voltage

Voltage: 48

Max Charge Voltage: 57.6V

Operating Voltage Range: 40.0 - 57.6V

Temperature

Charge Temp Range: 0°C (32°F) / 55°C (131°F)

Discharge Temp Range: -20°C (-4°F) / 55°C (131°F)

Storage Temp: 0°C (32°F) / 30°C (86°F) (<6 Months)

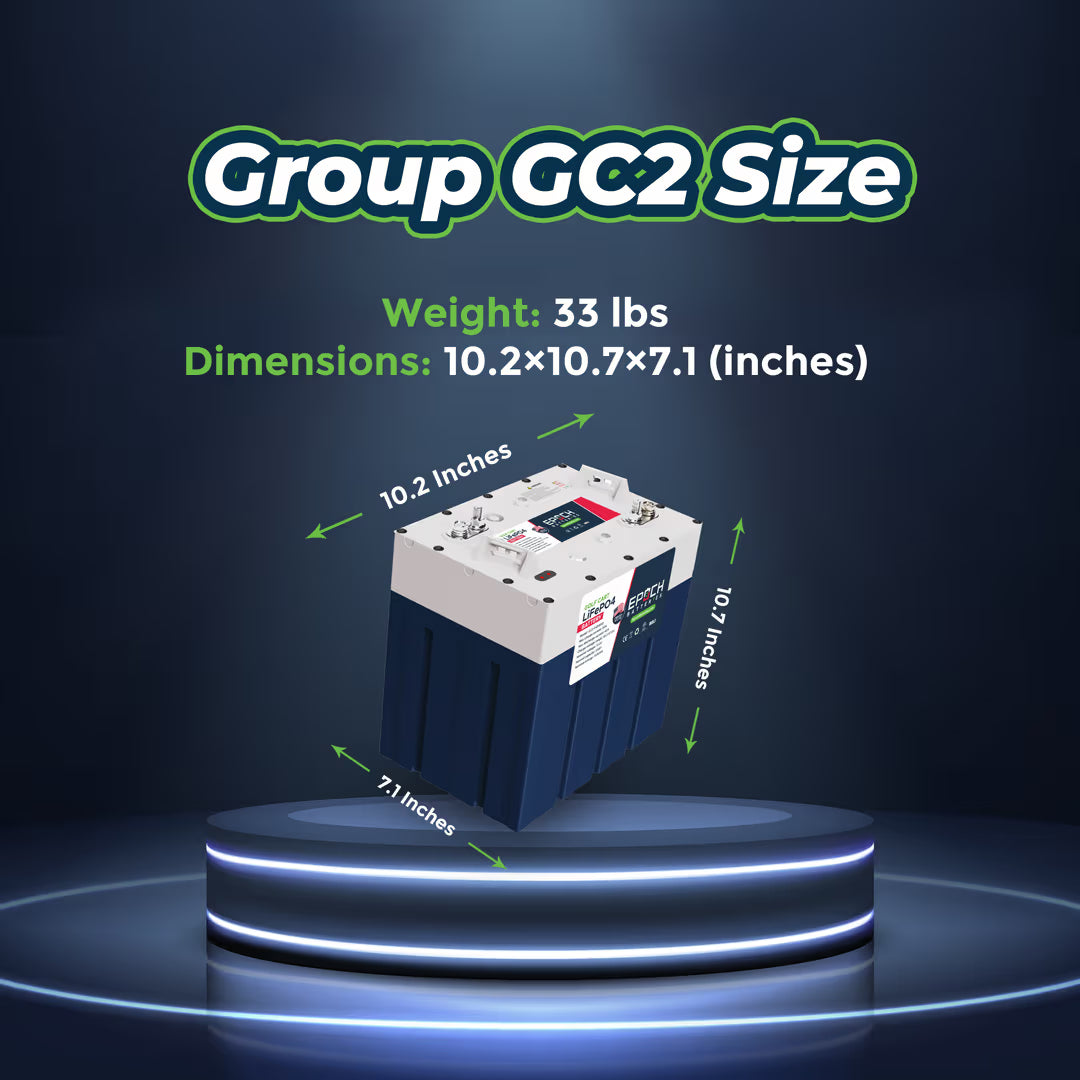

Weights & Dimensions

Weight: 33 (LBS) (per module x3)

Dimensions

Length: 10.25 (inches)

Width: 7 (per module x3) (inches)

Height: 11 (inches)

Additional Information

M8 Terminals - Torque Tension Recommendation is 8-12N·M

Pack Certifications: UN38.3, CE

Cell Certifications: UL1642, UL2580, UN38.3

Recommended Charging Settings

• To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
• Bulk/Absorption: 14.2V – 14.6V
• Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
• Float: 13.4V – 13.8V
• Equalization: 14.4V/ Disabled
• Temperature Compensation: 0/Disabled
• Charge Rate: 50% of the battery or battery bank capacity
• Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
• Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
• Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
• NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.
