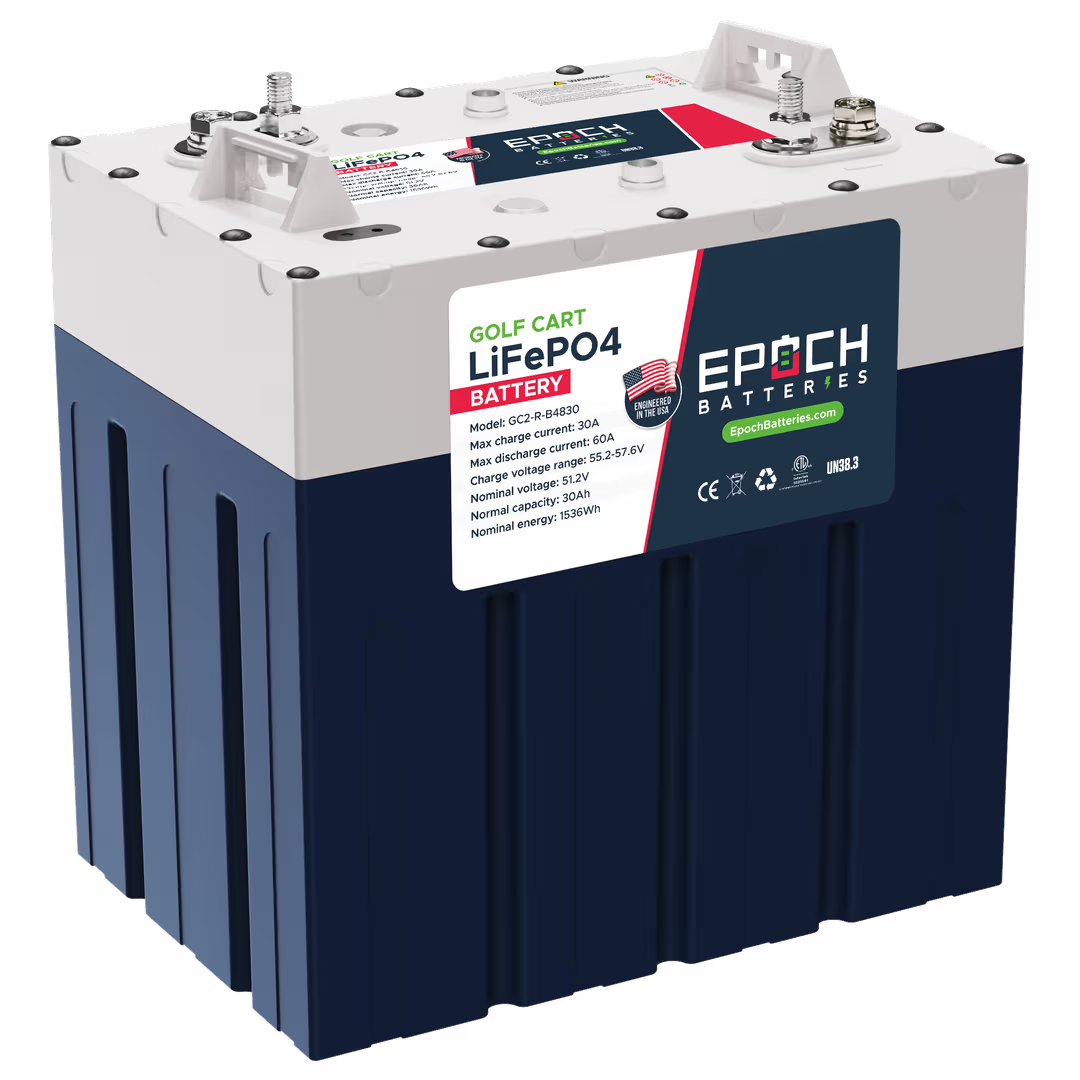

Epoch Batteries - 48V 30Ah GC2 - Golf Cart LiFePO4 Lithium Battery
Epoch Batteries - 48V 30Ah GC2 - Golf Cart LiFePO4 Lithium Battery
Regular price
$799.99 USD
Regular price
$799.99 USD
Sale price
$799.99 USD
Quantity
Couldn't load pickup availability

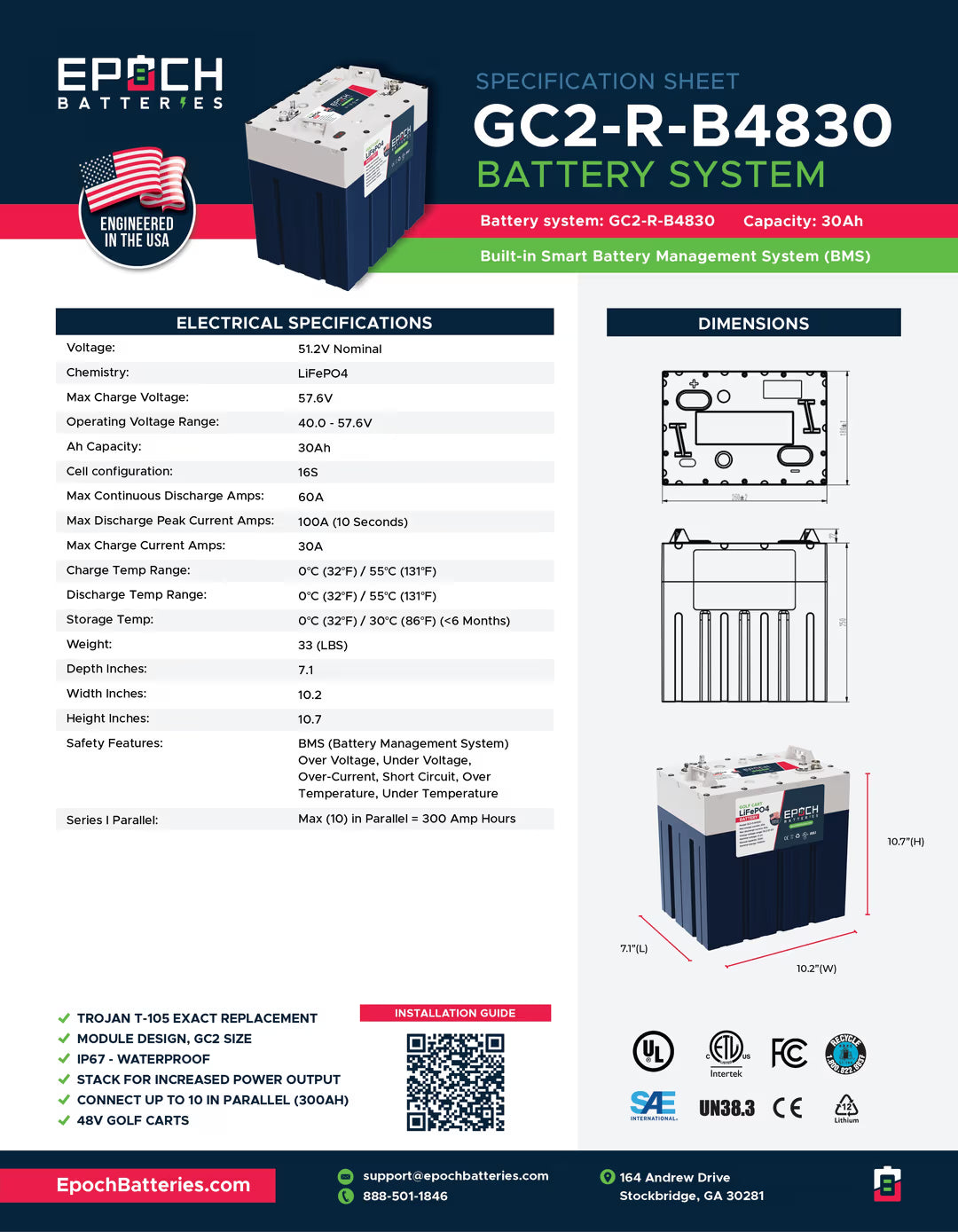

Cell Configuration: 16S
Chemistry: LiFePO4
Current
Ah Capacity: 30Ah
Max Charge Current Amps: 30A
Max Discharge Peak Current Amps: 100A (10 Seconds) - 200A (3 Seconds)
Series | Parallel: Max (10) in Parallel = 300 Amp Hours
Voltage
Voltage: 51.2V Nominal
Max Charge Voltage: 57.6V
Operating Voltage Range: 40.0 - 57.6V

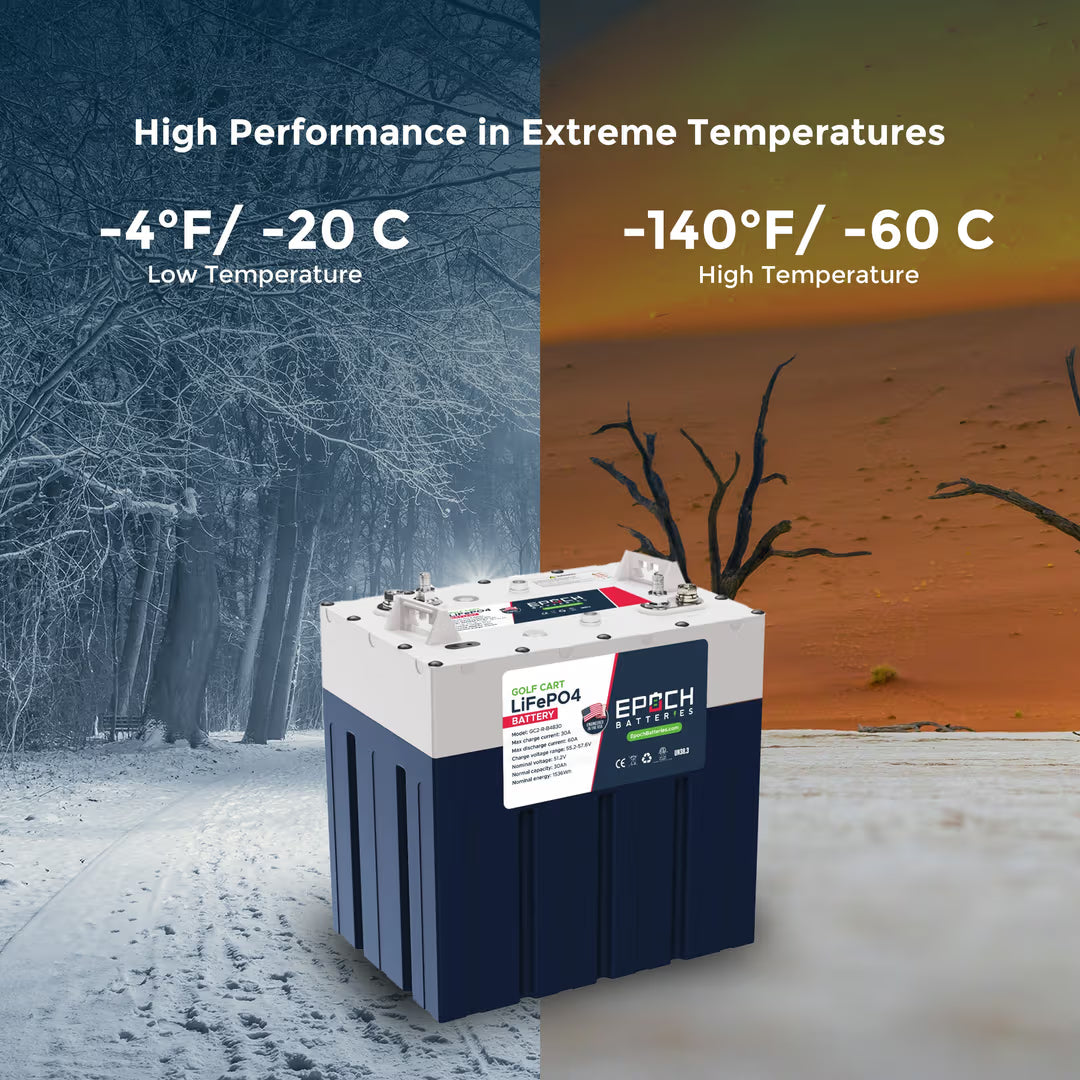

Temperature
Charge Temp Range: 0°C (32°F) / 55°C (131°F)
Discharge Temp Range: -20°C (-4°F) / 55°C (131°F)
Storage Temp: 0°C (32°F) / 30°C (86°F) (<6 Months)
Weight: 33 (LBS)

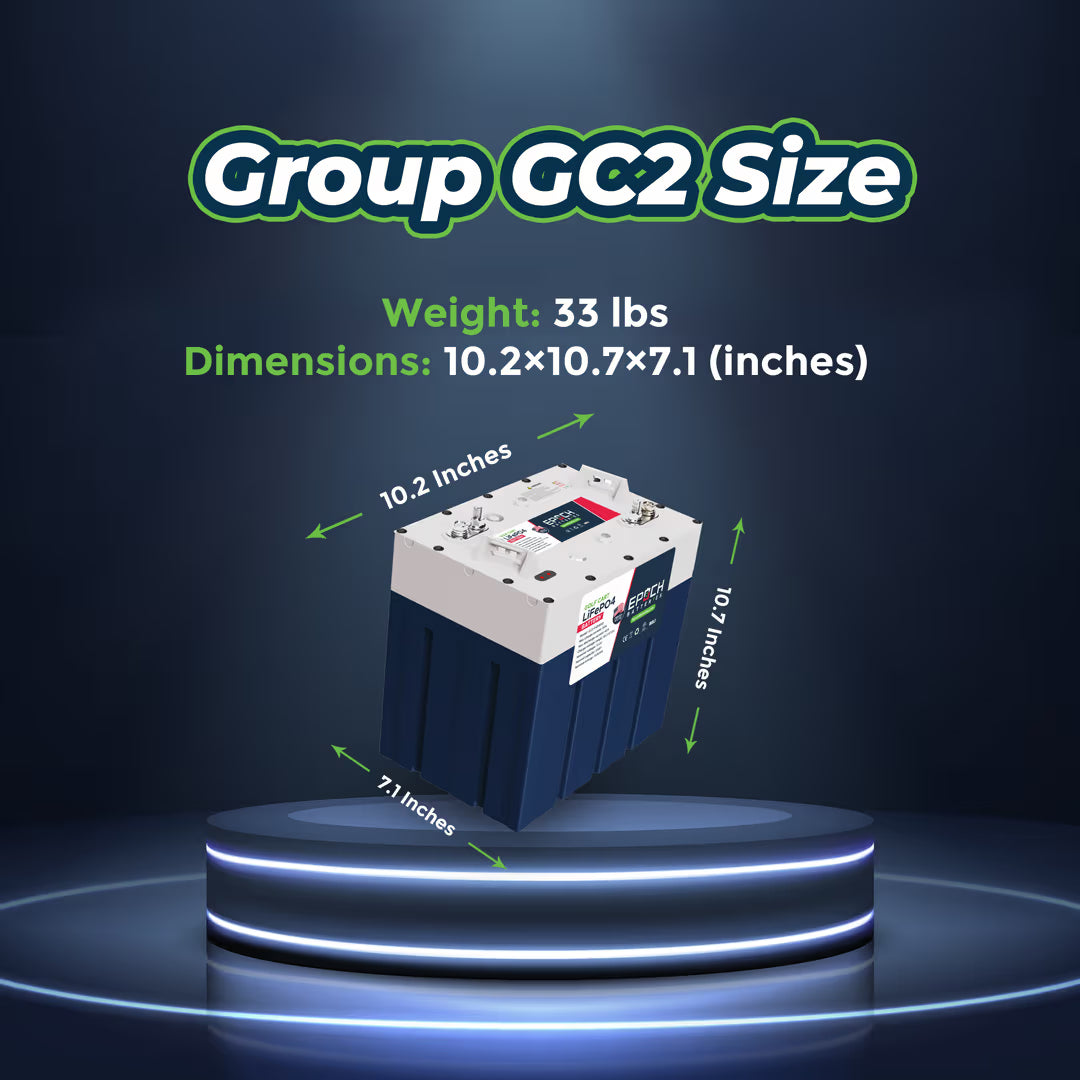

Dimensions
Length: 10.25 (inches)
Width: 7 (inches)
Height: 11 (inches)
M8 Terminals - Torque Tension Recommendation is 8-12N·M
Pack Certifications: UN38.3, CE
Cell Certifications: UL1642, UL2580, UN38.3
To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
Bulk/Absorption: 14.2V – 14.6V
Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
Float: 13.4V – 13.8V
Equalization: 14.4V/ Disabled
Temperature Compensation: 0/Disabled
Charge Rate: 50% of the battery or battery bank capacity
Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
Cell Discharge Temperature: -4°F (-20°C) to 140°F (60°C)
NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.
