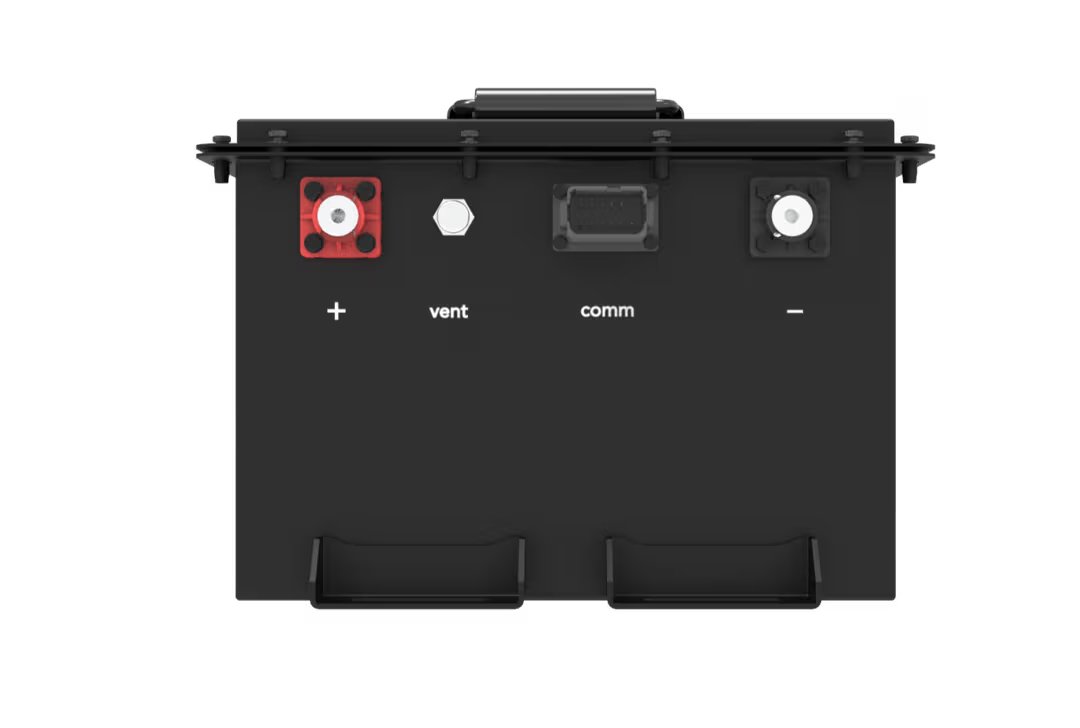

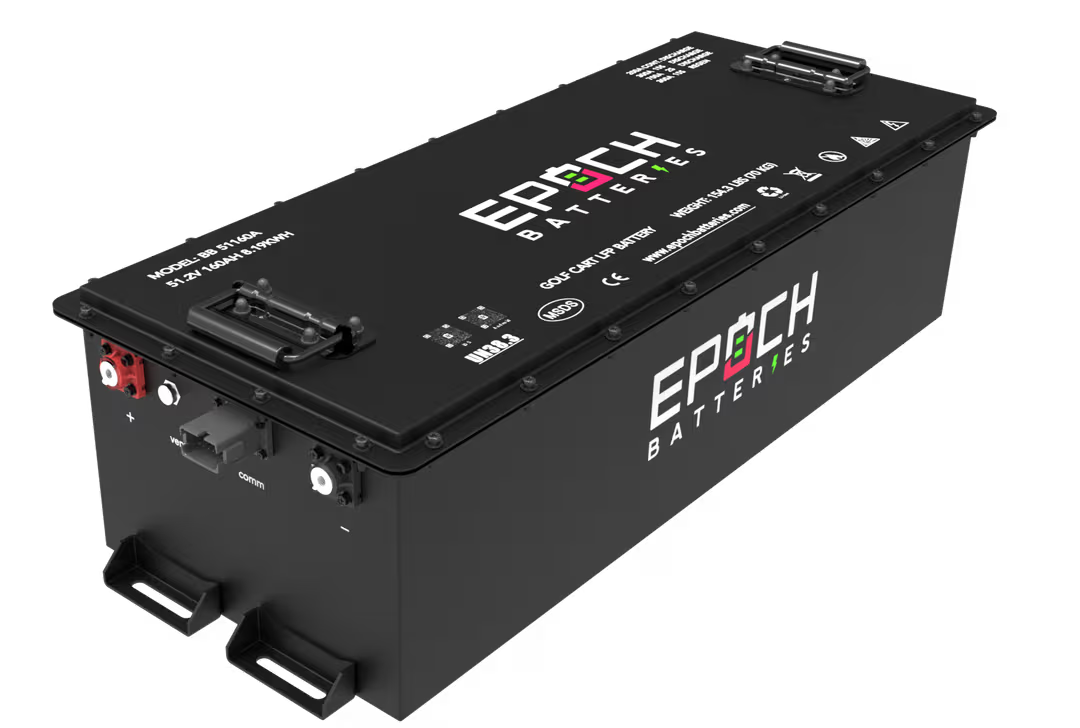

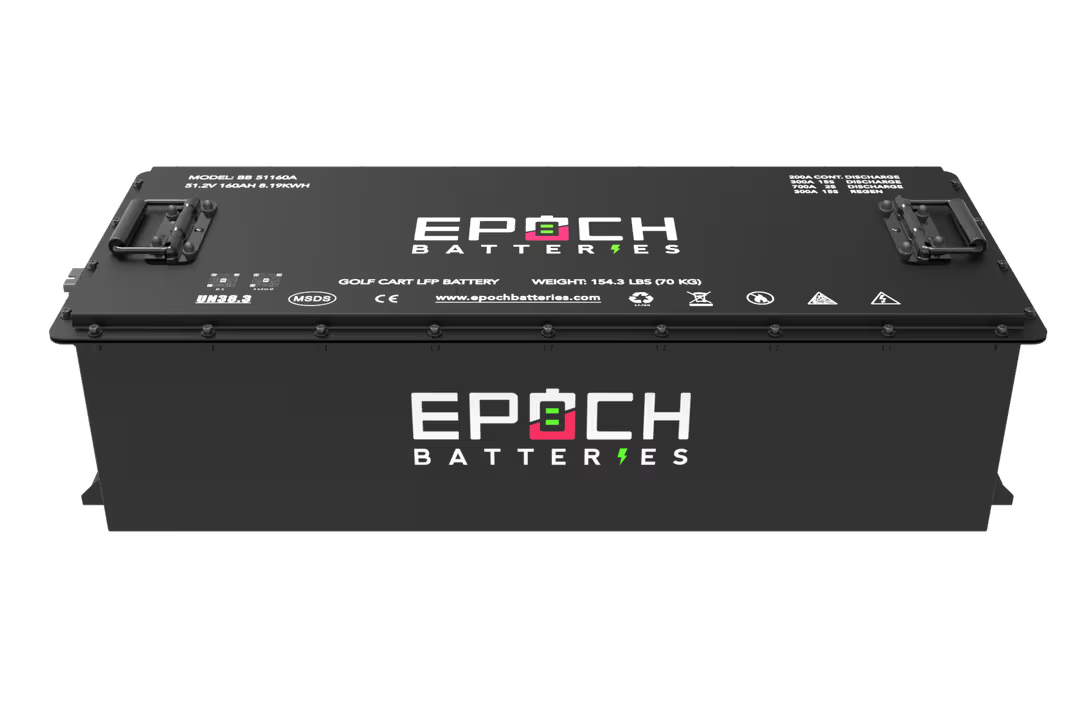

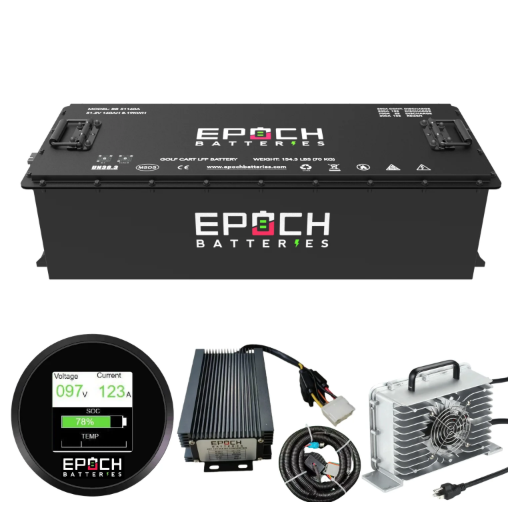

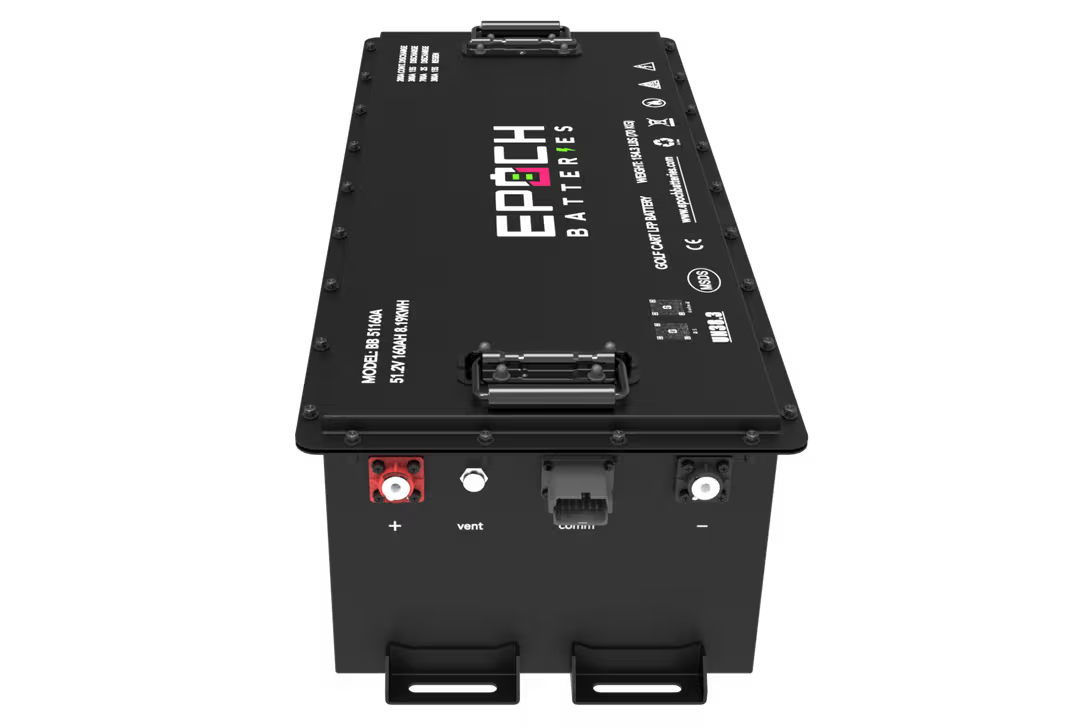

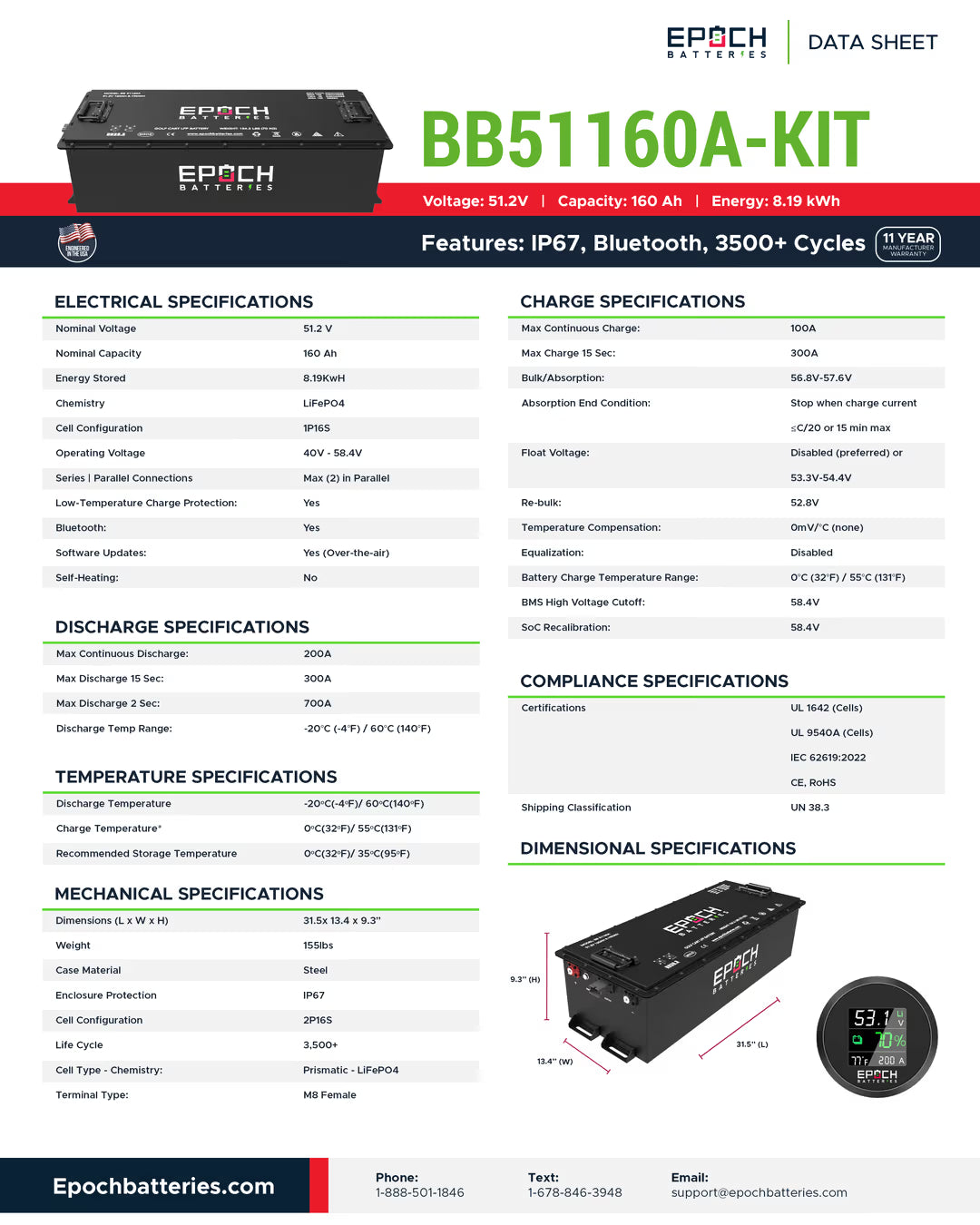

Epoch Batteries - 48V 160Ah -Lithium (LiFePO4) Golf Cart Battery - Complete Kit

Cell Configuration: 1P16S

Chemistry: LiFePO4

Current

Ah Capacity: 160Ah

Max Continuous Discharge Amps: 200A

Max Charge Current Amps: 100A Continuous, 300A @ 15s

Max Discharge Peak Current Amps: 300A @ 15s, 700A @ 2s

Series | Parallel: Max (2) in Parallel

Voltage

Voltage: 51.2V

Max Charge Voltage: 58.4V

Operating Voltage Range: 40 - 58.4V

Temperature

Charge Temp Range: 0°C (32°F) / 55°C (131°F)

Discharge Temp Range: -20°C (-4°F) / 60°C (140°F

Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)

Weights & Dimensions

Weight: 155 (LBS)

Dimensions

Length: 31.5 (inches)

Width: 13.4 (inches)

Height: 9.3 (inches)

Recommended Charging Settings

• To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
• Bulk/Absorption: 14.2V – 14.6V
• Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
• Float: 13.4V – 13.8V
• Equalization: 14.4V/ Disabled
• Temperature Compensation: 0/Disabled
• Charge Rate: 50% of the battery or battery bank capacity
• Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
• Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
• Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
• NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.
