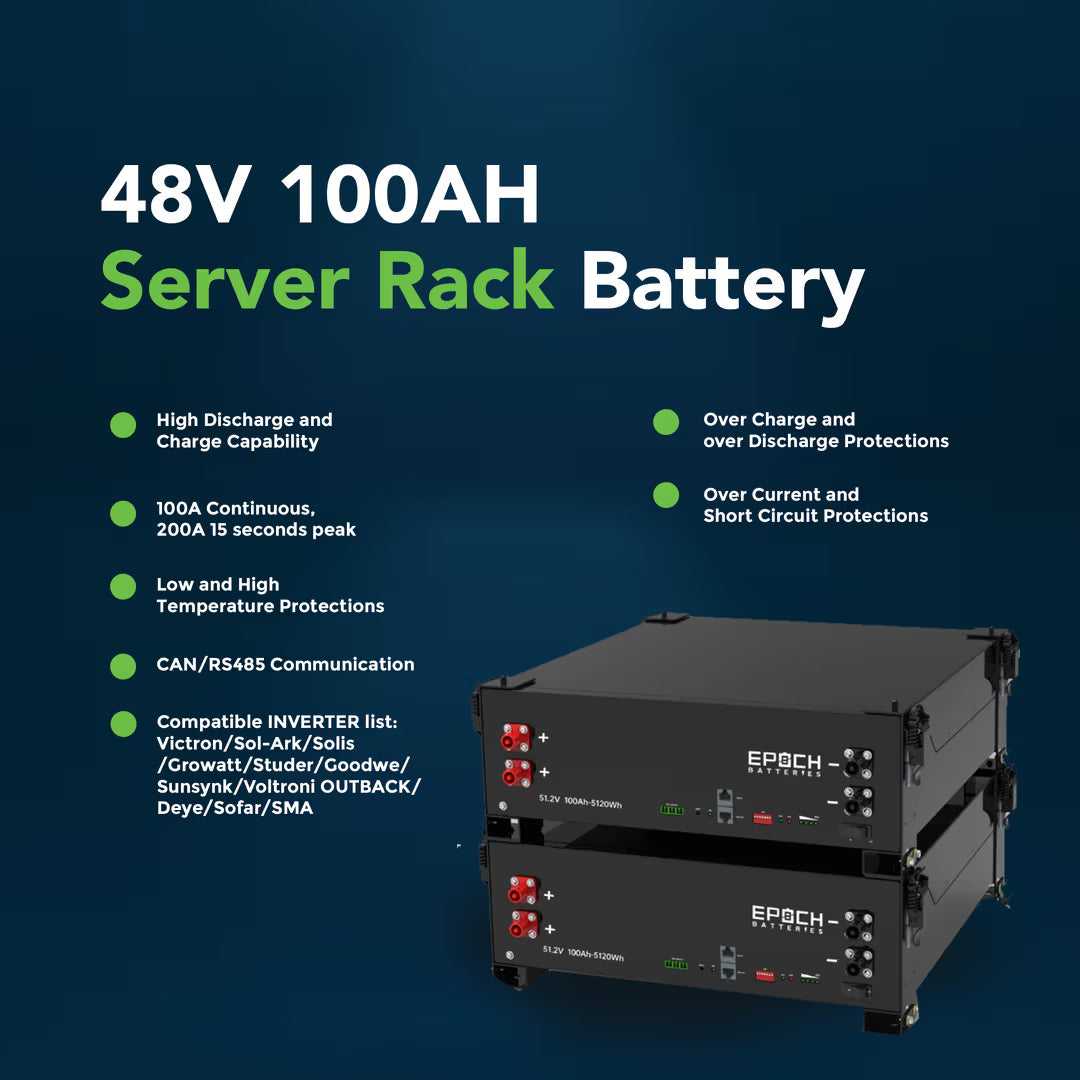

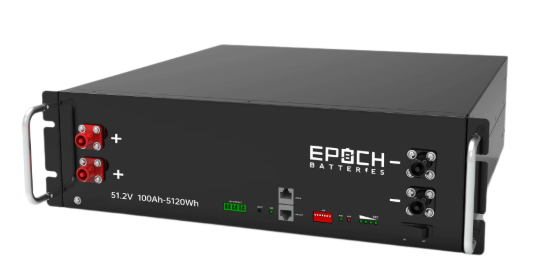

Epoch Batteries - 48V 100Ah -5.12kWh - Self-Heating Server Rack Lithium Battery

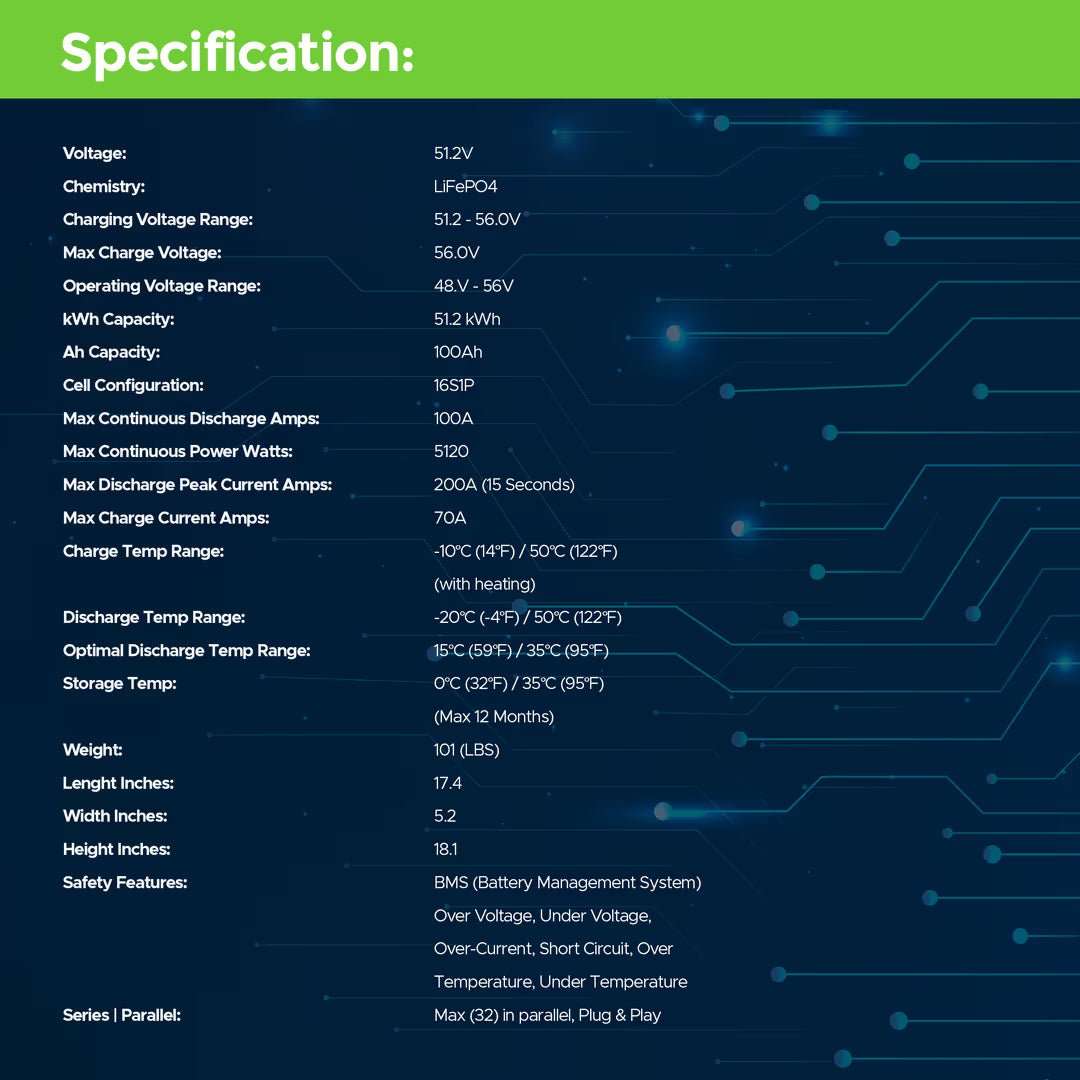

Cell Configuration: 16S1P

Chemistry: LiFePO4

Current

Ah Capacity: 100Ah

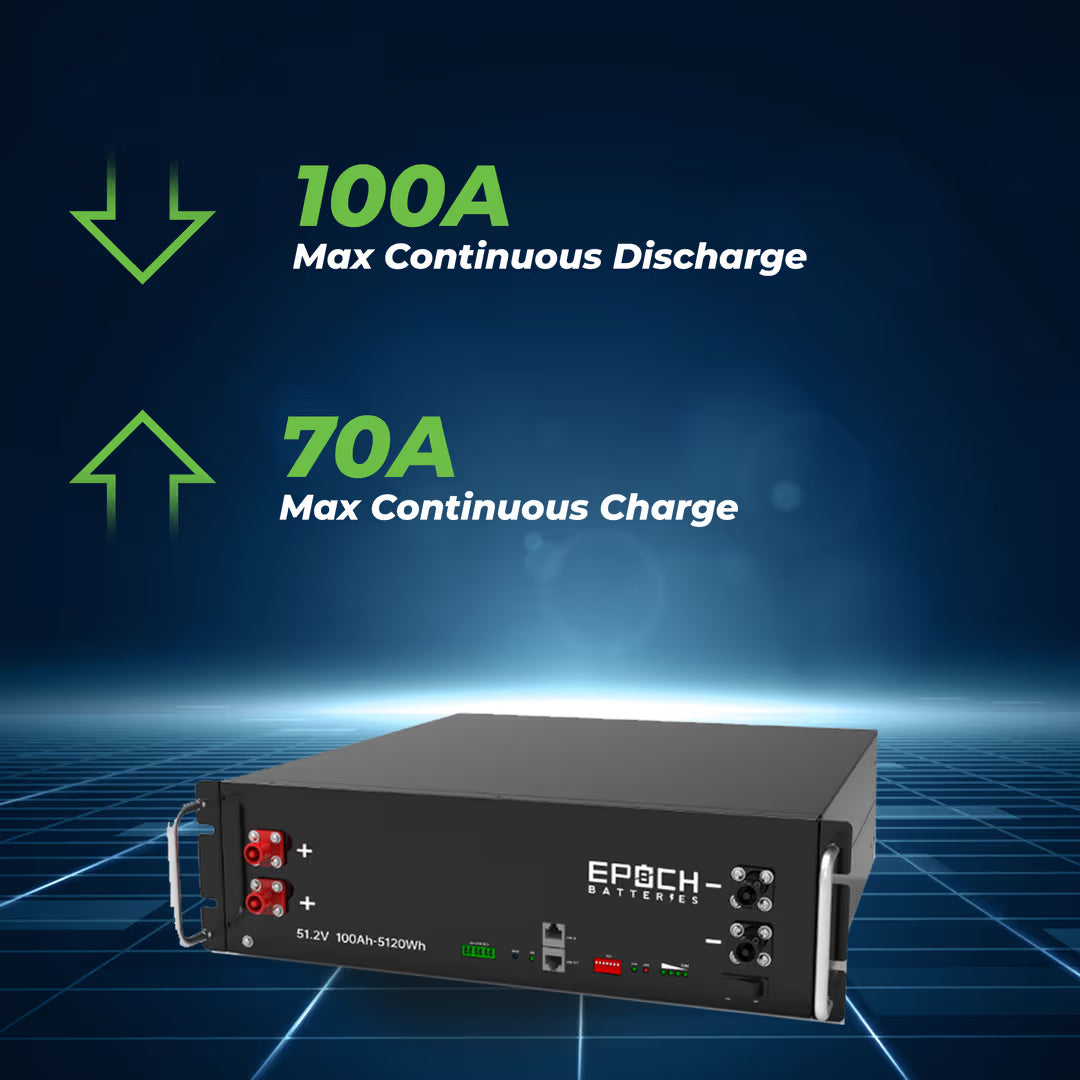

Max Continuous Discharge Amps: 100A

Max Charge Current Amps: 70A

Max Discharge Peak Current Amps: 200A @ 15sec

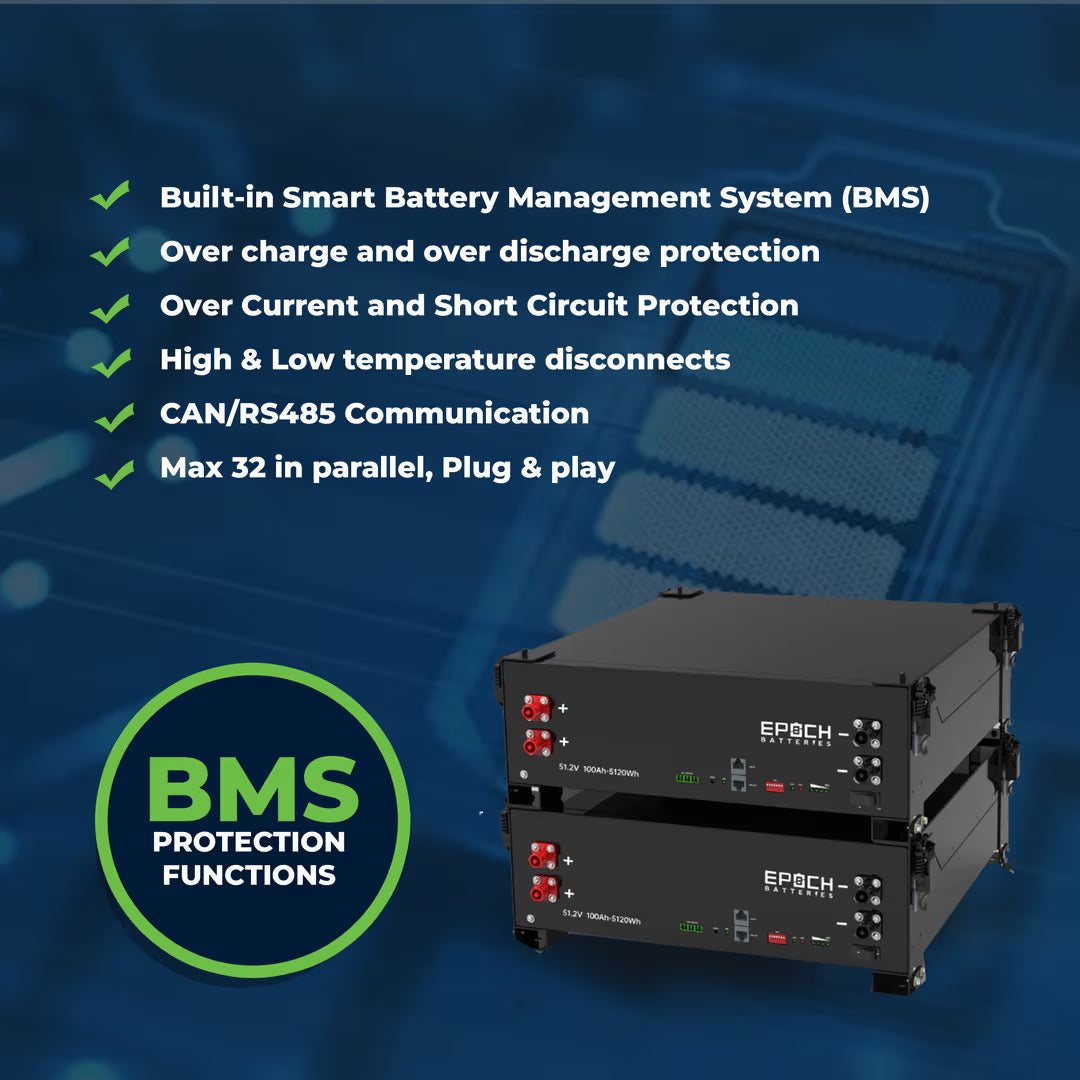

Series | Parallel: Max (32) in Parallel, Plug & Play

Voltage

Voltage: 51.2V

Max Charge Voltage: 56.0V

Operating Voltage Range: 48.0V - 56.0V

Temperature

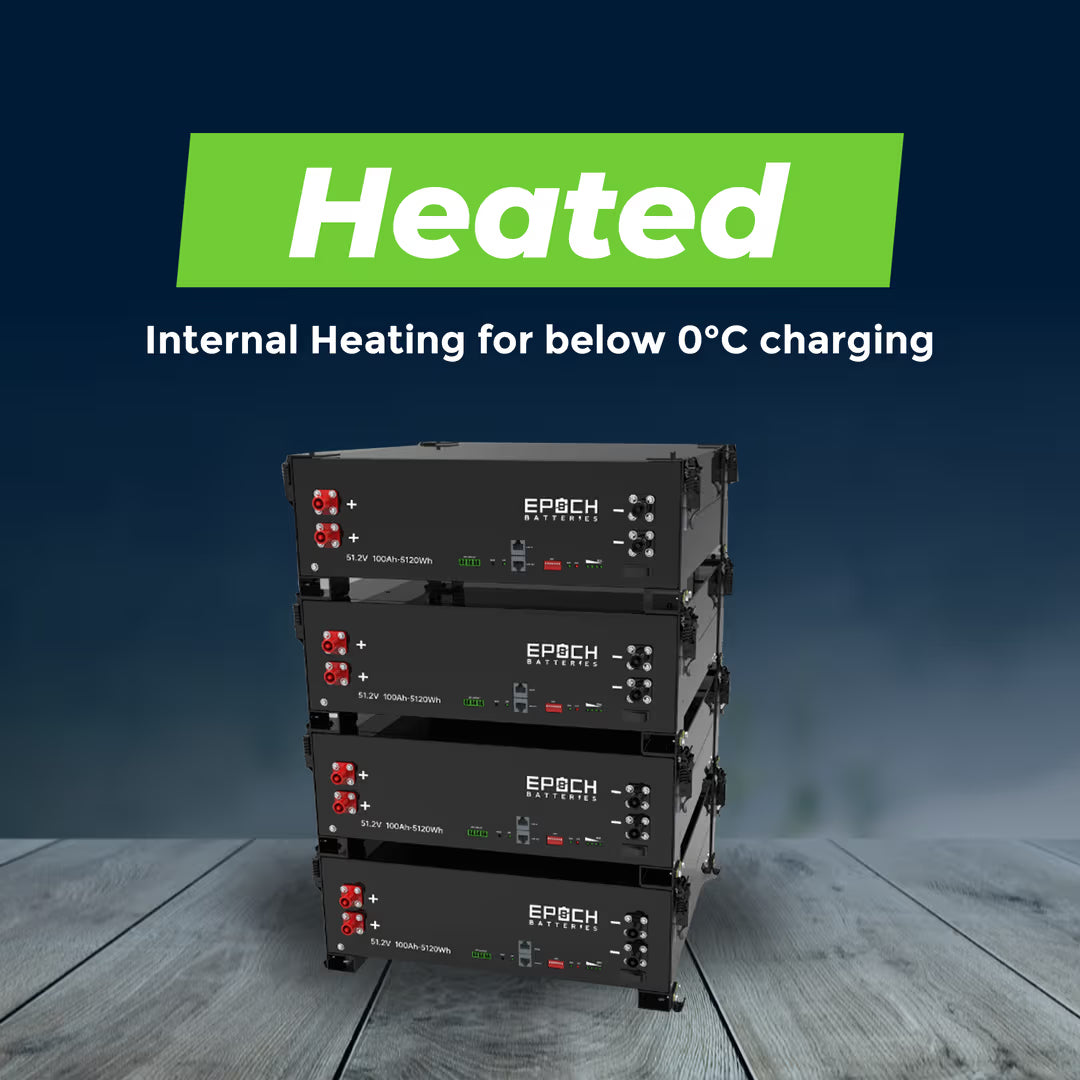

Charge Temp Range: -10°C (14°F) / 50°C (122°F) (with heating)

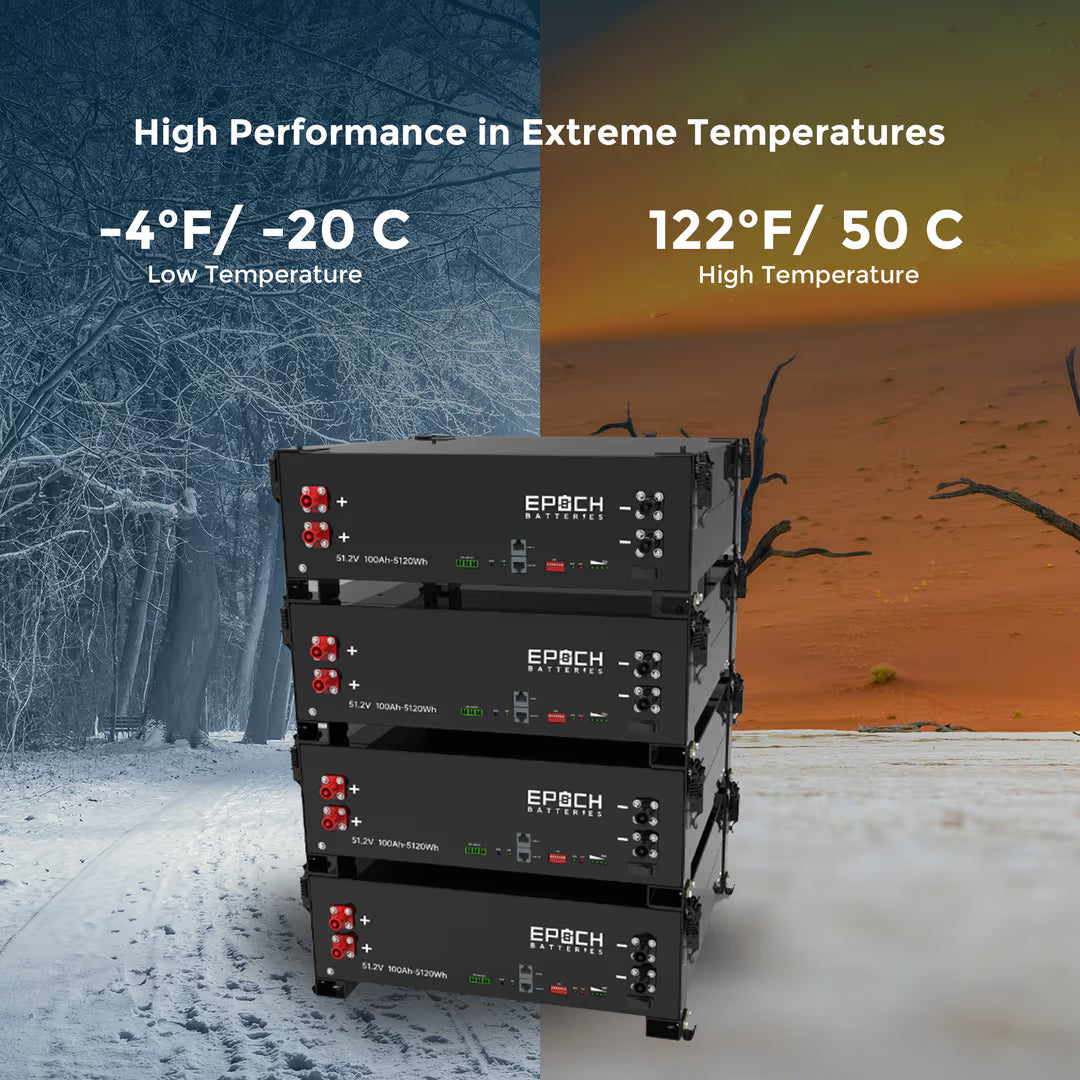

Discharge Temp Range: -20°C (-4°F) / 50°C (122°F)

Storage Temp: 0°C (32°F) / 35°C (95°F)

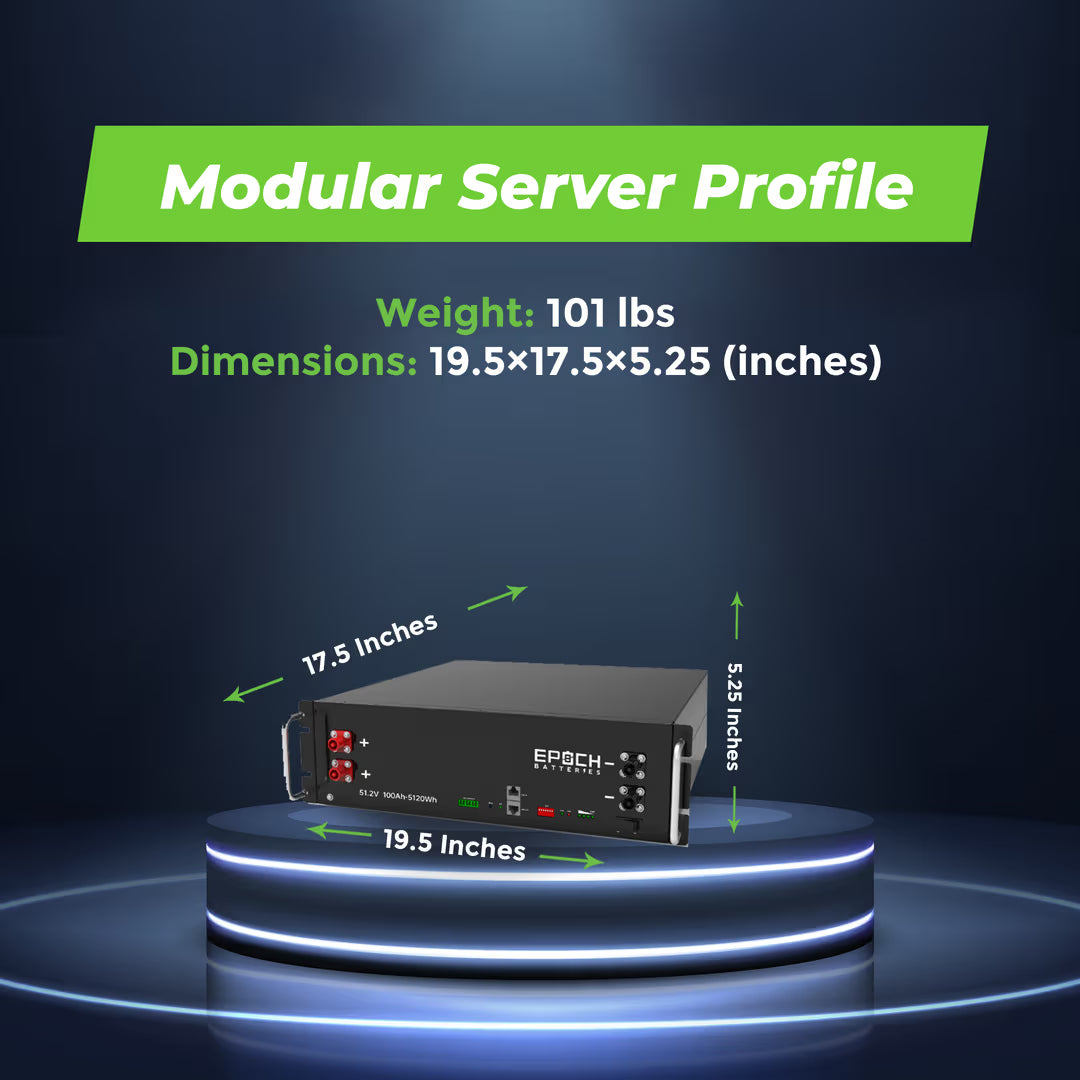

Weights & Dimensions

Weight: 101 lbs

Dimensions

Length: 17.4 (inches)

Width: 18.1 (inches)

Height: 5.2 (inches)

Recommended Charging Settings

• To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
• Bulk/Absorption: 14.2V – 14.6V
• Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
• Float: 13.4V – 13.8V
• Equalization: 14.4V/ Disabled
• Temperature Compensation: 0/Disabled
• Charge Rate: 50% of the battery or battery bank capacity
• Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
• Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
• Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
• NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.
