Epoch Batteries - 36V 100Ah LiFePO4 Lithium Battery - Bluetooth, Heating, Waterp

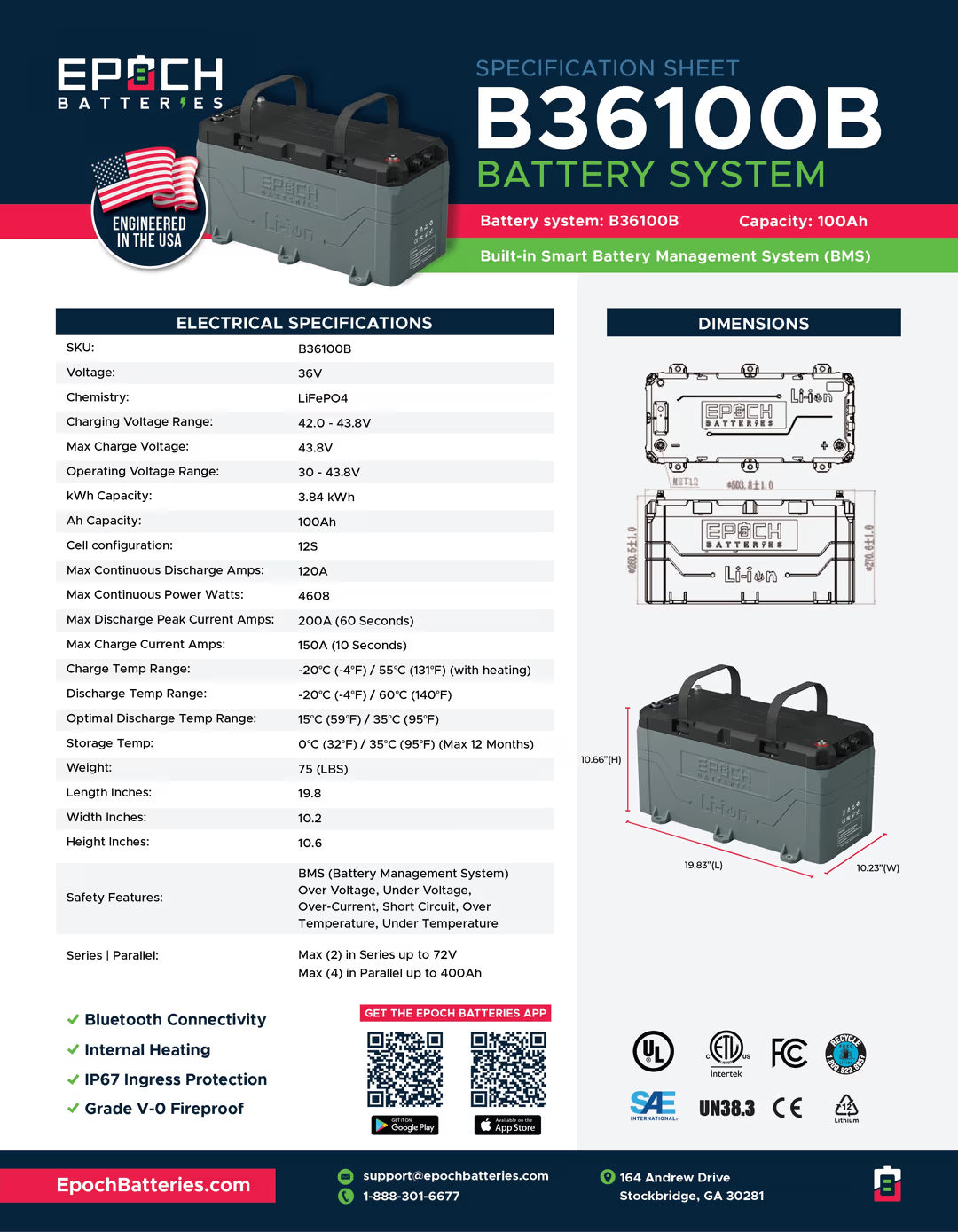

Specifications

Configuration

Cell Configuration: 12S

Chemistry: LiFePO4

Current

Ah Capacity: 100Ah

Max Continuous Discharge Amps: 120A

Max Charge Current Amps: 150A (10 Seconds)

Max Discharge Peak Current Amps: 200A (60 Seconds)

Series | Parallel: Max (4) in Parallel

Voltage

Voltage: 36V

Max Charge Voltage: 43.8V

Operating Voltage Range: 30 - 43.8V

Temperature

Charge Temp Range: -20°C (-4°F) / 55°C (131°F) (with heating)

Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)

Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)

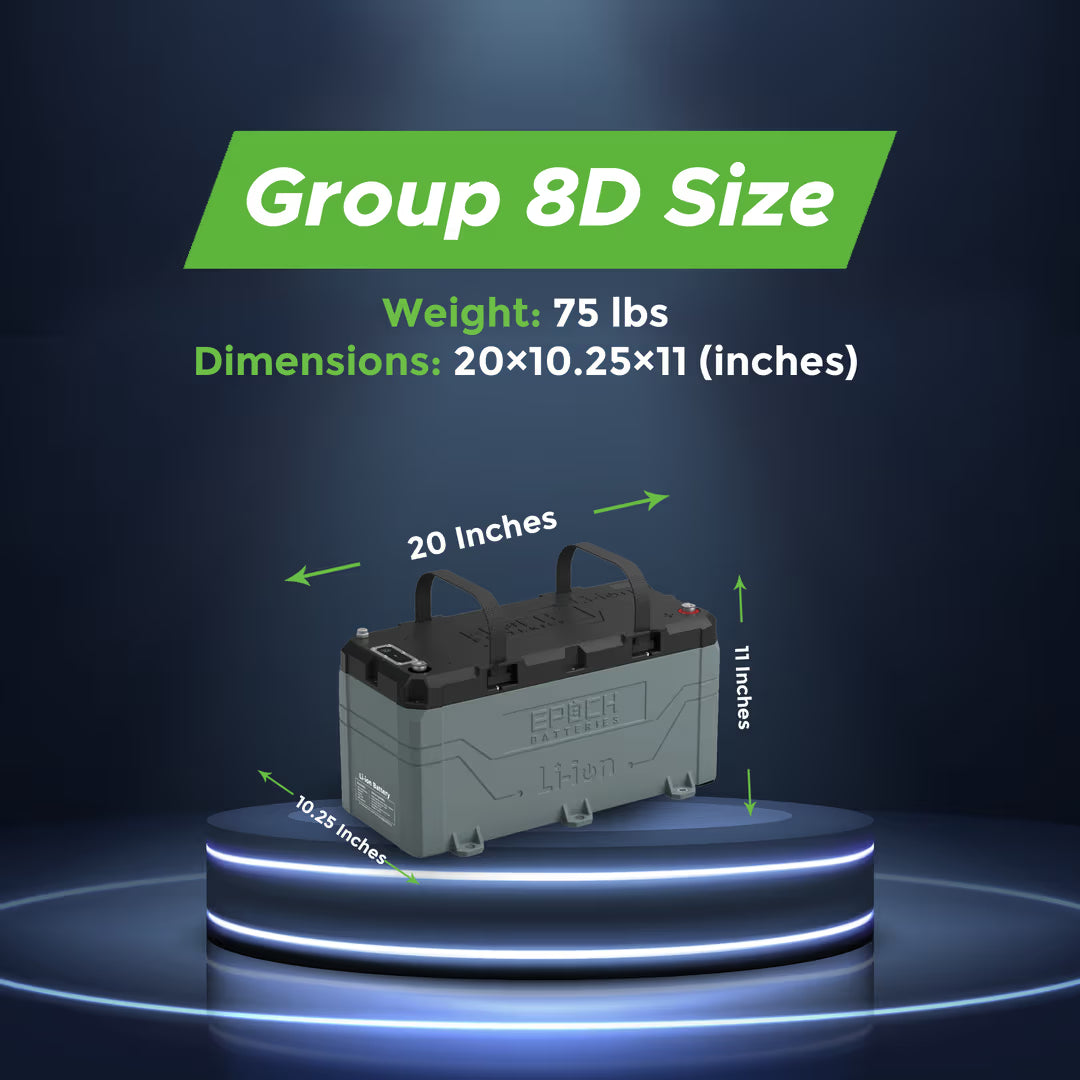

Weights & Dimensions

Weight: 75 (LBS)

Dimensions

Length: 20 (inches)

Width: 10.25 (inches)

Height: 11 (inches)

Recommended Charging Settings

• To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.
• Bulk/Absorption: 14.2V – 14.6V
• Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah
• Float: 13.4V – 13.8V
• Equalization: 14.4V/ Disabled
• Temperature Compensation: 0/Disabled
• Charge Rate: 50% of the battery or battery bank capacity
• Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)
• Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)
• Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)
• NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.

Compatible Charger

36V 15A Battery Charger - Epoch Batteries
