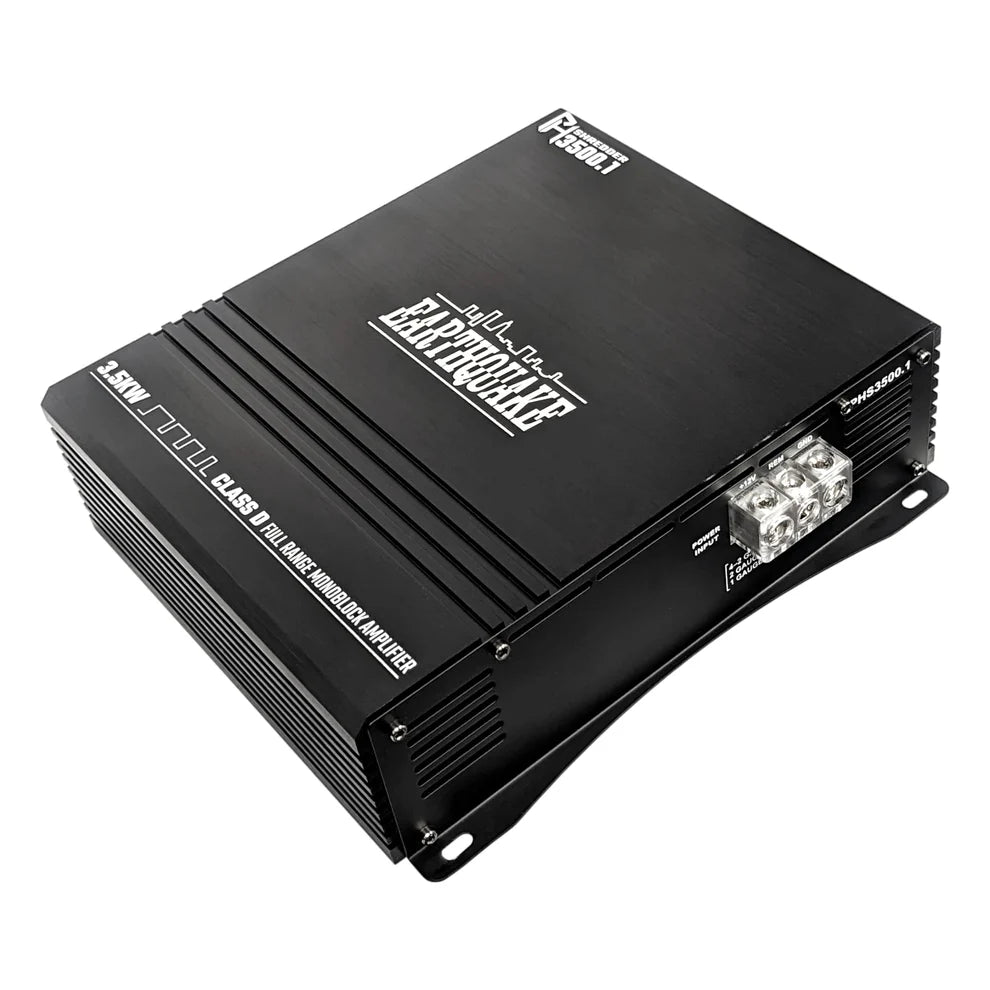

Earthquake Sound - PowerHouse Shredder PHS3500.1

Built for the audio nuts out there that eat, sleep, and breathe SPL, the Shredder makes its return for your chassis flexing and window shattering enjoyment. Earthquake Sound is proud to bring to you the all-new PowerHouse Shredder Series. These full-range digital high current monoblock amplifiers are weapons of mass destruction that are well equipped for the most demanding of mobile audio addicts and bassheads. From the heavy-duty heat sinks to the massive terminals, PHS amps deliver brute power to drive the biggest speakers all while staying ice cold. With so much power at your disposal you’d think you’d need a license to own one.

Available in three models to take on the most power-hungry speakers, PowerHouse Shredder series amplifiers stay cool and composed even under hard and continuous use while operating in the range of 99% efficiency. With a full range frequency response from 15Hz to 20kHz, PHS amplifiers can accept a broad variety of speakers to suit your musical needs. When high output with minimal distortion is required, look no further than Earthquake Sound’s PowerHouse Shredder series to get the job done. Shredder amplifiers are built to perform folks, so build your enclosures well. We’ll break ’em.
Product Features
Specifications

    Channels: 1 (MONO)
    Class: Digital Class D
    Power Output:

    4000 WRMS @ 1Ω / 1% THD
    2700 WRMS @ 2Ω / 1% THD
    1700 WRMS @ 4Ω / 1% THD

    Frequency Response: 15Hz–20kHz
    High Pass Filter: 15Hz–80Hz
    Low Pass Filter: 80Hz–20kHz
    Bass Boost Range: 35Hz–70Hz
    Bass Boost Level: 0–12dB
    Gain Min/Max: 5V–0.2V
    Signal-to-Noise Ratio: 90dB
    Efficiency: 99%
    Output Noise: 16mV
    Full Rated Power Current Draw: 235A Gain At Max
    Power, protection, and clip LED indicators
    Comes complete with remote base knob and cable (over 20ft)
    Fuse Rating: 1Ω 200A / 2Ω 150A / 4Ω 100A
    Minimum Wire Gauge Size: 1Ω 1 Gauge / 2Ω 2 Gauge / 4Ω 4–2 Gauge
