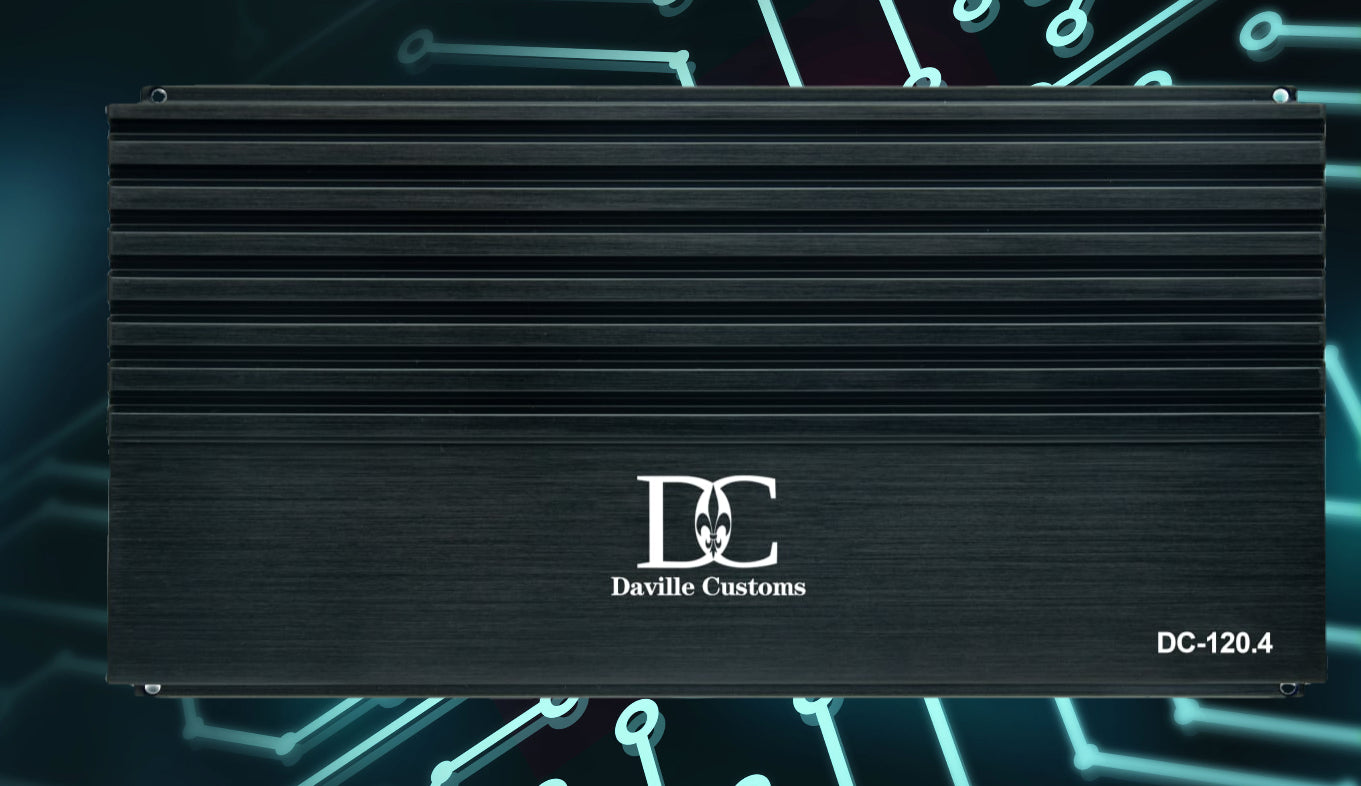

Daville Customs - DC 120.4 - Class A/B HIGH POWER CLASS D CAR AUDIO AMPLIFIER
Daville Customs brings you some of the best Car Audio gear for the money. To help you get something solid and dependable that wont let you down. And you can enjoy your music the way you deserve it. For many years, Many miles, And many smiles.
MODEL # DC-120.4
TYPE (FREQUENCY)FULL RANGE
COLOR BLACK
CHANNEL 4
OPERATING VOLTAGE (DC) 9-16V DC
OUTPUT POWER (4 OHM)120W * 4CH
OUTPUT POWER (2 OHM)162W * 4CH
BRIDGE OUTPUT POWER (4 OHM)342W * 2CH
BRIDGE OUTPUT POWER (2 OHM)315W * 2CH
TRANSISTOR4 SETS TOSHIBA A1943+C5200
POWER MOSFET (BRAND : IR )8PCS IRFZ44N
INPUT SENSITIVITY0.2-6V
SIGNAL TO NOISE RATIO≥ 95 dB
FREQUENCY RESPONSE20- 20000Hz
POWER INPUT WIRE GAUGE 4-6
OVERHEAT PROTECTION TEMPERATURE 85℃
DISTORTION RATET.H.D+N<0.01%
SIZE (CM)38x19x4.5
N.W (KGS)4.5
G.W (KGS)5
