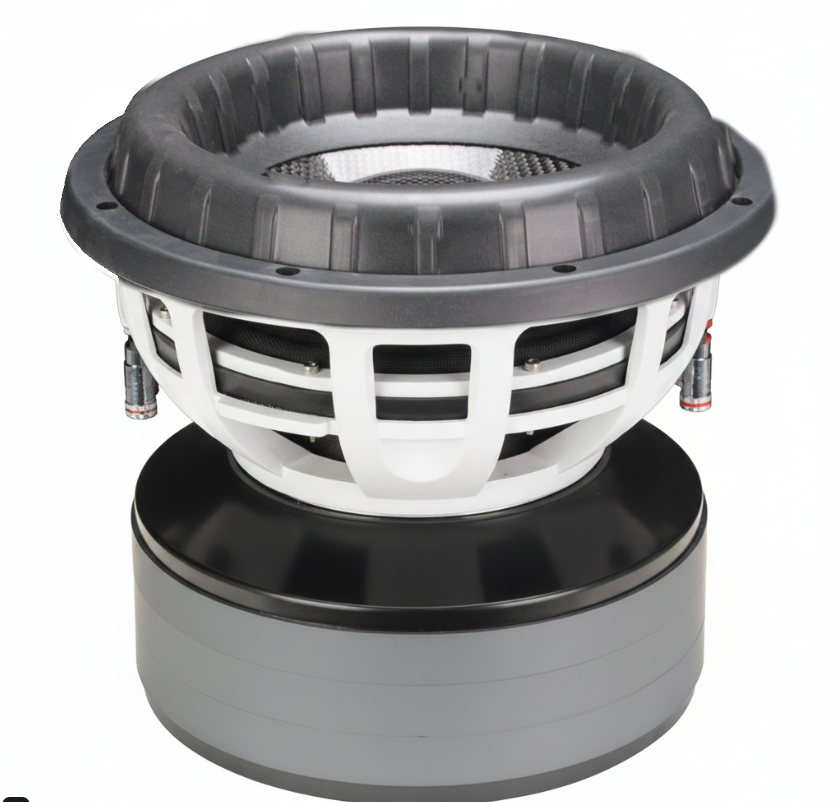

Black Sheep Audio | BSA12A | 12" | Anarchy Series | Extreme SPL Subwoofer | 6000w Rms | Dual 4/2/1 Ohm

Black Sheep Audio | BSA12A | 12" Anarchy Series 🔊

Extreme SPL | 6000W RMS | The Riot Starter 🏴☠️

Welcome to the heavy-hitter league. The BSA12A Anarchy Series is a 12-inch wrecking ball designed for those who live for extreme sound pressure levels. This isn't just a subwoofer; it’s an over-engineered monster built to thrive in high-voltage, high-wattage environments. If your goal is to push the limits of physics and decibels, the BSA12A is your primary weapon. 🦾🔥

With a massive 6000W RMS power handling and a motor structure that commands respect, this driver is engineered to sustain brutal, continuous output without losing its composure. ⚡🤘

The Heavy Artillery: 💣

Triple-Stack Ferrite Motor: 🧲 Featuring a massive  triple-magnet motor structure. This is raw, unadulterated motor force designed to control a heavy-duty moving mass.

6000W RMS / 12,000W Program: ⚡ High-thermal capacity architecture that eats massive power for breakfast. Perfect for high-output competition builds.

5" (125mm) Voice Coil: 💎 A gargantuan 125mm voice coil with a 60mm winding depth. This provides the massive surface area needed for heat dissipation and mechanical stability under extreme excursion.

High-Efficiency Output: 📈 A sensitivity of 99dB means this 12" converts every bit of power into devastating atmospheric pressure.

Industrial Build Quality: 🧬 Equipped with a reinforced U-布 (U-cloth) high-excursion surround and a die-cast chassis to ensure zero structural flex during the most violent bass notes.

Technical Specifications 📊

The "Nerd" Stats (T/S Parameters) 🤓

F_S (Resonance): 56.50 Hz

Q_{TS}(Total Factor): 0.49

BL Factor: 22.8 (Extreme Motor Strength)

M_{MS} (Moving Mass): 290.25 g

V_{AS} (Air Load): 8.84 L

Mounting & Build Specs 📐

Overall Diameter: 316mm (12.4")

Baffle Cutout: 280mm (11.0")

Mounting Depth: 310mm (12.2")

Shipping Weight: 47KG (103.6 lbs) 🏗️

The Verdict: 💀 The BSA12A is the heart of the Anarchy Series. At nearly 100 lbs per driver, this sub demands a bulletproof enclosure. We recommend a minimum 1.5" thick birch or double-layered baffle to keep the box from coming apart while this monster works. It's time to stop following the herd—start the anarchy. 🔊🏴☠️
