Black Sheep Audio | BSA10A | 10" | Anarchy Series | Extreme SPL Subwoofer | 2000w Rms | Dual 4/2/1 Ohm

Black Sheep Audio | BSA10A | 10" Anarchy Series 🔊

Compact Chaos. Extreme SPL. 2000W RMS. 🏴☠️

The BSA10A is the heavyweight contender for those who need maximum pressure in a 10-inch footprint. Part of the legendary Anarchy Series, this driver is over-engineered to deliver the kind of visceral low-end authority that usually requires a much larger woofer. If you're building a high-output system where space is tight but compromise isn't an option, you’ve found your weapon. 🦾🔥

With a massive 2000W RMS power handling and a high-mass motor structure, the BSA10A is built to thrive in the most demanding high-voltage environments. It’s raw, it’s industrial, and it’s ready to start a riot. ⚡🤘

The Heavy Artillery: 💣

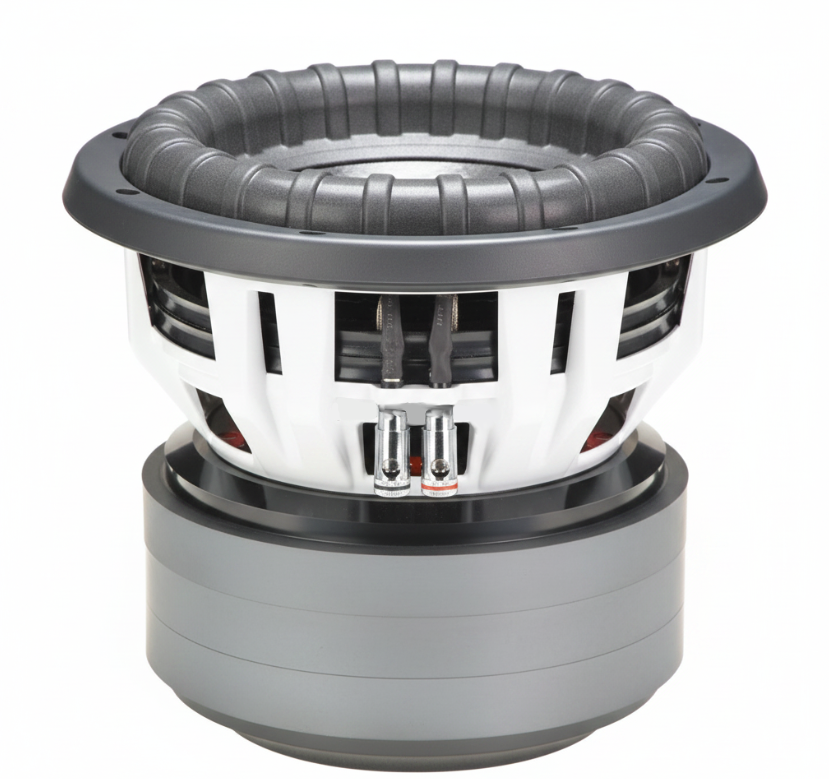

• Triple-Stack Ferrite Motor: 🧲 Featuring a massive $220 \times 127 \times 25$ triple-magnet motor structure for relentless control and dominant motor force.

• 2000W RMS / 4000W Program: ⚡ Serious thermal capacity engineered to handle extreme wattage all day long.

• 4" (100mm) Voice Coil: 💎 A massive 100mm aluminum voice coil with a 45mm winding depth ensures superior heat dissipation and mechanical stability during high-excursion play.

• Precision Tuning: 📉 With an $F_S$ of 36.92Hz, this 10" reaches down into the lows with surgical precision and massive impact.

• Carbon Fiber Strength: 🧬 U-shaped carbon fiber high-foam surround and a heavy-duty chassis designed for zero structural flex.

Technical Specifications 📊

The "Nerd" Stats (T/S Parameters) 🤓

• $F_S$ (Resonance): 36.92 Hz

• $Q_{TS}$ (Total Factor): 0.36 (Tight, Aggressive Motor!)

• $BL$ Factor: 15.50

• $M_{MS}$ (Moving Mass): 309.22 g

• $V_{AS}$ (Air Load): 7.62 L

Mounting & Build Specs 📐

• Overall Diameter: 275mm (10.8")

• Baffle Cutout: 235mm (9.2")

• Mounting Depth: 249mm (9.8")

• Shipping Weight: 24KG (52.9 lbs) 🏗️

The Verdict: 💀 The BSA10A is a sleeper beast that hits with the weight of a 12". To harness this level of motor force, we recommend a 1.5" thick birch enclosure to keep the pressure inside the box and out of the vents. Stop following the crowd—bring the anarchy. 🔊🏴☠️
