Beyma - SC6903 - 6x9" 3 way 200 watt 4 Ohm Pair
Beyma - SC6903 - 6x9" 3 way 200 watt 4 Ohm Pair
Regular price
$224.00 USD
Regular price
$224.00 USD
Sale price
$224.00 USD
Quantity
Couldn't load pickup availability

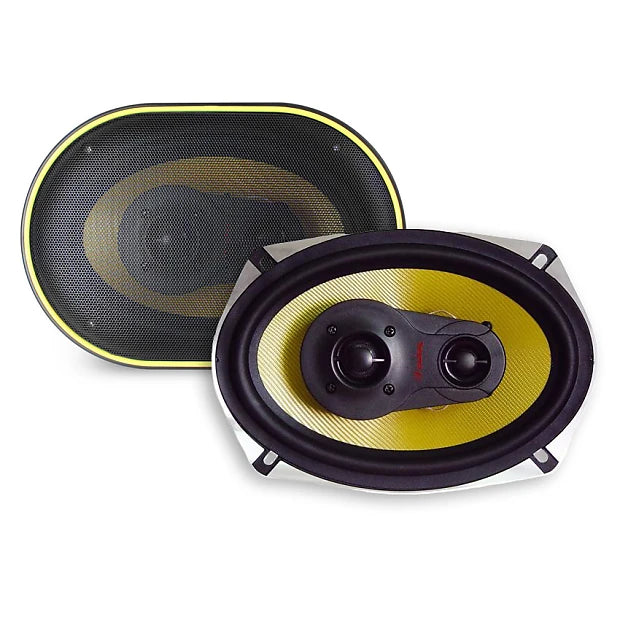

The Beyma Sound Concept SC-6903 200 watt 4 ohm car speaker will deliver excellent sound output. This 3-way car speaker features a fiber cone for a dependable performance.
| Specifications | |
| Nominal Basket Diameter | 6″ x 9” / 155mm x 225mm |
| Impedance | 4 ohms |
| AES Power Rating | 100 Watts |
| Program Power | 200 Watts |
| Frequency Response | 40Hz – 20kHz |
| Sensitivity (1W/1m) | 91dB |
| Voice Coil Diameter | 1.2” / 30mm |
| BL Factor | 5.4 N/A |
| Mounting Information | |
| Overall Diameter | 6″ x 9” / 155mm x 225mm |
| Baffle Cutout Diameter- | |
| – Front Mount | 8.66″ x 6.54″ / 220 x 166mm |
| No. Of Mounting Holes | 4 |
| Overall Depth | 4.69” / 119mm |
| Materials | |
| Basket | Die Cast Aluminum |
| Cone | High Resistance Fiberglass |
| Surround | Rubber |
| Magnet | Ferrite |
| Thiele-Small Parameters | |
| Resonant Frequency (fs) | 47 Hz |
| Impedance (Re) | 3.9 ohms |
| Coil Inductance (Le) | .52 mH |
| Mechanical Q (Qms) | 7.13 |
| Electrical Factor (Qes) | .94 |
| Total Q (Qts) | .83 |
| Comp. Equivelant Vol. (Vas) | 1.02 ft3 / 29 Liters |
| Voice Coil Overhang (Xmax) | 3.0 mm |
| Surface Area of Cone (Sd)m2 | 0.0206 |
