Beyma

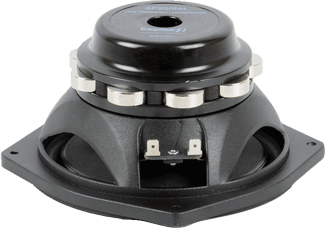

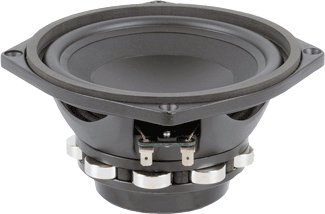

Beyma - PRO6Q200ND - 6.5" Low & Mid Frequency

Beyma - PRO6Q200ND - 6.5" Low & Mid Frequency

$304.00 USD
$304.00 USD $304.00 USD
Sale Sold out
  • THE BEYMA PRO6Q200ND 6.5" SPEAKER HANDLES 200 WATTS AES & 400 WATTS PROGRAM POWER HANDLING
  • FEATURES A WATERPROOF CONE, CONEX SPIDER & LIGHTWEIGHT NEODYMIUM MAGNET WEIGHS 4.2LBS.
  • VERY LOW DISTORTION IN ENTIRE FREQUENCY RANGE FROM 60HZ TO 6.0KHZ
  • HIGH 5.5MM XMAX AND A 20MM PEAK TO PEAK XMAX BEFORE DAMAGE
  • EXCLUSIVE BEYMA MMS TECHNOLOGY
  • WORKS GREAT FOR 2 OR 3-WAY SPEAKER SYSTEMS ON MOTORCYCLES, PA SYSTEMS, ETC.
  • 4 OHMS





Specifications

Nominal Basket Diameter

6.5" / 165mm

Impedance

4 ohms

AES Power Rating

200 Watts
Program Power  400 Watts

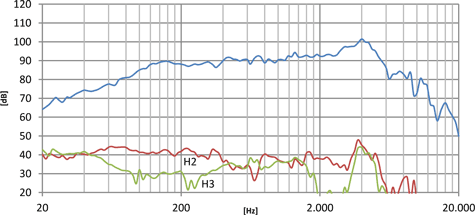

Frequency Response

60Hz - 6.0KHz

Sensitivity (1W/1m)

92 dB
Recom. Enclosure Volume .35-1.4 ft3  /  10-40 Liters

Voice Coil Diameter

2" / 50.8mm
Voice Coil Length 14mm
Air Gap Height 7mm
X Damage (peak to peak) 20mm
Bl Factor (BL) 9.3N/A
Magnetic Assembly Weight 3.52 lb. / 1.6 kg.

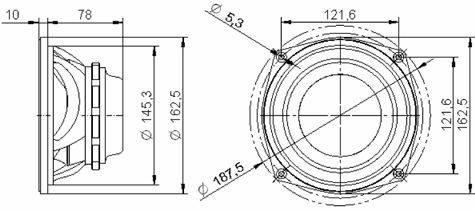

Mounting Information
Overall Diameter 7.38" / 187.5mm
Bolt Circle Diameter 6.77" / 172mm
Baffle Cutout Diameter- 5.7" / 146mm
No. Of Mounting Holes 4
Volume Displaced By Driver 0.02 ft3  /  .6 Liters
Overall Depth 3.1" / 78mm
Net Weight 4.2lb. / 1.9 kg.

Materials
Basket Die Cast Aluminum
Cone Paper
Spider Conex
Surround Rubber
Voice Coil Aluminum Wire
Former Fiberglass
Metal Parts Anti-Corrosion
Magnet Neodymium

Thiele-Small Parameters
Resonant Frequency (fs) 56 Hz
Impedance (Re) 3 ohms
Coil Inductance (Le) .2 mH
Mechanical Q (Qms) 5.1
Electrical Factor (Qes) .23
Total Q (Qts) .22
Comp. Equivelant Vol. (Vas) .39 ft3 / 11.1 Liters
Voice Coil Overhang (Xmax) 5.5 mm
Moving Mass (Mms) 19 Grams
Surface Area of Cone (Sd)m2 .014
Reference Efficiency .8%
