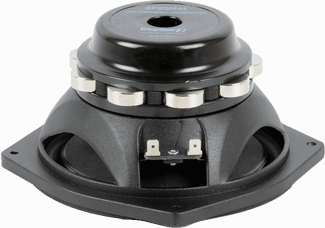

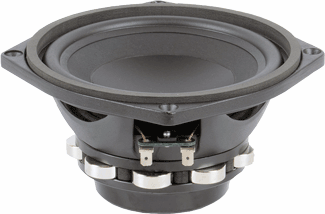

beyma | PRO6Q200ND | 6.5" | LIGHTWEIGHT NEODYMIUM SPEAKER

THE BEYMA PRO6Q200ND 6.5" SPEAKER HANDLES 200 WATTS AES & 400 WATTS PROGRAM POWER HANDLING
FEATURES A WATERPROOF CONE, CONEX SPIDER & LIGHTWEIGHT NEODYMIUM MAGNET WEIGHS 4.2LBS.
VERY LOW DISTORTION IN ENTIRE FREQUENCY RANGE FROM 60HZ TO 6.0KHZ
HIGH 5.5MM XMAX AND A 20MM PEAK TO PEAK XMAX BEFORE DAMAGE
EXCLUSIVE BEYMA MMS TECHNOLOGY
WORKS GREAT FOR 2 OR 3-WAY SPEAKER SYSTEMS ON MOTORCYCLES, PA SYSTEMS, ETC.
4 OHMS

Nominal Basket Diameter 6.5" / 165mm

Impedance 4 ohms

AES Power Rating

200 Watts

Program Power    400 Watts

Frequency Response  60Hz - 6.0KHz

Sensitivity (1W/1m)  92 dB

Enclosure Volume    .35-1.4 ft 10-40 Liters

Voice Coil Diameter    2" / 50.8mm

Voice Coil Length    14mm
Air Gap Height    7mm
X Damage (peak to peak)    20mm
Bl Factor (BL)    9.3N/A
Magnetic Assembly Weight    3.52 lb. / 1.6 kg.
Mounting Information
Overall Diameter    7.38" / 187.5mm
Bolt Circle Diameter    6.77" / 172mm
Baffle Cutout Diameter-    5.7" / 146mm
No. Of Mounting Holes    4
Volume Displaced By Driver    0.02 ft3  /  .6 Liters
Overall Depth    3.1" / 78mm
Net Weight    4.2lb. / 1.9 kg.

Basket    Die Cast Aluminum
Cone    Paper
Spider    Conex
Surround    Rubber
Voice Coil    Aluminum Wire
Former    Fiberglass
Metal Parts    Anti-Corrosion
Magnet    Neodymium

Resonant Frequency (fs)    56 Hz
Impedance (Re)    3 ohms
Coil Inductance (Le)    .2 mH
Mechanical Q (Qms)    5.1
Electrical Factor (Qes)    .23
Total Q (Qts)    .22
Comp. Equivelant Vol. (Vas)    .39 ft3 / 11.1 Liters
Voice Coil Overhang (Xmax)    5.5 mm
Moving Mass (Mms)    19 Grams
Surface Area of Cone (Sd)m2    .014
Reference Efficiency    .8%
