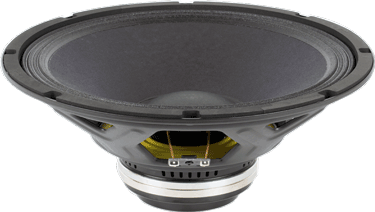

Beyma - PRO12MV2ND - 12" Low & MId Frequency - Car Audio
Beyma - PRO12MV2ND - 12" Low & MId Frequency - Car Audio
Regular price
$390.00 USD
Regular price
$390.00 USD
Sale price
$390.00 USD
Quantity
Couldn't load pickup availability
THE NEW BEYMA PRO12MV2ND 12" MID-BASS SPEAKER THAT HANDLES 350 WATTS AES & 700 WATTS PROGRAM POWER HANDLING
FEATURES HIGH SENSITIVITY OF 99DB SPL & LIGHTWEIGHT NEODYMIUM MAGNET
LOUD MIDS WITH TIGHT BASS, 6.0MM XMAX & 26MM PEAK TO PEAK XMAX DAMAGE
WATERPROOF PAPER CONE FOR OUTDOOR USE
DESIGNED TO WORK IN SMALL TO MEDIUM SIZE PORTED SPEAKER CABINETS FOR BASS GUITAR, PA SYSTEMS, MOTORCYCLE BAGS, ETC.
AVAILABLE IN 8 OHMS
| Specifications | |
| Nominal Basket Diameter | 12" |
| Impedance | 8 ohms |
| AES Power Rating | 350 Watts |
| Program Power | 700 Watts |

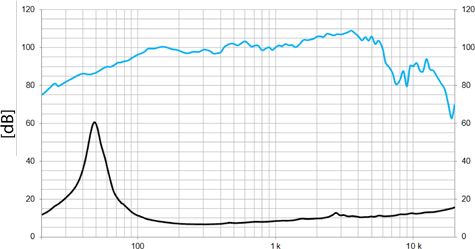

| Frequency Response | 55Hz - 6.0kHz |
| Sensitivity (1W/1m) | 99dB |
| Voice Coil Diameter | 2.5" / 63.5mm |
| Voice Coil Length | 15 mm |
| Air Gap Height | 7 mm |
| X Damage (peak to peak) | 26 mm |
| BL Factor | 15.7 N/A |
| Mounting Information | |
| Overall Diameter | 12.2" / 310mm |
| Bolt Circle Diameter | 11.5" / 292mm |
| Baffle Cutout Diameter - | |
| - Front Mount | 11" / 280mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 4.9" / 125mm |
| Net Weight | 6.61 lb. / 3 kg. |
| Shipping Weight | 8.1 lb. / 3.7 kg. |
| Materials | |
| Basket | Steel |
| Cone | Waterproof Paper |
| Surround | Treated Cloth |
| Voice Coil | Copper |
| Magnet | Ferrite |
| Thiele-Small Parameters | |
| Resonant Frequency (fs) | 50 Hz |
| Impedance (Re) | 5.0 ohms |
| Coil Inductance (Le) | .4 mH |
| Mechanical Q (Qms) | 4.1 |
| Electrical Factor (Qes) | .32 |
| Total Q (Qts) | .29 |
| Comp. Equivalent Vol. (Vas) | 3.07 ft3 / 87 Liters |
| Voice Coil Overhang (Xmax) | 6 mm |
| Moving Mass (Mms) | 50 Grams |
| Surface Area of Cone (Sd)m2 | 0.055m2 |
| Reference Efficiency | 3.2% |
| Displacement Volume (Vd) | 330 cm3 |
