Beyma

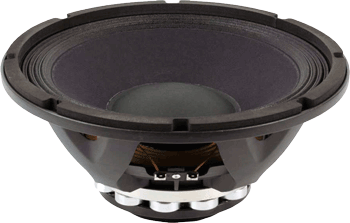

Beyma - PRO10WNd - 10" Low & Mid Frequency - Car Audio
Beyma - PRO10WNd - 10" Low & Mid Frequency - Car Audio
Regular price
$378.00 USD
Regular price
$378.00 USD
Sale price
$378.00 USD
Quantity
Couldn't load pickup availability
- THE BEYMA PRO10WND 10" SPEAKER HANDLES 350 WATTS AES & 700 WATTS PROGRAM POWER HANDLING
- FEATURES A LIGHTWEIGHT NEODYMIUM MAGNET THAT WEIGHS ONLY 6.8 LBS.
- HIGH XMAX OF 7.5MM FOR A CLEAN STRONG BASS W/ SMOOTH LOUD MIDS
- WIDE FREQUENCY RANGE OF 45HZ TO 5KHZ
- HIGHLY RECOMMENDED FOR MOTORCYCLE BAGS, BASS GUITAR CABINETS OR POWERFUL MID-BASS PA SPEAKER SYSTEMS
- AVAILABLE IN 4 OHMS
| Specifications | |
| Nominal Basket Diameter | 10" |
| Impedance | 4 ohms |
| AES Power Rating | 350 Watts |
| Program Power | 700 Watts |

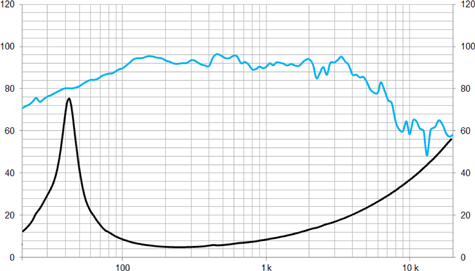

| Frequency Response | 45Hz - 5kHz |
| Sensitivity (1W/1m) | 95dB |
| Voice Coil Diameter | 2.5" / 63.5mm |
| Recom. Enclosure Volume | .7-1.77 ft3 / 20-50 Liters |
| Voice Coil Length | 19.5 mm |
| Air Gap Height | 10 mm |
| X Damage (peak to peak) | 30 mm |

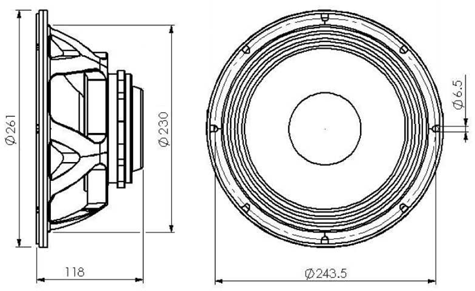

| Mounting Information | |
| Overall Diameter | 10.28" / 261mm |
| Bolt Circle Diameter | 9.59" / 243.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 9.1" / 230mm |
| - Rear Mount | 9.17" / 233mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.07 ft3 / 2 Liters |
| Overall Depth | 4.7" / 118mm |
| Net Weight | 6.8 lb. / 3.1 kg. |
| Shipping Weight | 7.9 lb. / 3.6 kg. |
| Materials | |
| Basket | Cast Aluminum |
| Cone | High Stiff Paper |
| Surround | Treated Cloth |
| Spider | Cotton |
| Voice Coil | Copper |
| Metal Parts | Anti-Corrosion Coated |
| Magnet | Neodymium |
| Thiele-Small Parameters | |
| Resonant Frequency (fs) | 44 Hz |
| Impedance (Re) | 3.7 ohms |
| Coil Inductance (Le) | .9 mH |
| Mechanical Q (Qms) | 6.9 |
| Electrical Factor(Qes) | .24 |
| Total Q (Qts) | .23 |
| Comp. Equivalent Vol. (Vas) | 1.72 ft3 / 48.6 Liters |
| Voice Coil Overhang (Xmax) | 7.5mm |
| Effective Surface Area (Sd) | .0350 m2 |
| Diaphragm Mass (Mms) | 47 Grams |
| Mechanical Compliance of Suspension (Cms) | .28mm/M |
| Reference Efficiency | 1.4% |
| BL Factor | 14.2N/A |
| Displacement Volume (Vd) | 263 cm3 |
