Beyma

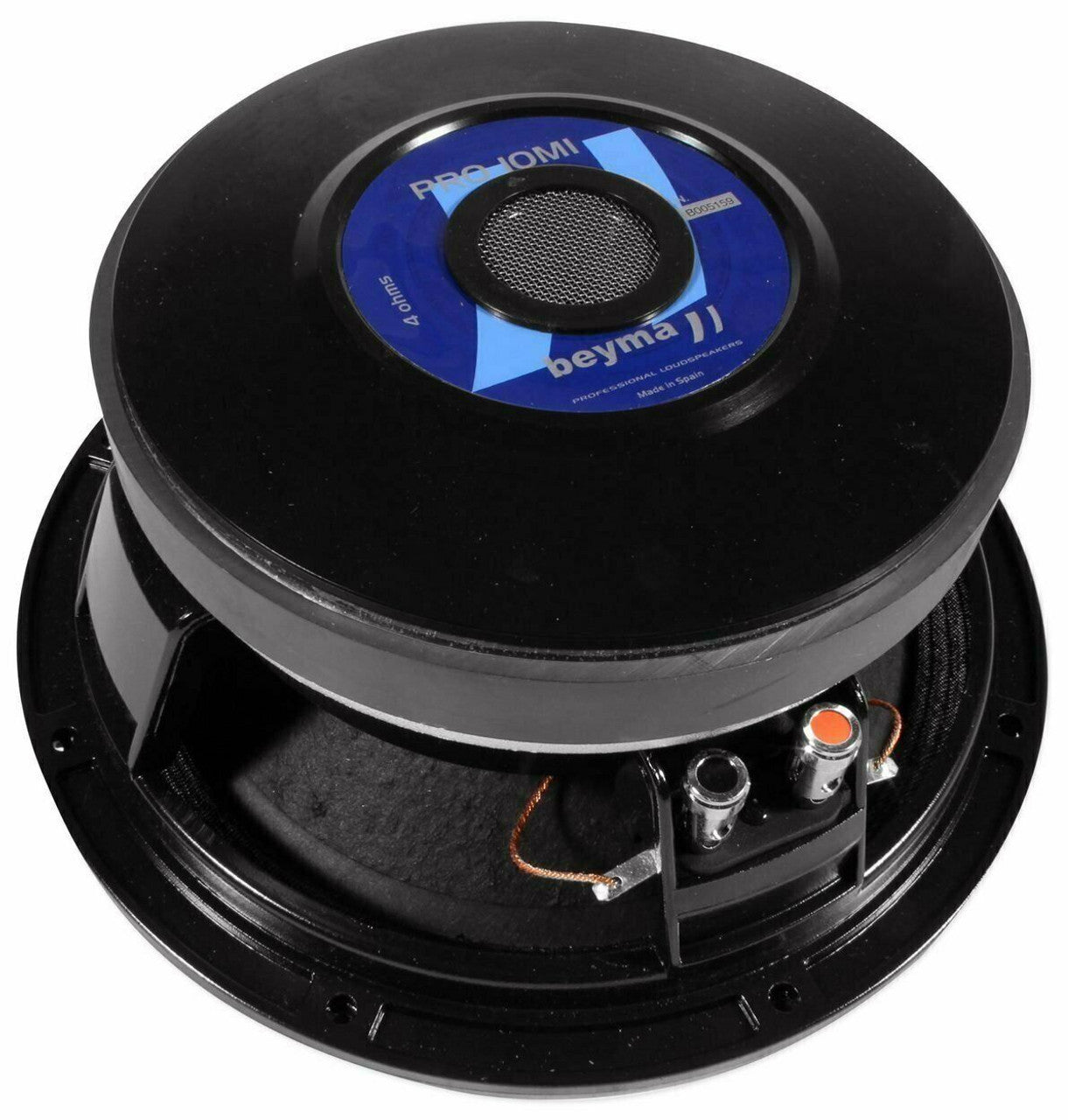

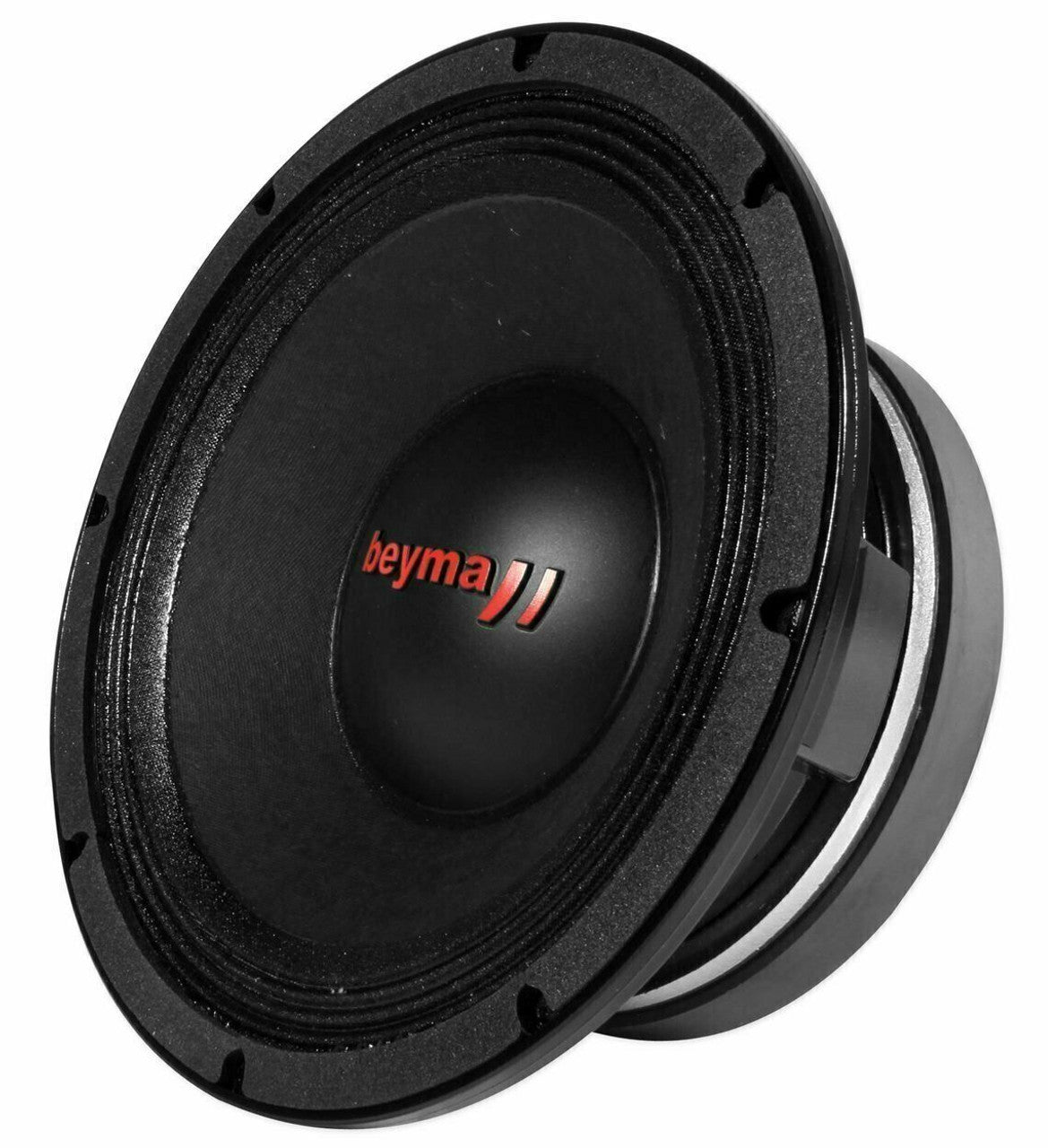

Beyma - PRO10MI - 10" Low & Mid Frequency - Car Audio

Beyma - PRO10MI - 10" Low & Mid Frequency - Car Audio

$358.00 USD
$358.00 USD $358.00 USD
Sale Sold out
  • BEYMA PRO 10MI IS A HIGH POWER 10" CAR MID-BASS SPEAKER FROM THE BEYMA COMPETITION SERIES
  • HANDLES 350 WATTS AES & 700 WATTS PROGRAM POWER
  • FEATURES A LARGE 3" VOICE COIL
  • DELIVERS A VERY STRONG BASS FOR THE HIGHEST QUALITY SUBWOOFER APPLICATIONS WITH SUPERB CLARITY
  • AVAILABLE IN 4 OHMS ONLY

  • Specifications

    Nominal Basket Diameter

    10"

    Impedance

    4 ohms

    AES Power Rating

    350 Watts
    Program Power  700 Watts

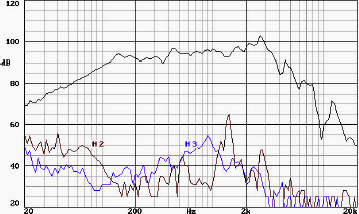

    Frequency Response

    70Hz - 4.0kHz

    Sensitivity (1W/1m)

    101dB

    Voice Coil Diameter

    3" / 77mm
    BL Factor 15.8 N/A

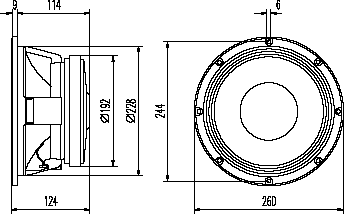

    Mounting Information
    Overall Diameter 10.24" / 260mm
    Bolt Circle Diameter 9.6" / 244mm
    Baffle Cutout Diameter-
    - Front Mount 8.98" / 228mm
    No. Of Mounting Holes 8
    Overall Depth 4.9" / 124mm

    Materials
    Basket Die Cast Aluminum
    Cone Paper
    Magnet Ferrite

    Thiele-Small Parameters
    Resonant Frequency (fs) 46 Hz
    Impedance (Re) 3.7 ohms
    Coil Inductance (Le) 1.3 mH
    Mechanical Q (Qms) 7.24
    Electrical Factor (Qes) .17
    Total Q (Qts) .17
    Comp. Equivelant Vol. (Vas) 2.19 ft3 / 62 Liters
    Surface Area of Cone (Sd)m2 0.038
    Reference Efficiency 3.5%
