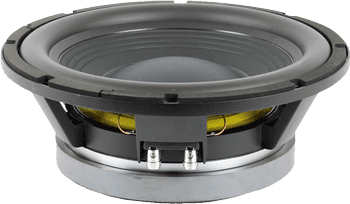

Beyma - Power12N - 12" Low & Mid Frequency - Car Audio
Beyma - Power12N - 12" Low & Mid Frequency - Car Audio
Regular price
$398.00 USD
Regular price
$398.00 USD
Sale price
$398.00 USD
Quantity
Couldn't load pickup availability
- NEW IMPROVED BEYMA POWER 12N IS A HIGH POWER 12" SPEAKER THAT HANDLES 500 WATTS AES & 1,000 WATTS PROGRAM
- FEATURES A RUBBER SURROUND, LARGE 4" VOICE COIL & A HIGH XMAX OF 10.0MM
- FREQUENCY RANGE FROM 45HZ TO 1.5KHZ
- DELIVERS A DEEP SMOOTH TIGHT BASS WITH GOOD MID-BASS
- 42MM PEAK TO PEAK X-DAMAGE
- WORKS WELL IN 2-WAY CABINETS OR AS A LOW FREQUENCY SPEAKER
- AVAILABLE IN 4 OHMS ONLY
| WOOFER MODEL | POWER 12N |
| Specifications | |
| Nominal Basket Diameter | 12" |
| Impedance | 4 ohms |
| AES Power Rating | 500 Watts |
| Program Power | 1,000 Watts |

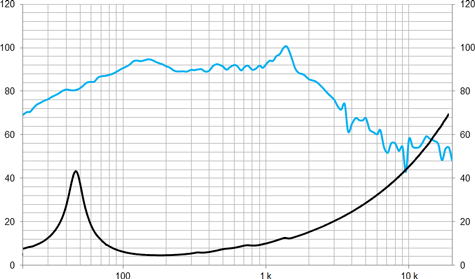

| Frequency Response | 45Hz - 1.5kHz |
| Sensitivity (1W/1m) | 93dB |
| Voice Coil Diameter | 4" / 100mm |
| Voice Coil Length | 25 mm |
| Air Gap Height | 10 mm |
| X Damage (peak to peak) | 42 mm |
| BL Factor | 20.1 N/A |

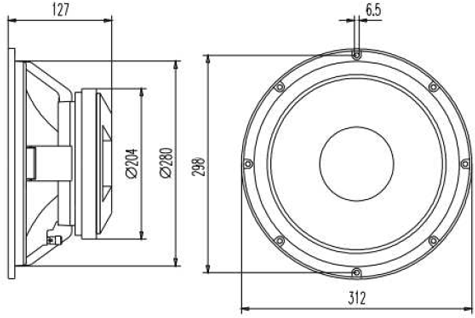

| Mounting Information | |
| Overall Diameter | 12.3" / 312mm |
| Bolt Circle Diameter | 11.7" / 298mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 11" / 280mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 5" / 127mm |
| Net Weight | 21.4 lb. / 9.7 kg. |
| Shipping Weight | 22.9 lb. / 10.4 kg. |
| Materials | |
| Basket | Die Cast Aluminum |
| Cone | Paper |
| Surround | Rubber |
| Voice Coil | Edgewound Copper Wire |
| Magnet | Ferrite |
| Thiele-Small Parameters | |
| Resonant Frequency (fs) | 48 Hz |
| Impedance (Re) | 3.5 ohms |
| Coil Inductance (Le) | 1.0 mH |
| Mechanical Q (Qms) | 4.6 |
| Electrical Factor (Qes) | .37 |
| Total Q (Qts) | .34 |
| Comp. Equivelant Vol. (Vas) | 1.17 ft3 / 33 Liters |
| Voice Coil Overhang (Xmax) | 10.0 mm |
| Moving Mass (Mms) | 141 Grams |
| Surface Area of Cone (Sd)m2 | 0.055 |
| Reference Efficiency | 1.0% |
| Displacement Volume (Vd) | 550 cm3 |
