Beyma

Beyma - 18QLEX1600Nd - 18" 4 Ohm SUBWOOFER 1,600 RMS

Beyma - 18QLEX1600Nd - 18" 4 Ohm SUBWOOFER 1,600 RMS

$679.32 USD
$679.32 USD $679.32 USD
Sale Sold out
  • THE NEW BEYMA 18LEX1600ND 18" SUBWOOFER SPEAKER HANDLES A MASSIVE 1,600 WATTS AES & 3,200 WATTS PROGRAM POWER HANDLING
  • FEATURES NEW STYLE FRAME FOR INCREASED STRENGTH AND COOLING, WATERPROOF CONE (BACK & FRONT) & ALUMINUM DEMODULATION RING
  • VERY LOW AIR NOISE, VERY HIGH 14.5MM XMAX & 65MM PEAK TO PEAK EXCURSION BEFORE DAMAGE
  • DESIGNED WITH EXCLUSIVE NCR (NECK COUPLING REINFORCEMENT) MEMBRANE & MMS TECHNOLOGY
  • LIGHTWEIGHT NEODYMIUM MAGNET & DOUBLE SPIDER ASSEMBLY
  • FOR ALL VERY HIGH POWER SUBWOOFER APPLICATIONS INCLUDING CONCERT, ARENA, THEATRES, DANCE CLUBS, SOUND REINFORCEMENT, ETC.
  • AVAILABLE IN 4 AND 8 OHMS




Specifications

Nominal Basket Diameter

18"

Impedance

4 ohms

AES Power Rating

1,600 Watts
Program Power  3,200 Watts

Frequency Response

35Hz - 1.0kHz

Sensitivity (1W/1m)

96dB

Voice Coil Diameter

4" / 101.6mm
Voice Coil Length 35 mm
Air Gap Height 14 mm
X Damage (peak to peak) 65 mm
BL Factor 24.5 N/A

Mounting Information
Overall Diameter 18.19" / 462mm
Bolt Circle Diameter 17.36" / 441mm
Baffle Cutout Diameter-
- Rear Mount 16.77" / 426mm
No. Of Mounting Holes 8
Overall Depth 9.29" / 236mm
Net Weight 20.9 lb. / 9.5 kg.
Shipping Weight 23.8 lb. / 10.8 kg.

Materials
Basket Die Cast Aluminum
Cone Paper
Surround Treated Cloth
Voice Coil Edgewound Copper Wire
Magnet Neodymium

Thiele-Small Parameters
Resonant Frequency (fs) 33 Hz
Impedance (Re) 5.8 ohms
Coil Inductance (Le) 1.9 mH
Mechanical Q (Qms) 11.4
Electrical Factor (Qes) .45
Total Q (Qts) .43
Comp. Equivelant Vol. (Vas) 8.16 ft3 / 231 Liters
Voice Coil Overhang (Xmax) 14.5 mm
Moving Mass (Mms) 229 Grams
Surface Area of Cone (Sd)m2 0.1255m2
Reference Efficiency 1.7%
Displacement Volume (Vd) 1820 cm3

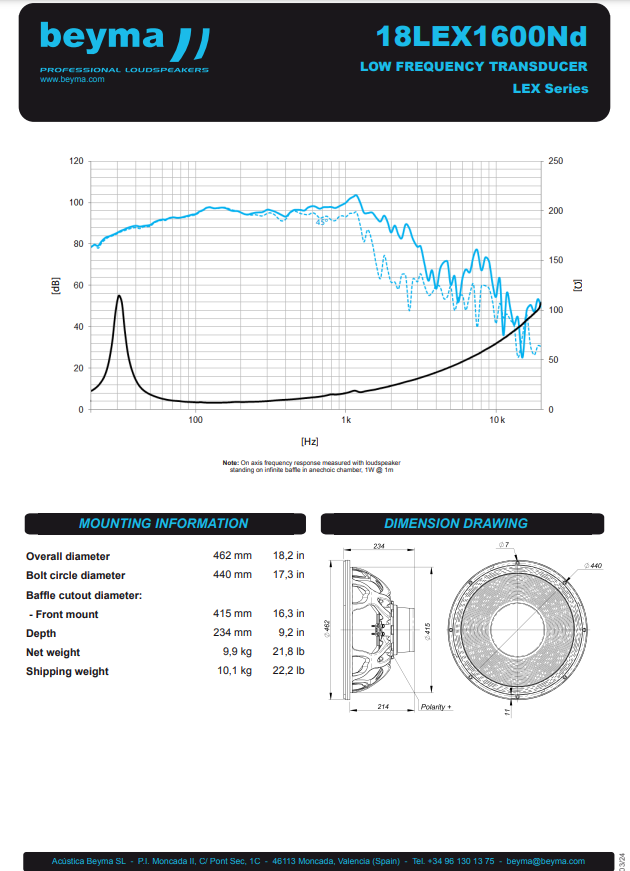

Frequency Response & Free Air Imp
