Beyma

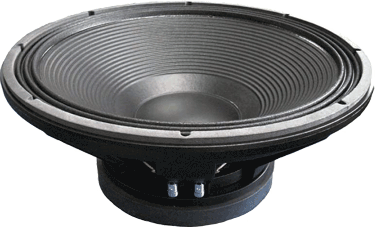

Beyma - 18PW1400FE-8 - 18" Low & Mid Frequency - 8 ohm

Beyma - 18PW1400FE-8 - 18" Low & Mid Frequency - 8 ohm

$516.52 USD
$516.52 USD $516.52 USD
Sale Sold out

  • High power handling: 1400 W AES
    ● Malt Cross® Cooling System
    ● Low power compression looses
    ● High sensitivity: 98 dB
    ● FEA optimized ferrite magnetic circuit
    ● Designed with MMSS technology for high control, linearity and low harmonic distortion
    ● Optimized nonlinear parameters
    ● Waterproof cone with treatment for both sides of the cone
    ● 4” DUO double layer inner/outer voice coil
    ● Aluminium demodulating ring
    ● Extended controlled displacement: X max ± 10 mm
    ● Massive mechanical displacement capability: X damage ± 55 mm

    Specifications
    Nominal diameter 460 mm 18 in
    Nominal impedance 8 Ohm
    Minimum impedance 5.3 ohm
    Power capacity 1400 W AES
    Program power 2800 W
    Sensitivity 98 dB 1 W @ 1 m
    Frequency range 25-1800 Hz
    Maximum recom. frequency 200 Hz
    Recommended enclosure volume 80 / 200 l 2.8 / 7 ft³
    Voice coil diameter 100 mm 4 in
    BL factor 29 N/A
    Moving mass 0.230 kg
    Winding length 25 mm
    Air gap height 12 mm
    Xdamage pp 55 mm

    Thiele Small Parameters
    Fs 32 Hz
    Re 5.05 ohm
    Qms 10.23
    Qes 0.28
    Qts 0.27
    Vas 228.9 l
    Cms 103 µm / N
    Rms 4.62 kg/s
    Sd 0.1255 m²
    Xmax 10 mm
    Vd 1251 cm³
    Le @1 kHz 1.2 mH

    Construction
    Net weight 16.9 kg 37.26 lb
    Total weight 18.1 kg 39.98 lb
    Magnet Ferrite
