Beyma - 18LEX1000F- 18" SUBWOOFER SPEAKER HANDLES A MASSIVE 1,000w RMS

Beyma - 18LEX1000F- 18" SUBWOOFER SPEAKER HANDLES A MASSIVE 1,000w RMS

$442.52 USD
$442.52 USD $442.52 USD
Sale Sold out
  • THE NEW BEYMA 18LEX1000FE 18" SUBWOOFER SPEAKER HANDLES 1,000 WATTS AES & 2,000 WATTS PROGRAM POWER HANDLING
  • FEATURES A 3.5" DUO DOUBLE LAYER INNER/OUTER COPPER VOICE COIL
  • NEW STYLE FRAME FOR INCREASED STRENGTH AND COOLING & WATERPROOF CONE (BACK & FRONT)
  • VERY LOW AIR NOISE, HIGH 11MM XMAX & 51MM PEAK TO PEAK EXCURSION BEFORE DAMAGE
  • DESIGNED WITH EXCLUSIVE NCR (NECK COUPLING REINFORCEMENT) MEMBRANE & MMS TECHNOLOGY
  • FOR ALL VERY HIGH POWER SUBWOOFER APPLICATIONS IN PORTED & BAND-PASS SPEAKER CABINET DESIGNS
  • AVAILABLE 8 OHMS

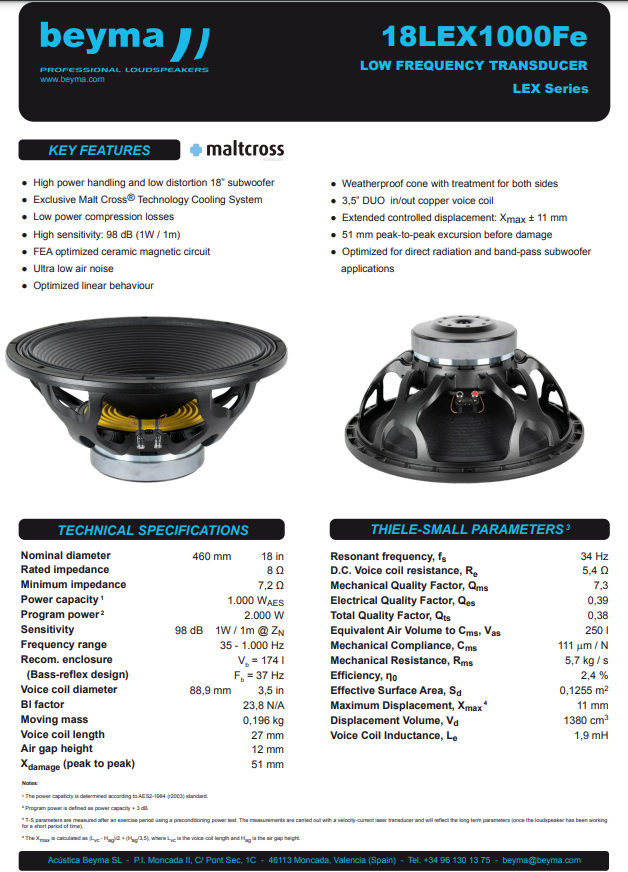

Specifications

Nominal Basket Diameter

18"

Impedance

8 ohms

AES Power Rating

1,000 Watts
Program Power  2,000 Watts

Frequency Response

35Hz - 1.0kHz

Sensitivity (1W/1m)

98dB

Voice Coil Diameter

3.5" / 89mm
Voice Coil Length 27 mm
Air Gap Height 12 mm
X Damage (peak to peak) 51 mm
BL Factor 23.8 N/A

Mounting Information
Overall Diameter 18.19" / 462mm
Bolt Circle Diameter 17.36" / 441mm
Baffle Cutout Diameter-
- Rear Mount 16.8" / 426mm
No. Of Mounting Holes 8
Overall Depth 8.8" / 224mm
Net Weight 25.7lb. / 11.7 kg.
Shipping Weight 28.6 lb. / 13 kg.

Materials
Basket Die Cast Aluminum
Cone Waterproof Front & Back Paper
Surround Treated Cloth
Voice Coil Duo Double Layer In/Outer Copper Wire
Magnet Ferrite

Thiele-Small Parameters
Resonant Frequency (fs) 34 Hz
Impedance (Re) 5.4 ohms
Coil Inductance (Le) 1.9 mH
Mechanical Q (Qms) 7.3
Electrical Factor (Qes) .39
Total Q (Qts) .38
Comp. Equivelant Vol. (Vas) 8.83ft3 / 250 Liters
Voice Coil Overhang (Xmax) 11 mm
Moving Mass (Mms) 196 Grams
Surface Area of Cone (Sd)m2 0.1255m2
Reference Efficiency 2.4%
Displacement Volume (Vd) 1380 cm3

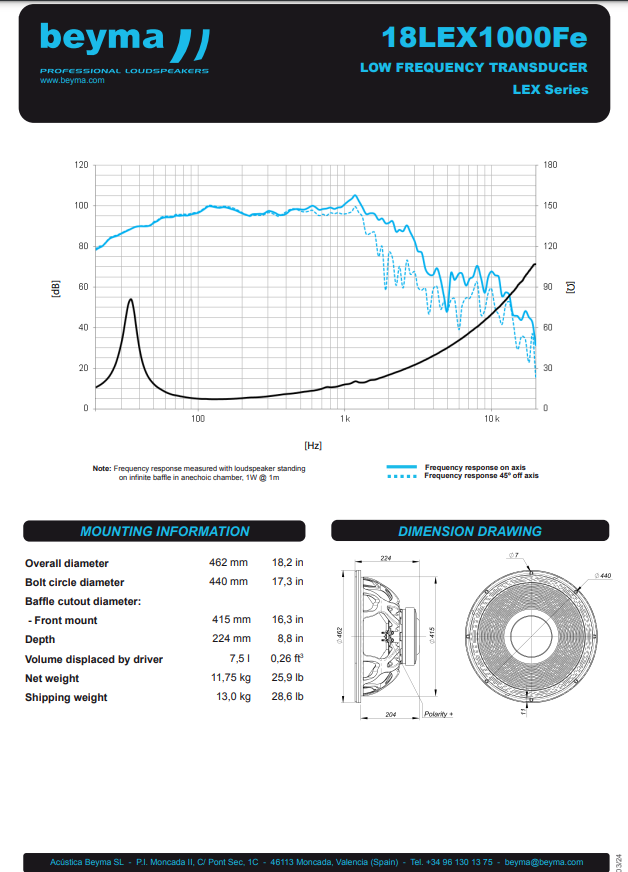

Frequency Response & Free Air Impedance Curve
