Beyma

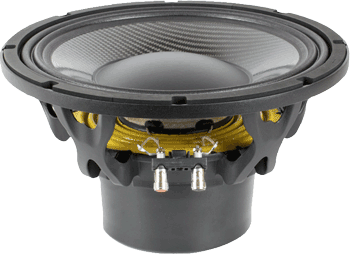

Beyma - 12SCF1300ND - 12 "Low & Mid Frequency - Car Audio
Beyma - 12SCF1300ND - 12 "Low & Mid Frequency - Car Audio
Regular price
$798.00 USD
Regular price
$798.00 USD
Sale price
$798.00 USD
Quantity
Couldn't load pickup availability
- NEW CUSTOM BEYMA 12SCF1300ND-4 12" SPEAKER HANDLES 1,300 WATTS AES & 2,600 WATTS PROGRAM POWER HANDLING
- FEATURES A WATERPROOF CARBON FIBER FRONT AND BACK CONE & 4" DUO INNER/OUTER COPPER VOICE COIL
- LIGHTWEIGHT NEODYMIUM MAGNET WEIGHS ONLY 18.3 LBS.
- HIGH XMAX OF 12.0MM & PEAK TO PEAK X-DAMAGE OF 56.0MM
- POWERFUL STRENGTH 23 T-M FOR A TIGHT STRONG CONTROLLED SOUND
- HIGH PERFORMANCE, ULTRA LOW NOISE & VERY LINEAR RESPONSE
- DESIGNED FOR HIGH POWER PORTED, BAND-PASS & HORN SUBWOOFER SPEAKER SYSTEMS
- 4 OHMS
| Specifications | |
| Nominal Basket Diameter | 12" |
| Impedance | 4 ohms |
| AES Power Rating | 1,300 Watts |
| Program Power | 2,600 Watts |
| Frequency Response | 45Hz - 1.6kHz |
| Sensitivity (1W/1m) | 94dB |
| Voice Coil Diameter | 4" / 101.6mm |
| Voice Coil Length | 30 mm |
| Air Gap Height | 15 mm |
| X Damage (peak to peak) | 56 mm |
| BL Factor | 23 N/A |

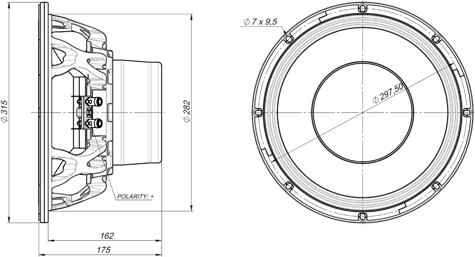

| Mounting Information | |
| Overall Diameter | 12.4" / 315mm |
| Bolt Circle Diameter | 11.7" / 297.5mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 11.1" / 282mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.12 ft3 / 3.5 Liters |
| Overall Depth | 6.9" / 175mm |
| Net Weight | 18.3 lb. / 8.3 kg. |
| Shipping Weight | 19.8 lb. / 9 kg. |
| Materials | |
| Basket | Die Cast Aluminum |
| Cone | Waterproof Carbon Fiber |
| Surround | Treated Cloth |
| Voice Coil | Edgewound In/Out Copper Wire |
| Magnet | Ferrite |
| Thiele-Small Parameters | |
| Resonant Frequency (fs) | 43 Hz |
| Impedance (Re) | 3.4 ohms |
| Coil Inductance (Le) | 1.0 mH |
| Mechanical Q (Qms) | 8.2 |
| Electrical Factor (Qes) | .24 |
| Total Q (Qts) | .24 |
| Comp. Equivalent Vol. (Vas) | 1.46 ft3 / 41.4 Liters |
| Voice Coil Overhang (Xmax) | 12.0 mm |
| Diaphragm Mass (Mms) | 139 Grams |
| Surface Area of Cone (Sd)m2 | 0.055 |
| Reference Efficiency | 1.3% |
| Displacement Volume (Vd) | 648 cm3 |
