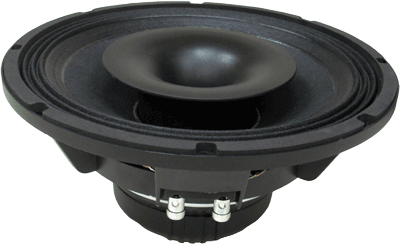

Beyma - 12CXA400Nd - 12" Coaxial Woofer with A 2" tweeter
Beyma - 12CXA400Nd - 12" Coaxial Woofer with A 2" tweeter
Regular price
$723.72 USD
Regular price
$723.72 USD
Sale price
$723.72 USD
Quantity
Couldn't load pickup availability
- NEW THE BEYMA 12CXA400Nd COAXIAL SPEAKER INCLUDES A 12" WOOFER & A 2" EXIT HIGH FREQUENCY COMPRESSION DRIVER
- BOTH HF & LF DRIVERS UTILIZE LIGHTWEIGHT NEODYMIUM MAGNETS
- 12" WOOFER FEATURES A LARGE 4" VOICE COIL & HIGH 6.0MM XMAX
- DEMODULATION RINGS FOR BOTH THE HIGH FREQUENCY & LOW FREQUENCY UNITS
- 60° HORN COVERAGE FOR HIGH FREQUENCY CONTROLLED DISPERSION
- HF FEATURES AN ALUMINUM RIBBON VOICE COIL W/ A COMBINATION TITANIUM DOME & MYLAR SURROUND THAT PRODUCES AN EXTREMELY SMOOTH SOUND
- WOOFER IS WATERPROOF & HANDLES A POWERFUL 400 WATTS AES & 800 WATTS PROGRAM
- WELL SUITED FOR COMPACT PORTED SPEAKER CABINETS
- Recommended 2-Way Crossover Beyma FD2XA
| Low Frequency Specifications | |
| Nominal Basket Diameter | 12" |
| Impedance | 8 ohms |
| AES Power Rating | 400 watts |
| Program Power Rating | 800 watts |
| Frequency Range | 35Hz - 1.5kHz |
| Sensitivity (1W/1m) | 98dB |
| Voice Coil Diameter | 4" / 100mm |
| BL Factor | 18.2 N/A |
| Moving Mass | .048 kg. |
| Voice Coil Length | 16 mm |
| Air Gap Height | 9 mm |
| X Damage (peak to peak) | 28 mm |
| Magnet Weight | 9.24 lb. / 4.2 kg. |
| High Frequency Specifications | |
| Rated Impedance | 16 ohms |
| AES Power Rating | 90 watts @ 1.0kHz |
| Program Power Rating | 180 watts @ 1.0kHz |
| Frequency R | 800Hz - 20kHz |
| Sensitivity (1W/1m) | 105dB SPL |
| Voice Coil Diameter | 2.8" / 71.1mm |
| Flux Density | 1.6T |
| Dispersion | 60° conical |
| Mounting Information | |
| Overall Diameter | 12.27" / 311.7mm |
| Bolt Circle Diameter | 11.73" / 298mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 11.13" / 282.6mm |
| - Rear Mount | 11.26" / 286mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.23 ft3 / 6.5 Liters |
| Overall Depth | 6.06" / 154mm |
| Net Weight | 15.83 lb. / 7.18 kg. |
| Shipping Weight | 17.75 lb. / 8.05 kg. |
| Low Frequency Materials | |
| Basket | Die Cast Aluminum |
| Cone | Waterproof Paper |
| Surround | Plasticised Cloth |
| Voice Coil | Edgewound Aluminum Ribbon |
| Demodulation Ring | Aluminum |
| Magnet | Neodymium |
| High Frequency Materials | |
| Diaphragm | Titanium |
| Voice Coil | Edgewound Aluminum Ribbon |
| Dome | Titanium |
| Surround | Mylar |
| Voice Coil Former | Kapton |
| Demodulation Ring | Aluminum |
| Thiele-Small Parameters | |
| Resonant Frequency (Fs) | 45 Hz |
| Impedance (Re) | 6.6 ohms |
| Mechanical Q (Qms) | 6.24 |
| Electrical Factor(Qes) | .28 |
| Total Q (Qts) | .26 |
| Comp. Equivalent Vol. (Vas) | 3.6 ft3 / 102.2 Liters |
| Voice Coil Overhang (Xmax) | 6.0 mm |
| Effective Surface Area | .055m2 |
| Reference Efficiency | 3.25% |
| Displacement Volume | 210 cm3 |
| Voice Coil Inductance (Le @ 1kHz) | 1.0mH |
