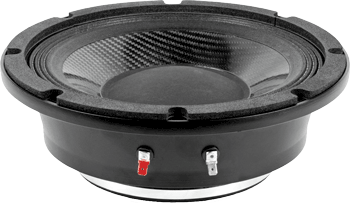

Beyma - 10MCF400Nd - 10" HIGH QUALITY MIDRANGE
Beyma - 10MCF400Nd - 10" HIGH QUALITY MIDRANGE
Regular price
$606.80 USD
Regular price
$606.80 USD
Sale price
$606.80 USD
Quantity
Couldn't load pickup availability
- THE NEW BEYMA 10MCF400Nd 10" HIGH QUALITY MIDRANGE CAST FRAME SPEAKER THAT HANDLES 400 WATTS AES & 800 WATTS PROGRAM POWER HANDLING
- FEATURES A CLOSED BACK CAST ALUMINUM FRAME, LIGHTWEIGHT NEODYMIUM MAGNET & STRONG CARBON FIBER LOADED CONE
- LARGE 4" VOICE COIL EDGEWOUND ALUMINUM VOICE COIL & HAS VERY HIGH EFFICIENCY OF 102DB SPL
- FEATURES A LIGHT CONE OF 38 GRAMS THAT ALLOWS FOR A FAST MOVING CONE FOR CLEARER MORE PRECISE MIDRANGE
- SUPER HIGH EFFICIENCY OF 7.55%, EXTREMELY LINEAR FREQUENCY RESPONSE & VERY LOW HARMONIC DISTORTION
- DESIGNED FOR THE HIGH PERFORMANCE MIDRANGE IN LINE ARRAY & HORN LOADED SPEAKER SYSTEMS

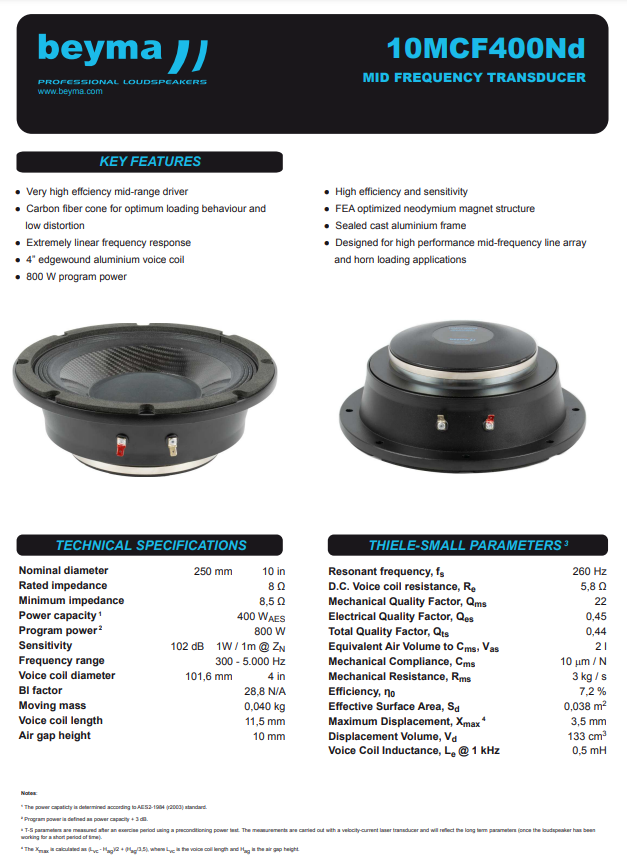

| Specifications | |
| Nominal Basket Diameter | 10" |
| Impedance | 8 ohms |
| AES Power Rating | 400 Watts |
| Program Power | 800 Watts |
| Frequency Response | 300Hz - 5.0kHz |
| Sensitivity (1W/1m) | 102dB |
| Voice Coil Diameter | 4" / 101.6mm |
| Voice Coil Length | 11.5 mm |
| Air Gap Height | 10 mm |
| BL Factor | 28.8 N/A |

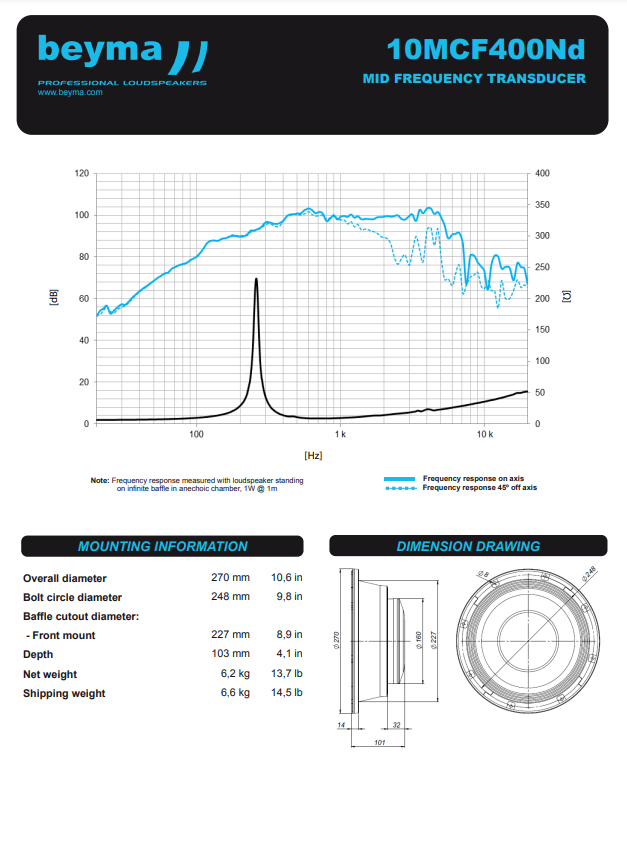

| Mounting Information | |
| Overall Diameter | 10.63" / 270mm |
| Bolt Circle Diameter | 9.76" / 248mm |
| Baffle Cutout Diameter- | |
| - Front Mount | 8.94" / 227mm |
| No. Of Mounting Holes | 8 |
| Overall Depth | 4.05" / 103mm |
| Net Weight | 13.67 lb. / 6.2 kg. |
| Shipping Weight | 14.55 lb. / 6.6 kg. |
| Materials | |
| Basket | Cast Aluminum |
| Cone | Carbon Fiber |
| Voice Coil | Edgewound Aluminum Wire |
| Magnet | Neodymium |
| Thiele-Small Parameters | |
| Resonant Frequency (fs) | 260 Hz |
| Impedance (Re) | 5.8 ohms |
| Coil Inductance (Le) | .5 mH |
| Mechanical Q (Qms) | 22 |
| Electrical Factor (Qes) | .45 |
| Total Q (Qts) | .44 |
| Comp. Equivalent Vol. (Vas) | .07 ft3 / 2 Liters |
| Voice Coil Overhang (Xmax) | 3.5 mm |
| Moving Mass (Mms) | 40 Grams |
| Surface Area of Cone (Sd)m2 | 0.0380m2 |
| Reference Efficiency | 7.2% |
| Displacement Volume (Vd) | 133 cm3 |
