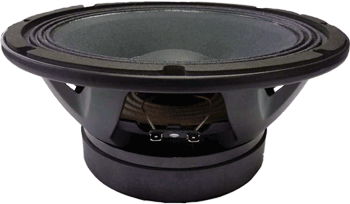

Beyma - 10MC500-8 - 10" HIGH QUALITY MID-BASS 500w

Beyma - 10MC500-8 - 10" HIGH QUALITY MID-BASS 500w

$220.62 USD
$220.62 USD $220.62 USD
Sale Sold out
  • THE NEW BEYMA 10MC500 10" HIGH QUALITY MID-BASS CAST FRAME SPEAKER THAT HANDLES 500 WATTS AES & 1,000 WATTS PROGRAM POWER HANDLING
  • CLEAR LOUD MIDRANGE WITH A STRONG TIGHT UPPER BASS
  • EXCLUSIVE BEYMA MALT CROSS COOLING SYSTEM ALLOWS FOR VERY LOW POWER COMPRESSION LOSSES
  • MMS TECHNOLOGY FOR BETTER CONTROL WITH VERY LOW DISTORTION AT HIGH POWER LEVELS & A PEAK TO PEAK 40MM XMAX
  • WATERPROOF FRONT AND BACK CONE FOR OUTDOOR USE
  • GREAT FOR BASS GUITAR WHERE CRISP MIDS AND A TIGHT BASS ARE REQUIRED
  • ALSO WORKS WELL IN 2 OR 3-WAY PA & LINE ARRAY



Specifications

Nominal Basket Diameter

10"

Impedance

8 ohms

AES Power Rating

500 Watts
Program Power  1,000 Watts

Frequency Response

60Hz - 5.0kHz

Sensitivity (1W/1m)

97dB

Voice Coil Diameter

2.5" / 63.5mm
Voice Coil Length 19.5 mm
Air Gap Height 9.5 mm
X Damage (peak to peak) 40 mm
BL Factor 18.3 N/A

Mounting Information
Overall Diameter 10.28" / 261mm
Bolt Circle Diameter 9.58" / 243.5mm
Baffle Cutout Diameter-
- Front Mount 9.06" / 230mm
- Rear Mount 9.06" / 230mm
No. Of Mounting Holes 8
Volume Displaced By Driver 0.10 ft3  /  3 Liters
Overall Depth 4.89" / 124.3mm
Net Weight 12.5 lb. / 5.7 kg.
Shipping Weight 13.42 lb. / 6.1 kg.

Materials
Basket Cast Aluminum
Cone Paper
Surround Treated Cloth
Voice Coil Copper
Magnet High Currie Temperature Ferrite

Thiele-Small Parameters
Resonant Frequency (fs) 60 Hz
Impedance (Re) 5.7 ohms
Coil Inductance (Le) 1.0 mH
Mechanical Q (Qms) 7.5
Electrical Factor (Qes) .29
Total Q (Qts) .28
Comp. Equivalent Vol. (Vas) 0.92 ft3 / 26 Liters
Voice Coil Overhang (Xmax) 8.0 mm
Moving Mass (Mms) .044 kg.
Surface Area of Cone (Sd)m2 0.035m2
Reference Efficiency 2%
Displacement Volume (Vd) 280 cm3
