Beyma

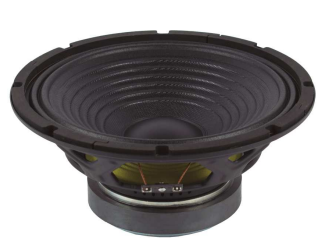

Beyma - 10CMV2 - 10" Low & Mid Frequency - Car Audio
Beyma - 10CMV2 - 10" Low & Mid Frequency - Car Audio
Regular price
$120.00 USD
Regular price
$120.00 USD
Sale price
$120.00 USD
Quantity
Couldn't load pickup availability

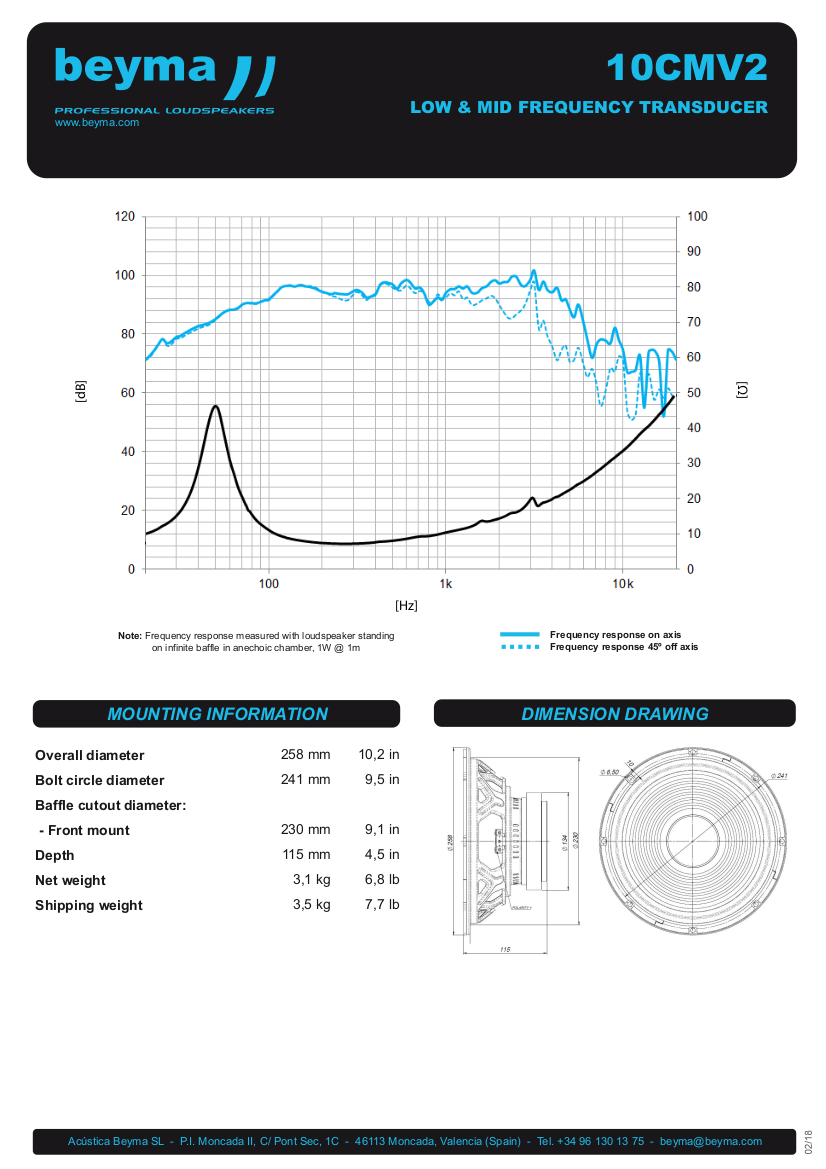

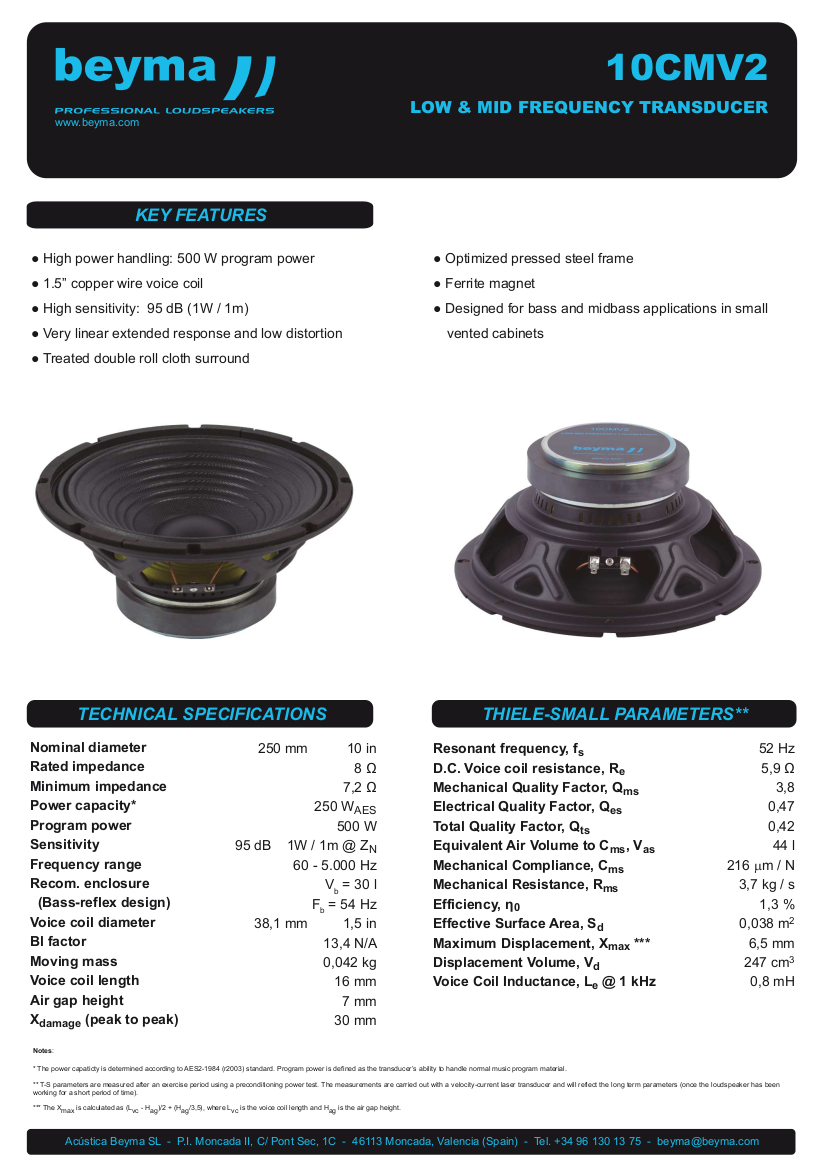

| Specifications | |
| Nominal Basket Diameter | 10" |
| Impedance | 8 ohms |
| AES Power Rating | 250 Watts |
| Program Power | 500 Watts |
| Frequency Response | 60Hz - 5.0kHz |
| Sensitivity (1W/1m) | 95dB |
| Voice Coil Diameter | 1.5" / 38.1mm |
| Voice Coil Length | 16 mm |
| Air Gap Height | 7 mm |
| X Damage (peak to peak) | 30 mm |
| BL Factor | 13.4 N/A |
| Mounting Information | |
| Overall Diameter | 10.2" / 258mm |
| Bolt Circle Diameter | 9.5" / 241mm |
| Baffle Cutout Diameter - | |
| - Front Mount | 9.1" / 230mm |
| No. Of Mounting Holes | 8 |
| Volume Displaced By Driver | 0.10 ft3 / 3 Liters |
| Overall Depth | 4.5" / 115mm |
| Net Weight | 6.8 lb. / 3.1 kg. |
| Shipping Weight | 7.7 lb. / 3.5 kg. |
| Materials | |
| Basket | Steel |
| Cone | Paper |
| Surround | Treated Cloth |
| Voice Coil | Copper |
| Magnet | Ferrite |
| Thiele-Small Parameters | |
| Resonant Frequency (fs) | 52 Hz |
| Impedance (Re) | 5.9 ohms |
| Coil Inductance (Le) | .8 mH |
| Mechanical Q (Qms) | 3.8 |
| Electrical Factor (Qes) | .47 |
| Total Q (Qts) | .42 |
| Comp. Equivalent Vol. (Vas) | 1.55 ft3 / 44 Liters |
| Voice Coil Overhang (Xmax) | 6.5 mm |
| Moving Mass (Mms) | 42 Grams |
| Surface Area of Cone (Sd)m2 | 0.038m2 |
| Reference Efficiency | 1.3% |
| Displacement Volume (Vd) | 247 cm3 |
