Alpine

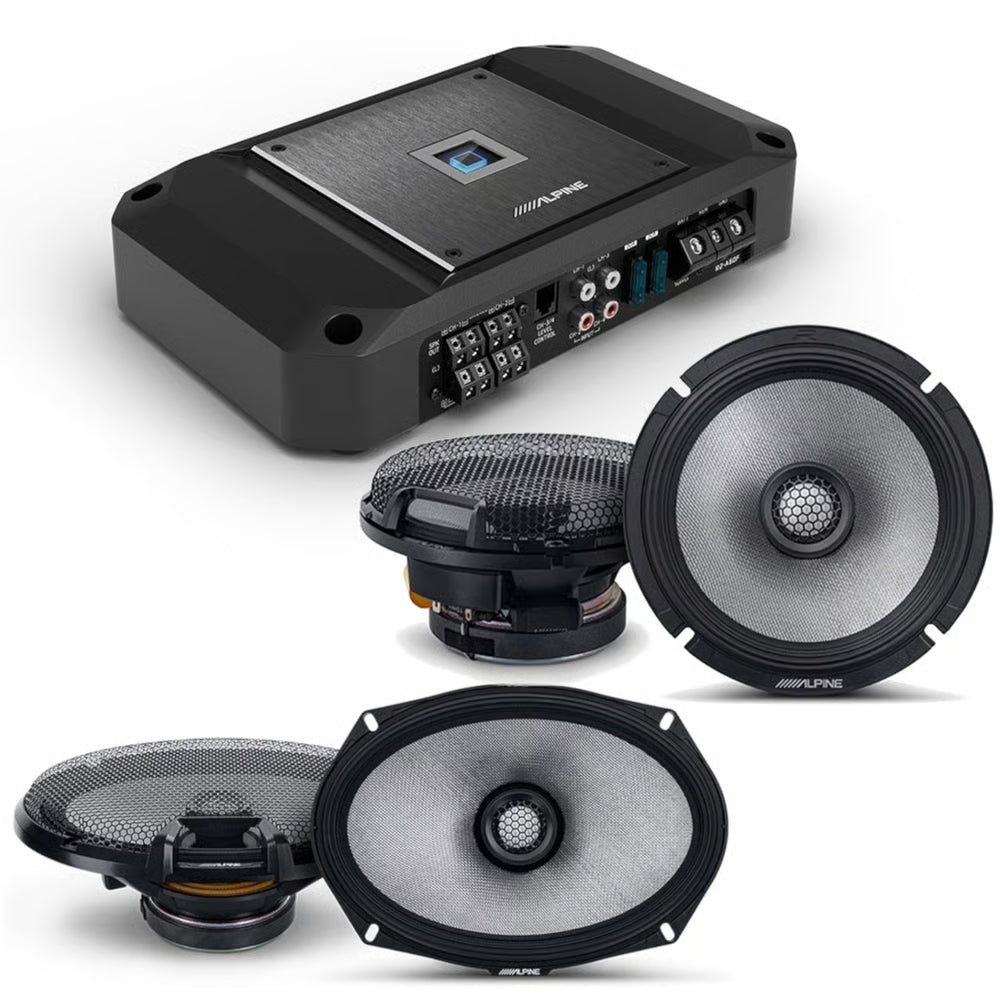

Alpine - R2-A60F - with 6.5" + 6x9” Coaxial Speakers 600W RMS R-Series Class-D 4-Channel Car Amplifier + 600W Peak (200W RMS) 6.5" 200W RMS) 6x9" R-Series 2-way 4-ohm Coaxial Car Speakers

Alpine - R2-A60F - with 6.5" + 6x9” Coaxial Speakers 600W RMS R-Series Class-D 4-Channel Car Amplifier + 600W Peak (200W RMS) 6.5" 200W RMS) 6x9" R-Series 2-way 4-ohm Coaxial Car Speakers

$1,269.85 USD
$1,269.85 USD
Sale Sold out

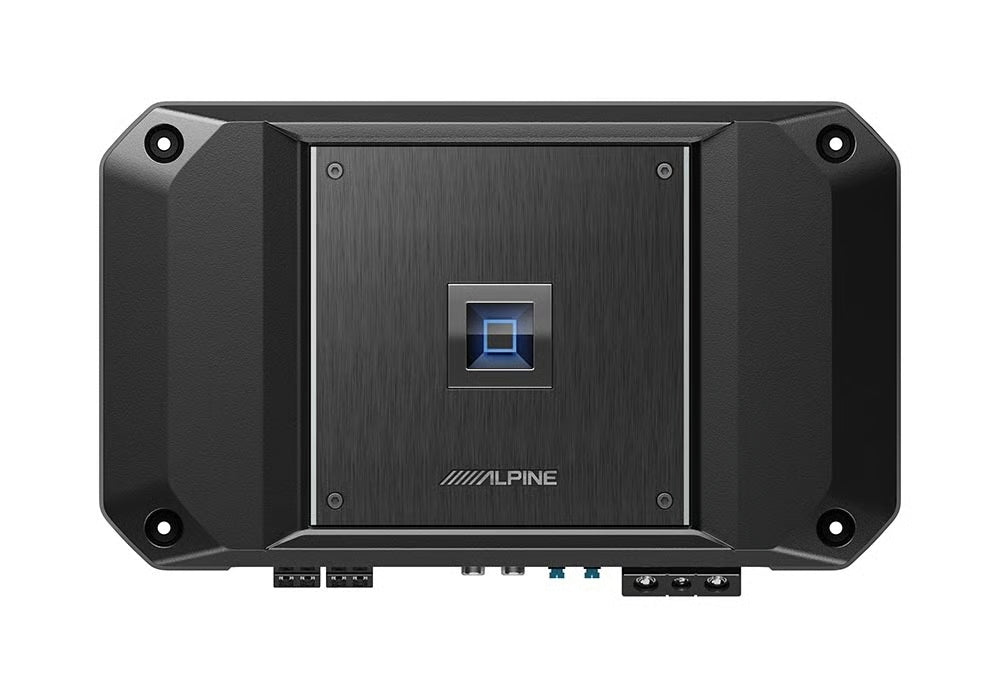

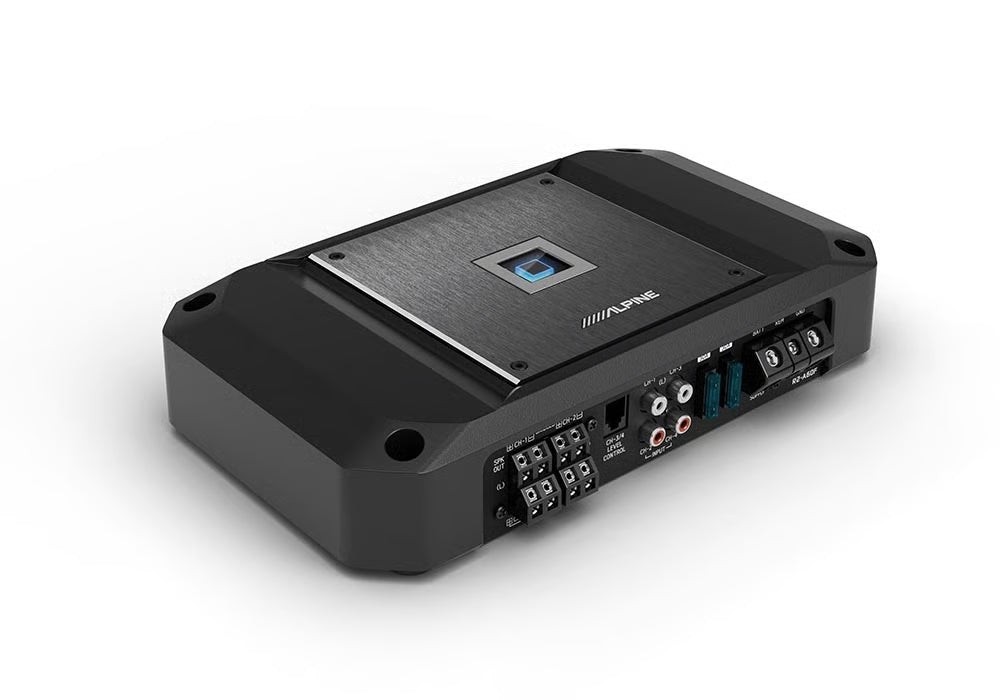

Alpine R2-A60F

600W RMS Class D R-Series 4 Channel Car Amplifier
Quantity: 1


Product Details:

  • R-Series Class D 2 ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 4 channel
    • 2 ohm: 150 watts x 4 channel
    • Bridged: 300 watts x 2 channel @ 4 ohm
  • Total power output: 600 watts
  • Power and voltage LED visual indicator
  • Wired bass remote Alpine RUX-KNOB.2 or Alpine RUX-H01(Sold separately)
  • Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
  • Signal sensing remote turn-on
  • Hi-res audio certified (up to 45kHz)
  • Reduced foot print (15% smaller compared to the previous model)

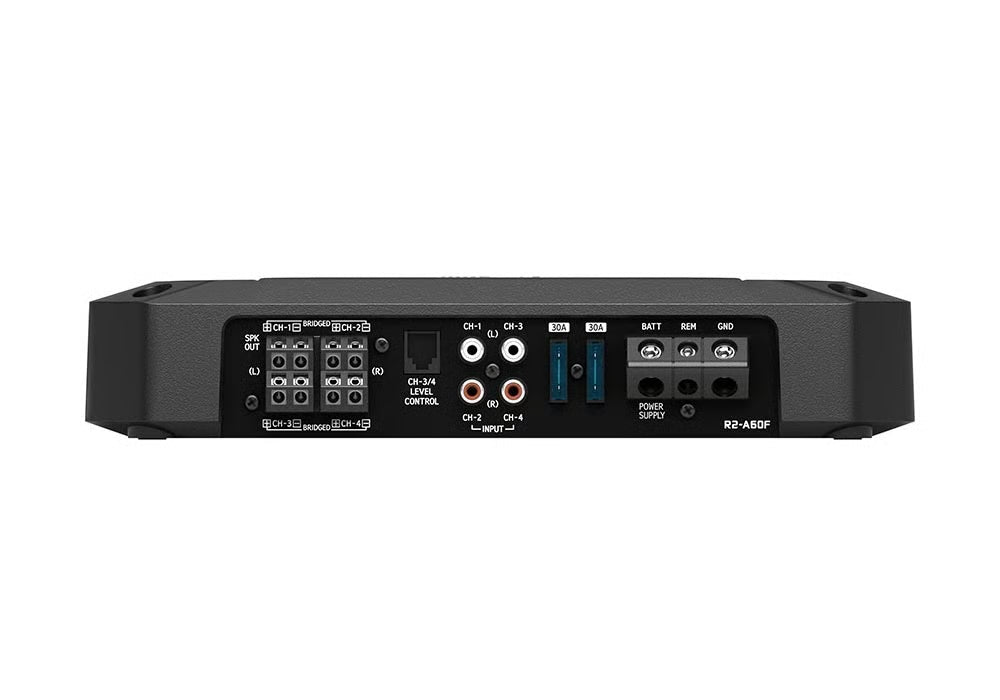

  • One sided terminal layout
  • Top panel sound controls
  • Integrated mounting feet for simple installation
  • Input sensitivity:
    • Low level: 0.2 - 4 volts
    • High level: 0.5 - 10 volts
  • Frequency Response: 10 - 45000 Hz
  • Total Harmonic Distortion (THD): 1%
  • Signal to Noise Ratio: >80 dB
  • Variable high-pass filter (channel 1/2 and 3/4): 50 - 400 Hz
  • Variable low-pass filter (channel 1/2 and 3/4): 50 - 400 Hz
  • Variable band-pass filter (channel 3/4): 400 Hz - 6 kHz
  • Fuse Rating: 60A
  • 4 AWG gauge amplifier wiring kit is recommended for installation
  • Dimensions: 11.1" L x 6.5" W x 2.17" H

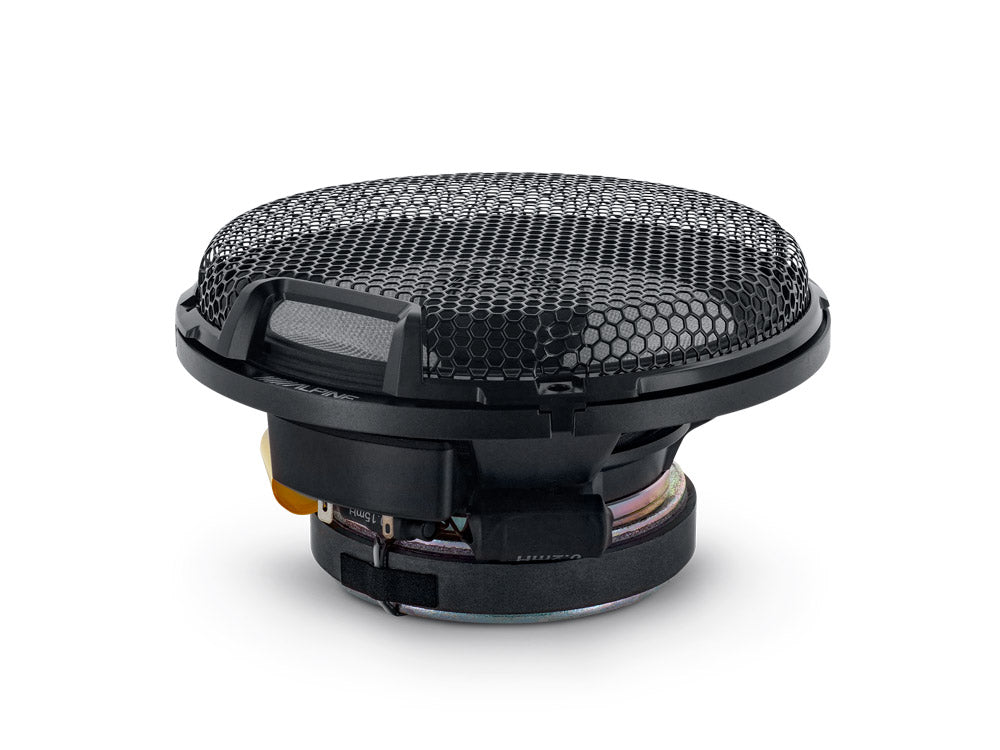

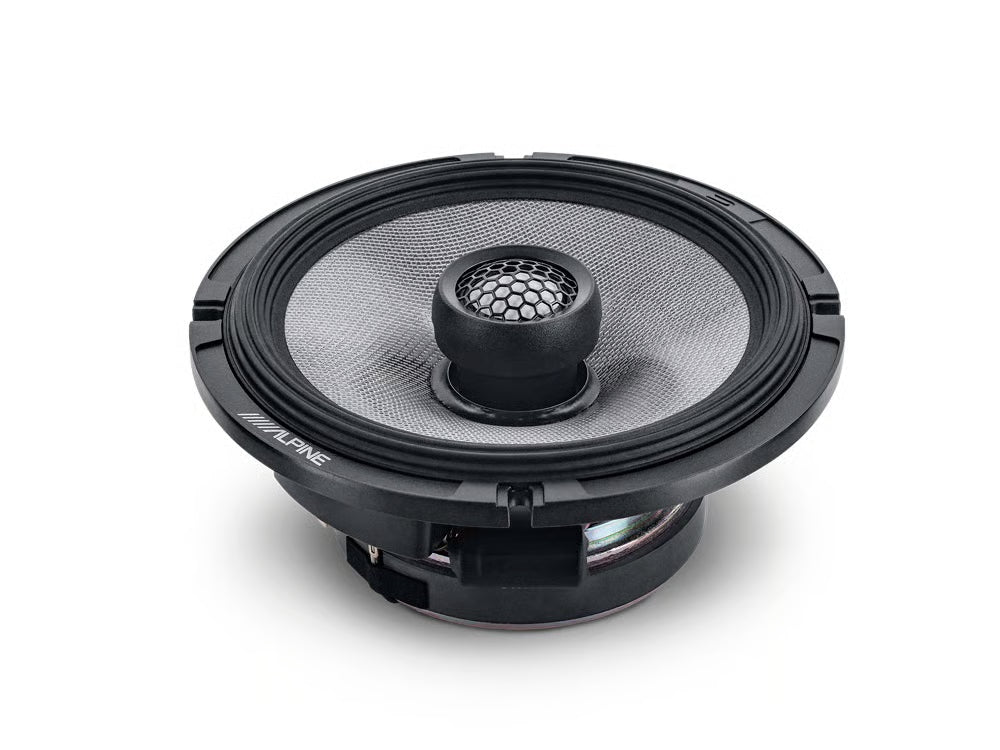

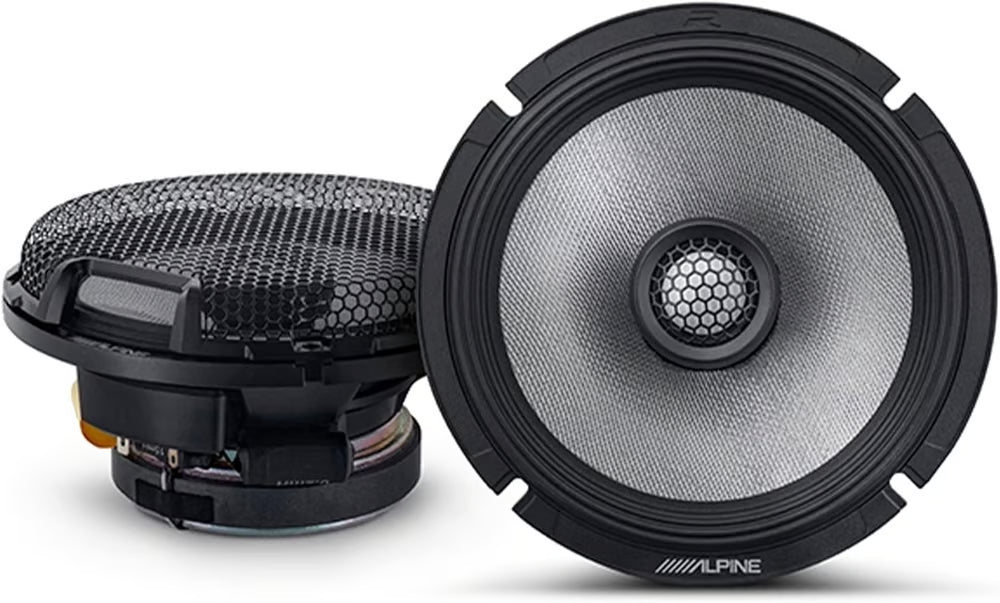

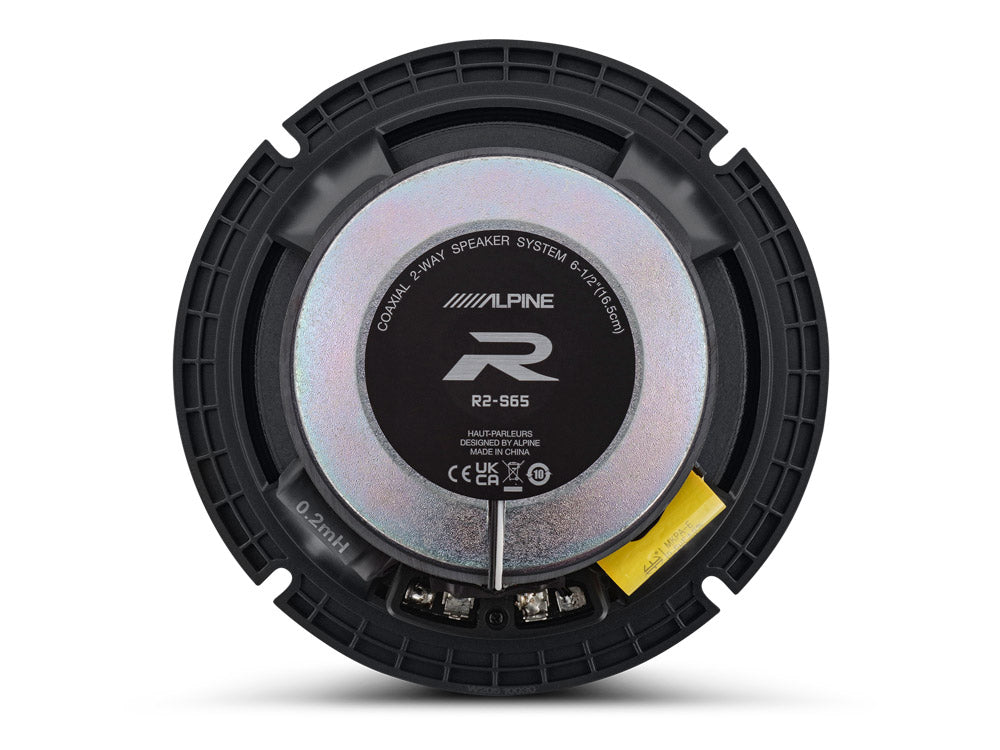

Alpine R2-S65

600W Peak (200W RMS) 6.5" R-Series 2-way 4-ohm Coaxial Car Speakers
Quantity: 1


Product Details:

  • 6-1/2" R-Series 2-way Coaxial Car Speakers
  • Power Handling:
    • Peak: 600 watts per pair / 300 watts each
    • RMS: 200 watts per pair / 100 watts each
  • Hi-Res Audio-certified
  • Reinforced Glass Fiber cone material
  • High-Amplitude Multi-Roll (HAMR) speaker surround
  • 1" Magnesium Hard Dome tweeters
  • Large Ferrite magnet motor structure
  • Composite speaker baskets fit larger magnets while maintaining the same mounting depth
  • Top-mount Depth: 2-1/2"
  • Cutout Dimensions: 5-5/16"
  • Impedance: 4 ohm
  • Frequency Response: 65 - 40,000 Hz
  • Sensitivity: 88 dB
  • 2 Hexagon-designed new speaker grilles included

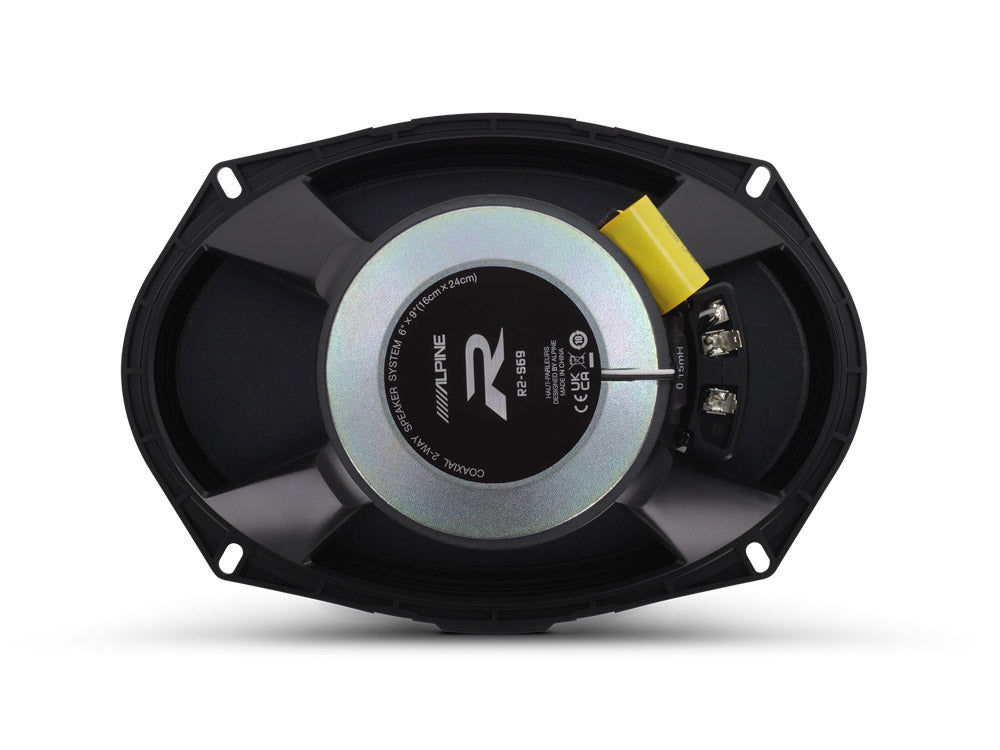

Alpine R2-S69

600W Peak (200W RMS) 6x9" R-Series 2-way 4-ohm Coaxial Car Speakers
Quantity: 1


Product Details:

  • 6" x 9" 2-way Coaxial Car Speakers
  • Power Handling:
    • Peak: 600 watts per set / 300 watts each side
    • RMS: 200 watts per set / 100 watts each side
  • Glass Fiber cone material
  • High-Amplitude Multi-Roll (HAMR) speaker surround
  • 1" Magnesium Hard Dome tweeters
  • Ferrite magnet motor structure
  • Two premium-grade crossover networks
  • Top-mount Depth: 2.99"
  • Cutout Dimensions: 5.86 x 8.66
  • Impedance: 4 ohm
  • Frequency Response: 60 - 40000 Hz
  • Sensitivity: 88 dB
  • Protective open mesh grille pair included
  • Hi-Res Audio certified
Speaker Size
6" x 9"
Design
2-way Coaxial
Tweeter Design
Hard Dome
Tweeter Composition
Magnesium
Woofer Composition
Glass Fiber
Woofer Surround
High-Amplitude Multi-Roll (HAMR)
Peak Power Handling
300 watts
RMS Power Handling
100 watts
Sensitivity
88 dB
Frequency Response
60 - 40000 Hz
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
2.99"
Cutout Dimensions
5.86 x 8.66
Speaker Grilles
Yes
Amplifier Power Specifications
RMS Power @ 4 ohms
100 watts x 4 channel
RMS Power @ 2 ohms
150 watts x 4 channel
Bridged RMS Power
300 watts x 2 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
4-Channel
Total Peak Power Output
1200 watts
Total RMS Power Output
600 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
<1%
Speaker Level Inputs
Optional (Requires Accessory Adapter)
Built-in Crossover
Band-Pass (BP)
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 6,000 Hz
Low-Pass Crossover Frequency
50 - 400 Hz
Signal-to-Noise Ratio
80 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
  • Alpine RUX-KNOB.2
Fuse Rating
30A x 2
