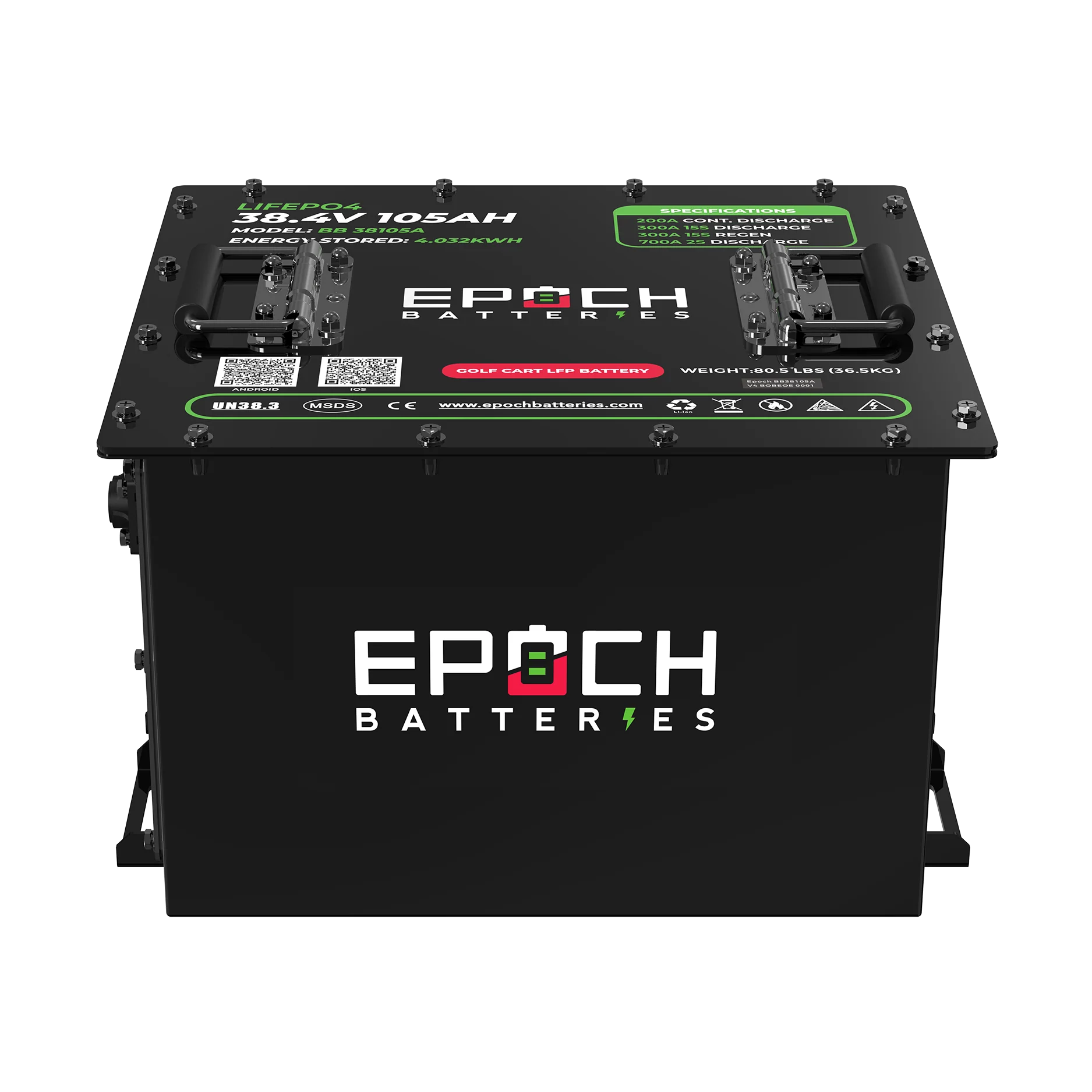

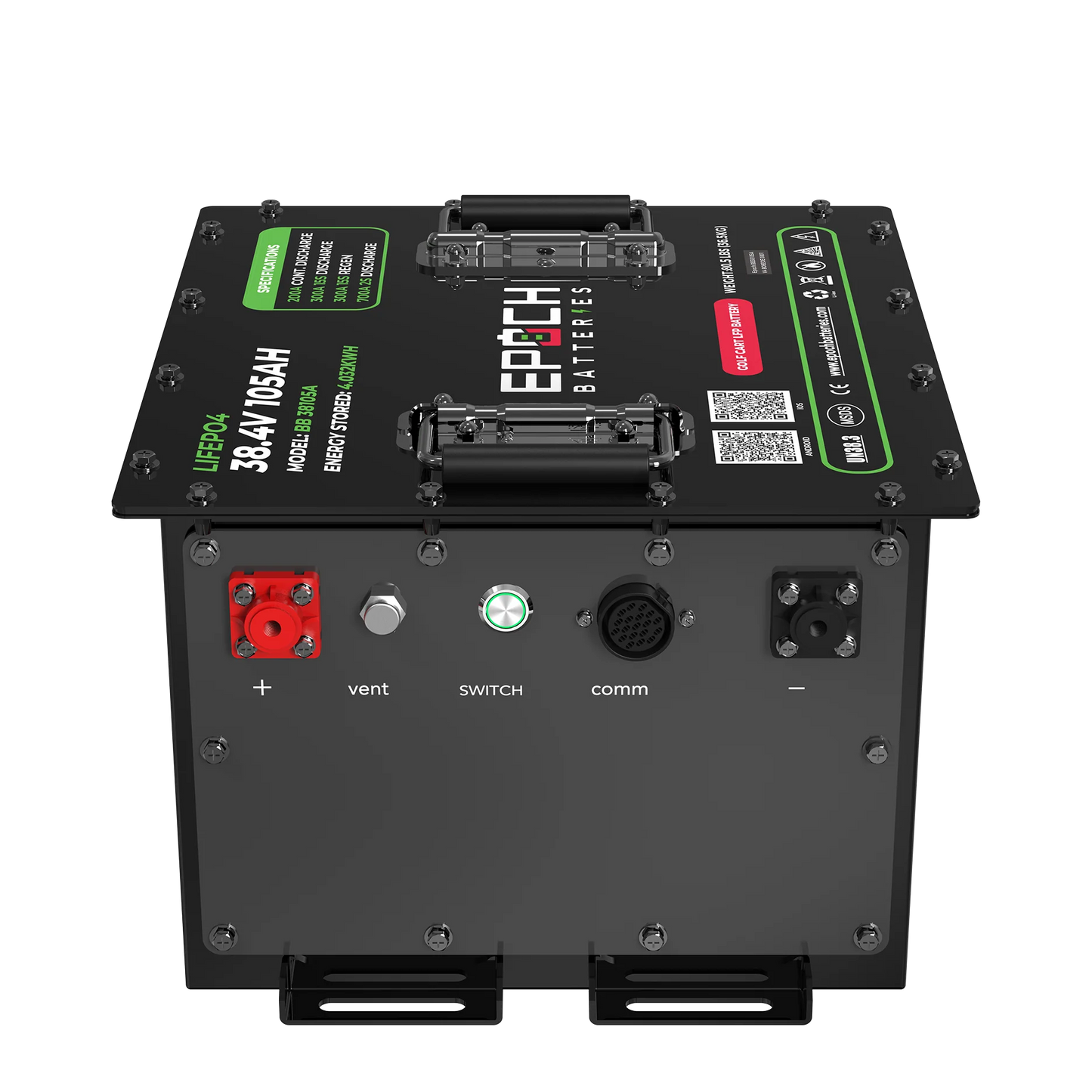

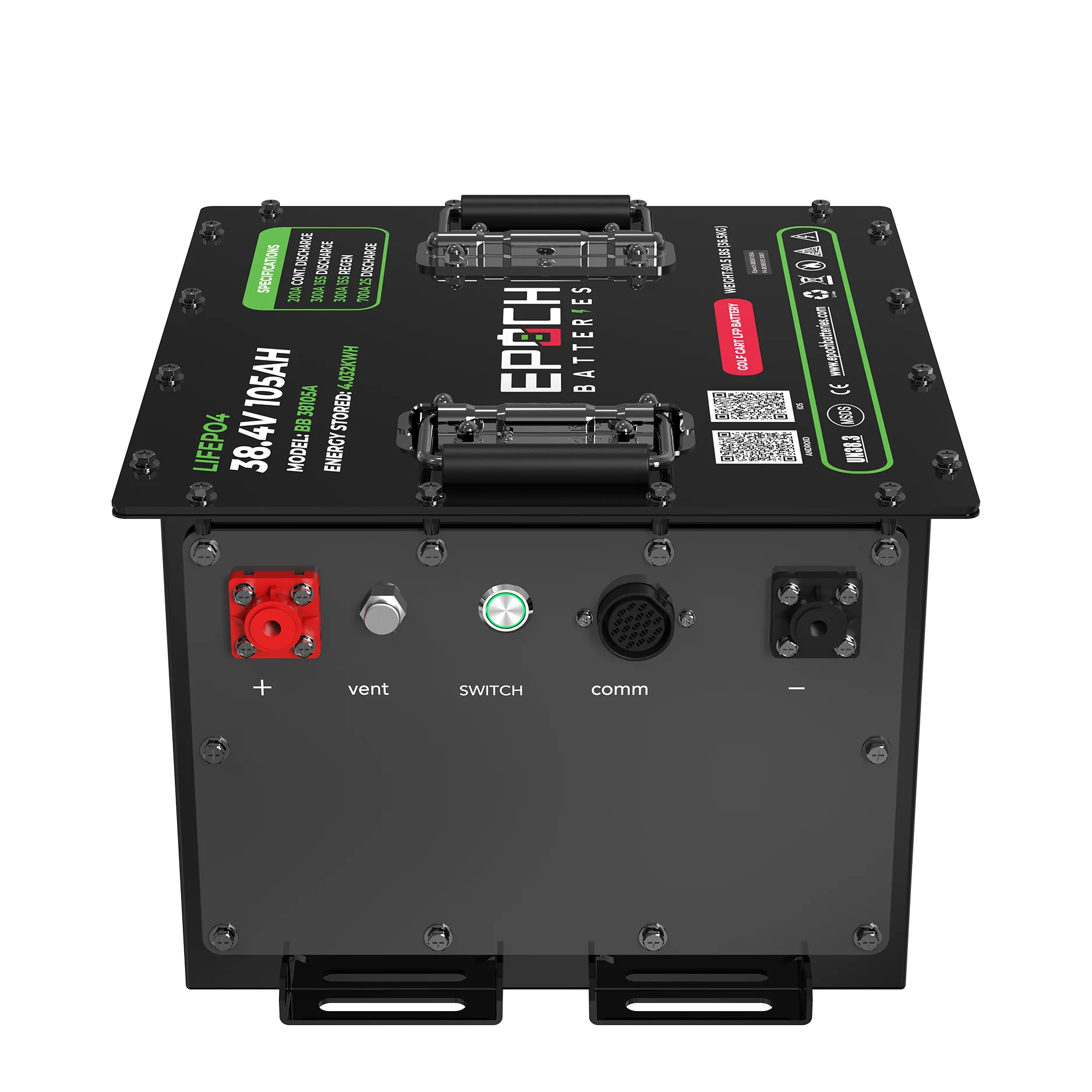

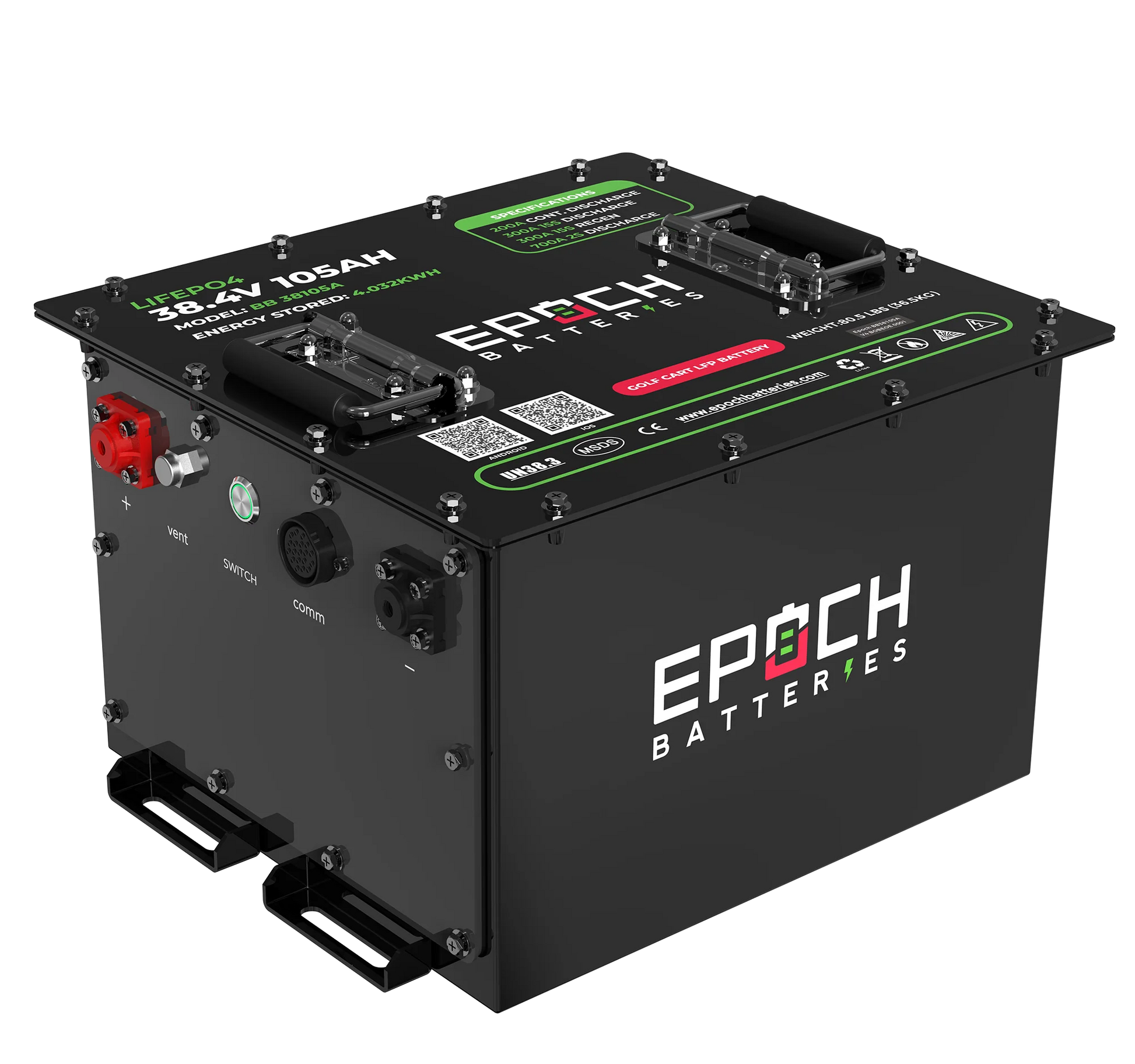

36V 105Ah - LiMax Series - Lithium (LiFePO4) Golf Cart Battery - Complete Kit

Cell Configuration: 4S1P

Chemistry: LiFePO4

Current

Ah Capacity: 314Ah

Max Continuous Discharge Amps: 200A

Max Charge Current Amps: 200A

Max Discharge Peak Current Amps: 400A (10 Seconds)

Series | Parallel: Max (4) in Series OR Max (16) in Parallel - 4S1P or 1S16P

Voltage

Voltage: 12.8V

Max Charge Voltage: 14.6V

Operating Voltage Range: 10.0 - 14.6V

Temperature

Charge Temp Range: -30°C (-22°F) / 55°C (131°F) (with self-heating)

Discharge Temp Range: -20°C (-4°F) / 55°C (131°F)

Storage Temp: 0°C (32°F) / 35°C (95°F)

Weight: 66 (LBS)

Dimensions

Length: 15.75 (inches)

Width: 8.66 (inches)

Height: 11.71 (inches)

To properly charge your Epoch Batteries, you will want to verify that any charging component in your system is capable of being programmed for the following specifications. Charging components can include, but are not limited to converters, inverter chargers, solar charge controllers, DC to DC chargers, etc.

Bulk/Absorption: 14.2V – 14.6V

Absorption Time: Two batteries in parallel connections require 30 minutes 200Ah

Float: 13.4V – 13.8V

Equalization: 14.4V/ Disabled

Temperature Compensation: 0/Disabled

Charge Rate: 50% of the battery or battery bank capacity

Battery Charge Temperature Range: 32°F (0°C) to 131°F (55°C)

Battery Discharge Temperature Range: -4°F (-20°C) to 140°F (60°C)

Cell Charge Temperature: 32°F (0°C) to 131°F (55°C)

Cell Discharge Temperature: -4°F (-20°C) to 140°F (60°C)

NOTE: Not all chargers are capable of multistage charging. If yours is not, you will want to verify it can be programmed for the Bulk/Absorption voltage and have the other items mentioned disabled if applicable. Consult your charger's manual or the manufacturer.
