Prodigy Audio™ | NB1200.1 | 1200 Watt Mono Block + Four 8" NB2-8D4 Subwoofers

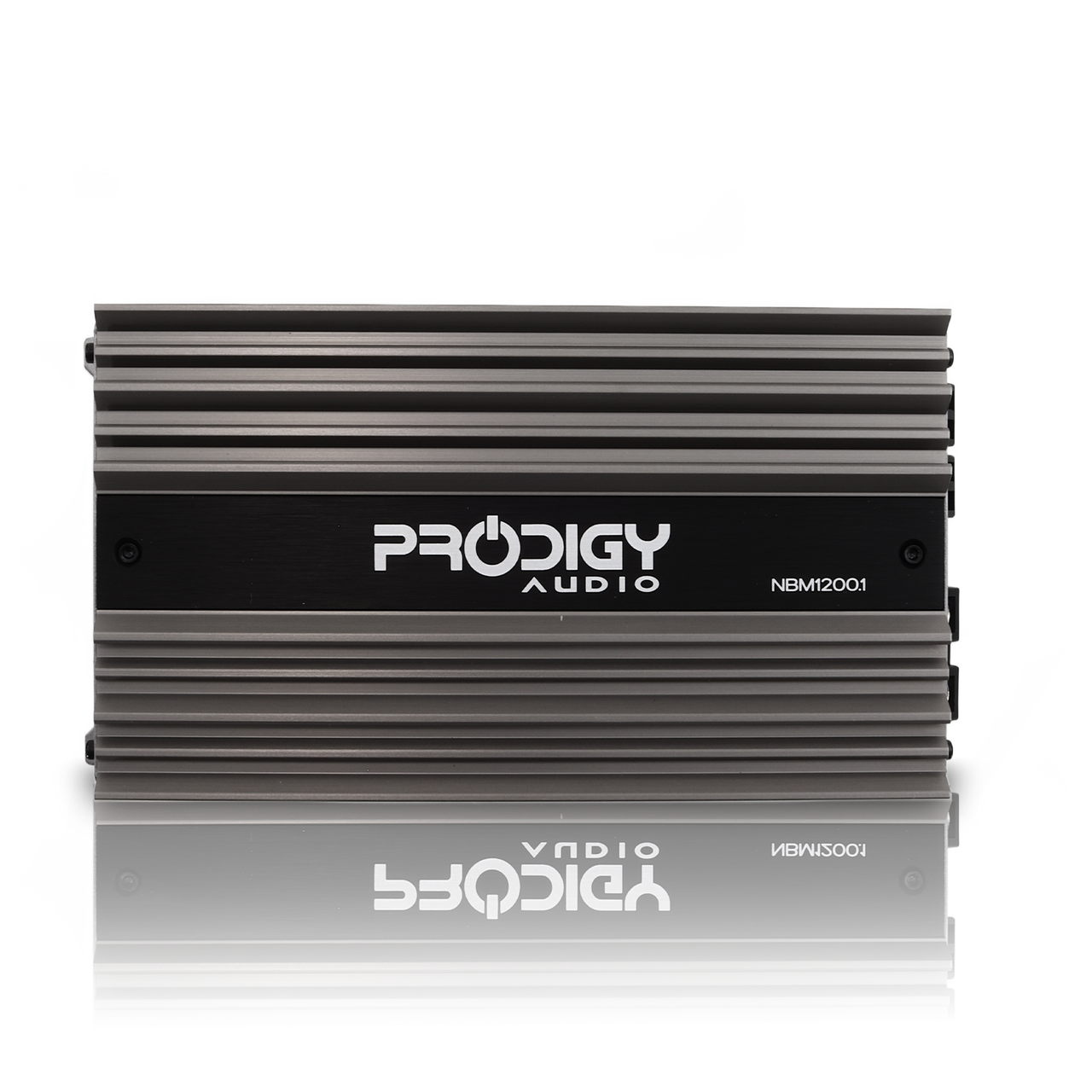

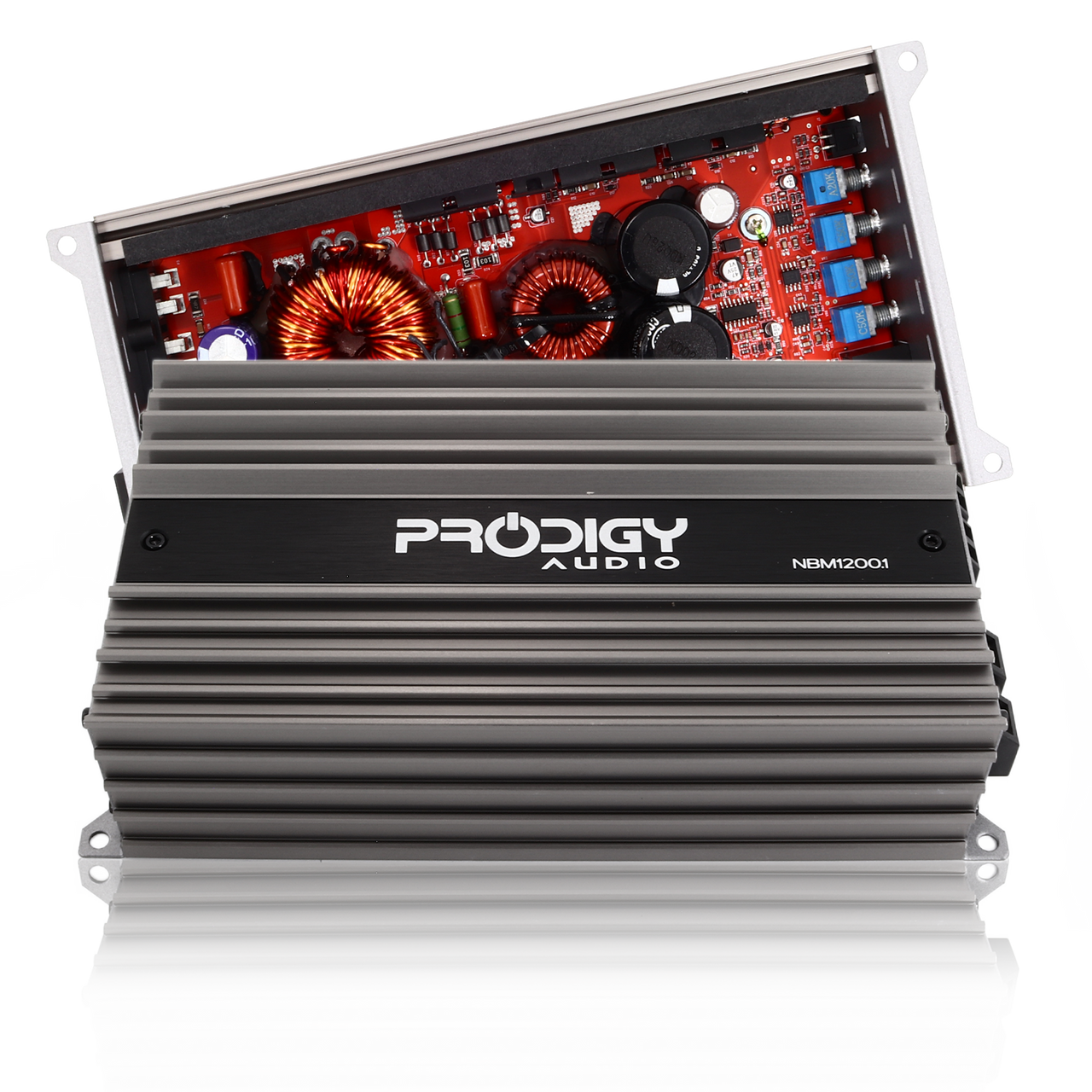

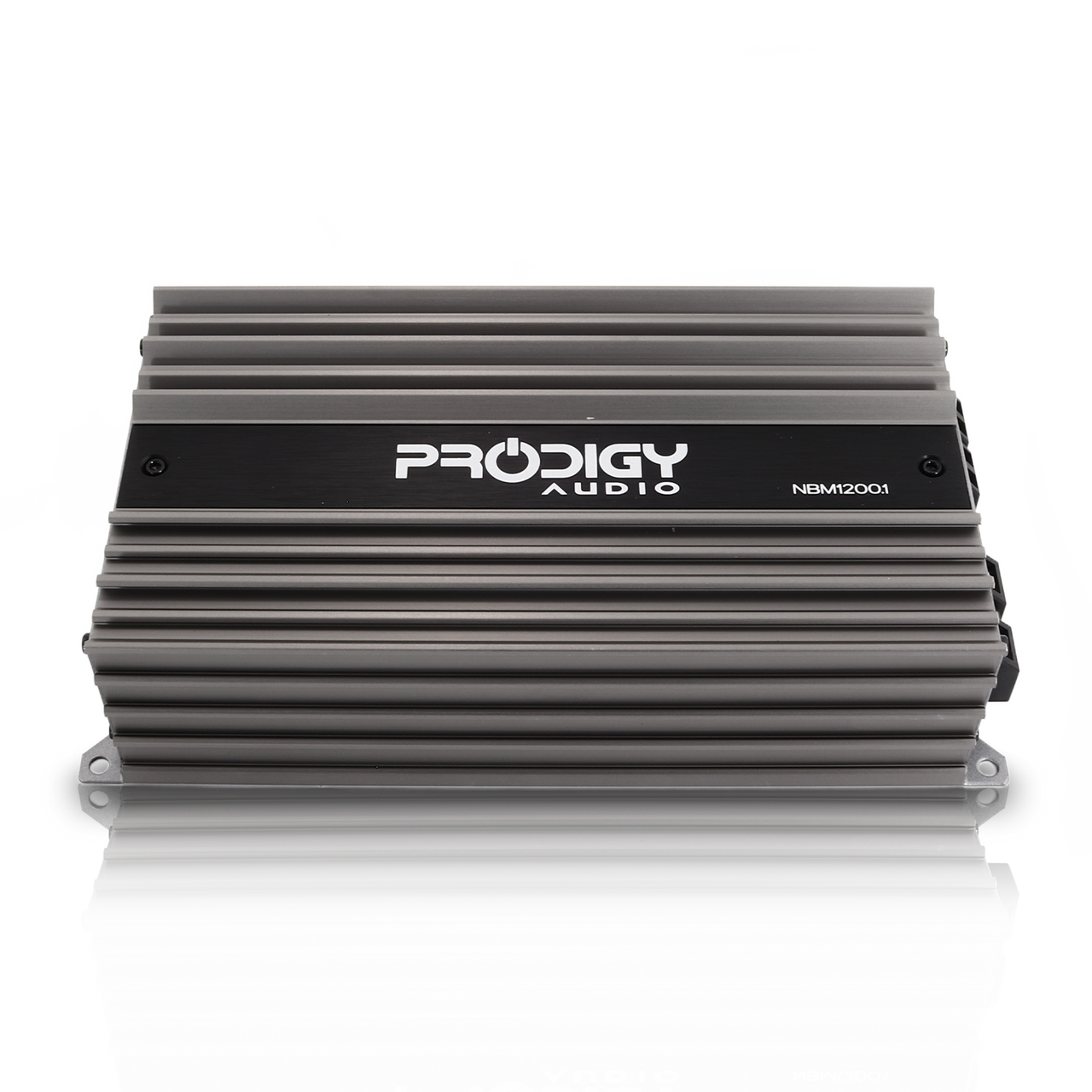

Our South Korea built NBM1200.1, mini 1200 watt mono block amplifier, is the perfect choice for maximum power in minimum space. The bass knob included features are an embossed Noizy Boy logo and monitors Voltage, temperature and clipping, all on the front of the bass knob.

Technical Highlights

Powerful 1200W RMS power at 1-OHM

Timeless design of heatsink. Features tall fins and high mass aluminum for enhanced cooling

Enhanced Cooling: Upgraded thermal management featuring quiet high-speed cooling fans.

Designed for powerful small footprint

RMS Power:

4 ohm: 550W x 1

2 ohm: 950W x 1

1 ohm: 1200W x 1

Operating Voltage: 9 to 15.5 Volts

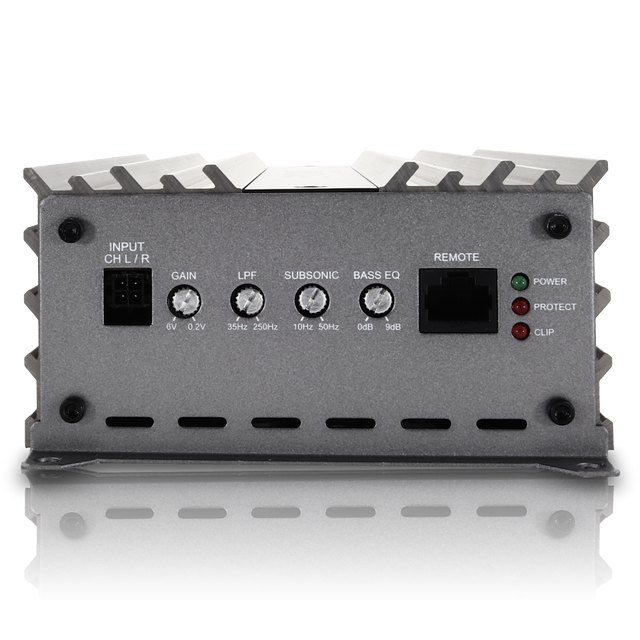

Tuning and Sound:

Frequency Response: 10Hz - 264Hz

Low Pass Filter: 35Hz - 250Hz

Subsonic Filter: 10Hz - 50Hz

Input Sensitivity: 6V - 0.2V

Signal to Noise Ratio: >95dB

Total Harmonic Distortion (T.H.D): <0.1%

Operating Voltage: 9V - 15.5V

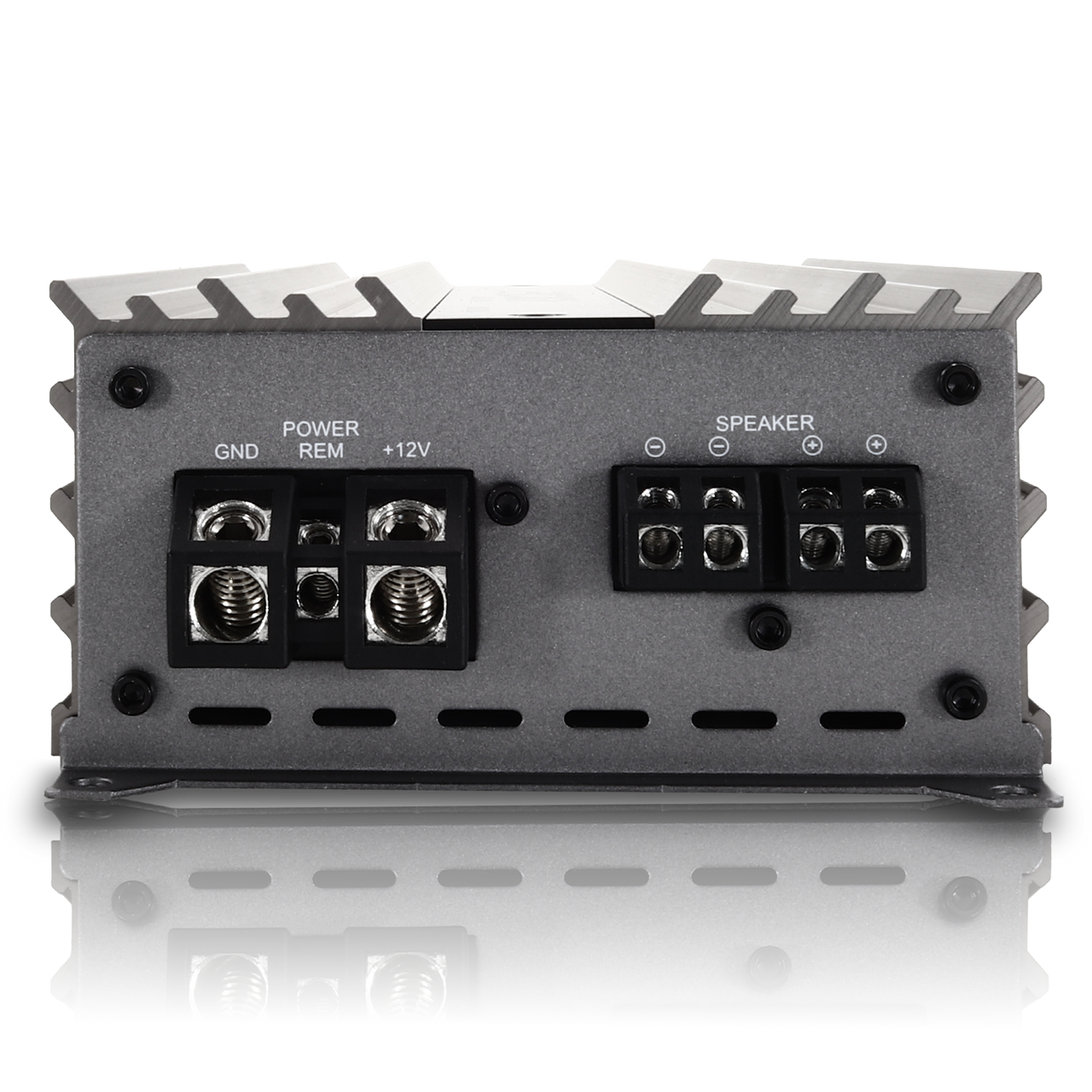

Fuse & Wiring:

Fuse Rating: 110A

Speaker Wire Input: Up to 12 gauge

Power and Ground Input: 4 gauge

Dimensions:

8.26" L x 4.87" H x 2.13" W inches

(210mm x 124mm x 54mm)

Additional Features:

DIGITAL MONOBLOCK AMPLIFIER: Optimized for bass and stable at a 1-ohm mono load.

HIGH-SPEED MOSFET POWER SUPPLY: Ensures consistent power delivery.

VARIABLE LOW PASS FILTER: Customize your bass to suit your preferences.

VARIABLE SUBSONIC FILTER: Protects your speakers from harmful frequencies.

4-WAY PROTECTION CIRCUITS: Includes thermal, high & low voltage, speaker short, and DC protection.

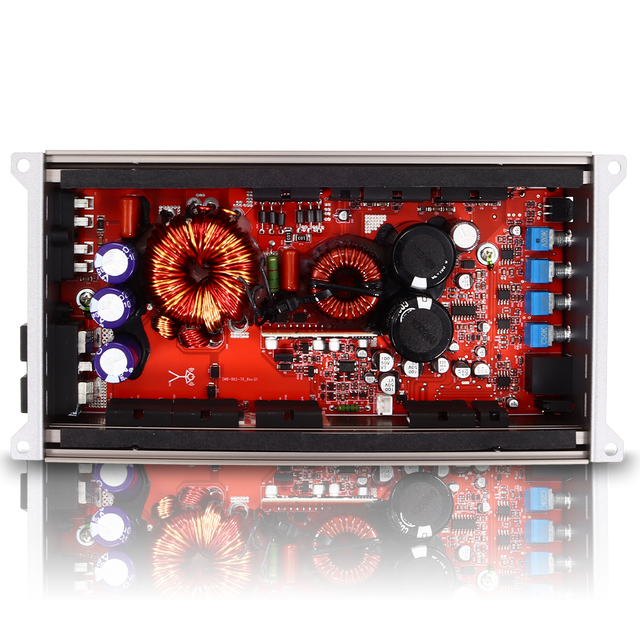

HIGH PURITY COPPER PRINTED CIRCUIT BOARD: Enhances signal flow and output.

Distributor & Authorized Internet Dealer

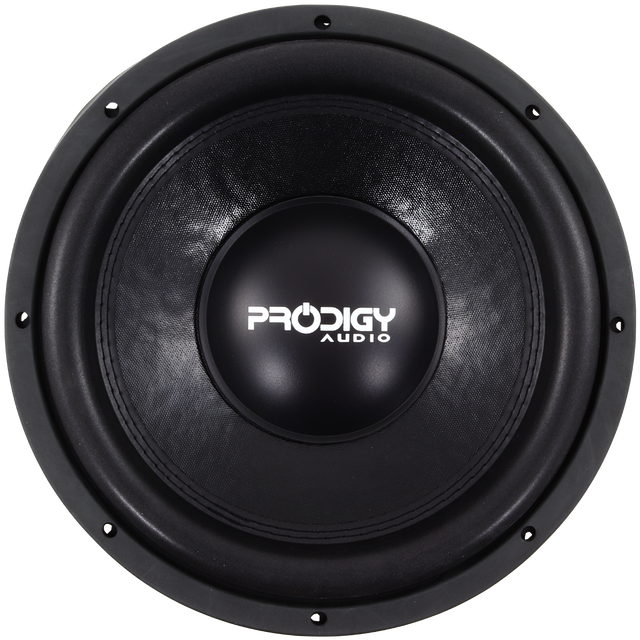

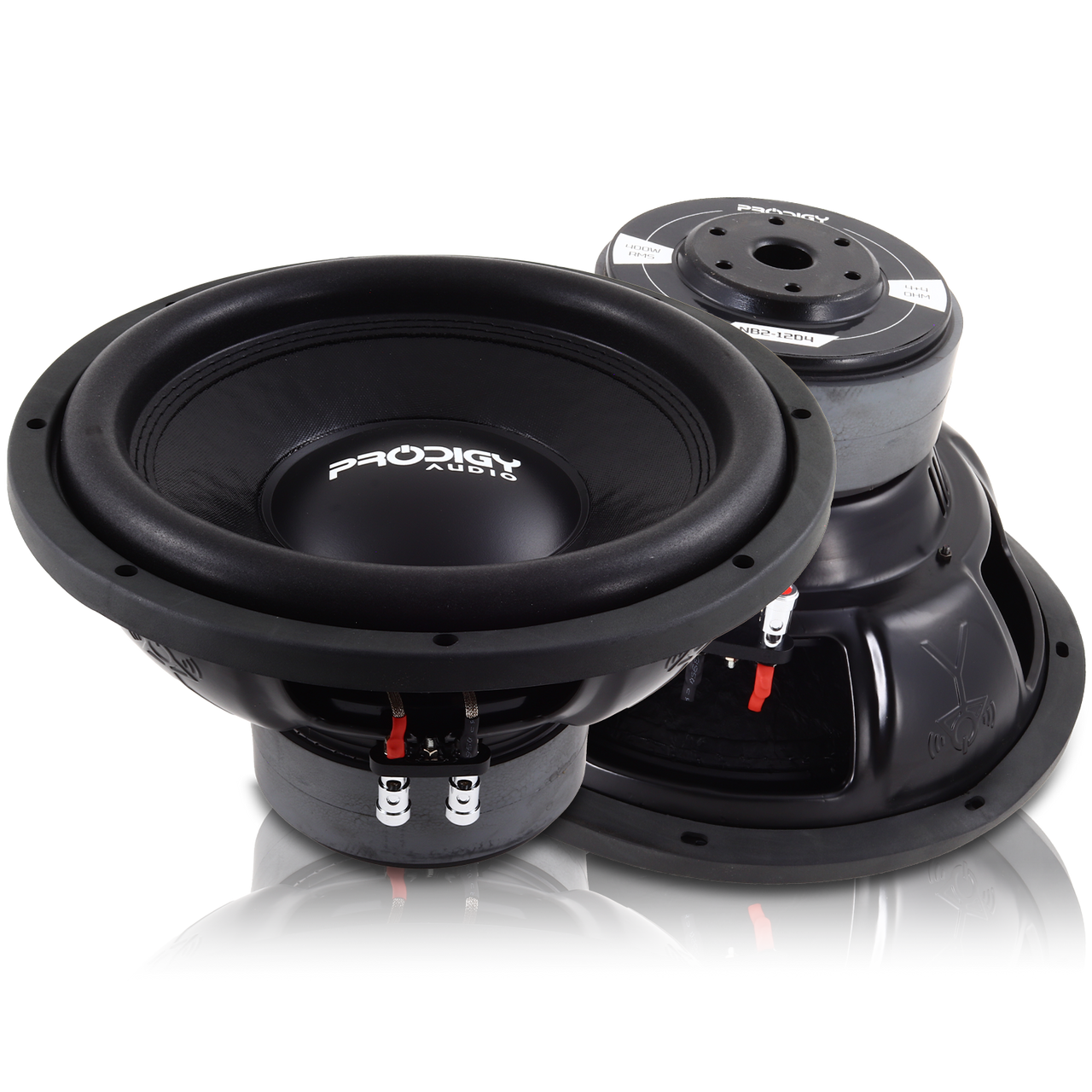

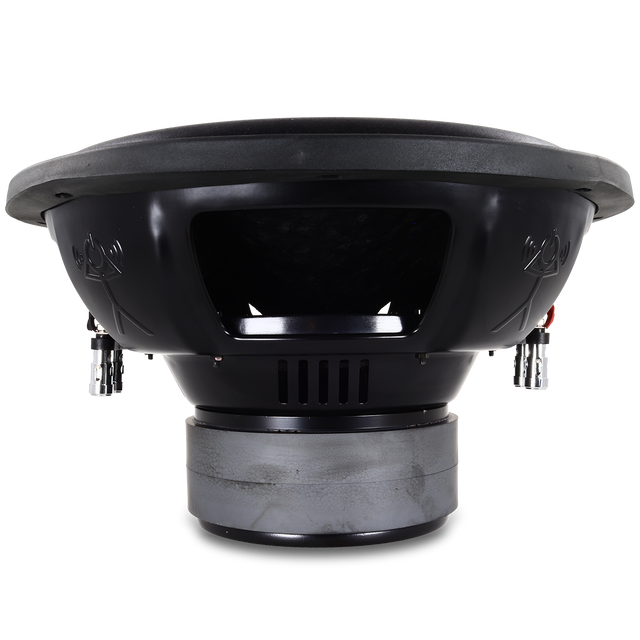

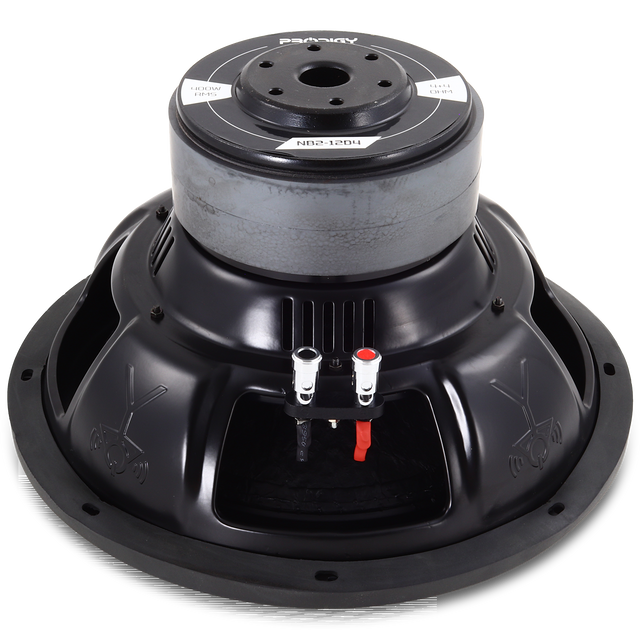

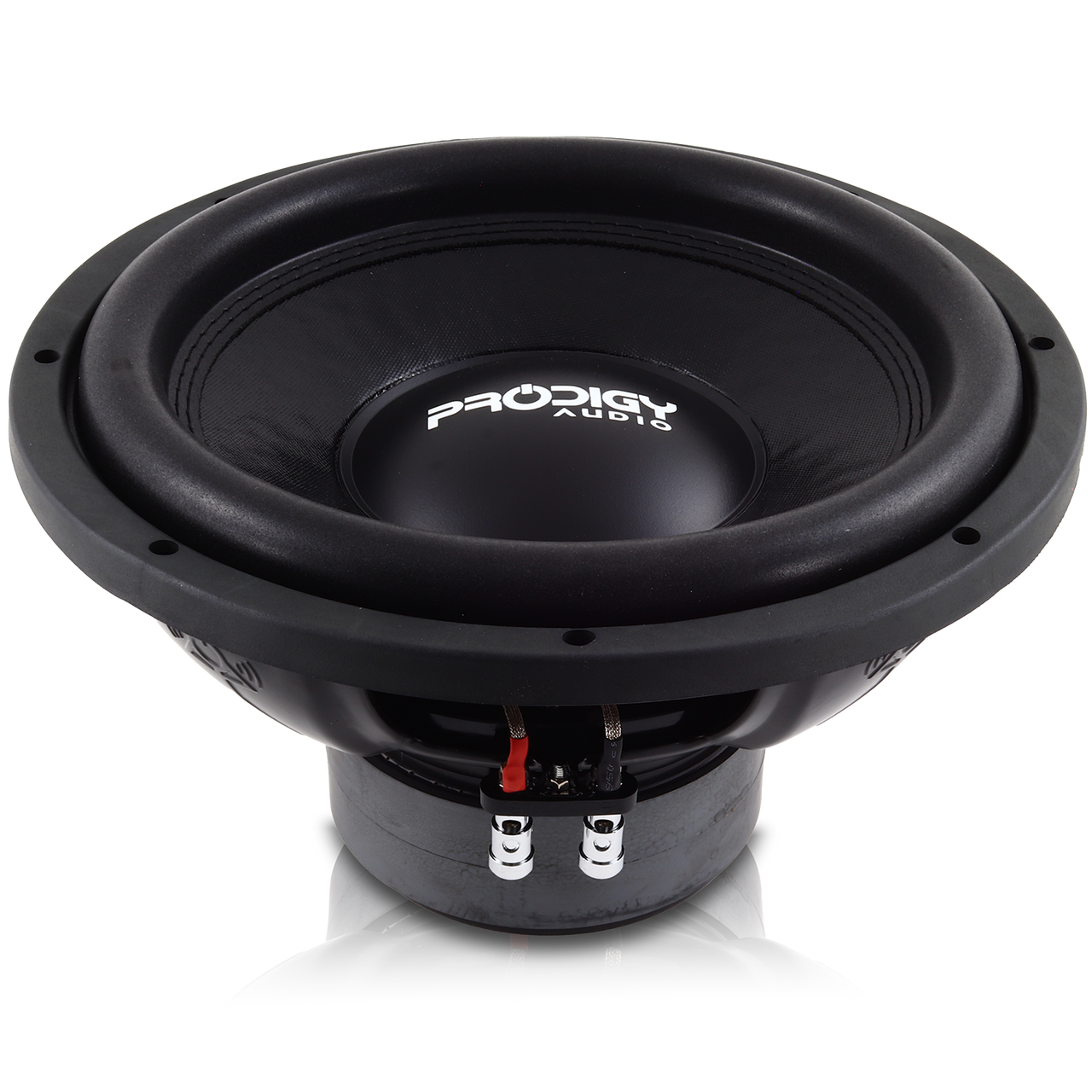

The NB2 Series of subs are class leading first level subwoofers, with many features normally found only in higher end products. Starting with a double stacked magnet structure paired with a very long voice coil, the NB2 has an advantage. Reaching up to 14mm of linear Xmax One Way and 2” of mechanical movement clearance peak to peak, it assures a durable subwoofer. Excellent cooling is achieved by offering a center pole Vent as well as Radial back plate holes for moving BTU’s out of the coil gap. To increase the power handling, we chose to use 500f degree coil adhesive and glue joints throughout the subwoofer. We chose a durable foam surround with a strong paper cone to move the sound pressures reliably. A rubber gasket, chrome push terminals, quality Cotton blend spider with stitched tinsel leads all round out the quality choices toward offering one of the very best first level subwoofers on the market.

Features:

• RMS Power 300 Watts on 8"
• 8”, 10” and 12” Sizes
• Xmax of up to 14mm one way at 70% BL
• High temperature 4 Layer copper voice coil
• Black aluminum 2” voice coil former
• Dual 4 ohm coil
• Rear radial coil gap cooling holes
• Center pole vent optimized for moving BTU’s
• Strong stamped steel frame with logo
• Quality chrome push terminals
• Flat stitched tinsel leads

Specifications:

Cut Outs & Sizes

Enclosure Design
