NVX XQS65KIT Version 2 (XQS65KITv2)

6-1/2" X Series 2-way Component System Car Speakers
Power Handling:
Peak: 600 watts per set / 300 watts each side
RMS: 300 watts per set / 150 watts each side

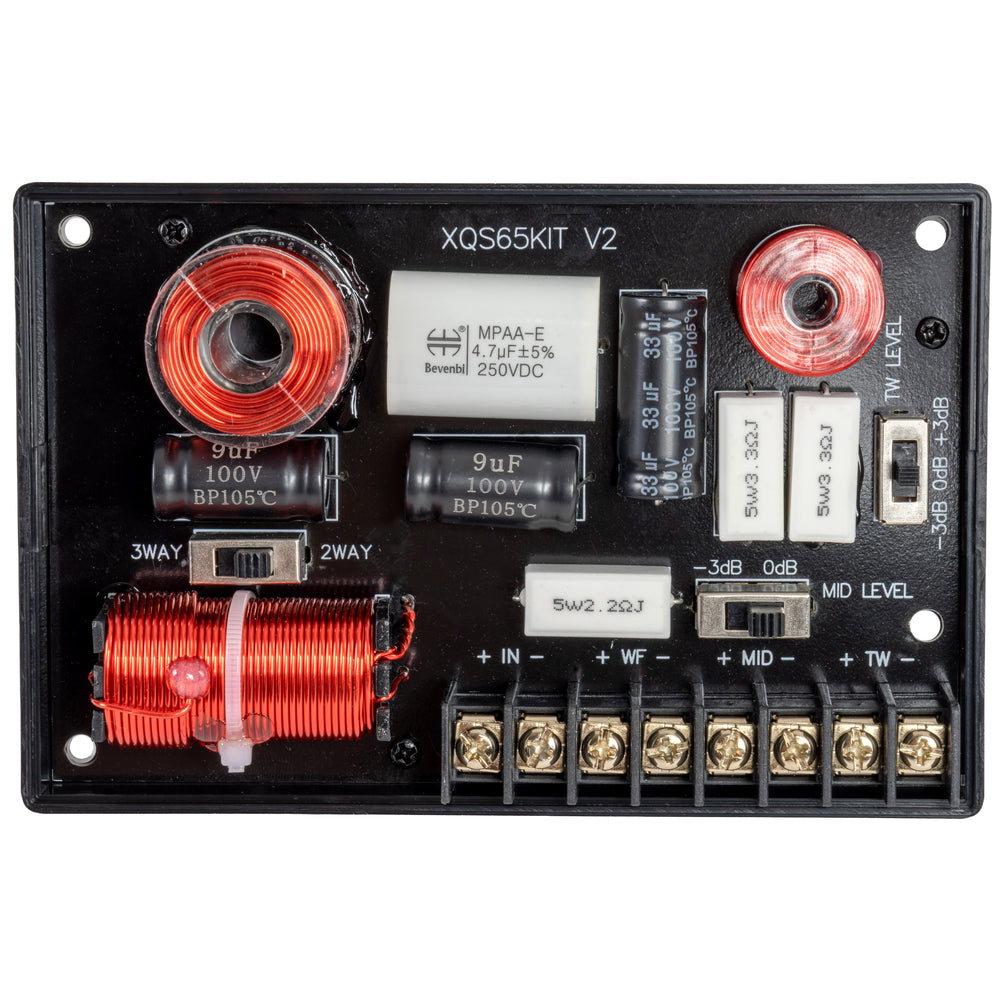

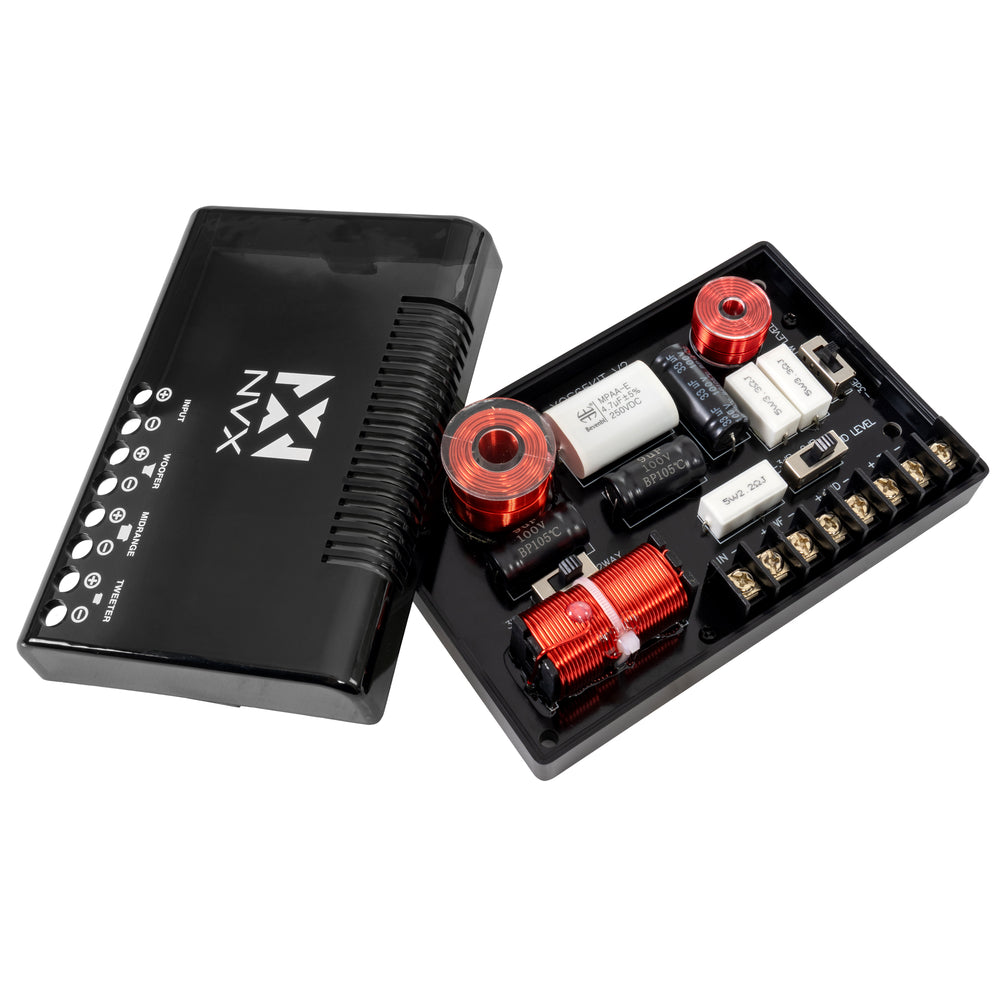

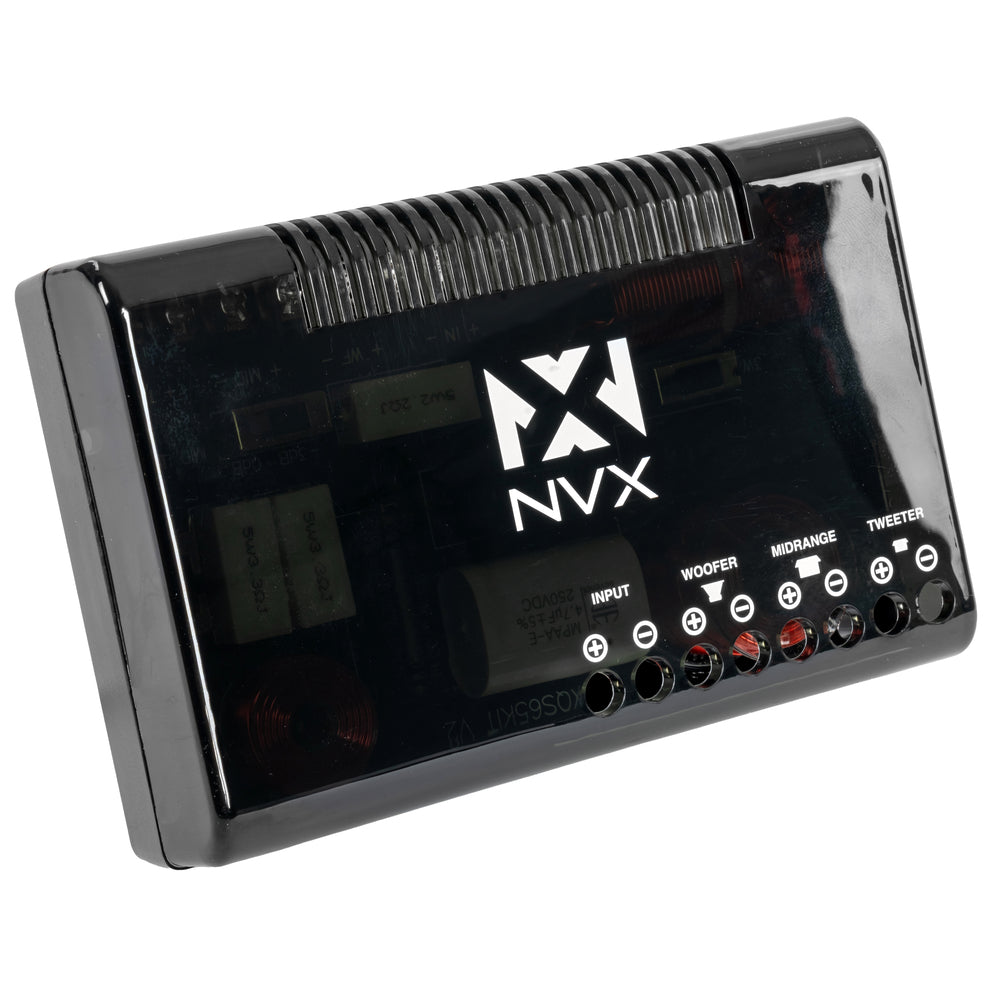

Switchable 2-way and 3-way external crossover networks with adjustable tweeter and midrange attenuation
Upgrade to a 3-way system by incorporating NVX XQS3v2 3.5" or NVX XQS2 2.5" midrange speakers (Sold separately)
Carbon Fiber cone material
Rubber speaker surround

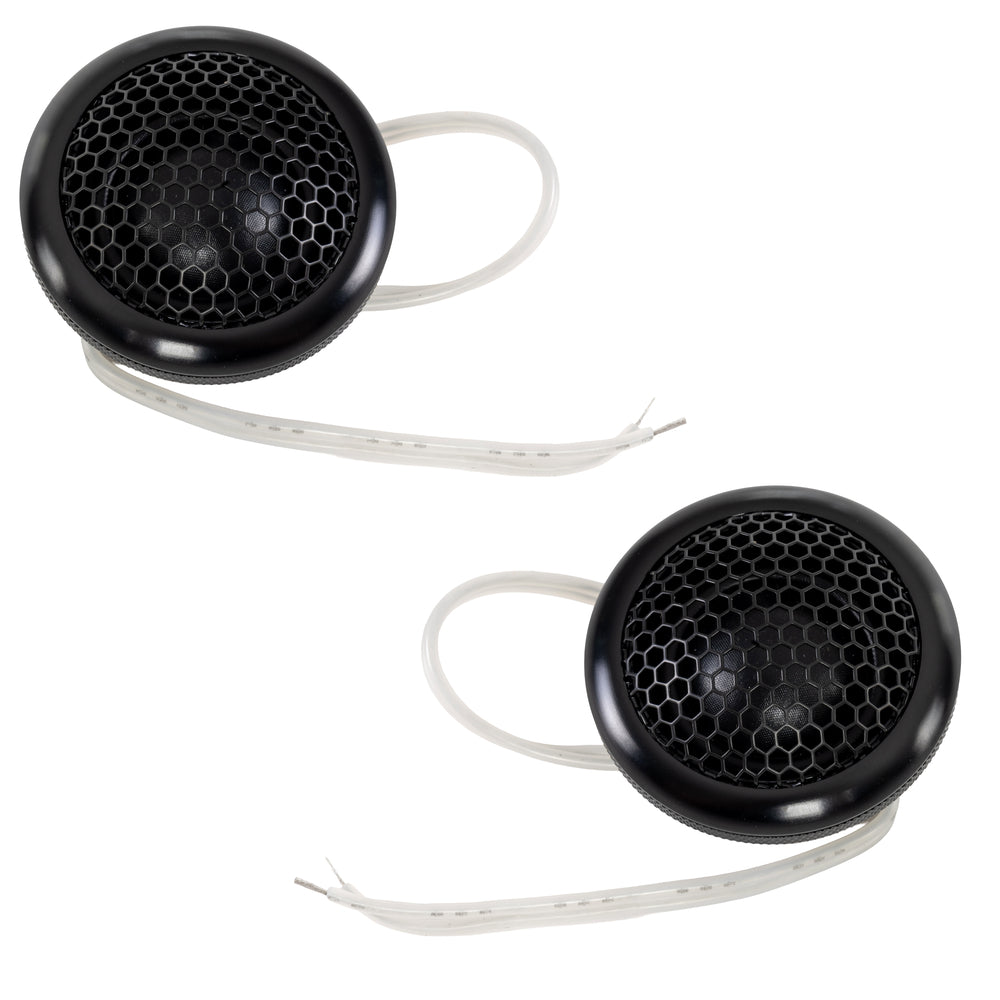

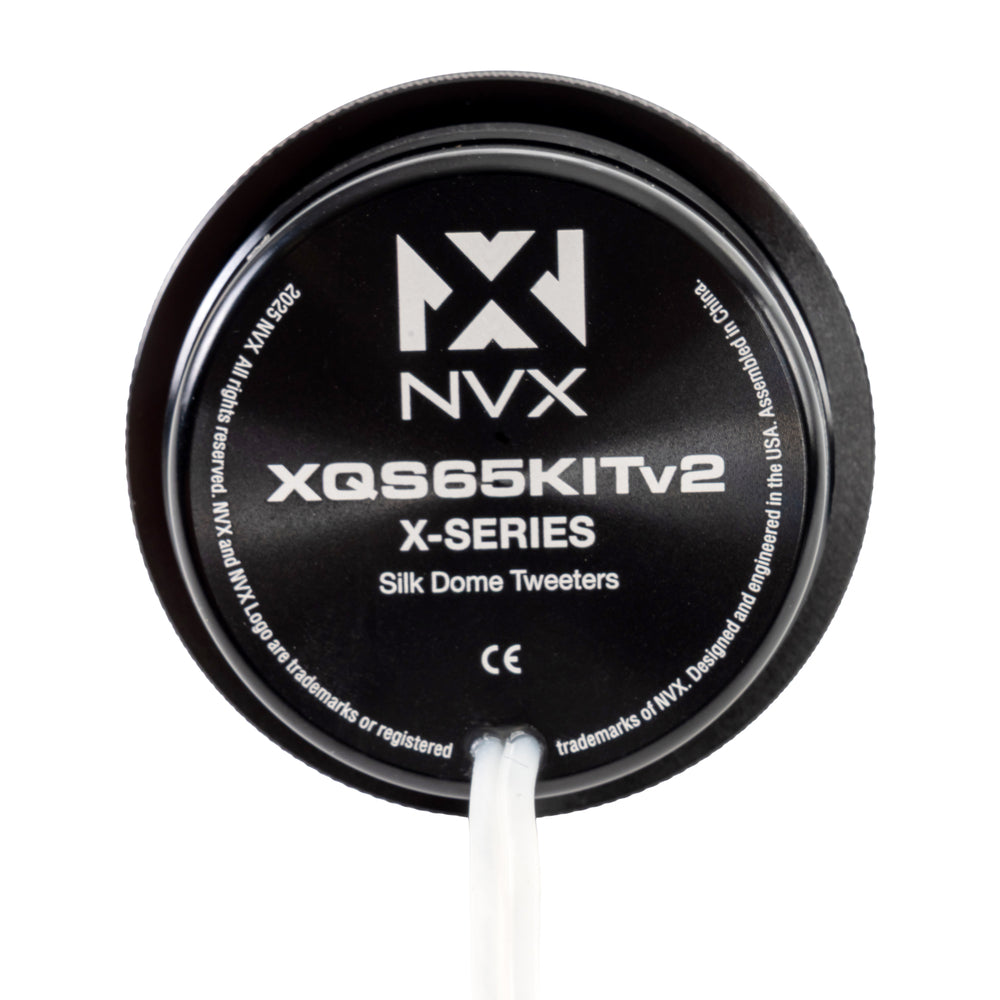

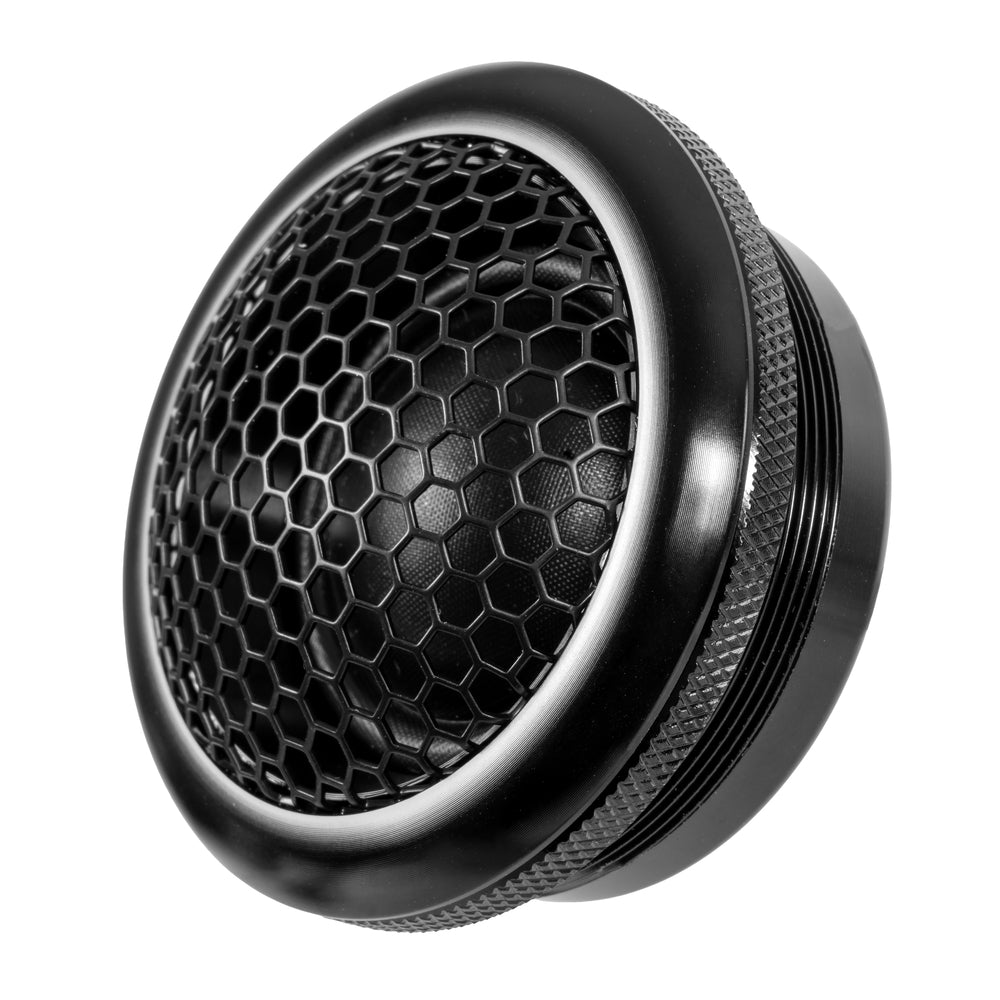

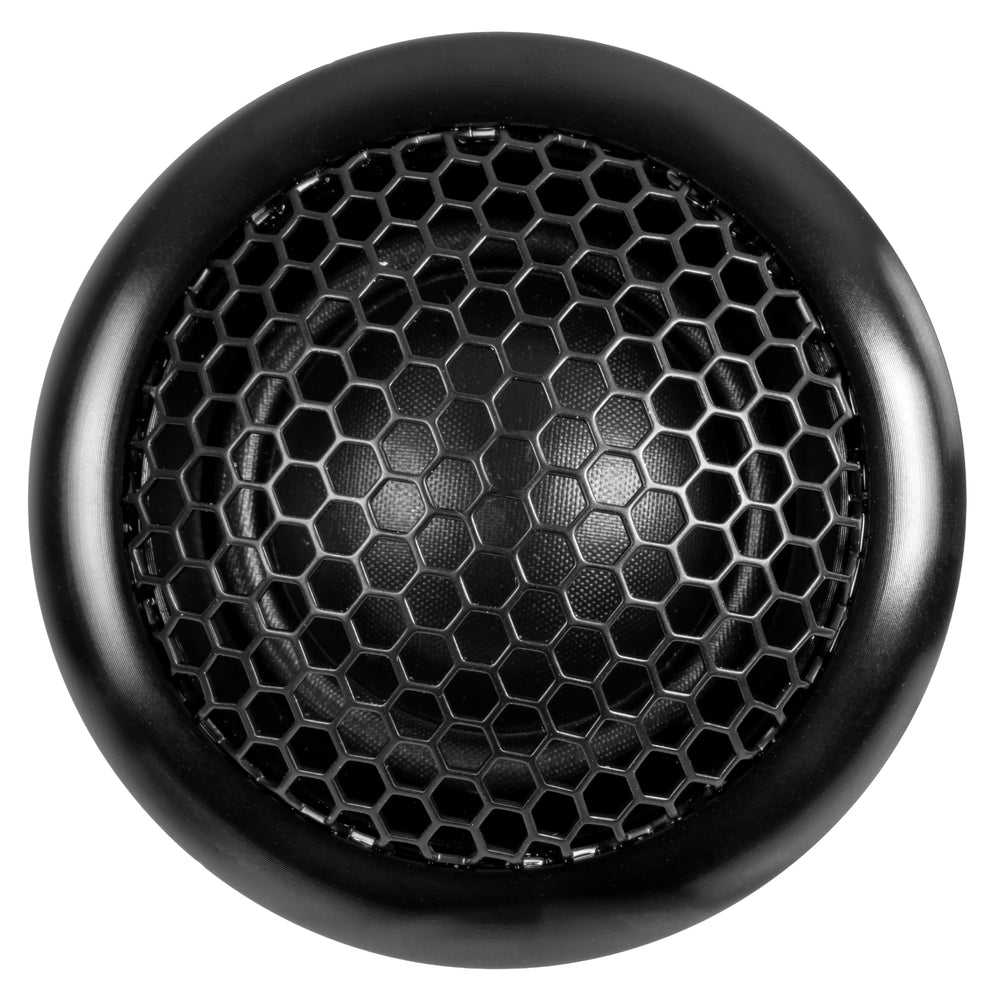

1-1/8" Silk Dome Tweeters with Neodymium magnet

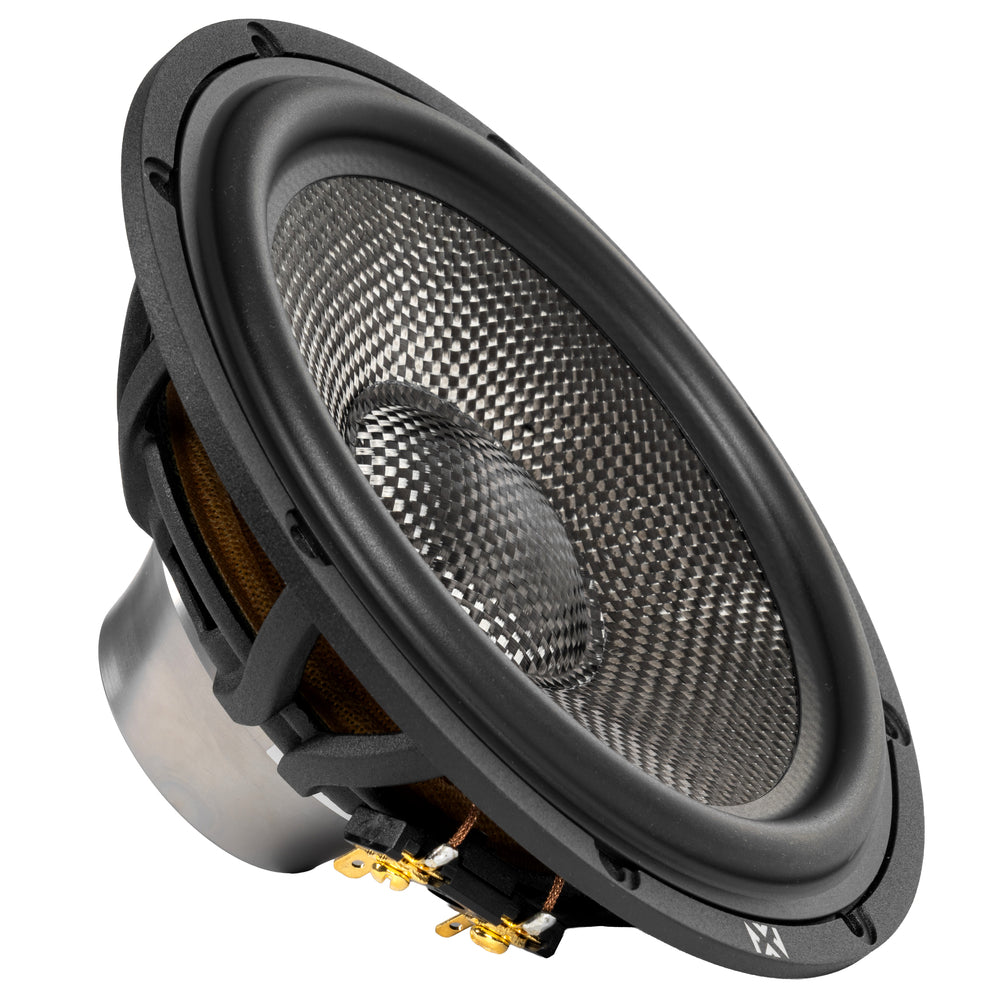

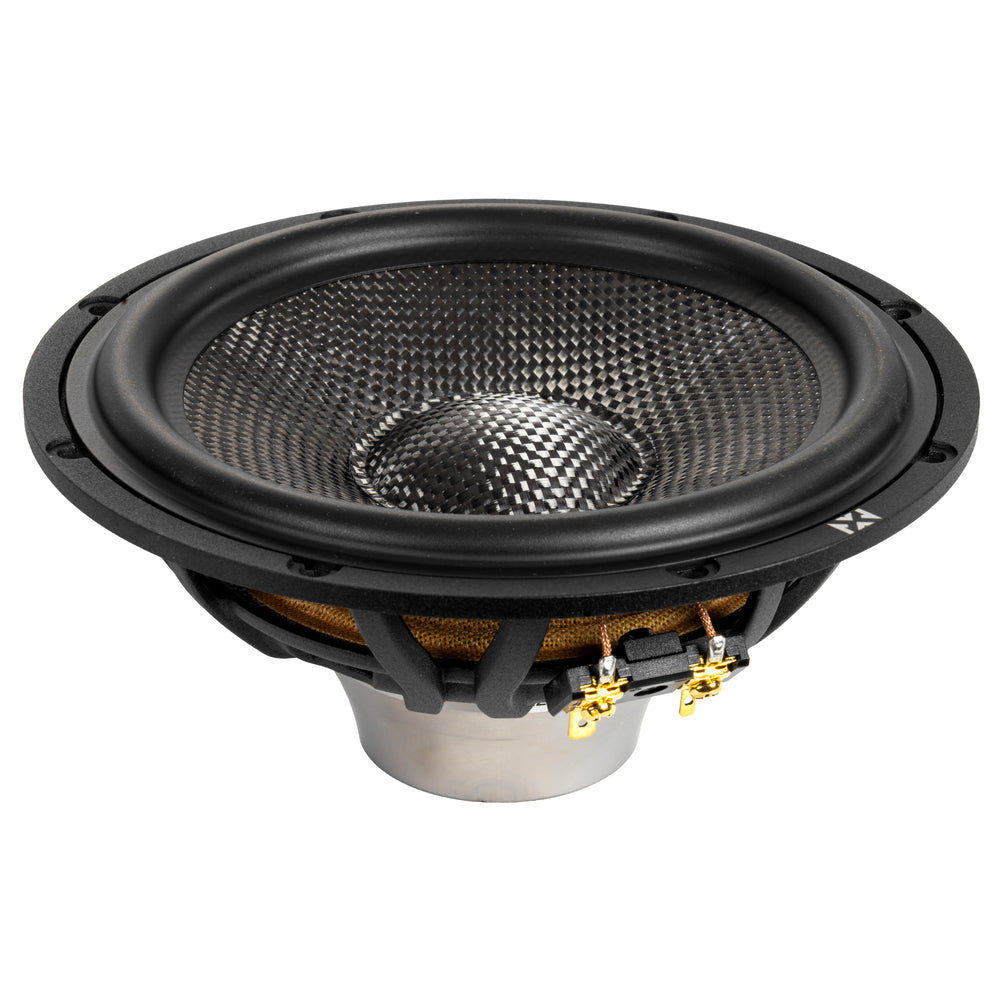

1-3/16" High-Temperature voice coil (Midwoofers)

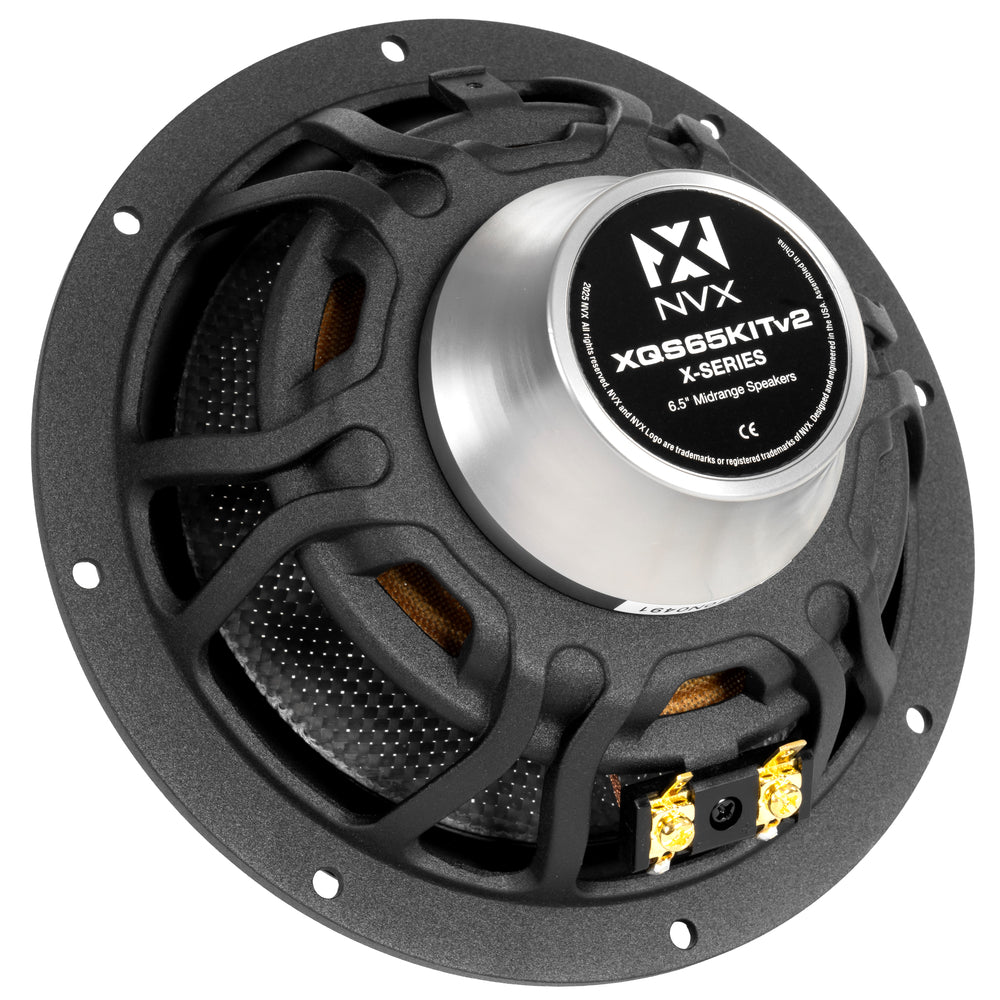

Neodymium magnet motor structure (Midwoofers)

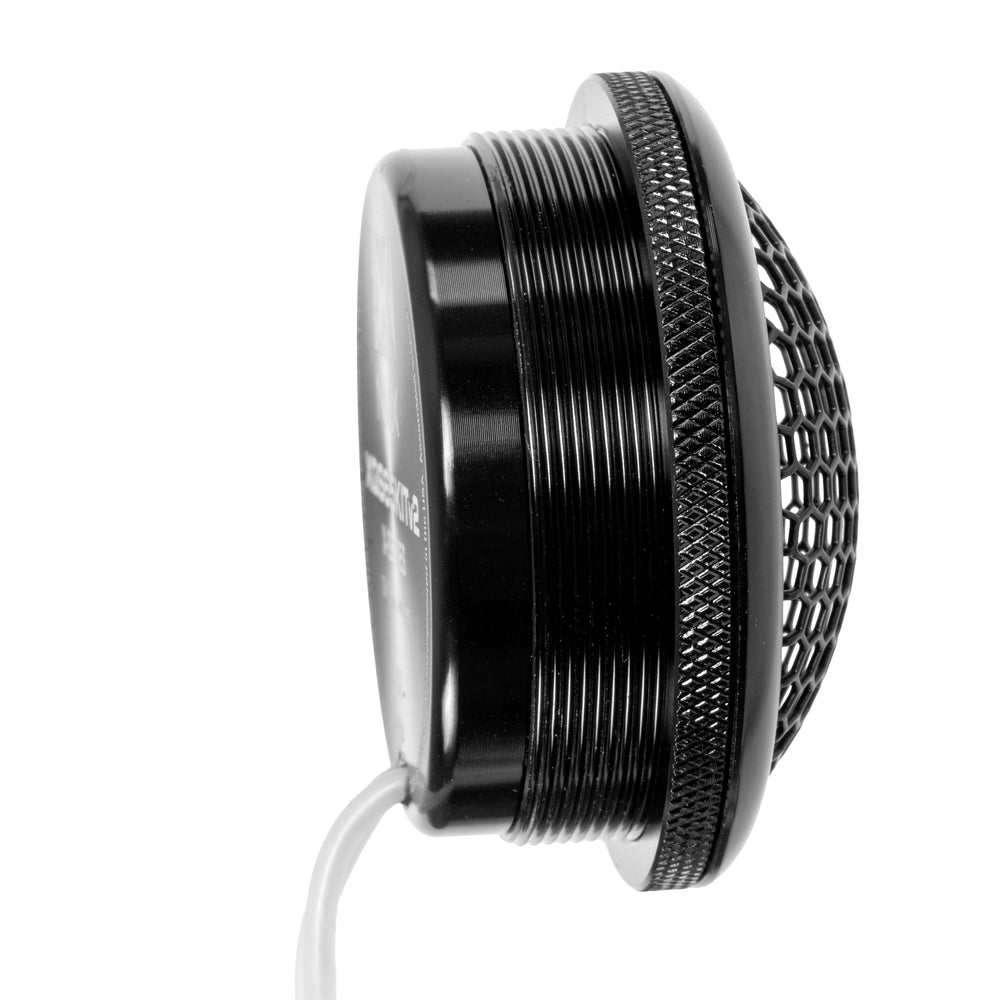

Tweeter Mounting Depth: 0.88"
Tweeter Cutout Dimensions: 1.96"

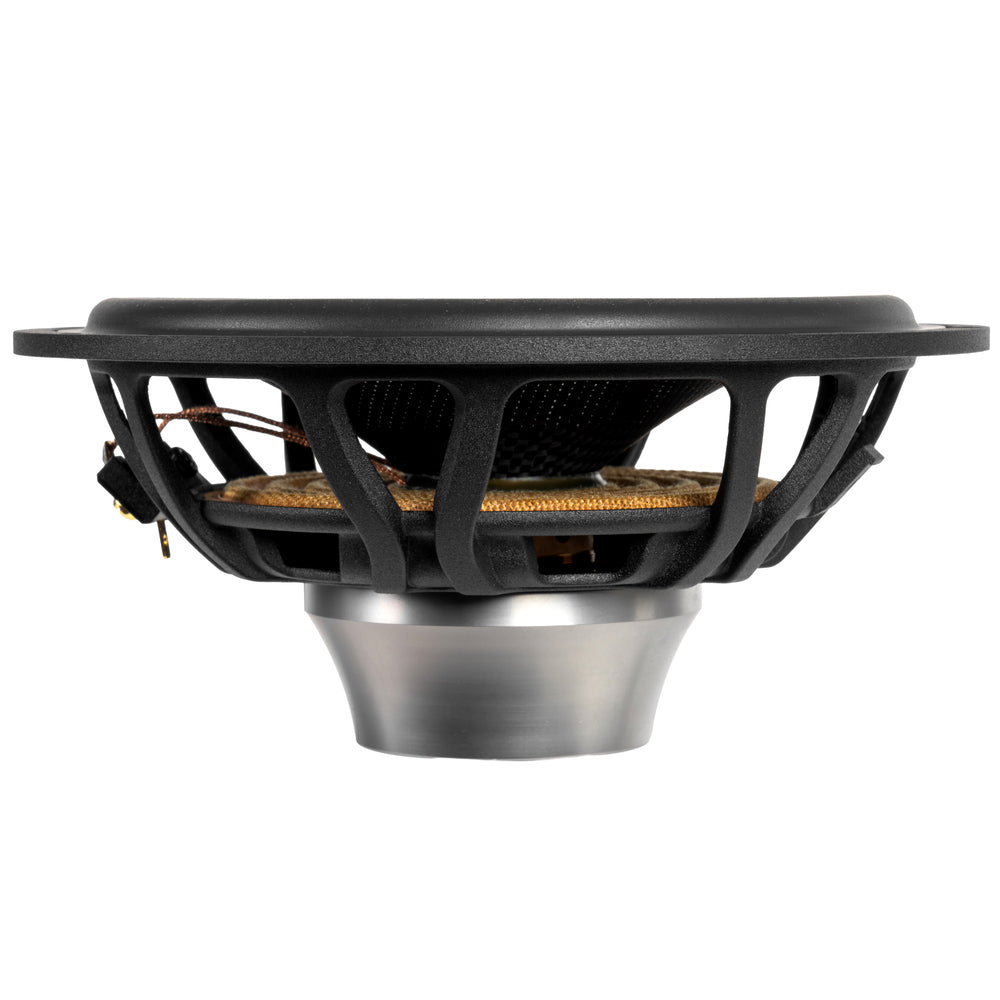

Midwoofer Mounting Depth: 2.64"
Midwoofer Cutout Dimensions: 5.68"
Impedance: 4 ohm
Frequency Response: 45 - 20000 Hz
Sensitivity: 93 dB
CEA-2031 compliant
Authorized Internet Dealer
1-year Manufacturer's Warranty

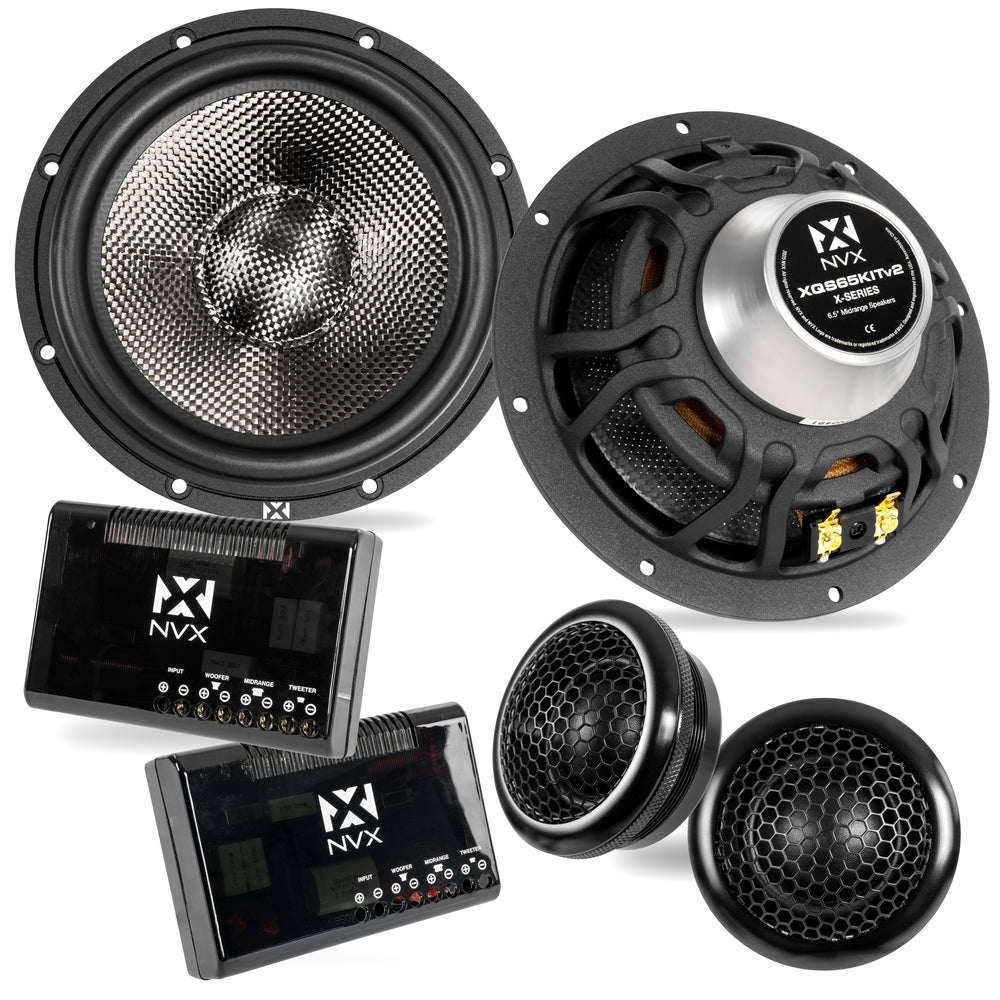

Priced Per Complete Component System: 2 midwoofers, 2 tweeters and 2 crossover networks.

T/S Parameters:
Voice Coil Resistance (Re): 3.2 Ω
Free Air Resonance (Fs): 50.6 Hz
Equivalent Compliance (Vas): 21.59 L
Electrical “Q” (Qes): 0.543
Mechanical “Q” (Qms): 2.314
Total Speaker “Q” (Qts): 0.44
Moving Mass (Mms): 12.184 g
Mechanical Compliance (Cms): 0.812 mm/N
Magnetic Strength (BL): 4.626 T·m
Effective Piston Area (Sd): 21.21 sq. in (0.013685 sq. m)
